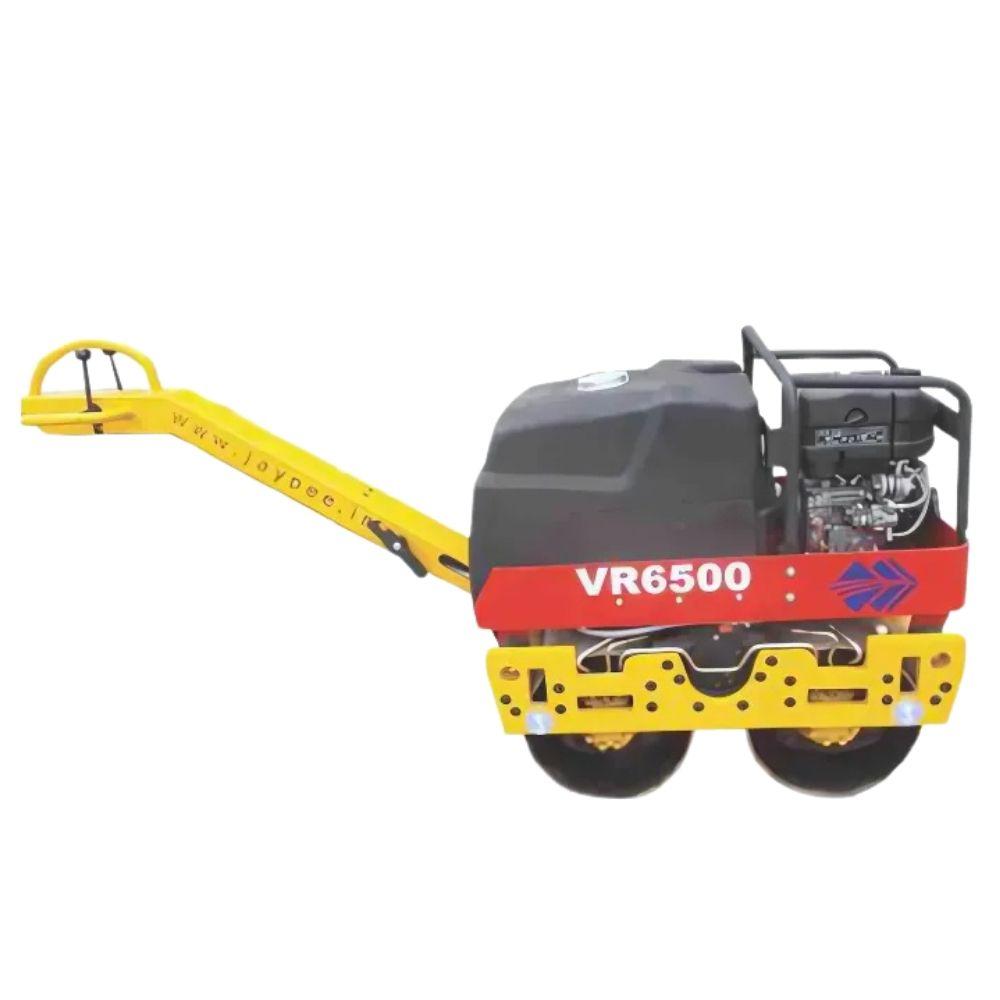

JAYMAC VR-6500 Walk Behind Roller
The JAYMAC VR-6500 Walk Behind Roller is a compact yet powerful solution for efficient compaction in construction and maintenance projects. Equipped with a 650 mm drum width and a robust centrifugal force of 21 kN, it delivers exceptional performance on asphalt and granular materials. Its vibration frequency of 61 Hz and nominal amplitude of 0.45 mm ensure uniform compaction, even in challenging conditions. Powered by the reliable Lombardini 15LD441 diesel engine, the VR-6500 offers excellent fuel efficiency, consuming only 1.35 liters per hour. With a gradeability of 35% and speeds up to 3.7 km/h, it is ideal for tasks ranging from road maintenance to parking lot construction. Additionally, the 65-liter hydraulic sprinkling system enhances operational efficiency, making the VR-6500 a dependable choice for contractors seeking durability and performance.
JAYMAC VR-6500 Walk Behind Roller
The JAYMAC VR-6500 Walk Behind Roller is a compact yet powerful solution for efficient compaction in construction and maintenance projects. Equipped with a 650 mm drum width and a robust centrifugal force of 21 kN, it delivers exceptional performance on asphalt and granular materials. Its vibration frequency of 61 Hz and nominal amplitude of 0.45 mm ensure uniform compaction, even in challenging conditions. Powered by the reliable Lombardini 15LD441 diesel engine, the VR-6500 offers excellent fuel efficiency, consuming only 1.35 liters per hour. With a gradeability of 35% and speeds up to 3.7 km/h, it is ideal for tasks ranging from road maintenance to parking lot construction. Additionally, the 65-liter hydraulic sprinkling system enhances operational efficiency, making the VR-6500 a dependable choice for contractors seeking durability and performance.
- •Ensure fuel efficiency in small to medium-scale projects with the Lombardini diesel engine's low consumption of 1.35 L/hour.
- •Compact sub-base layers efficiently in tight spaces with the VR-6500's 650 mm drum width and powerful 21 kN centrifugal force.
- •Maximize productivity in road maintenance and parking lot construction with its 3.7 km/h forward speed and 35% gradeability.
- •Operate for extended periods with minimal downtime using the VR-6500's 65-liter hydraulic sprinkling system.
- •Achieve uniform compaction on asphalt and granular materials with the VR-6500's 61 Hz vibration frequency.
Product Description
The JAYMAC VR-6500 Walk Behind Roller is a compact yet powerful solution for efficient compaction in...
JAYMAC VR-6500 Walk Behind Roller Comparison with Similar Walk Behind Rollers
JAYMAC VR-6500 Walk Behind Roller
Fuel Type
-
Engine Brand
-
Engine Model
-
Engine Power (effective)
-
Engine Power (operating)
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Fuel Consumption
-
Transmission Type
-
Max Travel Speed (fwd)
-
Max Travel Speed (rev)
-
Gradeability (with Vib)
-
Gradeability (w/o Vib)
-
Max Weight (with Options)
-
Operating Weight
-
Hydraulic Oil Capacity
-
Hydraulic Fluid Type
-
Sound Power Level (lwa)
-
Sound Pressure At Operator (lpa)
-
Hav (hand Arm Vibration)
-
Vibration Frequency
-
Amplitude
-
Centrifugal Force – Level I
-
Centrifugal Force – Level Ii
-
Linear Force (static) Front
-
Linear Force (dynamic)
-
Overall Length
-
Overall Width
-
Overall Height
-
Drum Width
-
Drum Diameter
-
Wheelbase
-
Drum Sheet Thickness
-
Side Clearance (l/r)
-
Curb Clearance (l/r)
-
Brake Type
-
Water Tank Capacity
-
Area Compaction Capacity
-
Exciter Oil Type
-
Grease For Bearings
-
Starter Type
-
Exhaust Emissions
-
Buildcons RL – 600D Walk Behind Vibratory Roller
Fuel Type
-
Engine Brand
Honda
Engine Model
GX160 5.5HP
Engine Power (effective)
-
Engine Power (operating)
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Fuel Consumption
-
Transmission Type
Hydraulic
Max Travel Speed (fwd)
0-3km/h
Max Travel Speed (rev)
-
Gradeability (with Vib)
30%
Gradeability (w/o Vib)
-
Max Weight (with Options)
-
Operating Weight
-
Hydraulic Oil Capacity
-
Hydraulic Fluid Type
-
Sound Power Level (lwa)
-
Sound Pressure At Operator (lpa)
-
Hav (hand Arm Vibration)
-
Vibration Frequency
70 Hz
Amplitude
-
Centrifugal Force – Level I
15 kN
Centrifugal Force – Level Ii
-
Linear Force (static) Front
-
Linear Force (dynamic)
-
Overall Length
-
Overall Width
-
Overall Height
-
Drum Width
-
Drum Diameter
425 X 600mm
Wheelbase
-
Drum Sheet Thickness
-
Side Clearance (l/r)
-
Curb Clearance (l/r)
-
Brake Type
-
Water Tank Capacity
17 L
Area Compaction Capacity
-
Exciter Oil Type
-
Grease For Bearings
-
Starter Type
-
Exhaust Emissions
-
Husqvarna LP 6500 Compaction Roller
Fuel Type
Diesel
Engine Brand
-
Engine Model
-
Engine Power (effective)
7.51HP
Engine Power (operating)
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Fuel Consumption
-
Transmission Type
-
Max Travel Speed (fwd)
3.33km/h
Max Travel Speed (rev)
-
Gradeability (with Vib)
-
Gradeability (w/o Vib)
-
Max Weight (with Options)
0.676Tons
Operating Weight
0.681Ton
Hydraulic Oil Capacity
-
Hydraulic Fluid Type
-
Sound Power Level (lwa)
100dB(A)
Sound Pressure At Operator (lpa)
84dB(A)
Hav (hand Arm Vibration)
-
Vibration Frequency
-
Amplitude
-
Centrifugal Force – Level I
20kN
Centrifugal Force – Level Ii
-
Linear Force (static) Front
-
Linear Force (dynamic)
-
Overall Length
2.551m
Overall Width
0.714m
Overall Height
1.045m
Drum Width
-
Drum Diameter
-
Wheelbase
-
Drum Sheet Thickness
-
Side Clearance (l/r)
-
Curb Clearance (l/r)
-
Brake Type
-
Water Tank Capacity
-
Area Compaction Capacity
-
Exciter Oil Type
-
Grease For Bearings
-
Starter Type
Electric
Exhaust Emissions
987g/kWh
Redline RW750D Walk-Behind Roller
Fuel Type
Diesel
Engine Brand
Kohler
Engine Model
KD441
Engine Power (effective)
6.6HP
Engine Power (operating)
8.85HP
Rated Speed
2830rpm
Displacement
-
Fuel Tank Capacity
5L
Fuel Consumption
-
Transmission Type
Hydrostatic
Max Travel Speed (fwd)
4.5km/h
Max Travel Speed (rev)
-
Gradeability (with Vib)
-
Gradeability (w/o Vib)
35%
Max Weight (with Options)
-
Operating Weight
0.745Ton
Hydraulic Oil Capacity
14L
Hydraulic Fluid Type
-
Sound Power Level (lwa)
-
Sound Pressure At Operator (lpa)
-
Hav (hand Arm Vibration)
-
Vibration Frequency
60Hz
Amplitude
0.4mm
Centrifugal Force – Level I
22kN
Centrifugal Force – Level Ii
-
Linear Force (static) Front
55N/mm
Linear Force (dynamic)
-
Overall Length
1.986 / 2.165m
Overall Width
0.72m
Overall Height
1.35 / 1.725m
Drum Width
650mm
Drum Diameter
400mm
Wheelbase
-
Drum Sheet Thickness
-
Side Clearance (l/r)
-
Curb Clearance (l/r)
-
Brake Type
Hydrostatic Parking Brake
Water Tank Capacity
58L
Area Compaction Capacity
-
Exciter Oil Type
-
Grease For Bearings
-
Starter Type
Keyless Electric
Exhaust Emissions
-
JAYMAC VR 3000 Walk Behind Roller
Fuel Type
Diesel
Engine Brand
Greaves
Engine Model
5520
Engine Power (effective)
4.96HP
Engine Power (operating)
-
Rated Speed
3600rpm
Displacement
-
Fuel Tank Capacity
5L
Fuel Consumption
1L/hr
Transmission Type
Hydraulic Controls
Max Travel Speed (fwd)
2.78km/h
Max Travel Speed (rev)
-
Gradeability (with Vib)
%
Gradeability (w/o Vib)
20%
Max Weight (with Options)
-
Operating Weight
-
Hydraulic Oil Capacity
-
Hydraulic Fluid Type
-
Sound Power Level (lwa)
-
Sound Pressure At Operator (lpa)
-
Hav (hand Arm Vibration)
-
Vibration Frequency
32Hz
Amplitude
0.35mm
Centrifugal Force – Level I
14kN
Centrifugal Force – Level Ii
-
Linear Force (static) Front
4.41N/mm
Linear Force (dynamic)
-
Overall Length
1.55m
Overall Width
0.76m
Overall Height
1.05m
Drum Width
600mm
Drum Diameter
-
Wheelbase
-
Drum Sheet Thickness
-
Side Clearance (l/r)
-
Curb Clearance (l/r)
-
Brake Type
-
Water Tank Capacity
15L
Area Compaction Capacity
-
Exciter Oil Type
-
Grease For Bearings
-
Starter Type
Electric (Keyless)
Exhaust Emissions
-
