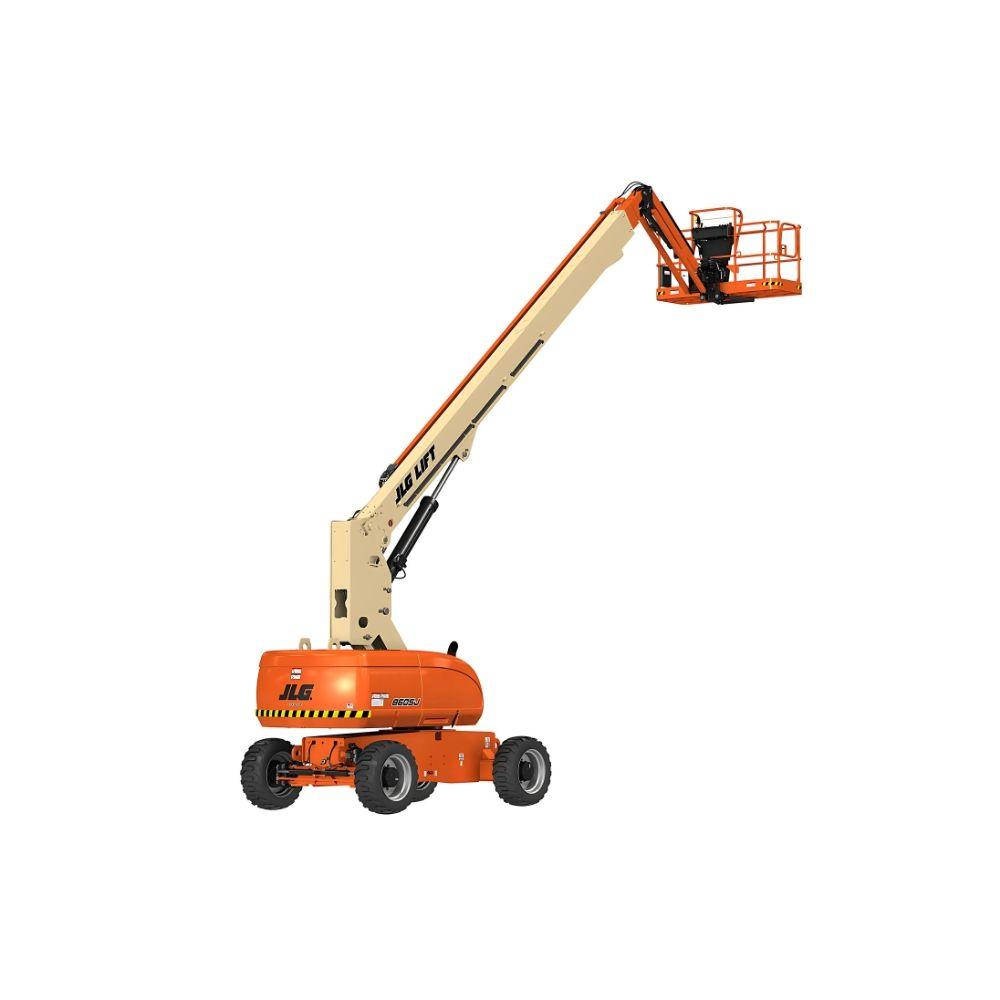

JLG 860SJ Telescopic Boom Lift Specifications

jlg

31,00,000 - ₹33,00,000

The JLG 860SJ Telescopic Boom Lift is a versatile and high-performance machine designed for demanding elevated work. With a maximum working height of 28.21 meters and a horizontal outreach of 22.86 meters, it provides unparalleled access to hard-to-reach areas. The continuous 360-degree swing and 130-degree jib articulation ensure precise positioning, while the dual-platform capacity—restricted at 340 kg and unrestricted at 230 kg—offers flexibility for various tasks. Powered by efficient diesel or dual-fuel engines, it delivers reliable performance with gradeability of up to 45% for rough terrains. Ideal for construction, industrial maintenance, energy sector operations, and facade work, the 860SJ combines power, efficiency, and safety. Its robust design, combined with foam-filled tires and advanced hydraulics, ensures optimal stability and productivity on any job site.

JLG 860SJ Telescopic Boom Lift Specifications

ENGINE

Battery Voltage/Cap.
12
Engine Brand
Ford / Deutz
Engine Model
MSG425-DF / D2.9L4
Engine Power
84 / 67 HP
Fuel Tank Capacity
117.35L

SAFETY & ADDITIONAL FEATURES

Drive Enable / Alarms
Yes (Motion + Tilt Alarm)
Platform Entry Type
Swing Gate (Self-Closing)
Tilt Alarm / Sensor
Yes (4° Tilt Cut Out)
Tyres
Foam Filled 15-625 to 41x18LLx22.5

TRANSMISSION & PERFORMANCE

Drive Type
2WD / 4WD
Gradeability
25 / 45 %
Max Travel Speed
5.6km/h
Transmission Type
Hydrostatic

DIMENSIONS

Ground Clearance
0.28m
Overall Height
2.95m
Overall Length
12.19m
Overall Width
2.49m
Turntable Tail Swing
1.42m
Wheelbase
3.05m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
181.7L

PLATFORM & REACH PERFORMANCE

Jib Articulation
131 °
Max Horizontal Outreach
22.86 m
Max Platform Height
26.21m
Platform Rotation
180 °
Platform Size (L×W)
2.44 × 0.91 m
Turntable Rotation
360°

OPERATING WEIGHT & LOAD CAPACITY

Max Lifting Capacity (Restricted)
340kg
Max Lifting Capacity (Unrestricted)
227kg
Operating Weight
16.71Ton

STEERING & TURNING

Turning Radius (Inside)
3.8 m
Turning Radius (Outside)
6.02m
