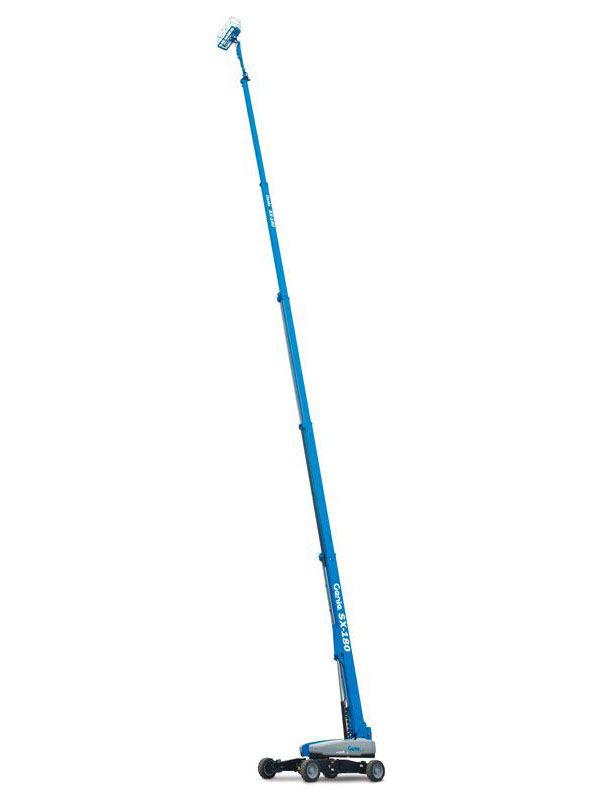

Genie SX-180 Telescopic Boom Lift
The Genie SX-180 Telescopic Boom Lift is designed for high-reach tasks in challenging outdoor environments. With a maximum working height of 56.86 meters and an impressive horizontal outreach of 24.38 meters, this lift is perfect for construction, maintenance, and industrial applications. Its robust design ensures safe and stable operation at significant heights, making it ideal for activities like building maintenance, window cleaning, and sign installation. The lift’s versatility extends to outdoor painting, utility work, and tree trimming, offering a safe platform for workers to access elevated areas. With its powerful performance, including a 35% gradeability, the SX-180 provides a reliable solution for working on uneven terrains. Additionally, the compact design allows for easy maneuvering, making it the go-to lift for tough jobs that require precise positioning and maximum reach.
Genie SX-180 Telescopic Boom Lift
The Genie SX-180 Telescopic Boom Lift is designed for high-reach tasks in challenging outdoor environments. With a maximum working height of 56.86 meters and an impressive horizontal outreach of 24.38 meters, this lift is perfect for construction, maintenance, and industrial applications. Its robust design ensures safe and stable operation at significant heights, making it ideal for activities like building maintenance, window cleaning, and sign installation. The lift’s versatility extends to outdoor painting, utility work, and tree trimming, offering a safe platform for workers to access elevated areas. With its powerful performance, including a 35% gradeability, the SX-180 provides a reliable solution for working on uneven terrains. Additionally, the compact design allows for easy maneuvering, making it the go-to lift for tough jobs that require precise positioning and maximum reach.
Product Description
The Genie SX-180 Telescopic Boom Lift is designed for high-reach tasks in challenging outdoor enviro...
View the full brochure
Genie SX-180 Telescopic Boom Lift Comparison with Similar Telescopic Boom Lift

Genie SX-180 Telescopic Boom Lift
Engine Brand
Deutz
Engine Model
TD2011
Engine Power
74HP
Fuel Tank Capacity
189.3L
Battery Voltage/cap.
-
Transmission Type
-
Drive Type
4WD
Max Travel Speed
3.7km/h
Travel Speed (raised)
0.65km/h
Gradeability
35%
Service Brake Type
-
Parking Brake Type
-
Steering Type
Dual axis joystick or thumb rocker
Turning Radius (inside)
6.28m
Turning Radius (outside)
8.56m
Max Lifting Capacity (unrestricted)
340kg
Max Lifting Capacity (restricted)
-
Operating Weight
24.95Ton
Hydraulic Oil Capacity
416L
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
16.18m
Overall Width
2.49m
Overall Height
3.05 m
Ground Clearance
0.38m
Wheelbase
5.03m
Turntable Tail Swing
1.14m
Max Platform Height
54.86m
Max Working Height
56.86m
Max Horizontal Outreach
24.38m
Platform Rotation
160°
Turntable Rotation
360°
Jib Articulation
135°
Platform Size (l×w)
2.44×0.91 m
Max Platform Occupants
2Persons
Tilt Alarm / Sensor
-
Platform Entry Type
Side swing gate
Tyres
445D50/710
Power Steering
Yes
Drive Enable / Alarms
Yes

Genie S-40 Trax Telescopic Boom Lift
Engine Brand
Perkins
Engine Model
404F-E22T
Engine Power
49HP
Fuel Tank Capacity
-
Battery Voltage/cap.
Dual Battery System
Transmission Type
Diesel
Drive Type
4WD
Max Travel Speed
4km/h
Travel Speed (raised)
1.1km/h
Gradeability
45 %
Service Brake Type
Dual Axis Joystick
Parking Brake Type
-
Steering Type
Dual Axis Joystick
Turning Radius (inside)
2.03 m
Turning Radius (outside)
5.18m
Max Lifting Capacity (unrestricted)
300kg
Max Lifting Capacity (restricted)
454 kg
Operating Weight
6,969 Ton
Hydraulic Oil Capacity
144L
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
0.30 m
Wheelbase
-
Turntable Tail Swing
0.97 m
Max Platform Height
12.04m
Max Working Height
14.04m
Max Horizontal Outreach
9.47 m
Platform Rotation
160°
Turntable Rotation
360 °
Jib Articulation
-
Platform Size (l×w)
2.44×1.83 m
Max Platform Occupants
2Persons
Tilt Alarm / Sensor
-
Platform Entry Type
-
Tyres
-
Power Steering
-
Drive Enable / Alarms
-

SANY SPT22 Telescopic Boom Lift
Engine Brand
DEUTZ / KUBOTA
Engine Model
D2.9 / V2607-DI-T
Engine Power
48.8 / 49.0 HP
Fuel Tank Capacity
160L
Battery Voltage/cap.
-
Transmission Type
-
Drive Type
4WD
Max Travel Speed
5.5km/h
Travel Speed (raised)
1.1km/h
Gradeability
45 %
Service Brake Type
-
Parking Brake Type
-
Steering Type
2WS
Turning Radius (inside)
2.40m
Turning Radius (outside)
5.50m
Max Lifting Capacity (unrestricted)
300kg
Max Lifting Capacity (restricted)
480kg
Operating Weight
12.7Ton
Hydraulic Oil Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
11.0 m
Overall Width
2.45m
Overall Height
2.70m
Ground Clearance
0.31m
Wheelbase
2.50m
Turntable Tail Swing
1.50m
Max Platform Height
22.4m
Max Working Height
24.4m
Max Horizontal Outreach
16.5m
Platform Rotation
180°
Turntable Rotation
360 (Continuous) °
Jib Articulation
+70 / -65 °
Platform Size (l×w)
2.44 × 0.91 m
Max Platform Occupants
3Persons
Tilt Alarm / Sensor
X-5° / Y-5°
Platform Entry Type
-
Tyres
-
Power Steering
-
Drive Enable / Alarms
-

SANY SPT26 Telescopic Boom Lift
Engine Brand
DEUTZ / KUBOTA
Engine Model
TD2.9 / V3307-TE5B
Engine Power
74.29HP
Fuel Tank Capacity
2600L
Battery Voltage/cap.
160
Transmission Type
-
Drive Type
4WD
Max Travel Speed
6.0km/h
Travel Speed (raised)
0.8km/h
Gradeability
45%
Service Brake Type
-
Parking Brake Type
-
Steering Type
2WS
Turning Radius (inside)
3.66m
Turning Radius (outside)
6.86m
Max Lifting Capacity (unrestricted)
300kg
Max Lifting Capacity (restricted)
400kg
Operating Weight
15.7Ton
Hydraulic Oil Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
12.3m
Overall Width
2.49m
Overall Height
3.05m
Ground Clearance
0.41m
Wheelbase
3.05m
Turntable Tail Swing
1.5m
Max Platform Height
26.7m
Max Working Height
28.7m
Max Horizontal Outreach
20.3m
Platform Rotation
180°
Turntable Rotation
360 Continuous°
Jib Articulation
+70° / -65°°
Platform Size (l×w)
2.44×0.91m
Max Platform Occupants
3Persons
Tilt Alarm / Sensor
X-5° / Y-5°
Platform Entry Type
-
Tyres
-
Power Steering
-
Drive Enable / Alarms
-

Genie S-40 XC Telescopic Boom Lift
Engine Brand
Perkins
Engine Model
404F-E22T
Engine Power
49HP
Fuel Tank Capacity
-
Battery Voltage/cap.
Dual Battery System
Transmission Type
Diesel
Drive Type
4WD
Max Travel Speed
6.40 km/h
Travel Speed (raised)
1.1km/h
Gradeability
45%
Service Brake Type
-
Parking Brake Type
-
Steering Type
Dual axis joystick steering
Turning Radius (inside)
2.08 m
Turning Radius (outside)
5.23m
Max Lifting Capacity (unrestricted)
300kg
Max Lifting Capacity (restricted)
454kg
Operating Weight
6,325 Ton
Hydraulic Oil Capacity
144L
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
0.32m
Wheelbase
-
Turntable Tail Swing
0.97 m
Max Platform Height
12.04m
Max Working Height
14.04 m
Max Horizontal Outreach
9.47 m
Platform Rotation
160°
Turntable Rotation
360°
Jib Articulation
-
Platform Size (l×w)
2.44×1.83 m
Max Platform Occupants
3 Persons
Tilt Alarm / Sensor
-
Platform Entry Type
-
Tyres
-
Power Steering
-
Drive Enable / Alarms
-
