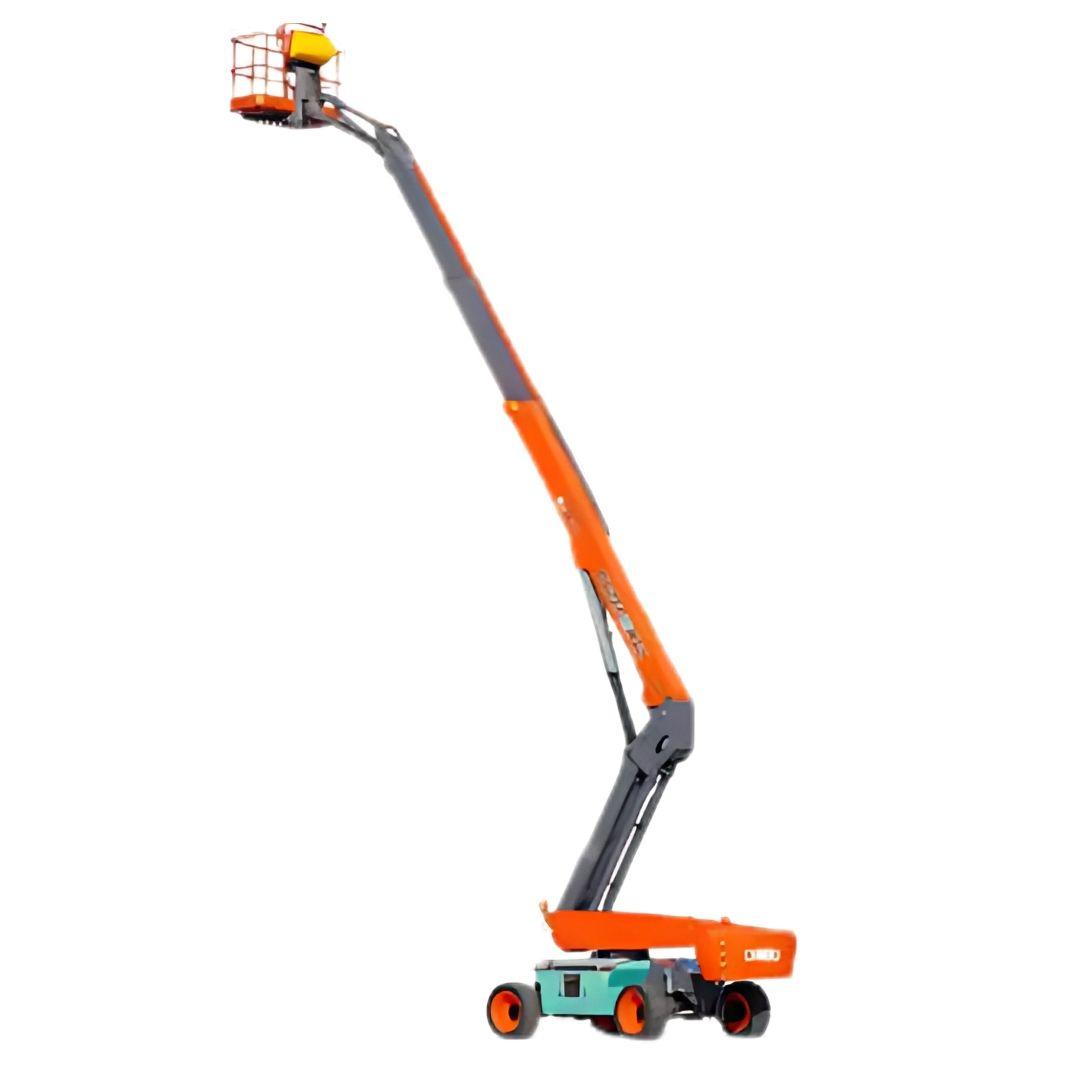

Dingli BA28BHRT Boom Lift Specifications

dingli

The Dingli BA28BHRT Boom Lift, developed by MAGNI’s Italian R&D center, is a robust and versatile articulated boom lift engineered for demanding industrial and construction environments. Featuring a large horizontal outreach and unique below-ground reach, it allows operators to access challenging areas with ease. Equipped with four-wheel drive, steering, and a 100% hydraulic differential lock, the BA28BHRT delivers exceptional maneuverability on rough terrain. Its integrated axle and barb jib enhance performance and flexibility, while the component downward design ensures superior stability during operation. Powered by high-capacity 80V 420Ah lithium battery packs combined with a fuel tank and built-in range extender, this boom lift supports seamless use for up to 30 days without external charging. Ideal for heavy-duty construction, infrastructure inspections, mining, and forestry, the BA28BHRT combines power, endurance, and reliability for diverse applications.

Dingli BA28BHRT Boom Lift Specifications

ENGINE

Battery Voltage/Cap.
80V / 420Ah
Engine Power
24.1HP
Fuel Tank Capacity
110L

TRANSMISSION & PERFORMANCE

Drive Type
Electric
Gradeability
30%
Max Travel Speed
6.0km/h
Transmission Type
Electric
Travel Speed (Raised)
1.1km/h

DIMENSIONS

Ground Clearance
0.41m
Overall Height
3.00m
Overall Length
9.22m
Overall Width
2.50m
Turntable Tail Swing
1.61m
Wheelbase
2.80m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
165L

PLATFORM & REACH PERFORMANCE

Jib Articulation
135°
Max Horizontal Outreach
18.44m
Max Platform Height
26.15m
Max Platform Occupants
2Persons
Max Working Height
28.15m
Platform Rotation
180°
Platform Size (L×W)
2.44 × 0.91m
Turntable Rotation
360 (Continuous)°

OPERATING WEIGHT & LOAD CAPACITY

Max Lifting Capacity (Unrestricted)
250kg
Operating Weight
18.4Ton

STEERING & TURNING

Turning Radius (Inside)
1.87m
Turning Radius (Outside)
3.22m

SAFETY & ADDITIONAL FEATURES

Tyres
385/45-28
