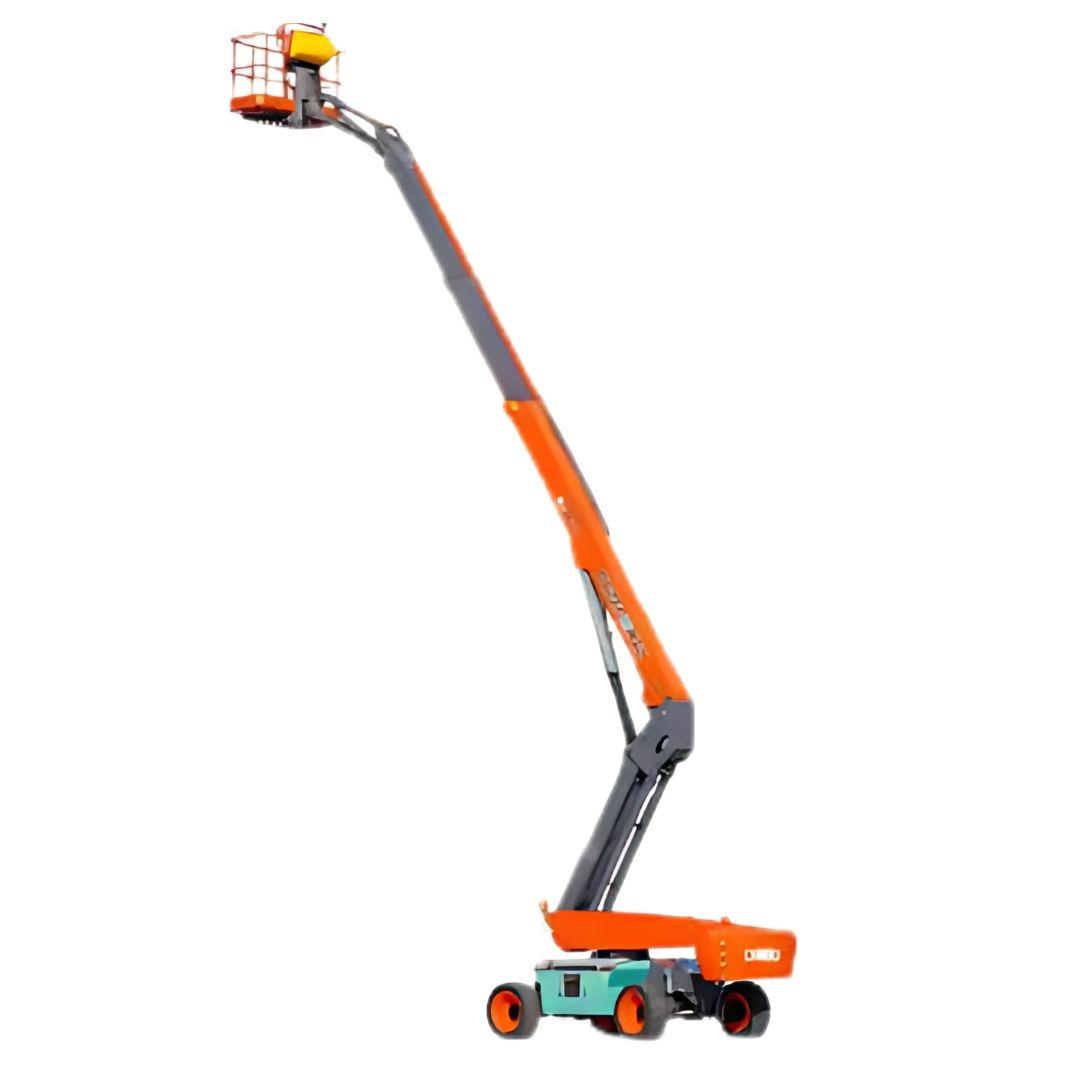

Dingli BA28BERT Boom lift Specifications

dingli

The Dingli BA28BERT Boom Lift, developed by MAGNI’s Italian R&D center, is a versatile and powerful articulated boom lift designed for tough industrial and construction applications. Featuring a large horizontal outreach and unique below-ground reach, it enables operators to access hard-to-reach areas efficiently. This model boasts four-wheel drive with steering and a 100% hydraulic differential lock, ensuring smooth navigation across rough terrains. The integrated axle and barb jib enhance its performance and flexibility. Powered by high-capacity 80V 520Ah lithium battery packs, the BA28BERT offers eco-friendly operation with a fast 1.5-hour charging time, making it ideal for projects requiring emission-free lifting solutions. Whether for heavy-duty construction, utility maintenance, or infrastructure inspections, this boom lift combines stability, power, and endurance to meet diverse industry demands.

Dingli BA28BERT Boom lift Specifications

ENGINE

Battery Voltage/Cap.
80V / 520Ah
Engine Power
24.1HP

TRANSMISSION & PERFORMANCE

Drive Type
Electric
Gradeability
30%
Max Travel Speed
6.0km/h
Transmission Type
Electric
Travel Speed (Raised)
1.1km/h

DIMENSIONS

Ground Clearance
0.41m
Overall Height
3.00m
Overall Length
9.22m
Overall Width
2.50m
Turntable Tail Swing
1.61m
Wheelbase
2.80m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
165L

PLATFORM & REACH PERFORMANCE

Jib Articulation
135°
Max Horizontal Outreach
18.44m
Max Platform Height
26.15m
Max Platform Occupants
2Persons
Max Working Height
28.15m
Platform Rotation
180°
Platform Size (L×W)
2.44 × 0.91m
Turntable Rotation
360 (Continuous)°

OPERATING WEIGHT & LOAD CAPACITY

Max Lifting Capacity (Unrestricted)
250kg
Operating Weight
18.4Ton

SAFETY & ADDITIONAL FEATURES

Tilt Alarm / Sensor
Yes (X-5° / Y-5°)
Tyres
385/45-28

STEERING & TURNING

Turning Radius (Inside)
1.87m
Turning Radius (Outside)
3.22m
