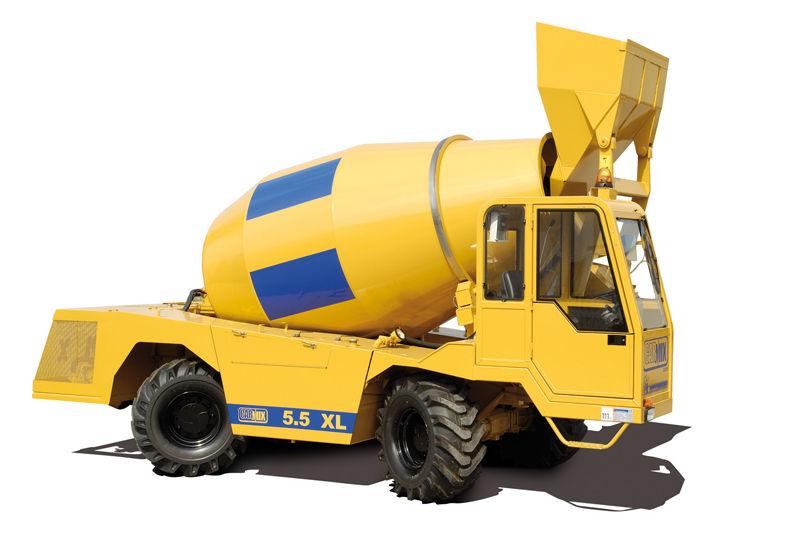

Apollo Carmix 5.5 XL Self Loading Concrete Mixer

The Carmix 5.5 XL Self-Loading Concrete Mixer is built for heavy-duty performance in large-scale construction and infrastructure projects. With a massive capacity and advanced automation, it features PROMIX, an in-drum probe that analyzes slump, volume, temperature, and humidity—turning your job site into a concrete lab. The electronic weighing system with load cells and printer ensures precise batching on-site, eliminating guesswork. Equipped with 4-wheel drive and steering, it offers superior maneuverability on rugged terrains. Operator comfort is enhanced with air conditioning, heater, and climate control, while the additive plant enables on-demand mix customization. A 100 cm discharge chute and 90 BAR pressure washer ensure efficient pours and easy clean-up. The Carmix 5.5 XL combines accuracy, mobility, and productivity—making it the ultimate solution for high-output concrete needs.

Product Description

The Carmix 5.5 XL Self-Loading Concrete Mixer is built for heavy-duty performance in large-scale con...

View the full brochure

Apollo Carmix 5.5 XL Self Loading Concrete Mixer Comparison with Similar Self Loading Concrete Mixer

Apollo Carmix 5.5 XL Self Loading Concrete Mixer

Apollo Carmix 5.5 XL Self Loading Concrete Mixer

Get Latest Price
Rating
4.4

Hydraulic Oil Capacity

120L

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Wheelbase

-

Operating Weight

8700kg

Laden Weight

-

Battery Voltage

12V

Battery Capacity

115Ah

Additional Features

Safety battery cut-off, Joystick (JOYMIX), PROMIX, Load Cells (optional)

Engine Brand

Perkins

Engine Model

1106D - E66TA

Engine Power

157HP

Rated Speed

2200RPM

Cooling System

Water-cooled

Emission Compliance

-

Fuel Tank Capacity

150L

Max Travel Speed

30km/h

Working Speed

10km/h

Gradeability

30° / %

Drive Type

4 Wheel Drive

Service Brake Type

Oil bath disc brakes inside differential axles

Parking Brake Type

Negative hydraulic parking brake

Steering Type

Hydrostatic

Steering Modes

3 way steering

Turning Radius

4000mm

Drum Output Per Batch

5.5Cu.M

Drum Volume

7600L

Drum Rotation

-

Concrete Output Efficiency

-

Loader Bucket Capacity

600L

Loading Shovel System

Hydraulic opening gate

Tyre Size

18-19.5 PR 16

Tyre Type

Off-road industrial type

Water Tank Capacity

1200L

Water Pump Capacity

400L/min

Water System Features

Water meter, washing outlet, optional high pressure pump

Currently Viewing
Macons MST-4 Self Loading Transit Mixer

Macons MST-4 Self Loading Transit Mixer

Get Latest Price
Rating
4.4

Hydraulic Oil Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Wheelbase

-

Operating Weight

7.98kg

Laden Weight

17.58kg

Battery Voltage

12V

Battery Capacity

-

Additional Features

Rotating seat, Protection cabin

Engine Brand

Kirloskar -

Engine Model

-

Engine Power

110HP

Rated Speed

2200RPM

Cooling System

-

Emission Compliance

-

Fuel Tank Capacity

130L

Max Travel Speed

24km/h

Working Speed

-

Gradeability

35° / %

Drive Type

4 Wheel Drive

Service Brake Type

Oil-bath disc brakes

Parking Brake Type

Electrical

Steering Type

Power Assisted

Steering Modes

-

Turning Radius

-

Drum Output Per Batch

4Cu.M

Drum Volume

5.3L

Drum Rotation

22RPM

Concrete Output Efficiency

-

Loader Bucket Capacity

800L

Loading Shovel System

-

Tyre Size

405/70-20 16 PR

Tyre Type

-

Water Tank Capacity

900L

Water Pump Capacity

230L/min

Water System Features

-

Schwing SLM 2100 Self Loading Concrete Mixer

Schwing SLM 2100 Self Loading Concrete Mixer

Get Latest Price
Rating
4.4

Hydraulic Oil Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Wheelbase

-

Operating Weight

-

Laden Weight

6290kg

Battery Voltage

-

Battery Capacity

-

Additional Features

-

Engine Brand

-

Engine Model

-

Engine Power

49.5HP

Rated Speed

-

Cooling System

-

Emission Compliance

-

Fuel Tank Capacity

-

Max Travel Speed

22 km/h

Working Speed

-

Gradeability

280 (54%)° / %

Drive Type

-

Service Brake Type

Master cylinder actuated disc brakes

Parking Brake Type

-

Steering Type

-

Steering Modes

-

Turning Radius

-

Drum Output Per Batch

2.3Cu.M

Drum Volume

-

Drum Rotation

0 to 20RPM

Concrete Output Efficiency

-

Loader Bucket Capacity

-

Loading Shovel System

-

Tyre Size

-

Tyre Type

-

Water Tank Capacity

380L

Water Pump Capacity

-

Water System Features

-

Schwing SLM 2600 Self Loading Concrete Mixer

Schwing SLM 2600 Self Loading Concrete Mixer

Get Latest Price
Rating
4.4

Hydraulic Oil Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Wheelbase

-

Operating Weight

-

Laden Weight

-

Battery Voltage

-

Battery Capacity

-

Additional Features

-

Engine Brand

-

Engine Model

-

Engine Power

74.5HP

Rated Speed

-

Cooling System

-

Emission Compliance

-

Fuel Tank Capacity

-

Max Travel Speed

27km/h

Working Speed

-

Gradeability

24 (44%)° / %

Drive Type

-

Service Brake Type

Master cylinder actuated disc brakes

Parking Brake Type

-

Steering Type

2 stage gear reduction

Steering Modes

Hydrostatic steering

Turning Radius

-

Drum Output Per Batch

2.8Cu.M

Drum Volume

-

Drum Rotation

0 to 20RPM

Concrete Output Efficiency

-

Loader Bucket Capacity

-

Loading Shovel System

415

Tyre Size

-

Tyre Type

-

Water Tank Capacity

380L

Water Pump Capacity

-

Water System Features

-

Conmat CSLM 2800 Self Loading Concrete Mixer

Conmat CSLM 2800 Self Loading Concrete Mixer

Get Latest Price
Rating
4.4

Hydraulic Oil Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Wheelbase

2350mm

Operating Weight

7100kg

Laden Weight

13820kg

Battery Voltage

-

Battery Capacity

-

Additional Features

-

Engine Brand

KOEL

Engine Model

4R1190NA1

Engine Power

74.5HP

Rated Speed

2200RPM

Cooling System

Water Cooled

Emission Compliance

BSIV

Fuel Tank Capacity

100L

Max Travel Speed

0-25km/h

Working Speed

-

Gradeability

20 Deg / 36.4%° / %

Drive Type

Full Time 4 Wheel Drive

Service Brake Type

Hydraulic powered brakes

Parking Brake Type

Hydraulic powered brakes

Steering Type

-

Steering Modes

-

Turning Radius

-

Drum Output Per Batch

2.8Cu.M

Drum Volume

-

Drum Rotation

0-22RPM

Concrete Output Efficiency

-

Loader Bucket Capacity

420 L

Loading Shovel System

-

Tyre Size

12.5/80x18

Tyre Type

16 PR

Water Tank Capacity

625L

Water Pump Capacity

230L/min

Water System Features

-
