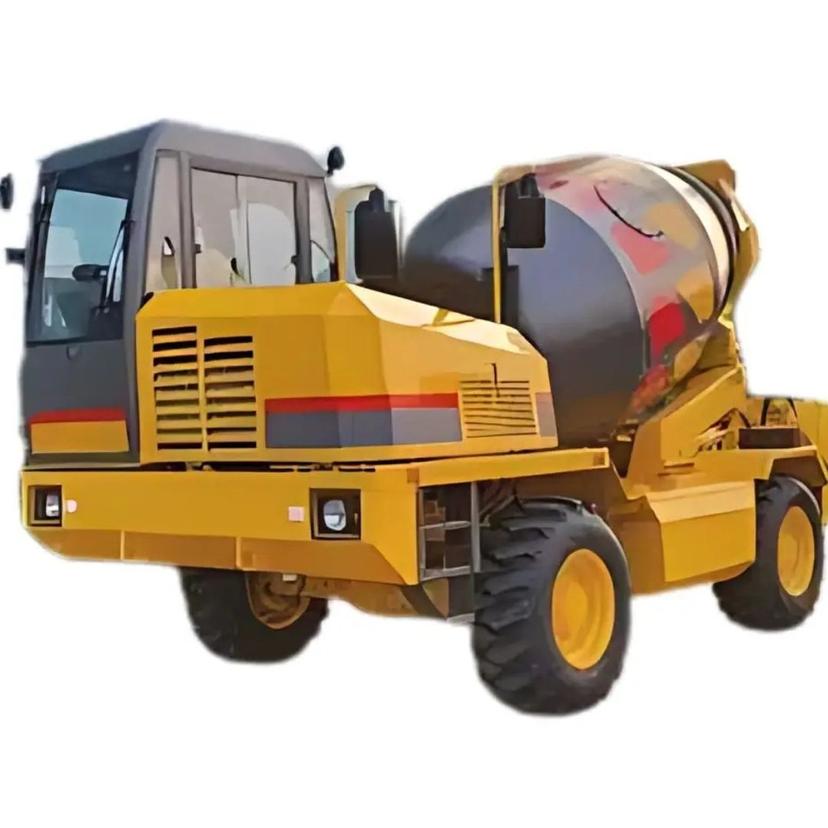

Conmat CSLM 2800 Self Loading Concrete Mixer

The Conmat CSLM 2800 Self-Loading Concrete Mixer is a powerful and efficient solution for on-site concrete production. Designed for versatility, it features specially designed blades for superior mixing and faster discharge, ensuring high-quality concrete in every batch. The powered shovel gate allows spillage-free charging, while the robust loading arm mechanism enhances pushing force and ease of operation. With four-wheel steering and three different modes, it navigates tight spaces effortlessly, making it ideal for urban and confined job sites. The low center of gravity provides excellent stability on rough terrains, while the electronic weigh batching system with a printer ensures precise mix proportions. An optional admixture system further enhances mix quality. With a reversible operator post and optional live tracking, this mixer is perfect for roadwork, housing, and remote construction projects.

Product Description

The Conmat CSLM 2800 Self-Loading Concrete Mixer is a powerful and efficient solution for on-site co...

View the full brochure

Conmat CSLM 2800 Self Loading Concrete Mixer Comparison with Similar Self Loading Concrete Mixer

Conmat CSLM 2800 Self Loading Concrete Mixer

Conmat CSLM 2800 Self Loading Concrete Mixer

Get Latest Price
Rating
4.4

Engine Brand

KOEL

Engine Model

4R1190NA1

Engine Power

74.5HP

Rated Speed

2200RPM

Cooling System

Water Cooled

Emission Compliance

BSIV

Fuel Tank Capacity

100L

Battery Voltage

-

Battery Capacity

-

Additional Features

-

Max Travel Speed

0-25km/h

Working Speed

-

Gradeability

20 Deg / 36.4%° / %

Drive Type

Full Time 4 Wheel Drive

Service Brake Type

Hydraulic powered brakes

Parking Brake Type

Hydraulic powered brakes

Steering Type

-

Steering Modes

-

Turning Radius

-

Drum Output Per Batch

2.8Cu.M

Drum Volume

-

Drum Rotation

0-22RPM

Concrete Output Efficiency

-

Loader Bucket Capacity

420 L

Loading Shovel System

-

Hydraulic Oil Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Wheelbase

2350mm

Operating Weight

7100kg

Laden Weight

13820kg

Tyre Size

12.5/80x18

Tyre Type

16 PR

Water Tank Capacity

625L

Water Pump Capacity

230L/min

Water System Features

-

Currently Viewing
Schwing SLM 2100 Self Loading Concrete Mixer

Schwing SLM 2100 Self Loading Concrete Mixer

Get Latest Price
Rating
4.4

Engine Brand

-

Engine Model

-

Engine Power

49.5HP

Rated Speed

-

Cooling System

-

Emission Compliance

-

Fuel Tank Capacity

-

Battery Voltage

-

Battery Capacity

-

Additional Features

-

Max Travel Speed

22 km/h

Working Speed

-

Gradeability

280 (54%)° / %

Drive Type

-

Service Brake Type

Master cylinder actuated disc brakes

Parking Brake Type

-

Steering Type

-

Steering Modes

-

Turning Radius

-

Drum Output Per Batch

2.3Cu.M

Drum Volume

-

Drum Rotation

0 to 20RPM

Concrete Output Efficiency

-

Loader Bucket Capacity

-

Loading Shovel System

-

Hydraulic Oil Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Wheelbase

-

Operating Weight

-

Laden Weight

6290kg

Tyre Size

-

Tyre Type

-

Water Tank Capacity

380L

Water Pump Capacity

-

Water System Features

-

Schwing SLM 4600 Self Loading Concrete Mixer

Schwing SLM 4600 Self Loading Concrete Mixer

Get Latest Price
Rating
4.4

Engine Brand

-

Engine Model

-

Engine Power

110 HP

Rated Speed

-

Cooling System

-

Emission Compliance

-

Fuel Tank Capacity

-

Battery Voltage

-

Battery Capacity

-

Additional Features

-

Max Travel Speed

27km/h

Working Speed

-

Gradeability

24 (44%)° / %

Drive Type

-

Service Brake Type

Master cylinder actuated disc brakes

Parking Brake Type

-

Steering Type

Hydrostatic steering (Fully Powered)

Steering Modes

2 stage gear reduction

Turning Radius

-

Drum Output Per Batch

4.6Cu.M

Drum Volume

-

Drum Rotation

0 to 18RPM

Concrete Output Efficiency

-

Loader Bucket Capacity

-

Loading Shovel System

600

Hydraulic Oil Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Wheelbase

-

Operating Weight

-

Laden Weight

-

Tyre Size

-

Tyre Type

-

Water Tank Capacity

750L

Water Pump Capacity

-

Water System Features

-

Schwing SLM 2600 Self Loading Concrete Mixer

Schwing SLM 2600 Self Loading Concrete Mixer

Get Latest Price
Rating
4.4

Engine Brand

-

Engine Model

-

Engine Power

74.5HP

Rated Speed

-

Cooling System

-

Emission Compliance

-

Fuel Tank Capacity

-

Battery Voltage

-

Battery Capacity

-

Additional Features

-

Max Travel Speed

27km/h

Working Speed

-

Gradeability

24 (44%)° / %

Drive Type

-

Service Brake Type

Master cylinder actuated disc brakes

Parking Brake Type

-

Steering Type

2 stage gear reduction

Steering Modes

Hydrostatic steering

Turning Radius

-

Drum Output Per Batch

2.8Cu.M

Drum Volume

-

Drum Rotation

0 to 20RPM

Concrete Output Efficiency

-

Loader Bucket Capacity

-

Loading Shovel System

415

Hydraulic Oil Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Wheelbase

-

Operating Weight

-

Laden Weight

-

Tyre Size

-

Tyre Type

-

Water Tank Capacity

380L

Water Pump Capacity

-

Water System Features

-

Fiori DBX 2500 Front Loading Mixer

Fiori DBX 2500 Front Loading Mixer

Get Latest Price
Rating
4.4

Engine Brand

Mahindra

Engine Model

CEV Stage IV Turbocharged Intercool 4-Cylinder CRDI

Engine Power

74HP

Rated Speed

-

Cooling System

-

Emission Compliance

CEV Stage IV

Fuel Tank Capacity

90L

Battery Voltage

12V

Battery Capacity

150Ah

Additional Features

CBV 2.0 Batch Controller, ROPS/FOPS Cabin, LCD display with camera (optional)

Max Travel Speed

28km/h

Working Speed

-

Gradeability

23° / %

Drive Type

Hydrostatic 4x4 Four-Wheel Drive

Service Brake Type

Internal oil-bath disc (dual circuit, servo-assisted)

Parking Brake Type

Negative type, oil-bath discs on rear axle

Steering Type

Load-sensing power steering

Steering Modes

2WS, 4WS, Crab Steering

Turning Radius

-

Drum Output Per Batch

2.5Cu.M

Drum Volume

-

Drum Rotation

Constant Speed Drive RPM

Concrete Output Efficiency

-

Loader Bucket Capacity

560 L

Loading Shovel System

Grab bucket with lifting arms & electro-hydraulic trap door

Hydraulic Oil Capacity

125L

Hydraulic Flow Rate

40L/min

Hydraulic Pressure

230Bar

Wheelbase

-

Operating Weight

5.4kg

Laden Weight

11.4kg

Tyre Size

12.5-18 16PR

Tyre Type

-

Water Tank Capacity

570L

Water Pump Capacity

-

Water System Features

Self-priming pump, electromagnetic flow meter, quick suction, cab control
