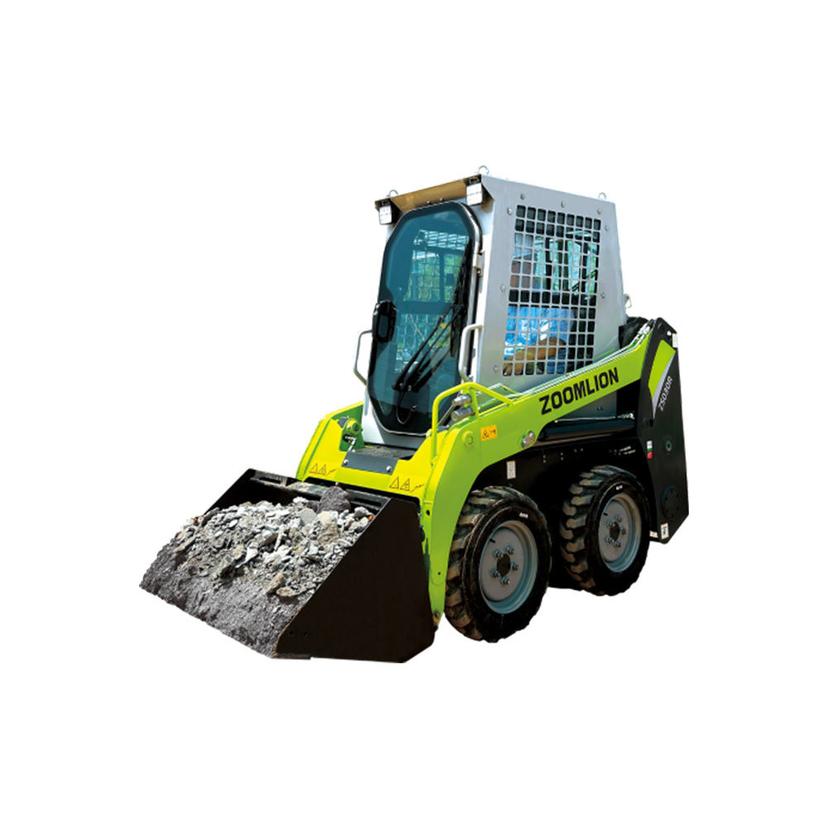

Zoomlion ZS030R Skid Steer Loader

Zoomlion India Private Limited

Maharashtra

The ZS030R Skid Steer Loader is engineered for efficient performance in confined spaces, boasting a compact width of 910 mm and a height of 1810 mm. With an operating weight of 1293 kg and a rated power of 18.2 kW, it excels in light to moderate material handling tasks. Its 0.18 m³ blade capacity provides the right balance for small to medium-sized loads, enhancing productivity. The ZS030R’s design supports operation at altitudes up to 3051 mm, making it versatile for various environments. Ideal for projects requiring precise control and maneuverability, the ZS030R offers reliable performance and efficiency in tight or elevated work areas. Its compact yet powerful build ensures effective handling and operational excellence in diverse job conditions.

Product Description

The ZS030R Skid Steer Loader is engineered for efficient performance in confined spaces, boasting a ...

View the full brochure

Zoomlion ZS030R Skid Steer Loader Comparison with Similar Skid Steer Loader

Zoomlion ZS030R Skid Steer Loader

Zoomlion ZS030R Skid Steer Loader

Get Latest Price
Rating
4.4

Engine Brand

KUBOTA

Engine Model

-

Engine Power

24.4HP

Max Torque

-

Rated Speed

3000rpm

Fuel Tank Capacity

-

Emission Standard

EU Stage V / Tier 4F

Transmission Type

-

Max Travel Speed

-

Operating Weight

1293Ton

Rated Operating Capacity

345kg

Rated Operating Capacity (optional)

-

Max Tipping Load

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Hydraulic System Capacity

-

Max Dump Height

1.959m

Max Hinge Pin Height

-

Max Reach At Full Height

-

Reach At Ground Level

-

Bucket Capacity

0.18

Loader Arm Breakout Force

760kgf

Dump Angle

-

Lift Path

-

Overall Length

2.451m

Overall Width

0.910m

Overall Height

1.810m

Wheelbase

0.740m

Ground Clearance

-

Turning Radius

1.460m

Currently Viewing
Manitou 1050RT Skid Steer Loader

Manitou 1050RT Skid Steer Loader

Get Latest Price
Rating
4.4

Engine Brand

Yanmar

Engine Model

3TNV88C-KMSV

Engine Power

34.20HP

Max Torque

109.40Nm

Rated Speed

2800rpm

Fuel Tank Capacity

36L

Emission Standard

-

Transmission Type

-

Max Travel Speed

10.10km/h

Operating Weight

2.14Ton

Rated Operating Capacity

-

Rated Operating Capacity (optional)

-

Max Tipping Load

1361kg

Hydraulic Flow Rate

55L/min

Hydraulic Pressure

-

Hydraulic System Capacity

30L

Max Dump Height

2.134m

Max Hinge Pin Height

2.769m

Max Reach At Full Height

-

Reach At Ground Level

-

Bucket Capacity

-

Loader Arm Breakout Force

-

Dump Angle

38°

Lift Path

-

Overall Length

2.985m

Overall Width

1.290m

Overall Height

1.816m

Wheelbase

1.283m

Ground Clearance

0.191mm

Turning Radius

-

ACE SS 75 Skid Steer Loader

ACE SS 75 Skid Steer Loader

Get Latest Price
Rating
4.4

Engine Brand

ACE / Simpson

Engine Model

A50 / TSJ436

Engine Power

50 / 60 / 75HP

Max Torque

-

Rated Speed

2100 / 2200rpm

Fuel Tank Capacity

55L

Emission Standard

Bharat (TREM) Stage III A / CEV / BSIII / Tier 2 / BS-III

Transmission Type

Infinitely variable hydrostatic drive

Max Travel Speed

10km/h

Operating Weight

2.85Ton

Rated Operating Capacity

750kg

Rated Operating Capacity (optional)

-

Max Tipping Load

1500kg

Hydraulic Flow Rate

82L/min

Hydraulic Pressure

-

Hydraulic System Capacity

65L

Max Dump Height

2.29m

Max Hinge Pin Height

3.15m

Max Reach At Full Height

0.68m

Reach At Ground Level

-

Bucket Capacity

0.4

Loader Arm Breakout Force

-

Dump Angle

40°

Lift Path

-

Overall Length

3.62m

Overall Width

1.645m

Overall Height

2.11m

Wheelbase

1.01m

Ground Clearance

185mm

Turning Radius

-

Gamzen 5050 Skid Steer Loader

Gamzen 5050 Skid Steer Loader

Get Latest Price
Rating
4.4

Engine Brand

Hyundai/Cummins

Engine Model

-

Engine Power

-

Max Torque

-

Rated Speed

-

Fuel Tank Capacity

-

Emission Standard

-

Transmission Type

-

Max Travel Speed

11.0km/h

Operating Weight

2.88Ton

Rated Operating Capacity

850kg

Rated Operating Capacity (optional)

-

Max Tipping Load

1680kg

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Hydraulic System Capacity

-

Max Dump Height

2.236m

Max Hinge Pin Height

2.87m

Max Reach At Full Height

0.686m

Reach At Ground Level

-

Bucket Capacity

0.5

Loader Arm Breakout Force

-

Dump Angle

42°

Lift Path

-

Overall Length

3.27m

Overall Width

1.69m

Overall Height

2.025m

Wheelbase

1.045m

Ground Clearance

203mm

Turning Radius

1.858m

Gamzen 8080 EX Skid Steer Loader

Gamzen 8080 EX Skid Steer Loader

Get Latest Price
Rating
4.4

Engine Brand

Cummins

Engine Model

-

Engine Power

-

Max Torque

-

Rated Speed

-

Fuel Tank Capacity

-

Emission Standard

-

Transmission Type

-

Max Travel Speed

-

Operating Weight

3.659674Ton

Rated Operating Capacity

1140kg

Rated Operating Capacity (optional)

-

Max Tipping Load

2280kg

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Hydraulic System Capacity

-

Max Dump Height

3.532m

Max Hinge Pin Height

-

Max Reach At Full Height

1.021m

Reach At Ground Level

-

Bucket Capacity

0.7

Loader Arm Breakout Force

-

Dump Angle

38°

Lift Path

-

Overall Length

3509m

Overall Width

1.886m

Overall Height

2.055m

Wheelbase

1.181m

Ground Clearance

195mm

Turning Radius

-
