Zoomlion ZR300L Drilling Rig

Zoomlion India Private Limited

Maharashtra

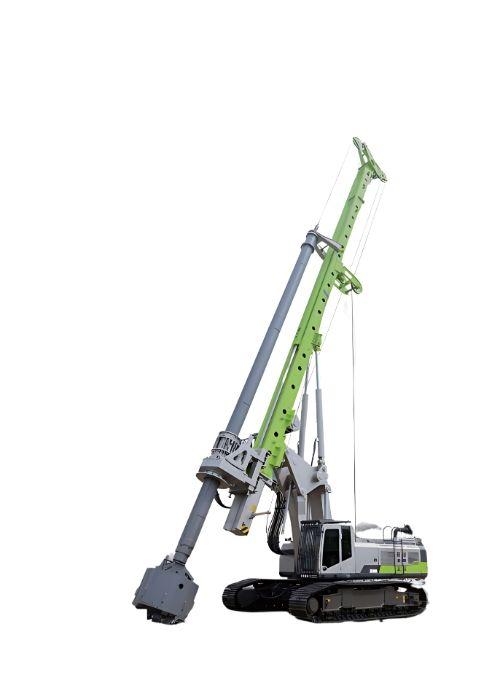

The Zoomlion ZR300L Drilling Rig is a highly efficient and robust solution for various drilling applications. Featuring a fixed mast support for easy transport and quick setup, the rig ensures a stable structure with a reinforced chassis and large slewing support, enhancing load-bearing capacity. Its rotary drive, powered by three motors, provides high torque and superior construction capabilities, making it ideal for demanding tasks. The advanced design includes a high-flow main pump and multi-gear rotary drive, improving construction efficiency and reducing operational time. Additionally, the rear main winch, with a single-layer rope drum and twin reducers mechanism, extends the lifespan of steel wire ropes. The new-generation cab offers enhanced visibility, comfort, and a 360-degree monitoring system for safer, more precise operations, ensuring optimal performance in any work environment.

Product Description

The Zoomlion ZR300L Drilling Rig is a highly efficient and robust solution for various drilling appl...

Zoomlion ZR300L Drilling Rig Comparison with Similar Piling Rig

Zoomlion ZR300L Drilling Rig

Zoomlion ZR300L Drilling Rig

Get Latest Price
Rating
4.4

Engine Brand

Cummins

Engine Model

QSM11

Engine Power

298kW

Rated Speed

-

Emission Standard

stage III

Engine Displacement

10.8L

Max Output Torque

320kN·m

Rotation Speed Range

33rpm

High Speed Throwing Soil

-

Max. Drilling Diameter

2500mm

Max. Drilling Depth (interlocking Kelly)

58m

Max. Drilling Depth (friction Kelly)

88m

Crowd Force (push)

260kN

Crowd Force (pull)

335kN

Stroke Length

6000mm

Max. Lifting Capacity

-

Max. Line Speed

70m/min

Wire Rope Diameter

22mm

Forward Tilt

5°

Backward Tilt

90°

Lateral Tilt

-

Track Shoe Width

800mm

Chassis Length

-

Crawler Extension Width

-

Swing Radius

4684mm

Overall Height

24600mm

Transport Height

-

Transport Width

-

Operating Weight

105Ton

Max. Traction Force

-

Max. Travel Speed

1.72km/h

Max. Gradeability

-

Friction Kelly Bar

88000mm

Interlocking Kelly Bar

56000mm

Currently Viewing
Mait India THH6 Rotary Drilling Piling Rig

Mait India THH6 Rotary Drilling Piling Rig

Get Latest Price
Rating
4.4

Engine Brand

-

Engine Model

-

Engine Power

-

Rated Speed

-

Emission Standard

-

Engine Displacement

-

Max Output Torque

-

Rotation Speed Range

-

High Speed Throwing Soil

-

Max. Drilling Diameter

-

Max. Drilling Depth (interlocking Kelly)

-

Max. Drilling Depth (friction Kelly)

-

Crowd Force (push)

-

Crowd Force (pull)

-

Stroke Length

-

Max. Lifting Capacity

-

Max. Line Speed

-

Wire Rope Diameter

-

Forward Tilt

-

Backward Tilt

-

Lateral Tilt

-

Track Shoe Width

-

Chassis Length

-

Crawler Extension Width

-

Swing Radius

-

Overall Height

-

Transport Height

-

Transport Width

-

Operating Weight

-

Max. Traction Force

-

Max. Travel Speed

-

Max. Gradeability

-

Friction Kelly Bar

-

Interlocking Kelly Bar

-

Mait India MDT-60B Rotary Drilling Piling Rig

Mait India MDT-60B Rotary Drilling Piling Rig

Get Latest Price
Rating
4.4

Engine Brand

-

Engine Model

-

Engine Power

-

Rated Speed

-

Emission Standard

-

Engine Displacement

-

Max Output Torque

-

Rotation Speed Range

-

High Speed Throwing Soil

-

Max. Drilling Diameter

-

Max. Drilling Depth (interlocking Kelly)

-

Max. Drilling Depth (friction Kelly)

-

Crowd Force (push)

-

Crowd Force (pull)

-

Stroke Length

-

Max. Lifting Capacity

-

Max. Line Speed

-

Wire Rope Diameter

-

Forward Tilt

-

Backward Tilt

-

Lateral Tilt

-

Track Shoe Width

-

Chassis Length

-

Crawler Extension Width

-

Swing Radius

-

Overall Height

-

Transport Height

-

Transport Width

-

Operating Weight

-

Max. Traction Force

-

Max. Travel Speed

-

Max. Gradeability

-

Friction Kelly Bar

-

Interlocking Kelly Bar

-

Mait India MDT-180B Rotary Drilling Piling Rig

Mait India MDT-180B Rotary Drilling Piling Rig

Get Latest Price
Rating
4.4

Engine Brand

-

Engine Model

-

Engine Power

-

Rated Speed

-

Emission Standard

-

Engine Displacement

-

Max Output Torque

-

Rotation Speed Range

-

High Speed Throwing Soil

-

Max. Drilling Diameter

-

Max. Drilling Depth (interlocking Kelly)

-

Max. Drilling Depth (friction Kelly)

-

Crowd Force (push)

-

Crowd Force (pull)

-

Stroke Length

-

Max. Lifting Capacity

-

Max. Line Speed

-

Wire Rope Diameter

-

Forward Tilt

-

Backward Tilt

-

Lateral Tilt

-

Track Shoe Width

-

Chassis Length

-

Crawler Extension Width

-

Swing Radius

-

Overall Height

-

Transport Height

-

Transport Width

-

Operating Weight

-

Max. Traction Force

-

Max. Travel Speed

-

Max. Gradeability

-

Friction Kelly Bar

-

Interlocking Kelly Bar

-

XCMG XR80I Rotary Drilling Piling Rig

XCMG XR80I Rotary Drilling Piling Rig

Get Latest Price
Rating
4.4

Engine Brand

Cummins

Engine Model

-

Engine Power

103kW

Rated Speed

-

Emission Standard

-

Engine Displacement

-

Max Output Torque

106 kN·m

Rotation Speed Range

-

High Speed Throwing Soil

-

Max. Drilling Diameter

1200 mm

Max. Drilling Depth (interlocking Kelly)

25m

Max. Drilling Depth (friction Kelly)

-

Crowd Force (push)

-

Crowd Force (pull)

-

Stroke Length

2.5mm

Max. Lifting Capacity

-

Max. Line Speed

-

Wire Rope Diameter

-

Forward Tilt

-

Backward Tilt

-

Lateral Tilt

-

Track Shoe Width

-

Chassis Length

-

Crawler Extension Width

-

Swing Radius

-

Overall Height

-

Transport Height

-

Transport Width

-

Operating Weight

-

Max. Traction Force

-

Max. Travel Speed

-

Max. Gradeability

-

Friction Kelly Bar

-

Interlocking Kelly Bar

-

Compare Piling Rig

Zoomlion ZR300L Drilling Rig

Zoomlion ZR300L Drilling Rig

Mait India THH6 Rotary Drilling Piling Rig

Mait India THH6 Rotary Drilling Piling Rig

Add any equipment
to compare

Product

Get instant quotation on whatsapp

Connect with "Zoomlion India Private Limited"

Connect with Seller Instantly

About Company

Company Name

Zoomlion India Private Limited

GST Number

27AAACZ3929L1ZU

Since

January 2009

Address

A Wing/ 3001, Akshar Business Park, Plot No - 3, Sector - 25, Vashi, Navi Mumbai - 400703, MH, IN

Zoomlion India Private Limited is a subsidiary of Zoomlion Heavy Industry Science & Technology Co., Ltd., based in China. The company offers a wide range of construction machinery in India, spanning seven key product categories: Mobile Cranes, Construction Hoists, Foundation equipment, Concrete machinery, Earthmoving, Agriculture equipment, and Aerial Work Platforms (AWP). Zoomlion India’s product lineup includes truck cranes, crawler cranes, all-terrain cranes, tower cranes, piling rigs, truck-mounted concrete pumps, scissor lifts, and more. With an investment of INR 500 crore in a new plant at Khed City, Pune, the company is expanding its R&D, manufacturing, and service capabilities in India.
