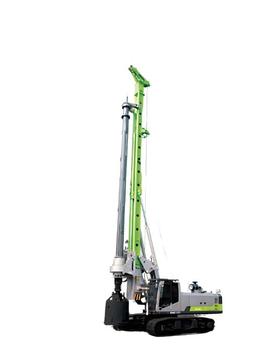

Zoomlion ZR185 Drilling Rig
Zoomlion India Private Limited
Maharashtra
The Zoomlion ZR185 Drilling Rig is a high-performance machine designed for efficient and cost-effective construction projects. With its innovative features, it offers significant savings in transportation costs, as the entire unit can be transported using a single trailer, reducing expenses by up to 30%. The rig’s robust construction ability is powered by a large-torque rotary drive, ensuring powerful and stable drilling performance. The high-flow main pump, multi-gear rotary drive, and two-speed crowd cylinder contribute to exceptional operational efficiency. Additionally, the ZR185's reinforced chassis, lower center of gravity, and enhanced mast section provide superior stability and bearing capacity. The new-generation cab offers a more comfortable, user-friendly environment with 360-degree full view monitoring and an advanced electrical control panel, while optional features such as remote control and auto-lubrication further enhance convenience.
Zoomlion ZR185 Drilling Rig
Zoomlion India Private Limited
Maharashtra
The Zoomlion ZR185 Drilling Rig is a high-performance machine designed for efficient and cost-effective construction projects. With its innovative features, it offers significant savings in transportation costs, as the entire unit can be transported using a single trailer, reducing expenses by up to 30%. The rig’s robust construction ability is powered by a large-torque rotary drive, ensuring powerful and stable drilling performance. The high-flow main pump, multi-gear rotary drive, and two-speed crowd cylinder contribute to exceptional operational efficiency. Additionally, the ZR185's reinforced chassis, lower center of gravity, and enhanced mast section provide superior stability and bearing capacity. The new-generation cab offers a more comfortable, user-friendly environment with 360-degree full view monitoring and an advanced electrical control panel, while optional features such as remote control and auto-lubrication further enhance convenience.
Product Description
The Zoomlion ZR185 Drilling Rig is a high-performance machine designed for efficient and cost-effect...
Zoomlion ZR185 Drilling Rig Comparison with Similar Piling Rig

Zoomlion ZR185 Drilling Rig
Engine Brand
Cummins
Engine Model
QSC8.3
Engine Power
181kW
Rated Speed
-
Emission Standard
stage III
Engine Displacement
8.3L
Max Output Torque
185kN·m
Rotation Speed Range
33rpm
High Speed Throwing Soil
-
Max. Drilling Diameter
1500mm
Max. Drilling Depth (interlocking Kelly)
44m
Max. Drilling Depth (friction Kelly)
56m
Crowd Force (push)
160kN
Crowd Force (pull)
160kN
Stroke Length
4500mm
Max. Lifting Capacity
-
Max. Line Speed
80m/min
Wire Rope Diameter
22mm
Forward Tilt
5°
Backward Tilt
90°
Lateral Tilt
-
Track Shoe Width
700mm
Chassis Length
-
Crawler Extension Width
-
Swing Radius
3950mm
Overall Height
18800mm
Transport Height
3588mm
Transport Width
-
Operating Weight
55Ton
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
56000mm
Interlocking Kelly Bar
44000mm
