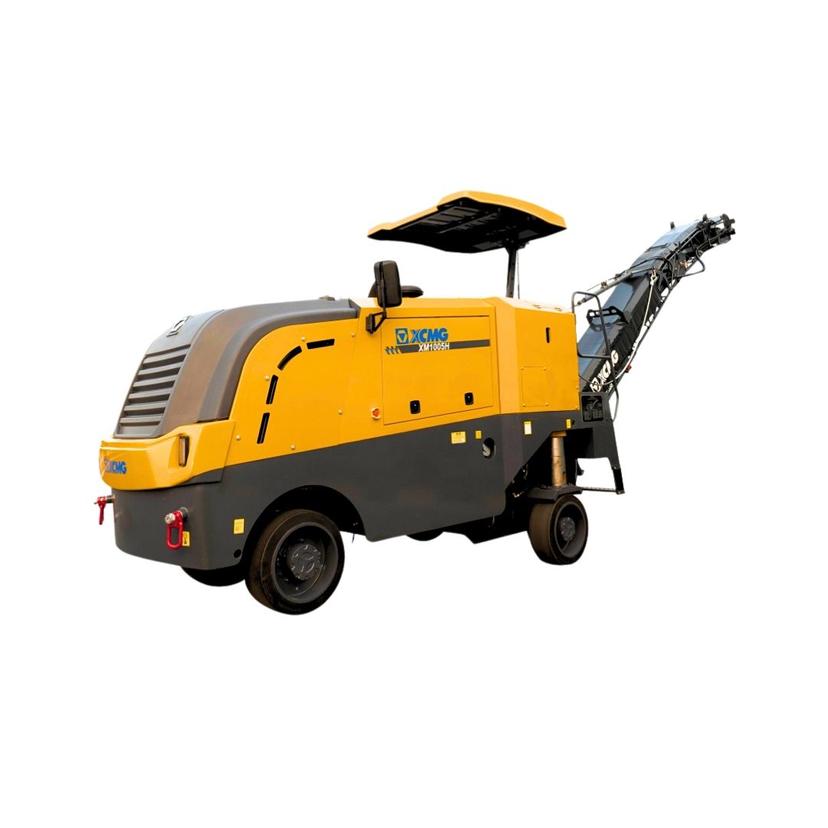

XCMG XM1005H Cold Milling Machine
XCMG XM1005H Cold Milling Machine 1

XCMG XM1005H Cold Milling Machine

(4.8)

₹1,70,00,000 - ₹1,80,00,000

🔒 Your information is secure and will only be used to contact you about this product.

Product Overview

Model Number

XM1005H

Brand

XCMG

Region

Product Description

XM1005H road milling machine is a high-performance 1M milling machine. It is mainly used for excavat...

Specifications

SpecificationValue
General Specifications
Engine ModelCummins QSB6.7
ManufacturerCummins
Rated power speed164/2200 kw/rpm
Working speed0-50 m/min
Traveling speed0-8.5 km/h
Theoretical gradeability57%
Ground clearance205 mm
Gross machine weight8600 kg
Maximum Milling width4800 mm
Maximum milling depth2295 mm
Amount of tools2650 pcs
Diameter of rotor Including cutter7435 mm
Transportation dimensions1020*980 mm
Dimensions of belt conveyor520 mm
Fuel tank120 L
Hydraulic oil tank850 L
Water tank850 L

Product Applications

  • Easily remove pavement issues like oil swell, upheaval, and track marks.
  • Efficiently remove asphalt concrete pavement imperfections for smooth, level surfaces.
  • Recycle milled materials directly for eco-friendly pavement renovations.
