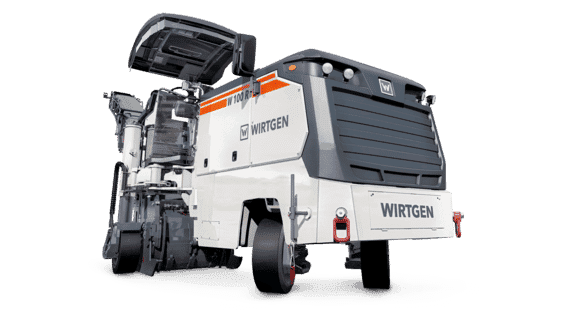

Wirtgen W 100 R Cold Milling Machine
The Wirtgen W 100 R Cold Milling Machine is a powerful and efficient solution for medium to large-scale road construction and rehabilitation projects. With a milling width of 1,000 mm and a maximum cutting depth of 300 mm, it is ideal for full-lane removal of asphalt and concrete surfaces. Powered by a robust 155 kW (211 HP) engine operating at 2,300 rpm, the machine delivers high-performance milling with precision and speed. Its operating weight of 14,700 kg ensures strong traction, stability, and consistent cutting quality across various surface conditions. Designed for productivity, the W 100 R is widely used for tasks such as profile milling, surface preparation, and deep layer removal on highways, city roads, and industrial zones—making it a reliable workhorse in demanding environments.
Wirtgen W 100 R Cold Milling Machine
The Wirtgen W 100 R Cold Milling Machine is a powerful and efficient solution for medium to large-scale road construction and rehabilitation projects. With a milling width of 1,000 mm and a maximum cutting depth of 300 mm, it is ideal for full-lane removal of asphalt and concrete surfaces. Powered by a robust 155 kW (211 HP) engine operating at 2,300 rpm, the machine delivers high-performance milling with precision and speed. Its operating weight of 14,700 kg ensures strong traction, stability, and consistent cutting quality across various surface conditions. Designed for productivity, the W 100 R is widely used for tasks such as profile milling, surface preparation, and deep layer removal on highways, city roads, and industrial zones—making it a reliable workhorse in demanding environments.
Product Description
The Wirtgen W 100 R Cold Milling Machine is a powerful and efficient solution for medium to large-sc...
View the full brochure
Wirtgen W 100 R Cold Milling Machine Comparison with Similar Cold Milling Machine

Wirtgen W 100 R Cold Milling Machine
Engine Brand
Deutz
Engine Model
TCD 2012 L06 2V
Engine Power
208HP
Rated Speed
2300rpm
Fuel Consumption
42L/h
Emission Standard
EU Stage 3a / US EPA Tier 3
Milling Width
1000mm
Milling Depth
300mm
Cutting Diameter
930mm
Transmission Type
-
Travel Drive Mode
-
Max Travel Speed
7.5km/h
Steering Mode
-
Steering Angle (left)
-
Steering Angle (right)
-
Max Operating Weight
16.65tons
Fuel Tank Capacity
480L
Hydraulic Oil Capacity
86L
Water Tank Capacity
825L
Operating Weight
-
Front Tire Size
620 x 230mm
Rear Tire Size
620 x 255mm
Belt Width
500mm
Discharge Capacity
125m³/h

Liugong M100E Cold Milling Machine
Engine Brand
Cummins
Engine Model
QSB5.9
Engine Power
210HP
Rated Speed
2200rpm
Fuel Consumption
-
Emission Standard
-
Milling Width
1000mm
Milling Depth
220mm
Cutting Diameter
860mm
Transmission Type
-
Travel Drive Mode
-
Max Travel Speed
8km/h
Steering Mode
-
Steering Angle (left)
25°
Steering Angle (right)
20°
Max Operating Weight
15.0tons
Fuel Tank Capacity
360L
Hydraulic Oil Capacity
120L
Water Tank Capacity
800L
Operating Weight
-
Front Tire Size
250x660mm
Rear Tire Size
250x660mm
Belt Width
400mm
Discharge Capacity
90m³/h

CAT PM313 Cold Milling Machine
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Fuel Consumption
-
Emission Standard
-
Milling Width
-
Milling Depth
-
Cutting Diameter
-
Transmission Type
-
Travel Drive Mode
-
Max Travel Speed
-
Steering Mode
-
Steering Angle (left)
-
Steering Angle (right)
-
Max Operating Weight
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Water Tank Capacity
-
Operating Weight
-
Front Tire Size
-
Rear Tire Size
-
Belt Width
-
Discharge Capacity
-

Wirtgen W 50 HR Cold Milling Machine
Engine Brand
Dongfeng Cummins
Engine Model
QSB4.5-C110-III
Engine Power
117HP
Rated Speed
2200rpm
Fuel Consumption
22.9L/h
Emission Standard
EU Stage 3a / EPA Tier 3 / CN Stage 3
Milling Width
500mm
Milling Depth
180mm
Cutting Diameter
670mm
Transmission Type
-
Travel Drive Mode
-
Max Travel Speed
8km/h
Steering Mode
-
Steering Angle (left)
-
Steering Angle (right)
-
Max Operating Weight
6.2tons
Fuel Tank Capacity
160L
Hydraulic Oil Capacity
80L
Water Tank Capacity
320L
Operating Weight
-
Front Tire Size
559 x 178mm
Rear Tire Size
559 x 254mm
Belt Width
400mm
Discharge Capacity
84m³/h

Wirtgen W 55 HR Cold Milling Machine
Engine Brand
Dongfeng Cummins
Engine Model
QSB4.5-C110-III
Engine Power
117HP
Rated Speed
2200rpm
Fuel Consumption
22.9L/h
Emission Standard
EU Stage 3a / US EPA Tier 3 / CN Stage 3
Milling Width
500mm
Milling Depth
180mm
Cutting Diameter
670mm
Transmission Type
-
Travel Drive Mode
-
Max Travel Speed
8km/h
Steering Mode
-
Steering Angle (left)
-
Steering Angle (right)
-
Max Operating Weight
6800tons
Fuel Tank Capacity
160L
Hydraulic Oil Capacity
80L
Water Tank Capacity
320L
Operating Weight
-
Front Tire Size
559 x 178mm
Rear Tire Size
559 x 254mm
Belt Width
400mm
Discharge Capacity
-
