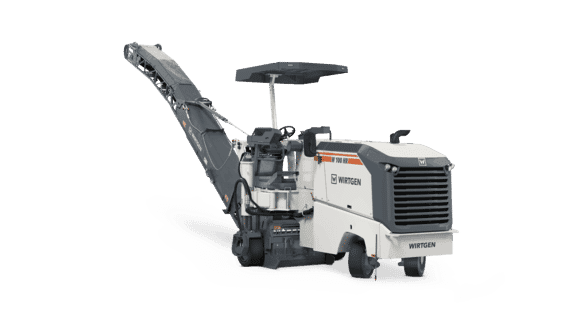

Wirtgen W 100 HR Cold Milling Machine
The Wirtgen W 100 HR Cold Milling Machine is a compact yet powerful solution for urban and mid-sized road milling projects. With a milling width of 1,000 mm and a maximum cutting depth of 200 mm, it delivers high-precision results for surface removal, profiling, and asphalt layer stripping. Powered by a robust 155 kW (211 HP) engine, the machine offers consistent performance even in demanding applications. Its operating weight of 13,600 kg ensures excellent traction and stability during operation, making it suitable for both city streets and industrial zones. The W 100 HR is engineered for productivity and maneuverability, allowing operators to work efficiently in confined or heavily trafficked areas. Whether it's resurfacing, trenching, or full-lane removal, this machine delivers reliable and accurate milling every time.
Wirtgen W 100 HR Cold Milling Machine
The Wirtgen W 100 HR Cold Milling Machine is a compact yet powerful solution for urban and mid-sized road milling projects. With a milling width of 1,000 mm and a maximum cutting depth of 200 mm, it delivers high-precision results for surface removal, profiling, and asphalt layer stripping. Powered by a robust 155 kW (211 HP) engine, the machine offers consistent performance even in demanding applications. Its operating weight of 13,600 kg ensures excellent traction and stability during operation, making it suitable for both city streets and industrial zones. The W 100 HR is engineered for productivity and maneuverability, allowing operators to work efficiently in confined or heavily trafficked areas. Whether it's resurfacing, trenching, or full-lane removal, this machine delivers reliable and accurate milling every time.
Product Description
The Wirtgen W 100 HR Cold Milling Machine is a compact yet powerful solution for urban and mid-sized...
View the full brochure
Wirtgen W 100 HR Cold Milling Machine Comparison with Similar Cold Milling Machine

Wirtgen W 100 HR Cold Milling Machine
Engine Brand
Deutz
Engine Model
TCD 2012 L06 2V
Engine Power
208HP
Rated Speed
2200rpm
Fuel Consumption
42L/h
Emission Standard
EU Stage 3a / US EPA Tier 3 / CN Stage 3
Milling Width
1000mm
Milling Depth
-
Cutting Diameter
860mm
Transmission Type
-
Travel Drive Mode
-
Max Travel Speed
8km/h
Steering Mode
-
Steering Angle (left)
-
Steering Angle (right)
-
Max Operating Weight
14.2tons
Fuel Tank Capacity
320L
Hydraulic Oil Capacity
80L
Water Tank Capacity
700L
Operating Weight
-
Front Tire Size
620 x 230mm
Rear Tire Size
620 x 255mm
Belt Width
400mm
Discharge Capacity
92m³/h

Liugong M100E Cold Milling Machine
Engine Brand
Cummins
Engine Model
QSB5.9
Engine Power
210HP
Rated Speed
2200rpm
Fuel Consumption
-
Emission Standard
-
Milling Width
1000mm
Milling Depth
220mm
Cutting Diameter
860mm
Transmission Type
-
Travel Drive Mode
-
Max Travel Speed
8km/h
Steering Mode
-
Steering Angle (left)
25°
Steering Angle (right)
20°
Max Operating Weight
15.0tons
Fuel Tank Capacity
360L
Hydraulic Oil Capacity
120L
Water Tank Capacity
800L
Operating Weight
-
Front Tire Size
250x660mm
Rear Tire Size
250x660mm
Belt Width
400mm
Discharge Capacity
90m³/h

CAT PM313 Cold Milling Machine
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Fuel Consumption
-
Emission Standard
-
Milling Width
-
Milling Depth
-
Cutting Diameter
-
Transmission Type
-
Travel Drive Mode
-
Max Travel Speed
-
Steering Mode
-
Steering Angle (left)
-
Steering Angle (right)
-
Max Operating Weight
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Water Tank Capacity
-
Operating Weight
-
Front Tire Size
-
Rear Tire Size
-
Belt Width
-
Discharge Capacity
-

Wirtgen W 50 HR Cold Milling Machine
Engine Brand
Dongfeng Cummins
Engine Model
QSB4.5-C110-III
Engine Power
117HP
Rated Speed
2200rpm
Fuel Consumption
22.9L/h
Emission Standard
EU Stage 3a / EPA Tier 3 / CN Stage 3
Milling Width
500mm
Milling Depth
180mm
Cutting Diameter
670mm
Transmission Type
-
Travel Drive Mode
-
Max Travel Speed
8km/h
Steering Mode
-
Steering Angle (left)
-
Steering Angle (right)
-
Max Operating Weight
6.2tons
Fuel Tank Capacity
160L
Hydraulic Oil Capacity
80L
Water Tank Capacity
320L
Operating Weight
-
Front Tire Size
559 x 178mm
Rear Tire Size
559 x 254mm
Belt Width
400mm
Discharge Capacity
84m³/h

Wirtgen W 55 HR Cold Milling Machine
Engine Brand
Dongfeng Cummins
Engine Model
QSB4.5-C110-III
Engine Power
117HP
Rated Speed
2200rpm
Fuel Consumption
22.9L/h
Emission Standard
EU Stage 3a / US EPA Tier 3 / CN Stage 3
Milling Width
500mm
Milling Depth
180mm
Cutting Diameter
670mm
Transmission Type
-
Travel Drive Mode
-
Max Travel Speed
8km/h
Steering Mode
-
Steering Angle (left)
-
Steering Angle (right)
-
Max Operating Weight
6800tons
Fuel Tank Capacity
160L
Hydraulic Oil Capacity
80L
Water Tank Capacity
320L
Operating Weight
-
Front Tire Size
559 x 178mm
Rear Tire Size
559 x 254mm
Belt Width
400mm
Discharge Capacity
-
