Wacker Neuson RD45 Tandem Roller
Wacker Neuson Equipment Private Limited
Karnataka

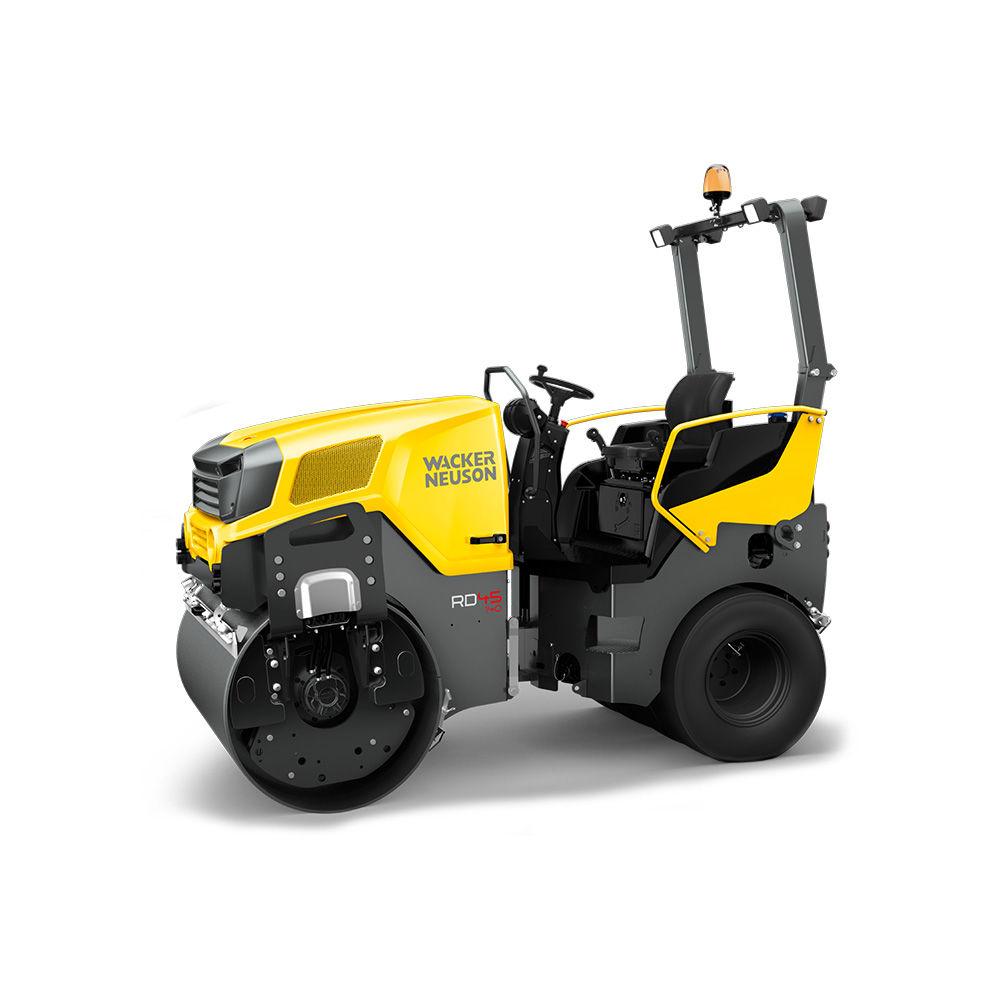

The Wacker Neuson RD45 Tandem Roller combines power and precision for top-notch compaction results. Designed with a balanced weight distribution on both drums, it ensures even compaction and stability across various surfaces. Its compact design enhances maneuverability, making it ideal for tight urban spaces and precise edge work. The roller's ergonomic work platform and low vibration design improve operator comfort and efficiency. With excellent 360° visibility and a high curb clearance, the RD45 allows for effective compaction close to walls and obstacles. The intuitive operator panel and foldable ROPS structure further enhance safety and ease of use. Whether for road construction or urban projects, the RD45 delivers exceptional performance and reliability.
Wacker Neuson RD45 Tandem Roller
Wacker Neuson Equipment Private Limited
Karnataka
The Wacker Neuson RD45 Tandem Roller combines power and precision for top-notch compaction results. Designed with a balanced weight distribution on both drums, it ensures even compaction and stability across various surfaces. Its compact design enhances maneuverability, making it ideal for tight urban spaces and precise edge work. The roller's ergonomic work platform and low vibration design improve operator comfort and efficiency. With excellent 360° visibility and a high curb clearance, the RD45 allows for effective compaction close to walls and obstacles. The intuitive operator panel and foldable ROPS structure further enhance safety and ease of use. Whether for road construction or urban projects, the RD45 delivers exceptional performance and reliability.
Product Description
The Wacker Neuson RD45 Tandem Roller combines power and precision for top-notch compaction results. ...
Wacker Neuson RD45 Tandem Roller Comparison with Similar Tandem Roller
Wacker Neuson RD45 Tandem Roller
Frequency High
60.0Hz
Frequency Low
51.0Hz
Amplitude High
0.51mm
Amplitude Low
0.30mm
Overall Length
2.96m
Overall Width
1.50m
Overall Height
2.72m
Ground Clearance
-
Drum Width
1.379m
Water Tank Capacity
285.0415L
Fuel Tank Capacity
73.05L
Engine Brand
Kubota
Engine Model
V2403-CR
Engine Power
50.2HP
Max Torque
-
Rated Speed
-
Displacement
-
Transmission Type
-
Max Travel Speed
10.94km/h
Max Working Speed
-
Gradeability Without Vibration
40%
Gradeability With Vibration
30%
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
+/-8.0°
Turning Radius
-
Operating Weight
4.43Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Tank Capacity
-
Volvo DD90C Tandem Roller
Frequency High
50 Hz
Frequency Low
36 Hz
Amplitude High
1.0 mm
Amplitude Low
0.36mm
Overall Length
4.970 m
Overall Width
1.835 m
Overall Height
3.050m
Ground Clearance
305mm
Drum Width
1.676m
Water Tank Capacity
700L
Fuel Tank Capacity
180 L
Engine Brand
VECV
Engine Model
EE483TCI StageIV CEV
Engine Power
73.8 HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
12km/h
Max Working Speed
7 km/h
Gradeability Without Vibration
30%
Gradeability With Vibration
-
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on both drum drives
Steering Type
Articulated frame, center pivot steering
Steering Angle
30°
Oscillation Angle
10°
Turning Radius
7.285 m
Operating Weight
8.7Ton
Front Axle Load
4.22kg
Rear Axle Load
4.48kg
Hydraulic Tank Capacity
80L
Volvo DD100 Tandem Roller
Frequency High
41.7Hz
Frequency Low
30.8 Hz
Amplitude High
1.01mm
Amplitude Low
0.41mm
Overall Length
5.086 m
Overall Width
2.845m
Overall Height
2.845m
Ground Clearance
0.430 mm
Drum Width
1.676m
Water Tank Capacity
984L
Fuel Tank Capacity
189L
Engine Brand
Cummins
Engine Model
QSB 4.5
Engine Power
129.9HP
Max Torque
-
Rated Speed
-
Displacement
-
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
11.4 km/h
Max Working Speed
-
Gradeability Without Vibration
-
Gradeability With Vibration
24.5%
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on front and rear drum drive motors
Steering Type
Center pivot (Articulated) steering
Steering Angle
40°
Oscillation Angle
10°
Turning Radius
3.558m
Operating Weight
10.025 Ton
Front Axle Load
5,200kg
Rear Axle Load
4,825kg
Hydraulic Tank Capacity
133 L
Ammann ARX 90.2 Tandem Roller
Frequency High
55Hz
Frequency Low
42Hz
Amplitude High
0.7mm
Amplitude Low
0.35mm
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Drum Width
1.7m
Water Tank Capacity
1000L
Fuel Tank Capacity
200L
Engine Brand
Ashok Leyland
Engine Model
H4C47422
Engine Power
72.9HP
Max Torque
-
Rated Speed
1400–1600 rpm
Displacement
-
Transmission Type
Hydrostatic
Max Travel Speed
12 km/h
Max Working Speed
-
Gradeability Without Vibration
35%
Gradeability With Vibration
-
Service Brake Type
Hydrostatic
Parking Brake Type
Multi-disc Spring Brake
Steering Type
-
Steering Angle
35°
Oscillation Angle
6°
Turning Radius
4.7m
Operating Weight
9.42Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Tank Capacity
-
Wacker Neuson RD28 Tandem Roller
Frequency High
65.0Hz
Frequency Low
51.0Hz
Amplitude High
0.44mm
Amplitude Low
0.44mm
Overall Length
2.52m
Overall Width
1.31m
Overall Height
1.75m
Ground Clearance
-
Drum Width
1.19m
Water Tank Capacity
180.18L
Fuel Tank Capacity
42.01L
Engine Brand
Kubota
Engine Model
D1703
Engine Power
24.8HP
Max Torque
-
Rated Speed
-
Displacement
-
Transmission Type
-
Max Travel Speed
10.13km/h
Max Working Speed
-
Gradeability Without Vibration
40.0%
Gradeability With Vibration
30.0%
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
+/-8.0°
Turning Radius
-
Operating Weight
2.69Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Tank Capacity
-
