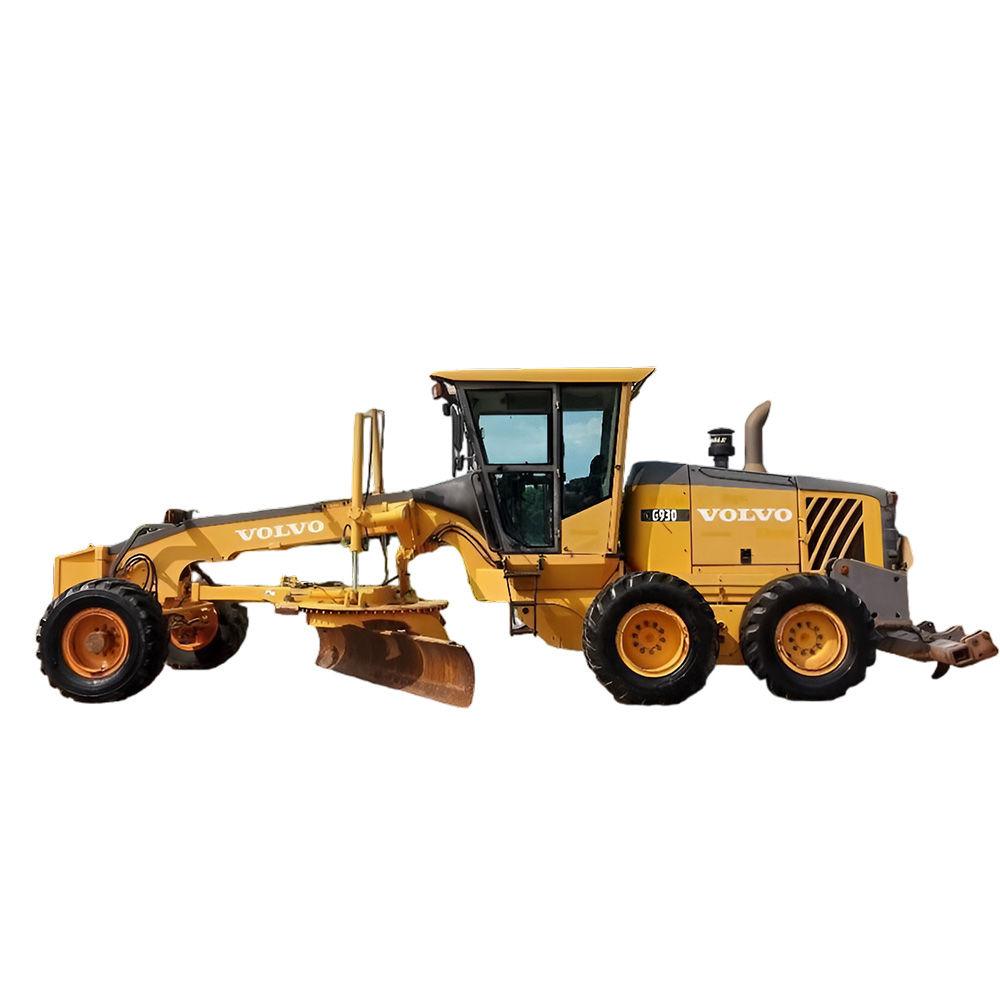

Volvo G930 C Motor Grader
Volvo Construction Equipment
Gujarat
The Volvo G930 C Motor Grader is a powerful machine engineered to excel in heavy construction tasks. Equipped with a robust 155 Hp engine, it delivers exceptional work output, making it ideal for road construction, earthmoving, and site preparation. The grader’s 2.54 mm moldboard width ensures precise grading, while its top forward speed of 37 kmph boosts productivity on large-scale projects. Designed for efficiency, the G930 C features a 340 L fuel tank and a 91 L hydraulic system, ensuring long, uninterrupted operation. With its segment-leading specifications and superior build quality, the Volvo G930 C stands out as a top choice for contractors seeking reliability and performance in demanding environments. Get the best deals and comprehensive details on Infra Junction.
Volvo G930 C Motor Grader
Volvo Construction Equipment
Gujarat
The Volvo G930 C Motor Grader is a powerful machine engineered to excel in heavy construction tasks. Equipped with a robust 155 Hp engine, it delivers exceptional work output, making it ideal for road construction, earthmoving, and site preparation. The grader’s 2.54 mm moldboard width ensures precise grading, while its top forward speed of 37 kmph boosts productivity on large-scale projects. Designed for efficiency, the G930 C features a 340 L fuel tank and a 91 L hydraulic system, ensuring long, uninterrupted operation. With its segment-leading specifications and superior build quality, the Volvo G930 C stands out as a top choice for contractors seeking reliability and performance in demanding environments. Get the best deals and comprehensive details on Infra Junction.
Product Description
The Volvo G930 C Motor Grader is a powerful machine engineered to excel in heavy construction tasks....
View the full brochure
Volvo G930 C Motor Grader Comparison with Similar Motor Grader
Volvo G930 C Motor Grader
Engine Brand
Volvo
Engine Model
D7E
Engine Power
204HP
Max Torque
928Nm
Rated Speed
1800rpm
Displacement
7.2L
Fuel Tank Capacity
-
Transmission Type
Volvo APR70 Planetary Final Drive
Number Of Gears (fwd/rev)
-
Max Travel Speed
-
Service Brake Type
Hydraulic wet multiple disc (4 tandem wheels)
Parking Brake Type
Spring-applied, hydraulically released wet disc
Steering Type
Front axle steering + articulation + wheel lean
Steering Angle
50°
Oscillation Angle
15°
Turning Radius
7.265m
Front Axle Load
4700kg
Rear Axle Load
11100kg
Operating Weight
15.8Ton
Hydraulic Flow Rate
105L/min
Hydraulic Pressure
265Bar
Overall Length
8,930m
Overall Width
-
Overall Height
-
Ground Clearance
610mm
Blade Length
-
Blade Height
-
Max Lift Above Ground
-
Max Depth Of Cut
-
Blade Tilt Angle
-
Blade Pitch Angle
-
Blade Rotation Angle
180°
Liugong CLG 414 BSIII Motor Grader
Engine Brand
CUMMINS INDIA
Engine Model
6BTAA5.9
Engine Power
150HP
Max Torque
655Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
250L
Transmission Type
Power Shift
Number Of Gears (fwd/rev)
6F/3R
Max Travel Speed
41km/h
Service Brake Type
Shoe
Parking Brake Type
Shoe
Steering Type
Full hydraulic steering
Steering Angle
90°
Oscillation Angle
30°
Turning Radius
7.2m
Front Axle Load
-
Rear Axle Load
-
Operating Weight
14.3Ton
Hydraulic Flow Rate
-
Hydraulic Pressure
180Bar
Overall Length
9.21m
Overall Width
3.4m
Overall Height
3.66m
Ground Clearance
575mm
Blade Length
3.66m
Blade Height
0.61m
Max Lift Above Ground
0.485m
Max Depth Of Cut
0.575m
Blade Tilt Angle
70°
Blade Pitch Angle
-
Blade Rotation Angle
90°
Sany STG210C-10 Motor Grader
Engine Brand
Cummins
Engine Model
QSB6.7
Engine Power
225HP
Max Torque
1000Nm
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
350L
Transmission Type
-
Number Of Gears (fwd/rev)
6 forward and 3 reverse
Max Travel Speed
42km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
45°
Oscillation Angle
16°
Turning Radius
7.3m
Front Axle Load
-
Rear Axle Load
-
Operating Weight
15.35Ton
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
11.1m
Overall Width
2.74m
Overall Height
3.31m
Ground Clearance
410mm
Blade Length
3.66m
Blade Height
0.62m
Max Lift Above Ground
0.48m
Max Depth Of Cut
0.63m
Blade Tilt Angle
9°
Blade Pitch Angle
25~75°
Blade Rotation Angle
360°
FINE 585HD Motor Grader
Engine Brand
Ashok Leyland
Engine Model
-
Engine Power
130HP
Max Torque
480Nm
Rated Speed
2200rpm
Displacement
3.84L
Fuel Tank Capacity
140L
Transmission Type
Power - Shift Transmission (AVTECH)
Number Of Gears (fwd/rev)
2 Forward / 2 Reverse
Max Travel Speed
20km/h
Service Brake Type
Foot pedal operated hydraulic brake through master cylinder
Parking Brake Type
Spring Applied Hydraulic Release (SAHR)
Steering Type
Hydraulic Power Steering
Steering Angle
45°
Oscillation Angle
20°
Turning Radius
10.26m
Front Axle Load
2710kg
Rear Axle Load
6750kg
Operating Weight
9.495Ton
Hydraulic Flow Rate
118L/min
Hydraulic Pressure
220Bar
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Blade Length
3.05m
Blade Height
0.494m
Max Lift Above Ground
0.46m
Max Depth Of Cut
-
Blade Tilt Angle
40° Forward / 5° Backward°
Blade Pitch Angle
-
Blade Rotation Angle
360°
Liugong 4230D Motor Grader
Engine Brand
Cummins
Engine Model
QSL9.3TC130B01
Engine Power
241HP
Max Torque
1186Nm
Rated Speed
2200rpm
Displacement
9.3L
Fuel Tank Capacity
348L
Transmission Type
Power shift, single stage-three elements torque converter
Number Of Gears (fwd/rev)
Fwd: 6 / Rev: 3
Max Travel Speed
Forward: 40 Reverse: 26.2km/h
Service Brake Type
Disc brake
Parking Brake Type
Rear axle
Steering Type
Load sensing steering
Steering Angle
± 50°
Oscillation Angle
± 16°
Turning Radius
7,200m
Front Axle Load
-
Rear Axle Load
-
Operating Weight
18.6Ton
Hydraulic Flow Rate
200L/min
Hydraulic Pressure
21Bar
Overall Length
9,140m
Overall Width
2,675m
Overall Height
3,380m
Ground Clearance
602mm
Blade Length
3,960m
Blade Height
610m
Max Lift Above Ground
600m
Max Depth Of Cut
680m
Blade Tilt Angle
28–74°
Blade Pitch Angle
42–90°
Blade Rotation Angle
360°
