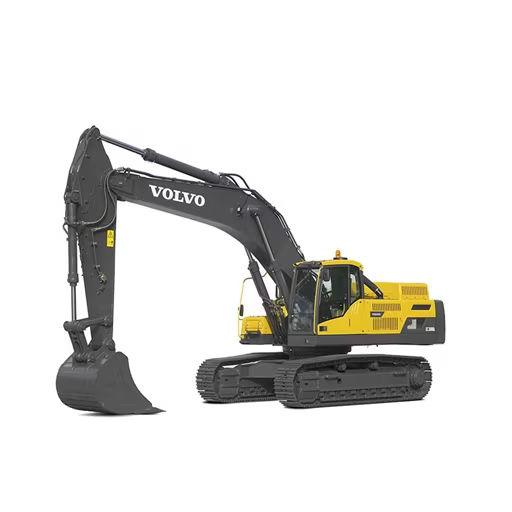

Volvo EC380D Crawler Excavator
Volvo Construction Equipment
Gujarat
The Volvo EC380D Crawler Excavator is a highly efficient and durable machine, designed for demanding tasks in earthmoving, quarrying, mining, and infrastructure projects. Powered by a 215 kW engine, it delivers excellent fuel efficiency and increased digging force, ensuring faster cycle times and reduced operational costs. With an operating weight of up to 41,100 kg, a bucket capacity ranging from 1.35 to 3 m³, and a maximum digging depth of 8,150 mm, it excels in large-scale excavation tasks. Its 215 kN breakout force and 14,540 kg lifting capacity make it ideal for handling tough materials and lifting heavy loads. Whether you're working on road construction, pipeline projects, or material handling, the EC380D offers optimal power, precision, and reliability, boosting productivity day in and day out.
Volvo EC380D Crawler Excavator
Volvo Construction Equipment
Gujarat
The Volvo EC380D Crawler Excavator is a highly efficient and durable machine, designed for demanding tasks in earthmoving, quarrying, mining, and infrastructure projects. Powered by a 215 kW engine, it delivers excellent fuel efficiency and increased digging force, ensuring faster cycle times and reduced operational costs. With an operating weight of up to 41,100 kg, a bucket capacity ranging from 1.35 to 3 m³, and a maximum digging depth of 8,150 mm, it excels in large-scale excavation tasks. Its 215 kN breakout force and 14,540 kg lifting capacity make it ideal for handling tough materials and lifting heavy loads. Whether you're working on road construction, pipeline projects, or material handling, the EC380D offers optimal power, precision, and reliability, boosting productivity day in and day out.
Product Description
The Volvo EC380D Crawler Excavator is a highly efficient and durable machine, designed for demanding...
View the full brochure
Volvo EC380D Crawler Excavator Comparison with Similar Crawler Excavator

Volvo EC380D Crawler Excavator
Engine Brand
Volvo
Engine Model
D13F
Engine Power
297HP
Max Torque
1580Nm
Rated Speed
1700rpm
Displacement
12.8L
Fuel Tank Capacity
620L
Hydraulic Flow Rate
2 x 300L/min
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
359.95kgf/cm²
Hydraulic Pressure (pilot Circuit)
39.76kgf/cm²
Operating Weight
37.84Ton
Ground Pressure (600mm Track)
0.69kgf/cm²
Max Digging Depth
6.74m
Max Reach At Ground
10.21m
Max Dumping Height
6.82m
Bucket Capacity
-
Bucket Breakout Force
21923.9kgf
Arm Crowd Force
-
Overall Length
11.08m
Overall Width
3.34m
Overall Height
3.7m
Ground Clearance
500mm

Zoomlion ZE385G Pro Crawler Excavator
Engine Brand
CUMMINS
Engine Model
QSL
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
8.9L
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
38Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
7.075m
Max Reach At Ground
-
Max Dumping Height
6.885m
Bucket Capacity
2.0m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
11.23m
Overall Width
3.19m
Overall Height
3.78m
Ground Clearance
-

XCMG XE155U Crawler Excavator
Engine Brand
XCMG
Engine Model
Cummins B4.5
Engine Power
-
Max Torque
501.8Nm
Rated Speed
-
Displacement
4.54L
Fuel Tank Capacity
249.8L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
17.5Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
6.01m
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
0.64m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
78.3m
Overall Width
26.8m
Overall Height
-
Ground Clearance
367.1mm

Liugong 965E HD Crawler Excavator
Engine Brand
SCANIA
Engine Model
DC13 076A
Engine Power
444HP
Max Torque
2007Nm
Rated Speed
2100rpm
Displacement
12.7L
Fuel Tank Capacity
880L
Hydraulic Flow Rate
896L/min
Hydraulic Pressure (implement Circuit)
379.3kgf/cm²
Hydraulic Pressure (swing Circuit)
397.7kgf/cm²
Hydraulic Pressure (travel Circuit)
326.3kgf/cm²
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
62.6Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
6.83m
Max Reach At Ground
10.78m
Max Dumping Height
6.84m
Bucket Capacity
4.1m³
Bucket Breakout Force
35180.2kgf
Arm Crowd Force
30591.5kgf
Overall Length
11.87m
Overall Width
3.9m
Overall Height
3.05m
Ground Clearance
786mm

Sany SY210 SPARC + Crawler Excavator
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
-
Ground Pressure (600mm Track)
-
Max Digging Depth
-
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
