Machan X

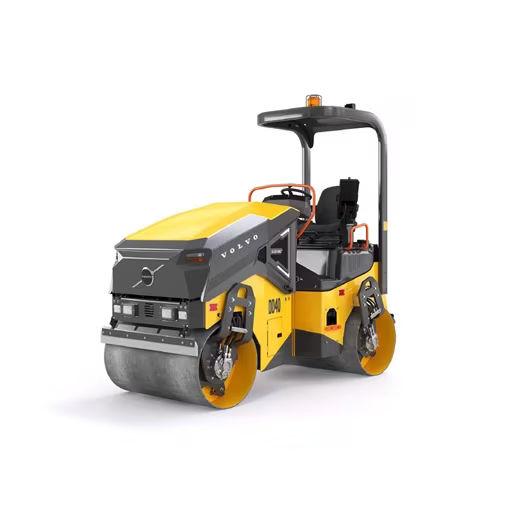

Volvo DD40 Mini Tandem Roller

West India Equipments Pvt Ltd

Gujarat

The Volvo DD40 Electric Mini Tandem Roller is designed for performance in noise- and emission-sensitive environments. Fully electric and compact in size, it’s an ideal solution for indoor construction, landscaping projects, and public infrastructure works near schools, hospitals, or residential zones. Operators benefit from a cleaner, quieter work environment, improving overall site safety and comfort. The electric powertrain helps reduce operating costs by over 60% compared to traditional fuel-driven models, making it a smart choice for budget-conscious contractors. With zero emissions and minimal noise output, the DD40 Electric meets stringent environmental regulations while delivering efficient, high-quality compaction performance. Whether it's a confined space or a sustainability-focused project, the Volvo DD40 Electric brings reliability, environmental responsibility, and cost efficiency in one compact package.

Product Description

The Volvo DD40 Electric Mini Tandem Roller is designed for performance in noise- and emission-sensit...

View the full brochure

Volvo DD40 Mini Tandem Roller Comparison with Similar Tandem Roller

Volvo DD40 Mini Tandem Roller

Volvo DD40 Mini Tandem Roller

Get Latest Price
Rating
4.4

Hydraulic Tank Capacity

55L

Frequency High

67Hz

Frequency Low

55Hz

Engine Brand

-

Engine Model

-

Engine Power

56.3HP

Max Torque

-

Rated Speed

-

Fuel Tank Capacity

-

Displacement

-

Transmission Type

Closed-loop hydrostatic

Max Travel Speed

10km/h

Max Working Speed

-

Gradeability Without Vibration

30%

Gradeability With Vibration

-

Service Brake Type

Hydrostatic

Parking Brake Type

Spring-applied, hydraulic release

Steering Type

Articulated

Steering Angle

30°

Oscillation Angle

10°

Turning Radius

3.35m

Operating Weight

3.8Ton

Front Axle Load

2.03kg

Rear Axle Load

1.77kg

Amplitude High

0.5mm

Amplitude Low

0.5mm

Overall Length

2.86m

Overall Width

1.32m

Overall Height

2.85m

Ground Clearance

250mm

Drum Width

1.2m

Water Tank Capacity

260L

Currently Viewing
Volvo DD90C Tandem Roller

Volvo DD90C Tandem Roller

Get Latest Price
Rating
4.4

Hydraulic Tank Capacity

80L

Frequency High

50 Hz

Frequency Low

36 Hz

Engine Brand

VECV

Engine Model

EE483TCI StageIV CEV

Engine Power

73.8 HP

Max Torque

-

Rated Speed

2200rpm

Fuel Tank Capacity

180 L

Displacement

-

Transmission Type

Closed-loop hydrostatic, parallel circuit to both drums

Max Travel Speed

12km/h

Max Working Speed

7 km/h

Gradeability Without Vibration

30%

Gradeability With Vibration

-

Service Brake Type

Dynamic hydrostatic through propulsion system

Parking Brake Type

SAHR on both drum drives

Steering Type

Articulated frame, center pivot steering

Steering Angle

30°

Oscillation Angle

10°

Turning Radius

7.285 m

Operating Weight

8.7Ton

Front Axle Load

4.22kg

Rear Axle Load

4.48kg

Amplitude High

1.0 mm

Amplitude Low

0.36mm

Overall Length

4.970 m

Overall Width

1.835 m

Overall Height

3.050m

Ground Clearance

305mm

Drum Width

1.676m

Water Tank Capacity

700L

Volvo DD90B Tandem Roller

Volvo DD90B Tandem Roller

Get Latest Price
Rating
4.4

Hydraulic Tank Capacity

85L

Frequency High

50Hz

Frequency Low

36Hz

Engine Brand

Kirloskar

Engine Model

4R1040TC BS -III (CEV)

Engine Power

75.1HP

Max Torque

-

Rated Speed

2200rpm

Fuel Tank Capacity

145L

Displacement

-

Transmission Type

closed-loop hydrostatic, parallel circuit to both drums

Max Travel Speed

13km/h

Max Working Speed

7km/h

Gradeability Without Vibration

26%

Gradeability With Vibration

-

Service Brake Type

Dynamic hydrostatic through propulsion system

Parking Brake Type

SAHR on both drum drives

Steering Type

Articulated frame center pivot steering

Steering Angle

30°

Oscillation Angle

10°

Turning Radius

6.89m

Operating Weight

8.55Ton

Front Axle Load

4400kg

Rear Axle Load

4150kg

Amplitude High

1.0mm

Amplitude Low

0.36mm

Overall Length

4.7m

Overall Width

1.835m

Overall Height

3.0m

Ground Clearance

305mm

Drum Width

1.675m

Water Tank Capacity

800L

Volvo DD100 Tandem Roller

Volvo DD100 Tandem Roller

Get Latest Price
Rating
4.4

Hydraulic Tank Capacity

133 L

Frequency High

41.7Hz

Frequency Low

30.8 Hz

Engine Brand

Cummins

Engine Model

QSB 4.5

Engine Power

129.9HP

Max Torque

-

Rated Speed

-

Fuel Tank Capacity

189L

Displacement

-

Transmission Type

Closed-loop hydrostatic, parallel circuit to both drums

Max Travel Speed

11.4 km/h

Max Working Speed

-

Gradeability Without Vibration

-

Gradeability With Vibration

24.5%

Service Brake Type

Dynamic hydrostatic through propulsion system

Parking Brake Type

SAHR on front and rear drum drive motors

Steering Type

Center pivot (Articulated) steering

Steering Angle

40°

Oscillation Angle

10°

Turning Radius

3.558m

Operating Weight

10.025 Ton

Front Axle Load

5,200kg

Rear Axle Load

4,825kg

Amplitude High

1.01mm

Amplitude Low

0.41mm

Overall Length

5.086 m

Overall Width

2.845m

Overall Height

2.845m

Ground Clearance

0.430 mm

Drum Width

1.676m

Water Tank Capacity

984L

Volvo DD100C Tandem Roller

Volvo DD100C Tandem Roller

Get Latest Price
Rating
4.4

Hydraulic Tank Capacity

135L

Frequency High

42Hz

Frequency Low

30Hz

Engine Brand

VECV

Engine Model

EE494TCI-HPCR

Engine Power

99.2HP

Max Torque

-

Rated Speed

2200rpm

Fuel Tank Capacity

185L

Displacement

-

Transmission Type

Closed-loop hydrostatic, parallel circuit to both drums

Max Travel Speed

12km/h

Max Working Speed

7km/h

Gradeability Without Vibration

26%

Gradeability With Vibration

-

Service Brake Type

Dynamic hydrostatic through propulsion system

Parking Brake Type

SAHR on both drum drives

Steering Type

Articulated frame center pivot steering

Steering Angle

38°

Oscillation Angle

10°

Turning Radius

5.7m

Operating Weight

10.6Ton

Front Axle Load

5160kg

Rear Axle Load

4840kg

Amplitude High

1.01mm

Amplitude Low

0.41mm

Overall Length

5.25m

Overall Width

2.06m

Overall Height

2.87m

Ground Clearance

370mm

Drum Width

1.676m

Water Tank Capacity

492L

Compare Tandem Roller

Volvo DD40 Mini Tandem Roller

Volvo DD40 Mini Tandem Roller

Volvo DD90C Tandem Roller

Volvo DD90C Tandem Roller

Add any equipment
to compare

Product

Get instant quotation on whatsapp

Connect with "West India Equipments Pvt Ltd"

Connect with Seller Instantly

About Company

Company Name

West India Equipments Pvt Ltd

GST Number

24AABCW2368M1Z1

Since

June 2017

Address

Plot No. 658, 1st Floor, Sarkhej Bavla Highway, Near Tara Motors, Before Sarkhej Bawla Road, Before Sanathal Overbridge, Ahmedabad-382210, Gujarat, India

Westindia Equipments Pvt. Ltd., established in 2003, is a trusted dealer of construction equipment in Gujarat. With 4 full-fledged Sales–Service–Spares branches in Ahmedabad, Gandhidham, Jamnagar, and Surat, and service touchpoints in Sayla, Bharuch, Chikhli, Bhuj, Mehsana, and Bhavnagar, we ensure strong regional coverage. Our Ahmedabad facility houses a dedicated Parts Warehouse and a fully-equipped Hydraulic and Engine Workshop. Backed by a team of 35 skilled service engineers enrolled in VOLVO's Technical Competency Level Mapping, we take pride in receiving the “Best Service Award” from Volvo CE. Our growth is driven by a client-first approach, skill development, and active collaboration with partners. We represent leading equipment brands including Volvo CE, SDLG, Potain by Manitowoc, and Aquarius Engineers Pvt. Ltd.
