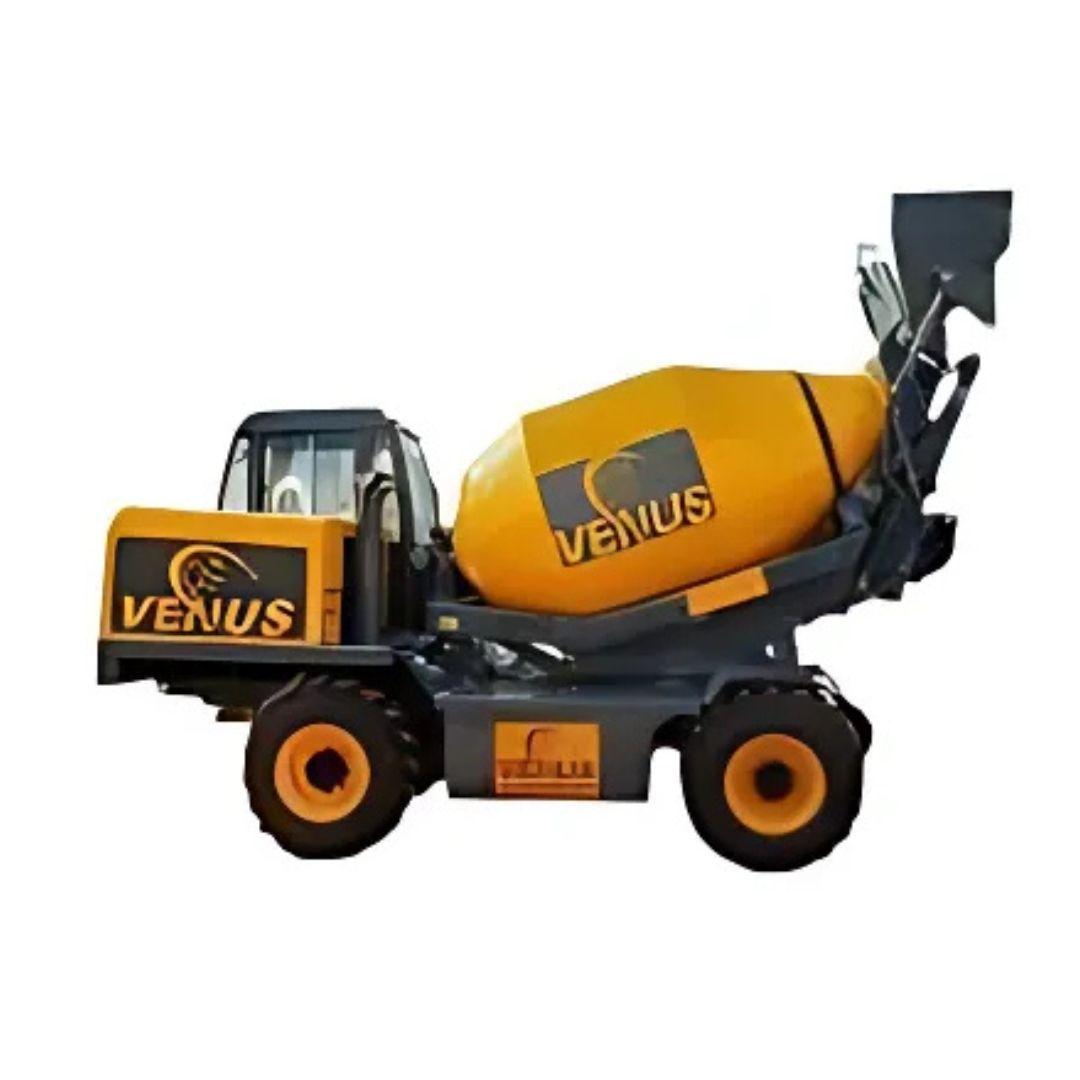

Venus ULTRA 4.0 Self Loading Concrete Mixer

The Venus ULTRA 4.0 Self Loading Concrete Mixer is a powerful and efficient solution for large-scale construction projects. With a 4.0 CUM drum output capacity and 5500 CUM geometrical volume, it delivers high-quality concrete mixing on-site. Equipped with a 110 HP diesel engine and a max drum rotation speed of 20 RPM, it ensures smooth and consistent mixing. The mixer’s 16.0/70-20-14 PR tyres and vehicle speed of 0-29 KMPH make it highly mobile and suitable for a variety of terrains. Designed for extended use, it comes with a 100 L fuel tank and 110 L hydraulic tank for longer operational hours. With a 450 LPM water pump and a 1000 L water tank capacity, the Venus ULTRA 4.0 ensures precise water management, making it ideal for high-demand concrete mixing tasks.

Product Description

The Venus ULTRA 4.0 Self Loading Concrete Mixer is a powerful and efficient solution for large-scale...

View the full brochure

Venus ULTRA 4.0 Self Loading Concrete Mixer Comparison with Similar Self Loading Concrete Mixer

Venus ULTRA 4.0 Self Loading Concrete Mixer

Venus ULTRA 4.0 Self Loading Concrete Mixer

Get Latest Price
Rating
4.4

Engine Brand

KOEL

Engine Model

4R 1190 TA

Engine Power

110HP

Rated Speed

2200RPM

Cooling System

-

Emission Compliance

BS IV

Fuel Tank Capacity

100L

Max Travel Speed

29km/h

Working Speed

-

Gradeability

23° / %

Drive Type

4 Wheel Drive (4WD)

Service Brake Type

-

Parking Brake Type

-

Steering Type

Crab Mode

Steering Modes

-

Turning Radius

-

Drum Output Per Batch

4.0Cu.M

Drum Volume

5500L

Drum Rotation

0–20RPM

Concrete Output Efficiency

-

Loader Bucket Capacity

650L

Loading Shovel System

-

Hydraulic Oil Capacity

110L

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Wheelbase

-

Operating Weight

8320kg

Laden Weight

-

Tyre Size

16.0/70-20

Tyre Type

14 PR

Water Tank Capacity

1000L

Water Pump Capacity

450L/min

Water System Features

-

Battery Voltage

-

Battery Capacity

-

Additional Features

-

Currently Viewing
Macons MST-4 Self Loading Transit Mixer

Macons MST-4 Self Loading Transit Mixer

Get Latest Price
Rating
4.4

Engine Brand

Kirloskar -

Engine Model

-

Engine Power

110HP

Rated Speed

2200RPM

Cooling System

-

Emission Compliance

-

Fuel Tank Capacity

130L

Max Travel Speed

24km/h

Working Speed

-

Gradeability

35° / %

Drive Type

4 Wheel Drive

Service Brake Type

Oil-bath disc brakes

Parking Brake Type

Electrical

Steering Type

Power Assisted

Steering Modes

-

Turning Radius

-

Drum Output Per Batch

4Cu.M

Drum Volume

5.3L

Drum Rotation

22RPM

Concrete Output Efficiency

-

Loader Bucket Capacity

800L

Loading Shovel System

-

Hydraulic Oil Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Wheelbase

-

Operating Weight

7.98kg

Laden Weight

17.58kg

Tyre Size

405/70-20 16 PR

Tyre Type

-

Water Tank Capacity

900L

Water Pump Capacity

230L/min

Water System Features

-

Battery Voltage

12V

Battery Capacity

-

Additional Features

Rotating seat, Protection cabin

Schwing SLM 2100 Self Loading Concrete Mixer

Schwing SLM 2100 Self Loading Concrete Mixer

Get Latest Price
Rating
4.4

Engine Brand

-

Engine Model

-

Engine Power

49.5HP

Rated Speed

-

Cooling System

-

Emission Compliance

-

Fuel Tank Capacity

-

Max Travel Speed

22 km/h

Working Speed

-

Gradeability

280 (54%)° / %

Drive Type

-

Service Brake Type

Master cylinder actuated disc brakes

Parking Brake Type

-

Steering Type

-

Steering Modes

-

Turning Radius

-

Drum Output Per Batch

2.3Cu.M

Drum Volume

-

Drum Rotation

0 to 20RPM

Concrete Output Efficiency

-

Loader Bucket Capacity

-

Loading Shovel System

-

Hydraulic Oil Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Wheelbase

-

Operating Weight

-

Laden Weight

6290kg

Tyre Size

-

Tyre Type

-

Water Tank Capacity

380L

Water Pump Capacity

-

Water System Features

-

Battery Voltage

-

Battery Capacity

-

Additional Features

-

Schwing SLM 2600 Self Loading Concrete Mixer

Schwing SLM 2600 Self Loading Concrete Mixer

Get Latest Price
Rating
4.4

Engine Brand

-

Engine Model

-

Engine Power

74.5HP

Rated Speed

-

Cooling System

-

Emission Compliance

-

Fuel Tank Capacity

-

Max Travel Speed

27km/h

Working Speed

-

Gradeability

24 (44%)° / %

Drive Type

-

Service Brake Type

Master cylinder actuated disc brakes

Parking Brake Type

-

Steering Type

2 stage gear reduction

Steering Modes

Hydrostatic steering

Turning Radius

-

Drum Output Per Batch

2.8Cu.M

Drum Volume

-

Drum Rotation

0 to 20RPM

Concrete Output Efficiency

-

Loader Bucket Capacity

-

Loading Shovel System

415

Hydraulic Oil Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Wheelbase

-

Operating Weight

-

Laden Weight

-

Tyre Size

-

Tyre Type

-

Water Tank Capacity

380L

Water Pump Capacity

-

Water System Features

-

Battery Voltage

-

Battery Capacity

-

Additional Features

-

Conmat CSLM 2800 Self Loading Concrete Mixer

Conmat CSLM 2800 Self Loading Concrete Mixer

Get Latest Price
Rating
4.4

Engine Brand

KOEL

Engine Model

4R1190NA1

Engine Power

74.5HP

Rated Speed

2200RPM

Cooling System

Water Cooled

Emission Compliance

BSIV

Fuel Tank Capacity

100L

Max Travel Speed

0-25km/h

Working Speed

-

Gradeability

20 Deg / 36.4%° / %

Drive Type

Full Time 4 Wheel Drive

Service Brake Type

Hydraulic powered brakes

Parking Brake Type

Hydraulic powered brakes

Steering Type

-

Steering Modes

-

Turning Radius

-

Drum Output Per Batch

2.8Cu.M

Drum Volume

-

Drum Rotation

0-22RPM

Concrete Output Efficiency

-

Loader Bucket Capacity

420 L

Loading Shovel System

-

Hydraulic Oil Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Wheelbase

2350mm

Operating Weight

7100kg

Laden Weight

13820kg

Tyre Size

12.5/80x18

Tyre Type

16 PR

Water Tank Capacity

625L

Water Pump Capacity

230L/min

Water System Features

-

Battery Voltage

-

Battery Capacity

-

Additional Features

-
