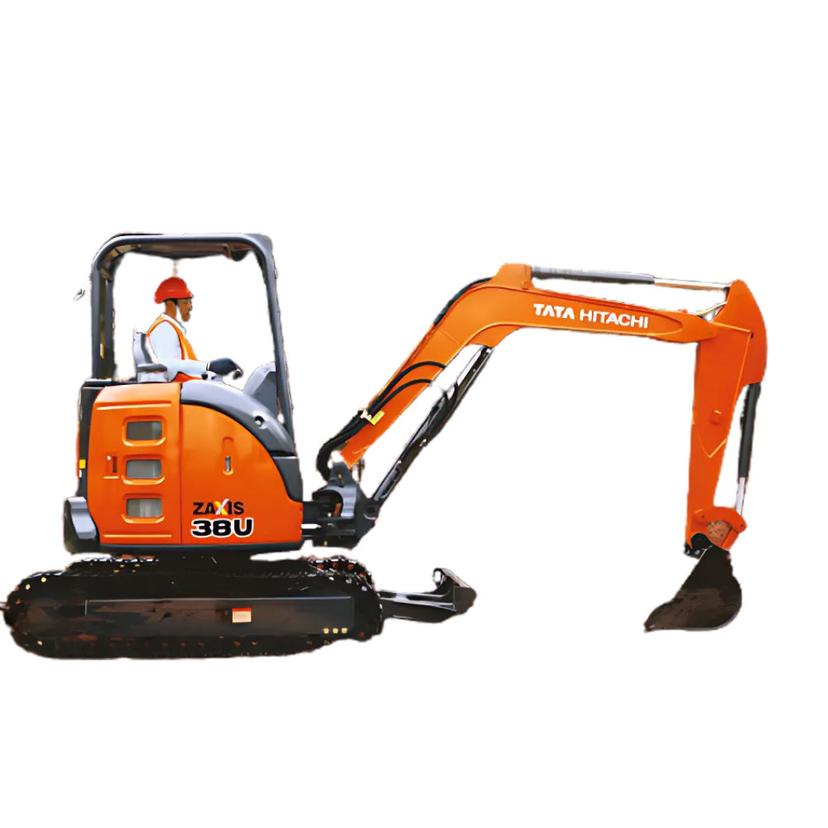

Tata Hitachi Zaxis38U Mini Excavator
Tata Hitachi Construction Machinery Company Private Ltd
Delhi
The Tata Hitachi Zaxis38Ui Mini Excavator is a versatile and efficient machine designed for urban construction, landscaping, and small-scale excavation tasks. Powered by a robust Yanmar 3TNV88 engine delivering 22.0 kW at 2400 rpm, this compact excavator is equipped with advanced hydraulics, offering a maximum oil flow of 38.4 L/min for enhanced productivity. With a digging force of 2709 kgf and a boom swing angle of 60°, it excels in operations requiring precision in tight spaces. Its 58% gradeability and travel speeds up to 4.3 km/h make it ideal for varied terrains, while the compact tail swing radius ensures ease of maneuverability. Designed with operator comfort and efficiency in mind, the Zaxis38Ui offers outstanding performance, reliability, and fuel efficiency, making it a perfect choice for diverse applications.
Tata Hitachi Zaxis38U Mini Excavator
Tata Hitachi Construction Machinery Company Private Ltd
Delhi
The Tata Hitachi Zaxis38Ui Mini Excavator is a versatile and efficient machine designed for urban construction, landscaping, and small-scale excavation tasks. Powered by a robust Yanmar 3TNV88 engine delivering 22.0 kW at 2400 rpm, this compact excavator is equipped with advanced hydraulics, offering a maximum oil flow of 38.4 L/min for enhanced productivity. With a digging force of 2709 kgf and a boom swing angle of 60°, it excels in operations requiring precision in tight spaces. Its 58% gradeability and travel speeds up to 4.3 km/h make it ideal for varied terrains, while the compact tail swing radius ensures ease of maneuverability. Designed with operator comfort and efficiency in mind, the Zaxis38Ui offers outstanding performance, reliability, and fuel efficiency, making it a perfect choice for diverse applications.
Product Description
The Tata Hitachi Zaxis38Ui Mini Excavator is a versatile and efficient machine designed for urban co...
View the full brochure
Tata Hitachi Zaxis38U Mini Excavator Comparison with Similar Mini Excavators

Tata Hitachi Zaxis38U Mini Excavator
Rated Speed
2400rpm
Displacement
1.642L
Fuel Tank Capacity
42L
Engine Brand
Yanmar
Engine Model
3TNV88
Engine Power
29.5HP
Max Torque
105.5Nm
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
190kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
40kgf/cm²
Operating Weight
3.6Ton
Max Digging Depth
3m
Max Reach At Ground
5m
Max Digging Height
-
Max Dumping Height
3.4m
Bucket Capacity
0.11m³
Bucket Breakout Force
-
Arm Crowd Force
1937kgf
Overall Length
4.6m
Overall Height
2.4m
Ground Clearance
270mm

Empower Mini Excavator
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
-
Max Digging Depth
-
Max Reach At Ground
-
Max Digging Height
-
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Height
-
Ground Clearance
-

Tata Hitachi ZAXIS 33U Mini Excavator
Rated Speed
2200rpm
Displacement
1.642L
Fuel Tank Capacity
42L
Engine Brand
Yanmar
Engine Model
EDM-3TNV88
Engine Power
28.41HP
Max Torque
105.5Nm
Hydraulic Flow Rate
2×38.4L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
170kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
40kgf/cm²
Operating Weight
3.65Ton
Max Digging Depth
3.13m
Max Reach At Ground
5.04m
Max Digging Height
-
Max Dumping Height
3.31m
Bucket Capacity
0.09m³
Bucket Breakout Force
-
Arm Crowd Force
1499kgf
Overall Length
4.45m
Overall Height
2.47m
Ground Clearance
270mm

Kobelco SK30SR Mini Excavator
Rated Speed
2400rpm
Displacement
-
Fuel Tank Capacity
42L
Engine Brand
YANMAR
Engine Model
3TNV82A-8
Engine Power
24.27 HP
Max Torque
79.4Nm
Hydraulic Flow Rate
96.0L/min
Hydraulic Pressure (implement Circuit)
234.6 kgf/cm²
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
3.57 / 3.41 Ton
Max Digging Depth
-
Max Reach At Ground
-
Max Digging Height
-
Max Dumping Height
-
Bucket Capacity
0.12m³
Bucket Breakout Force
2,823.4 kgf
Arm Crowd Force
1,947.9 / 1,682.0 kgf
Overall Length
-
Overall Height
-
Ground Clearance
-
CAT 303.5 CR Mini Excavator
Rated Speed
-
Displacement
1.7L
Fuel Tank Capacity
45L
Engine Brand
Caterpillar
Engine Model
C1.7
Engine Power
23.6HP
Max Torque
-
Hydraulic Flow Rate
98.4L/min
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
4.19Ton
Max Digging Depth
3.1m
Max Reach At Ground
5.38m
Max Digging Height
5.02m
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
4.85m
Overall Height
2.48m
Ground Clearance
310mm
