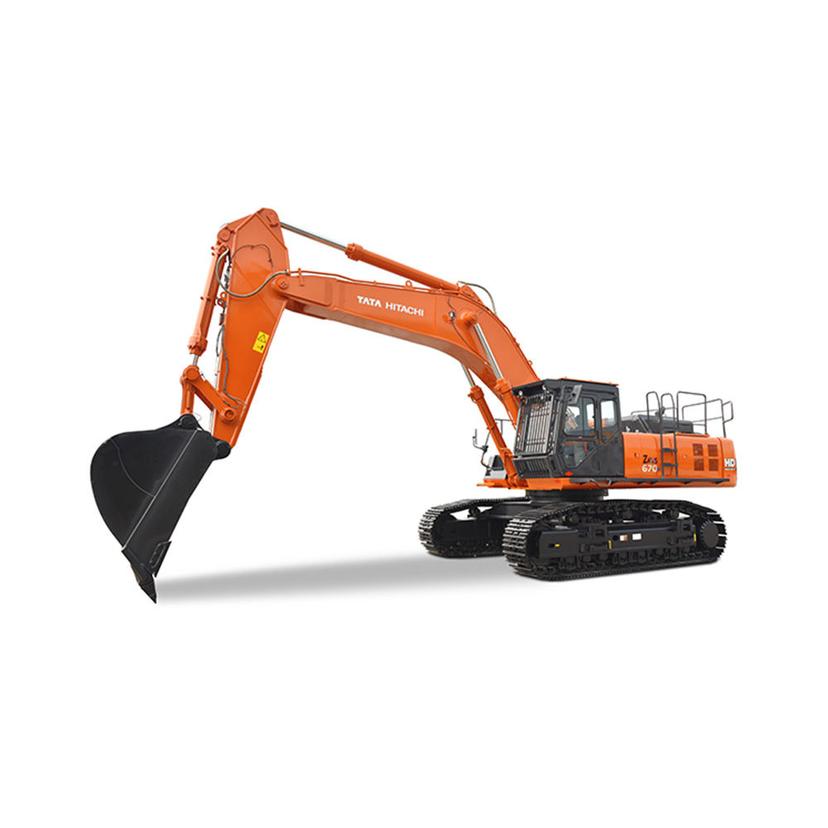

Tata Hitachi ZAXIS 670H Crawler Excavator
Trishul Tread Private Limited
Delhi
The Tata Hitachi ZAXIS 670H Crawler Excavator sets a new benchmark in mining operations with its powerful 400 PS engine and substantial 63,500 kg operating weight. Engineered for durability and performance, it features a rock-solid front attachment and heavy-duty boom, ideal for handling both hard and soft strata. Its versatile bucket options and advanced construction ensure consistent productivity in challenging environments. The ZAXIS 670H also prioritizes environmental responsibility with its EPA Tier II compliant engine, promoting eco-friendly operation. Additionally, it offers a smart, safe, and comfortable cabin, enhancing operator efficiency and job satisfaction. Designed from the ground up with precision, this excavator delivers a reliable and adaptable solution for diverse mining applications.
Tata Hitachi ZAXIS 670H Crawler Excavator
Trishul Tread Private Limited
Delhi
The Tata Hitachi ZAXIS 670H Crawler Excavator sets a new benchmark in mining operations with its powerful 400 PS engine and substantial 63,500 kg operating weight. Engineered for durability and performance, it features a rock-solid front attachment and heavy-duty boom, ideal for handling both hard and soft strata. Its versatile bucket options and advanced construction ensure consistent productivity in challenging environments. The ZAXIS 670H also prioritizes environmental responsibility with its EPA Tier II compliant engine, promoting eco-friendly operation. Additionally, it offers a smart, safe, and comfortable cabin, enhancing operator efficiency and job satisfaction. Designed from the ground up with precision, this excavator delivers a reliable and adaptable solution for diverse mining applications.
Product Description
The Tata Hitachi ZAXIS 670H Crawler Excavator sets a new benchmark in mining operations with its pow...
View the full brochure
Tata Hitachi ZAXIS 670H Crawler Excavator Comparison with Similar Crawler Excavator

Tata Hitachi ZAXIS 670H Crawler Excavator
Engine Brand
Isuzu
Engine Model
BB-6WG1X
Engine Power
394.5HP
Max Torque
1540Nm
Rated Speed
1800rpm
Displacement
15.6L
Fuel Tank Capacity
740L
Hydraulic Flow Rate
2×475L/min
Hydraulic Pressure (implement Circuit)
315kgf/cm²
Hydraulic Pressure (swing Circuit)
299.7kgf/cm²
Hydraulic Pressure (travel Circuit)
349.7kgf/cm²
Hydraulic Pressure (pilot Circuit)
39.7kgf/cm²
Operating Weight
61.7Ton
Ground Pressure (600mm Track)
1.1kgf/cm²
Max Digging Depth
7.0m
Max Reach At Ground
11.3m
Max Dumping Height
6.8m
Bucket Capacity
4.1m³
Bucket Breakout Force
-
Arm Crowd Force
26300kgf
Overall Length
13m
Overall Width
3.9m
Overall Height
4.2m
Ground Clearance
810mm

Zoomlion ZE385G Pro Crawler Excavator
Engine Brand
CUMMINS
Engine Model
QSL
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
8.9L
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
38Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
7.075m
Max Reach At Ground
-
Max Dumping Height
6.885m
Bucket Capacity
2.0m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
11.23m
Overall Width
3.19m
Overall Height
3.78m
Ground Clearance
-

XCMG XE155U Crawler Excavator
Engine Brand
XCMG
Engine Model
Cummins B4.5
Engine Power
-
Max Torque
501.8Nm
Rated Speed
-
Displacement
4.54L
Fuel Tank Capacity
249.8L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
17.5Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
6.01m
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
0.64m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
78.3m
Overall Width
26.8m
Overall Height
-
Ground Clearance
367.1mm

LIUGONG 965E CRAWLER EXCAVATOR
Engine Brand
-
Engine Model
DC13076A
Engine Power
444HP
Max Torque
2007Nm
Rated Speed
2100rpm
Displacement
12.7L
Fuel Tank Capacity
880L
Hydraulic Flow Rate
2 × 448L/min
Hydraulic Pressure (implement Circuit)
379kgf/cm²
Hydraulic Pressure (swing Circuit)
357kgf/cm²
Hydraulic Pressure (travel Circuit)
330kgf/cm²
Hydraulic Pressure (pilot Circuit)
39.7kgf/cm²
Operating Weight
62.6Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
-
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
4.1m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-

LIUGONG 965E CRAWLER EXCAVATOR
Engine Brand
-
Engine Model
X15
Engine Power
524HP
Max Torque
2373Nm
Rated Speed
1800rpm
Displacement
15L
Fuel Tank Capacity
1100L
Hydraulic Flow Rate
2 × 476L/min
Hydraulic Pressure (implement Circuit)
380kgf/cm²
Hydraulic Pressure (swing Circuit)
270kgf/cm²
Hydraulic Pressure (travel Circuit)
350kgf/cm²
Hydraulic Pressure (pilot Circuit)
40kgf/cm²
Operating Weight
75Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
-
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
5.6m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
