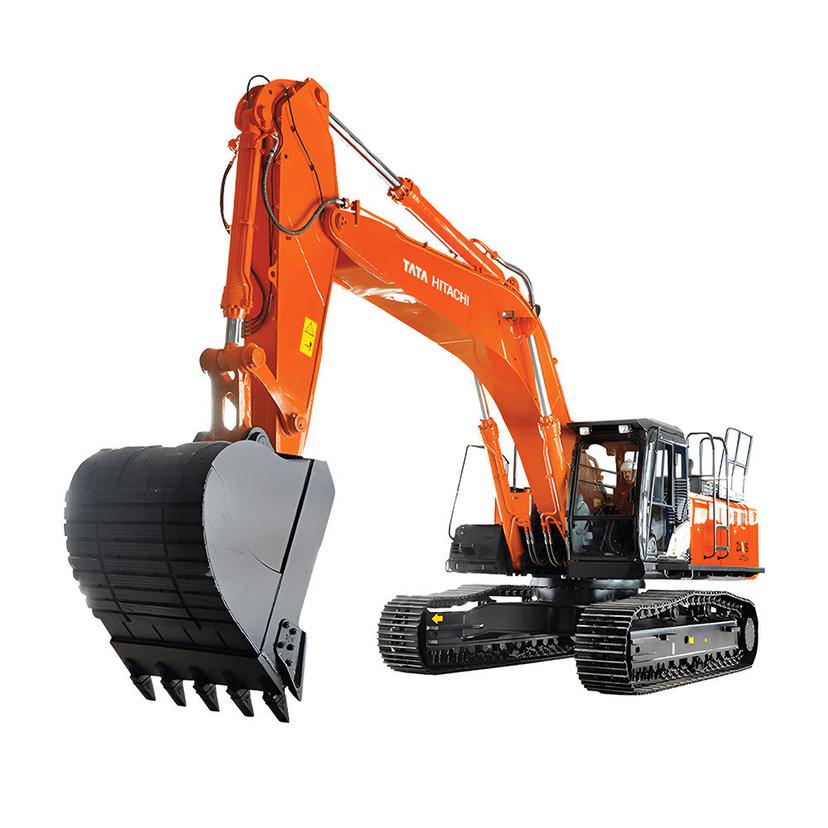

Tata Hitachi ZAXIS 470H Crawler Excavator
Trishul Tread Private Limited
Delhi
The Tata Hitachi ZAXIS 470H Crawler Excavator is designed for high-efficiency performance in demanding excavation and mining tasks. Equipped with a powerful 315 HP engine and a robust operating weight of 47,100 kg, it excels in heavy-duty applications. Its advanced features, including a new modified bucket and higher digging forces, ensure superior productivity with less fuel consumption. The excavator's advanced controller and faster swing speeds enhance operational efficiency, while its focus on operator comfort reduces fatigue and boosts performance. Maintenance is simplified through user-friendly access and Global e-Service support, making it a reliable choice for both performance and durability. With its combination of high quality, low running costs, and exceptional durability, the ZAXIS 470H is engineered to meet the toughest job site demands.
Tata Hitachi ZAXIS 470H Crawler Excavator
Trishul Tread Private Limited
Delhi
The Tata Hitachi ZAXIS 470H Crawler Excavator is designed for high-efficiency performance in demanding excavation and mining tasks. Equipped with a powerful 315 HP engine and a robust operating weight of 47,100 kg, it excels in heavy-duty applications. Its advanced features, including a new modified bucket and higher digging forces, ensure superior productivity with less fuel consumption. The excavator's advanced controller and faster swing speeds enhance operational efficiency, while its focus on operator comfort reduces fatigue and boosts performance. Maintenance is simplified through user-friendly access and Global e-Service support, making it a reliable choice for both performance and durability. With its combination of high quality, low running costs, and exceptional durability, the ZAXIS 470H is engineered to meet the toughest job site demands.
Product Description
The Tata Hitachi ZAXIS 470H Crawler Excavator is designed for high-efficiency performance in demandi...
View the full brochure
Tata Hitachi ZAXIS 470H Crawler Excavator Comparison with Similar Crawler Excavator

Tata Hitachi ZAXIS 470H Crawler Excavator
Engine Brand
Isuzu
Engine Model
AA-6WG1TQA
Engine Power
315HP
Max Torque
1275Nm
Rated Speed
1800rpm
Displacement
15.68L
Fuel Tank Capacity
705L
Hydraulic Flow Rate
2×360L/min
Hydraulic Pressure (implement Circuit)
325kgf/cm²
Hydraulic Pressure (swing Circuit)
290kgf/cm²
Hydraulic Pressure (travel Circuit)
360kgf/cm²
Hydraulic Pressure (pilot Circuit)
40kgf/cm²
Operating Weight
47.1Ton
Ground Pressure (600mm Track)
0.894kgf/cm²
Max Digging Depth
11.1m
Max Reach At Ground
14.9m
Max Dumping Height
9.5m
Bucket Capacity
3.1m³
Bucket Breakout Force
-
Arm Crowd Force
12440kgf
Overall Length
12m
Overall Width
3.8m
Overall Height
3.4m
Ground Clearance
495mm

XCMG XE155U Crawler Excavator
Engine Brand
XCMG
Engine Model
Cummins B4.5
Engine Power
-
Max Torque
501.8Nm
Rated Speed
-
Displacement
4.54L
Fuel Tank Capacity
249.8L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
17.5Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
6.01m
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
0.64m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
78.3m
Overall Width
26.8m
Overall Height
-
Ground Clearance
367.1mm

Zoomlion ZE385G Pro Crawler Excavator
Engine Brand
CUMMINS
Engine Model
QSL
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
8.9L
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
38Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
7.075m
Max Reach At Ground
-
Max Dumping Height
6.885m
Bucket Capacity
2.0m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
11.23m
Overall Width
3.19m
Overall Height
3.78m
Ground Clearance
-

Liugong 965E HD Crawler Excavator
Engine Brand
SCANIA
Engine Model
DC13 076A
Engine Power
444HP
Max Torque
2007Nm
Rated Speed
2100rpm
Displacement
12.7L
Fuel Tank Capacity
880L
Hydraulic Flow Rate
896L/min
Hydraulic Pressure (implement Circuit)
379.3kgf/cm²
Hydraulic Pressure (swing Circuit)
397.7kgf/cm²
Hydraulic Pressure (travel Circuit)
326.3kgf/cm²
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
62.6Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
6.83m
Max Reach At Ground
10.78m
Max Dumping Height
6.84m
Bucket Capacity
4.1m³
Bucket Breakout Force
35180.2kgf
Arm Crowd Force
30591.5kgf
Overall Length
11.87m
Overall Width
3.9m
Overall Height
3.05m
Ground Clearance
786mm

Sany SY210 SPARC + Crawler Excavator
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
-
Ground Pressure (600mm Track)
-
Max Digging Depth
-
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
