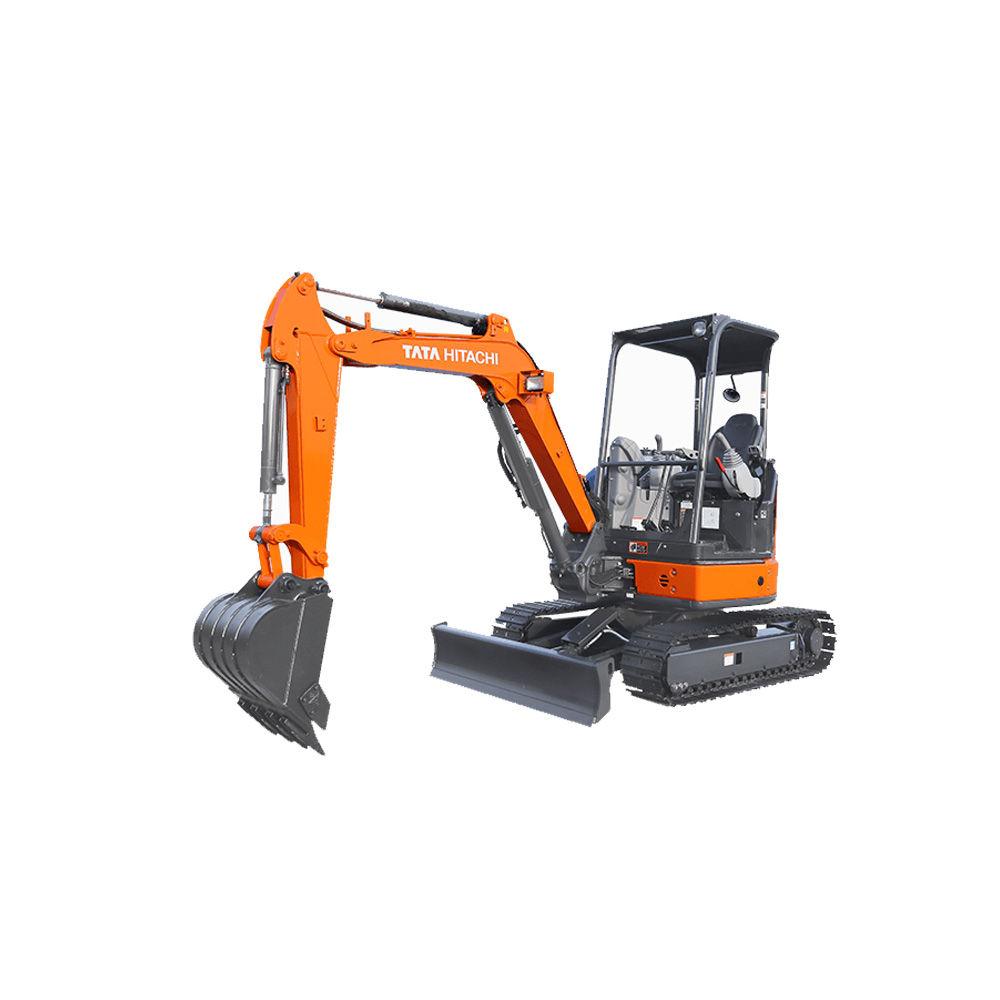

Tata Hitachi ZAXIS 33U Mini Excavator
Trishul Tread Private Limited
The ZAXIS 33U Mini Excavator offers a powerful and compact solution for various construction and excavation needs. Powered by a robust 28.8 PS engine and featuring an operating weight of 3,270 to 3,650 kg, this machine delivers superior performance in tight spaces. Its bucket capacity ranges from 0.04 to 0.09 m³, making it versatile for tasks such as excavation and material handling. Designed with a zero-tail form and rugged structure, the ZAXIS 33U ensures durability and reliability while providing excellent operator comfort. The mini excavator includes easy-to-clean open-wide covers for simplified maintenance and a strong front attachment for demanding jobs. Its advanced hydraulics and sturdy build make it an ideal choice for urban construction, landscaping, and infrastructure projects, delivering both efficiency and operational economy.
Tata Hitachi ZAXIS 33U Mini Excavator
Trishul Tread Private Limited
The ZAXIS 33U Mini Excavator offers a powerful and compact solution for various construction and excavation needs. Powered by a robust 28.8 PS engine and featuring an operating weight of 3,270 to 3,650 kg, this machine delivers superior performance in tight spaces. Its bucket capacity ranges from 0.04 to 0.09 m³, making it versatile for tasks such as excavation and material handling. Designed with a zero-tail form and rugged structure, the ZAXIS 33U ensures durability and reliability while providing excellent operator comfort. The mini excavator includes easy-to-clean open-wide covers for simplified maintenance and a strong front attachment for demanding jobs. Its advanced hydraulics and sturdy build make it an ideal choice for urban construction, landscaping, and infrastructure projects, delivering both efficiency and operational economy.
Product Description
The ZAXIS 33U Mini Excavator offers a powerful and compact solution for various construction and exc...
View the full brochure
Tata Hitachi ZAXIS 33U Mini Excavator Comparison with Similar Mini Excavators
Tata Hitachi ZAXIS 33U Mini Excavator
Engine Brand
Yanmar
Engine Model
EDM-3TNV88
Engine Power
28.41HP
Max Torque
105.5Nm
Rated Speed
2200rpm
Displacement
1.642L
Fuel Tank Capacity
42L
Hydraulic Flow Rate
2×38.4L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
170kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
40kgf/cm²
Operating Weight
3.65Ton
Max Digging Depth
3.13m
Max Reach At Ground
5.04m
Overall Height
2.47m
Ground Clearance
270mm
Max Digging Height
-
Max Dumping Height
3.31m
Bucket Capacity
0.09m³
Bucket Breakout Force
-
Arm Crowd Force
1499kgf
Overall Length
4.45m
KUBOTA U17-3 Mini Excavator
Engine Brand
Kubota
Engine Model
D902-E3-BH-1
Engine Power
16.1HP
Max Torque
-
Rated Speed
2300rpm
Displacement
0.898L
Fuel Tank Capacity
19L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
1.725Ton
Max Digging Depth
2.31m
Max Reach At Ground
-
Overall Height
2.34m
Ground Clearance
150mm
Max Digging Height
3.54m
Max Dumping Height
2.44m
Bucket Capacity
0.04m³
Bucket Breakout Force
1545kgf
Arm Crowd Force
-
Overall Length
3.545m
Sany SY80 Pro Mini Excavator
Engine Brand
Kubota
Engine Model
V2607-DI-T-ES09
Engine Power
58HP
Max Torque
225Nm
Rated Speed
2000rpm
Displacement
2.615L
Fuel Tank Capacity
150L
Hydraulic Flow Rate
149L/min
Hydraulic Pressure (implement Circuit)
28kgf/cm²
Hydraulic Pressure (swing Circuit)
23.5kgf/cm²
Hydraulic Pressure (travel Circuit)
26.3kgf/cm²
Hydraulic Pressure (pilot Circuit)
3.5kgf/cm²
Operating Weight
7.92Ton
Max Digging Depth
4.02m
Max Reach At Ground
6.24m
Overall Height
2.57m
Ground Clearance
380mm
Max Digging Height
7.06m
Max Dumping Height
5.155m
Bucket Capacity
0.35m³
Bucket Breakout Force
5710kgf
Arm Crowd Force
-
Overall Length
6.125m
JCB 37C Mini Excavator
Engine Brand
JCB
Engine Model
Perkins 403J-17
Engine Power
25.3HP
Max Torque
91.9Nm
Rated Speed
-
Displacement
1.662L
Fuel Tank Capacity
50L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
255kgf/cm²
Hydraulic Pressure (swing Circuit)
220kgf/cm²
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
4.05Ton
Max Digging Depth
3.34m
Max Reach At Ground
5.02m
Overall Height
2.48m
Ground Clearance
275mm
Max Digging Height
4.73m
Max Dumping Height
3.54m
Bucket Capacity
-
Bucket Breakout Force
3304kgf
Arm Crowd Force
2009kgf
Overall Length
4.81m
Sany SY20U Mini Excavator
Engine Brand
YANMAR
Engine Model
3TNV80F
Engine Power
19.8HP
Max Torque
67.4Nm
Rated Speed
2400rpm
Displacement
1.22L
Fuel Tank Capacity
21L
Hydraulic Flow Rate
70L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
166kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
41kgf/cm²
Operating Weight
1.95Ton
Max Digging Depth
2.38m
Max Reach At Ground
4.01m
Overall Height
2.49m
Ground Clearance
160mm
Max Digging Height
3.41m
Max Dumping Height
2.35m
Bucket Capacity
0.05m³
Bucket Breakout Force
1692.72kgf
Arm Crowd Force
938.13kgf
Overall Length
3.515m
Compare Mini Excavators
Tata Hitachi ZAXIS 33U Mini Excavator
KUBOTA U17-3 Mini Excavator
Add any equipment
to compare
