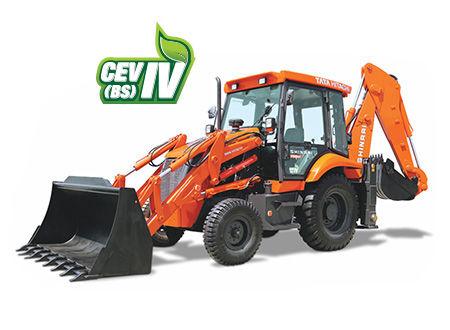

Tata Hitachi Shinrai Prime Backhoe Loader
Trishul Tread Private Limited
The Tata Hitachi Shinrai Prime Backhoe Loader is a powerhouse designed for exceptional performance and fuel efficiency. Equipped with a 74.3 HP CEV IV Japanese engine featuring CRDI technology, this machine delivers superior output power and torque, making it ideal for heavy-duty excavation and material handling tasks. Its versatile bucket capacity, ranging from 0.26 m³ to 1.1 m³, ensures adaptability for various applications. The Shinrai Prime's 4WD capability provides reliable performance on challenging terrains, while its advanced hydraulic system ensures precision in digging and loading operations. With electronically controlled parameters and a proven transmission system, this backhoe loader is optimized for both power and efficiency, making it the perfect choice for construction projects that demand reliability and durability.
Tata Hitachi Shinrai Prime Backhoe Loader
Trishul Tread Private Limited
The Tata Hitachi Shinrai Prime Backhoe Loader is a powerhouse designed for exceptional performance and fuel efficiency. Equipped with a 74.3 HP CEV IV Japanese engine featuring CRDI technology, this machine delivers superior output power and torque, making it ideal for heavy-duty excavation and material handling tasks. Its versatile bucket capacity, ranging from 0.26 m³ to 1.1 m³, ensures adaptability for various applications. The Shinrai Prime's 4WD capability provides reliable performance on challenging terrains, while its advanced hydraulic system ensures precision in digging and loading operations. With electronically controlled parameters and a proven transmission system, this backhoe loader is optimized for both power and efficiency, making it the perfect choice for construction projects that demand reliability and durability.
Product Description
The Tata Hitachi Shinrai Prime Backhoe Loader is a powerhouse designed for exceptional performance a...
View the full brochure
Tata Hitachi Shinrai Prime Backhoe Loader Comparison with Similar Backhoe Loader
Tata Hitachi Shinrai Prime Backhoe Loader
Engine Brand
-
Engine Model
V3800-TIE4B
Engine Power
-
Max Torque
305Nm
Rated Speed
-
Displacement
0.003769L
Fuel Tank Capacity
128L
Transmission Type
Equipped with Carraro-make synchro-shuttle transmission.
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
-
Service Brake Type
Oil-immersed wet disc, hydraulic-actuated with independent pedals for better control in narrow spaces
Parking Brake Type
Hand-operated disc brake on the rear axle
Steering Type
Hydraulic actuation with priority for smooth control
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
-
Max Lifting Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Max Digging Depth
4,700m
Max Reach At Ground
1,620m
Max Reach At Full Height
1332m
Max Loading Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Dipper Breakout Force
-
Max Dump Height
2690m
Max Load Over Height
3305m
Max Hinge Pin Height
-
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
5488kgf
Shovel Breakout Force
-
Overall Length
6040m
Overall Width
235m
Overall Height
3530m
Ground Clearance
320mm
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
CAT 424-2 Backhoe Loader
Engine Brand
CAT
Engine Model
C3.6
Engine Power
75HP
Max Torque
424Nm
Rated Speed
2200 rpm
Displacement
-
Fuel Tank Capacity
-
Transmission Type
Variable Displacement Pump
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
37km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
7.98 Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
132L/min
Hydraulic Pressure
-
Max Digging Depth
4.729m
Max Reach At Ground
5.612m
Max Reach At Full Height
-
Max Loading Height
4.015m
Bucket Capacity
1.05m³
Bucket Breakout Force
5,730kgf
Dipper Breakout Force
3,570kgf
Max Dump Height
2.794m
Max Load Over Height
-
Max Hinge Pin Height
-
Loader Bucket Capacity
1.05m³
Loader Arm Breakout Force
5,390kgf
Shovel Breakout Force
5,370kgf
Overall Length
5.708m
Overall Width
2.346m
Overall Height
2.346m
Ground Clearance
-
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
CAT 424-4 Backhoe Loader
Engine Brand
Cat
Engine Model
C3.6
Engine Power
75HP
Max Torque
424Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
-
Transmission Type
Variable Displacement Pump
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
40 km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
8.045Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
132L/min
Hydraulic Pressure
-
Max Digging Depth
4.707m
Max Reach At Ground
5.603m
Max Reach At Full Height
-
Max Loading Height
3.934m
Bucket Capacity
1.0m³
Bucket Breakout Force
5,730kgf
Dipper Breakout Force
3,570kgf
Max Dump Height
2.766m
Max Load Over Height
-
Max Hinge Pin Height
-
Loader Bucket Capacity
1.0m³
Loader Arm Breakout Force
5,370kgf
Shovel Breakout Force
6,036kgf
Overall Length
5.681m
Overall Width
2.346m
Overall Height
3.757m
Ground Clearance
-
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Mahindra Earth Master SX SMART 50 Backhoe Loader
Engine Brand
Mahindra
Engine Model
NEF Engine
Engine Power
49.2HP
Max Torque
235Nm
Rated Speed
2100rpm
Displacement
3.532L
Fuel Tank Capacity
120L
Transmission Type
Four Speed (4 Forward, 4 Reverse), Synchro Shuttle Transmission
Number Of Gears (forward/reverse)
4/4
Torque Converter Stall Ratio
-
Max Travel Speed
33.3km/h
Service Brake Type
Hydraulically actuated, oil immersed multi-disc
Parking Brake Type
Hand operated mechanically actuated caliper type brake
Steering Type
Hydrostatic power steering
Steering Angle
-
Oscillation Angle
16°
Turning Radius (braked)
4.943m
Turning Radius (unbraked)
5.037m
Operating Weight
7.477Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
103L/min
Hydraulic Pressure
21Bar
Max Digging Depth
4.854m
Max Reach At Ground
5.658m
Max Reach At Full Height
3.605m
Max Loading Height
5.793m
Bucket Capacity
0.27m³
Bucket Breakout Force
5146kgf
Dipper Breakout Force
-
Max Dump Height
2.708m
Max Load Over Height
1.350m
Max Hinge Pin Height
-
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
4667kgf
Shovel Breakout Force
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Power Steering
Yes
Battery Voltage
12V 100AhV
Front Axle Oscillation
16°
Standard Tyres (front/rear)
9.00-16 16 PR / 16.9-28 12 PR
Preet 4R1040Ta2 Backhoe Loader
Engine Brand
Preet
Engine Model
4R1040Ta2
Engine Power
96.7HP
Max Torque
416Nm
Rated Speed
2200rpm
Displacement
4.156L
Fuel Tank Capacity
150L
Transmission Type
4F-2R Manual Power shift
Number Of Gears (forward/reverse)
4/4
Torque Converter Stall Ratio
-
Max Travel Speed
36.8km/h
Service Brake Type
Hyd. Actuated, Dual line oil immersed multi disc type wet brakes
Parking Brake Type
Axle Mounted Spring Applied Hydraulic Release (SAHR)
Steering Type
Front wheel power steering
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
8.5m
Turning Radius (unbraked)
8.8m
Operating Weight
7.845Ton
Max Lifting Capacity
1800kg
Hydraulic Flow Rate
156L/min
Hydraulic Pressure
270Bar
Max Digging Depth
4.07m
Max Reach At Ground
5.4m
Max Reach At Full Height
-
Max Loading Height
4.30m
Bucket Capacity
0.26m³
Bucket Breakout Force
5700kgf
Dipper Breakout Force
3010kgf
Max Dump Height
2.85m
Max Load Over Height
3.33m
Max Hinge Pin Height
3.51m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
5300kgf
Shovel Breakout Force
5250kgf
Overall Length
6.0m
Overall Width
2.2m
Overall Height
3.65m
Ground Clearance
440mm
Power Steering
-
Battery Voltage
12V
Front Axle Oscillation
-
Standard Tyres (front/rear)
12.5 x 80-18 12 PR / 14.5 x 25 -20 PR
