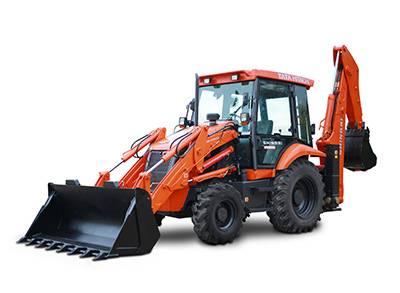

Tata Hitachi Shinrai Power Backhoe Loader

Trishul Tread Private Limited

Delhi

The Tata Hitachi Shinrai Power Backhoe Loader is designed for high-performance and versatility on demanding job sites. With a powerful 99 HP engine and an 8,600-8,800 kg operating weight, it excels in excavation, material handling, and tough terrain operations. The 6-in-1 loader bucket is perfect for diverse tasks like loading, dozing, and spreading materials, while the backhoe offers efficient digging and trenching. Its robust construction, featuring high-grade steel and proven transmission systems, ensures durability in challenging conditions. The well-ventilated cabin provides maximum comfort with ergonomic controls and a multi-functional display. Additionally, the loader's attachments, including rock breakers and mulchers, make it ideal for demolition, site cleanup, and maintenance tasks.

Product Description

The Tata Hitachi Shinrai Power Backhoe Loader is designed for high-performance and versatility on de...

View the full brochure

Tata Hitachi Shinrai Power Backhoe Loader Comparison with Similar Backhoe Loader

Tata Hitachi Shinrai Power Backhoe Loader

Tata Hitachi Shinrai Power Backhoe Loader

Get Latest Price
Rating
4.4

Turning Radius (unbraked)

-

Standard Tyres (front/rear)

-

Engine Brand

-

Engine Model

4BTAA 39 990 32

Engine Power

-

Max Torque

410Nm

Rated Speed

-

Displacement

0.003922L

Fuel Tank Capacity

-

Overall Height

2885m

Overall Length

6414m

Overall Width

1710m

Ground Clearance

295mm

Transmission Type

Equipped with Carraro-make transmission with synchro-shuttle

Number Of Gears (forward/reverse)

-

Torque Converter Stall Ratio

-

Max Travel Speed

-

Service Brake Type

Oil-immersed wet disc, that is hydraulic-actuated, with independent pedals for better control in narrow spaces

Parking Brake Type

Hand-operated disc brake on the rear axle

Steering Type

Hydraulic actuation with priority for smooth control

Steering Angle

-

Oscillation Angle

-

Turning Radius (braked)

-

Operating Weight

-

Max Lifting Capacity

-

Hydraulic Flow Rate

128L/min

Hydraulic Pressure

245Bar

Max Digging Depth

5003m

Max Reach At Ground

-

Max Reach At Full Height

1432m

Max Loading Height

-

Bucket Capacity

-

Bucket Breakout Force

-

Dipper Breakout Force

-

Max Dump Height

2842m

Max Load Over Height

3509m

Max Hinge Pin Height

-

Loader Bucket Capacity

-

Loader Arm Breakout Force

5135kgf

Shovel Breakout Force

-

Power Steering

-

Battery Voltage

-

Front Axle Oscillation

-

Emission Standard

-

Rated Operating Capacity

-

Rated Operating Capacity (optional)

-

Max Tipping Load

-

Hydraulic System Capacity

-

Reach At Ground Level

-

Dump Angle

-

Lift Path

-

Wheelbase

-

Turning Radius

-

Currently Viewing
CAT 424-2 Backhoe Loader

CAT 424-2 Backhoe Loader

Get Latest Price
Rating
4.4

Turning Radius (unbraked)

-

Standard Tyres (front/rear)

-

Engine Brand

CAT

Engine Model

C3.6

Engine Power

75HP

Max Torque

424Nm

Rated Speed

2200 rpm

Displacement

-

Fuel Tank Capacity

-

Overall Height

2.346m

Overall Length

5.708m

Overall Width

2.346m

Ground Clearance

-

Transmission Type

Variable Displacement Pump

Number Of Gears (forward/reverse)

-

Torque Converter Stall Ratio

-

Max Travel Speed

37km/h

Service Brake Type

-

Parking Brake Type

-

Steering Type

-

Steering Angle

-

Oscillation Angle

-

Turning Radius (braked)

-

Operating Weight

7.98 Ton

Max Lifting Capacity

-

Hydraulic Flow Rate

132L/min

Hydraulic Pressure

-

Max Digging Depth

4.729m

Max Reach At Ground

5.612m

Max Reach At Full Height

-

Max Loading Height

4.015m

Bucket Capacity

1.05

Bucket Breakout Force

5,730kgf

Dipper Breakout Force

3,570kgf

Max Dump Height

2.794m

Max Load Over Height

-

Max Hinge Pin Height

-

Loader Bucket Capacity

1.05

Loader Arm Breakout Force

5,390kgf

Shovel Breakout Force

5,370kgf

Power Steering

-

Battery Voltage

-

Front Axle Oscillation

-

Emission Standard

-

Rated Operating Capacity

-

Rated Operating Capacity (optional)

-

Max Tipping Load

-

Hydraulic System Capacity

-

Reach At Ground Level

-

Dump Angle

-

Lift Path

-

Wheelbase

-

Turning Radius

-

CASE 770EX  Backhoe Loader

CASE 770EX Backhoe Loader

Get Latest Price
Rating
4.4

Turning Radius (unbraked)

11.1m

Standard Tyres (front/rear)

Front: 9x16 -16PR / Rear: 16.9x28 -12PR

Engine Brand

Ashok Leyland

Engine Model

H4C4E7422*W

Engine Power

74HP

Max Torque

340Nm

Rated Speed

2200rpm

Displacement

3.84L

Fuel Tank Capacity

129L

Overall Height

3.85m

Overall Length

5.88m

Overall Width

2.27m

Ground Clearance

380mm

Transmission Type

4F-4R Power Shuttle Synchromesh Transmission

Number Of Gears (forward/reverse)

-

Torque Converter Stall Ratio

-

Max Travel Speed

34.1km/h

Service Brake Type

Hydraulic foot operated, 2 disc per side

Parking Brake Type

Mechanically actuated caliper type brake pack on rear axle input shaft

Steering Type

Power Steering

Steering Angle

-

Oscillation Angle

-

Turning Radius (braked)

9.2m

Operating Weight

7.78Ton

Max Lifting Capacity

3515kg

Hydraulic Flow Rate

126L/min

Hydraulic Pressure

195Bar

Max Digging Depth

4.40m

Max Reach At Ground

5.625m

Max Reach At Full Height

2.15m

Max Loading Height

3.8m

Bucket Capacity

0.26

Bucket Breakout Force

5206kgf

Dipper Breakout Force

3031kgf

Max Dump Height

2.73m

Max Load Over Height

3.3m

Max Hinge Pin Height

3.60m

Loader Bucket Capacity

1.1

Loader Arm Breakout Force

4750kgf

Shovel Breakout Force

-

Power Steering

Yes

Battery Voltage

12V

Front Axle Oscillation

21°

Emission Standard

-

Rated Operating Capacity

-

Rated Operating Capacity (optional)

-

Max Tipping Load

-

Hydraulic System Capacity

-

Reach At Ground Level

-

Dump Angle

-

Lift Path

-

Wheelbase

-

Turning Radius

-

Bull HD96 4WD Backhoe Loader

Bull HD96 4WD Backhoe Loader

Get Latest Price
Rating
4.4

Turning Radius (unbraked)

-

Standard Tyres (front/rear)

-

Engine Brand

KIRLOSKAR

Engine Model

4R 1040 T EU STAGE II (Diesel)

Engine Power

96HP

Max Torque

377Nm

Rated Speed

2200rpm

Displacement

-

Fuel Tank Capacity

115 / 150L

Overall Height

3.71m

Overall Length

6.04m

Overall Width

2.35m

Ground Clearance

480mm

Transmission Type

CARRARO synchroshuttle

Number Of Gears (forward/reverse)

-

Torque Converter Stall Ratio

-

Max Travel Speed

40km/h

Service Brake Type

-

Parking Brake Type

-

Steering Type

-

Steering Angle

-

Oscillation Angle

-

Turning Radius (braked)

-

Operating Weight

8.15Ton

Max Lifting Capacity

-

Hydraulic Flow Rate

134L/min

Hydraulic Pressure

240Bar

Max Digging Depth

-

Max Reach At Ground

-

Max Reach At Full Height

1.42 / 1.28m

Max Loading Height

-

Bucket Capacity

1.1

Bucket Breakout Force

-

Dipper Breakout Force

-

Max Dump Height

2.93 / 2.96m

Max Load Over Height

-

Max Hinge Pin Height

3.61m

Loader Bucket Capacity

-

Loader Arm Breakout Force

5251kgf

Shovel Breakout Force

-

Power Steering

-

Battery Voltage

-

Front Axle Oscillation

-

Emission Standard

Stage II

Rated Operating Capacity

-

Rated Operating Capacity (optional)

-

Max Tipping Load

-

Hydraulic System Capacity

125L

Reach At Ground Level

1.60 / 1.47m

Dump Angle

45°

Lift Path

-

Wheelbase

2.22m

Turning Radius

8.8 / 11.6m

ESCORTS DIGMAX II Backhoe Loader

ESCORTS DIGMAX II Backhoe Loader

Get Latest Price
Rating
4.4

Turning Radius (unbraked)

-

Standard Tyres (front/rear)

9.00 x 16 - 16PR / 16.9 x 28 - 12PR

Engine Brand

Kirloskar

Engine Model

4R1190NA

Engine Power

75 HP

Max Torque

300 Nm

Rated Speed

-

Displacement

-

Fuel Tank Capacity

134L

Overall Height

3.78m

Overall Length

6.28m

Overall Width

-

Ground Clearance

0.35mm

Transmission Type

Syncro shift reversing shuttle

Number Of Gears (forward/reverse)

(4F/ 4R )

Torque Converter Stall Ratio

-

Max Travel Speed

36.6km/h

Service Brake Type

Hydraulically actuated dual line, self adjusting, oil immersed, multi disc type

Parking Brake Type

Hand-operated caliper disc brakes

Steering Type

Hydrostatic power steering

Steering Angle

-

Oscillation Angle

16°

Turning Radius (braked)

-

Operating Weight

8.19Ton

Max Lifting Capacity

1980kg

Hydraulic Flow Rate

117.5L/min

Hydraulic Pressure

225Bar

Max Digging Depth

4.80m

Max Reach At Ground

6.97m

Max Reach At Full Height

1.22m

Max Loading Height

-

Bucket Capacity

0.26

Bucket Breakout Force

6425kgf

Dipper Breakout Force

6174kgf

Max Dump Height

3.00m

Max Load Over Height

3.51m

Max Hinge Pin Height

3.70m

Loader Bucket Capacity

1.2

Loader Arm Breakout Force

5777kgf

Shovel Breakout Force

-

Power Steering

yes

Battery Voltage

-

Front Axle Oscillation

16°

Emission Standard

-

Rated Operating Capacity

-

Rated Operating Capacity (optional)

-

Max Tipping Load

-

Hydraulic System Capacity

-

Reach At Ground Level

-

Dump Angle

-

Lift Path

-

Wheelbase

-

Turning Radius

-
