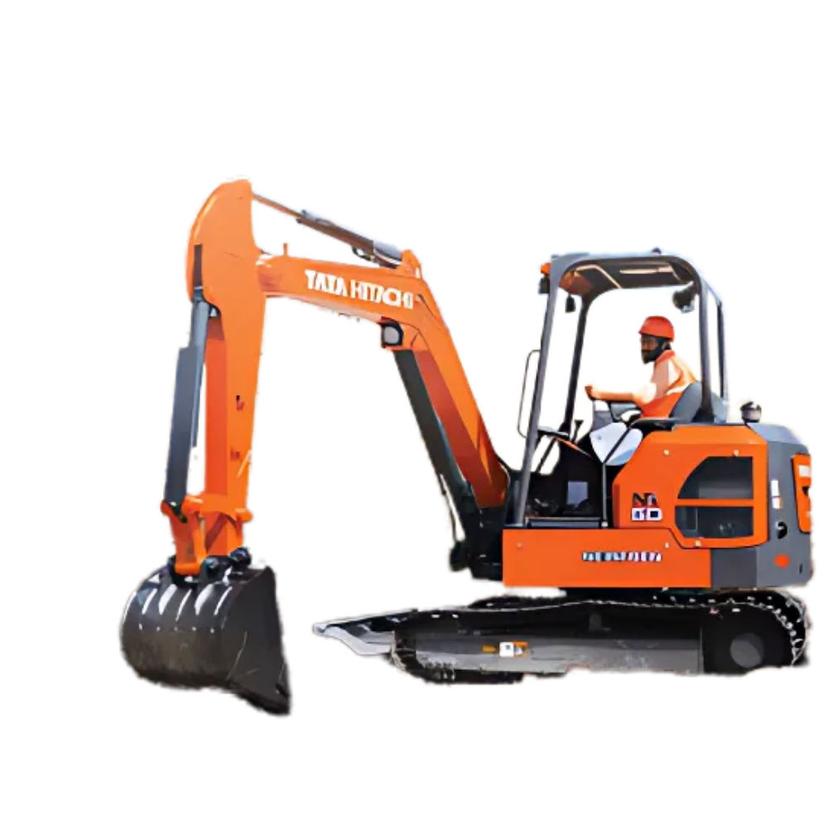

Tata Hitachi NX50 NEXTGEN Mini Excavator
Tata Hitachi Construction Machinery Company Private Ltd
Delhi
The Tata Hitachi NX50 NEXTGEN Mini Excavator is a compact, high-performance machine designed to meet diverse excavation needs. Powered by a Yanmar 4TNV88-BSTAH engine, it delivers 42.4 kW of power at 2200 rpm with exceptional fuel efficiency of 5.2 L/hr. The advanced Optimum Hydraulic System (OHS) with three pumps ensures smooth and efficient operations, with maximum oil flows of up to 42.0 L/min. Its compact design features a minimum front swing radius of 1,300 mm, making it ideal for confined spaces. With a bucket digging force of 3740 kgf and gradeability of 58% (30°), it handles tough terrains effortlessly. The durable undercarriage, efficient swing system, and large service refill capacities make it a dependable choice for urban construction, landscaping, trenching, and agricultural applications.
Tata Hitachi NX50 NEXTGEN Mini Excavator
Tata Hitachi Construction Machinery Company Private Ltd
Delhi
The Tata Hitachi NX50 NEXTGEN Mini Excavator is a compact, high-performance machine designed to meet diverse excavation needs. Powered by a Yanmar 4TNV88-BSTAH engine, it delivers 42.4 kW of power at 2200 rpm with exceptional fuel efficiency of 5.2 L/hr. The advanced Optimum Hydraulic System (OHS) with three pumps ensures smooth and efficient operations, with maximum oil flows of up to 42.0 L/min. Its compact design features a minimum front swing radius of 1,300 mm, making it ideal for confined spaces. With a bucket digging force of 3740 kgf and gradeability of 58% (30°), it handles tough terrains effortlessly. The durable undercarriage, efficient swing system, and large service refill capacities make it a dependable choice for urban construction, landscaping, trenching, and agricultural applications.
Product Description
The Tata Hitachi NX50 NEXTGEN Mini Excavator is a compact, high-performance machine designed to meet...
View the full brochure
Tata Hitachi NX50 NEXTGEN Mini Excavator Comparison with Similar Mini Excavators
Tata Hitachi NX50 NEXTGEN Mini Excavator
Engine Brand
Yanmar
Engine Model
4TNV88-BSTAH
Engine Power
33.5HP
Max Torque
143Nm
Rated Speed
2100rpm
Displacement
2.19L
Fuel Tank Capacity
62L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
40kgf/cm²
Operating Weight
5.1Ton
Max Digging Depth
3.5m
Max Reach At Ground
5.7m
Max Digging Height
5.8m
Max Dumping Height
4.1m
Bucket Capacity
0.22m³
Bucket Breakout Force
-
Arm Crowd Force
2450kgf
Overall Length
5.4m
Overall Height
2.6m
Ground Clearance
323mm
Empower Mini Excavator
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
-
Max Digging Depth
-
Max Reach At Ground
-
Max Digging Height
-
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Height
-
Ground Clearance
-
Tata Hitachi ZAXIS 33U Mini Excavator
Engine Brand
Yanmar
Engine Model
EDM-3TNV88
Engine Power
28.41HP
Max Torque
105.5Nm
Rated Speed
2200rpm
Displacement
1.642L
Fuel Tank Capacity
42L
Hydraulic Flow Rate
2×38.4L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
170kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
40kgf/cm²
Operating Weight
3.65Ton
Max Digging Depth
3.13m
Max Reach At Ground
5.04m
Max Digging Height
-
Max Dumping Height
3.31m
Bucket Capacity
0.09m³
Bucket Breakout Force
-
Arm Crowd Force
1499kgf
Overall Length
4.45m
Overall Height
2.47m
Ground Clearance
270mm
Kobelco SK30SR Mini Excavator
Engine Brand
YANMAR
Engine Model
3TNV82A-8
Engine Power
24.27 HP
Max Torque
79.4Nm
Rated Speed
2400rpm
Displacement
-
Fuel Tank Capacity
42L
Hydraulic Flow Rate
96.0L/min
Hydraulic Pressure (implement Circuit)
234.6 kgf/cm²
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
3.57 / 3.41 Ton
Max Digging Depth
-
Max Reach At Ground
-
Max Digging Height
-
Max Dumping Height
-
Bucket Capacity
0.12m³
Bucket Breakout Force
2,823.4 kgf
Arm Crowd Force
1,947.9 / 1,682.0 kgf
Overall Length
-
Overall Height
-
Ground Clearance
-
CAT 303.5 CR Mini Excavator
Engine Brand
Caterpillar
Engine Model
C1.7
Engine Power
23.6HP
Max Torque
-
Rated Speed
-
Displacement
1.7L
Fuel Tank Capacity
45L
Hydraulic Flow Rate
98.4L/min
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
4.19Ton
Max Digging Depth
3.1m
Max Reach At Ground
5.38m
Max Digging Height
5.02m
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
4.85m
Overall Height
2.48m
Ground Clearance
310mm
