Tata Hitachi EX1200V Crawler Excavator

Tata Hitachi Construction Machinery Company Private Ltd

Delhi

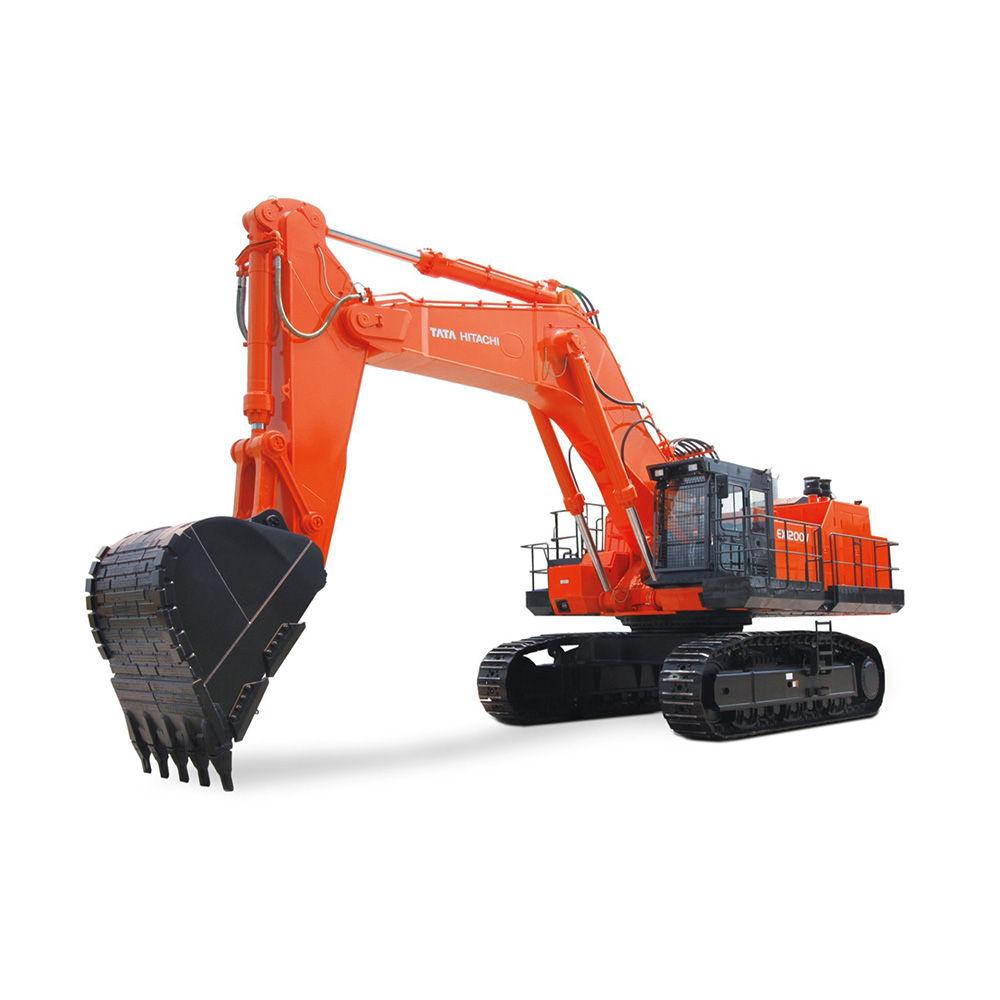

The Tata Hitachi EX1200V Crawler Excavator is engineered for high-performance and durability in demanding mining and construction tasks. Featuring a powerful 760 HP engine and a substantial 109,000 kg operating weight, it excels in heavy-duty excavation and material handling. With a large bucket capacity of 4.0 - 6.5 m³ and combined front operations, the EX1200V enhances productivity and efficiency. Its auto idle and quick idle functions contribute to reduced fuel consumption and eco-friendly operation. Designed with robust attachments and a heavy lifting function, it delivers reliable performance in tough environments. Additionally, the excavator prioritizes operator safety and comfort with advanced safety devices and an ergonomic cabin, while easy maintenance features help lower total lifetime costs.

Operating Weight
108Ton

Product Description

The Tata Hitachi EX1200V Crawler Excavator is engineered for high-performance and durability in dema...

View the full brochure

Tata Hitachi EX1200V Crawler Excavator Comparison with Similar Crawler Excavator

Tata Hitachi EX1200V Crawler Excavator

Tata Hitachi EX1200V Crawler Excavator

Get Latest Price
Rating
4.4

Engine Brand

Cummins

Engine Model

QSK23-C

Rated Speed

1650rpm

Displacement

23.15L

Fuel Tank Capacity

1,400L

Hydraulic Pressure (swing Circuit)

300kgf/cm²

Hydraulic Pressure (travel Circuit)

320kgf/cm²

Hydraulic Pressure (pilot Circuit)

40kgf/cm²

Operating Weight

108Ton

Ground Pressure (600mm Track)

1.39kgf/cm²

Max Digging Depth

9.3m

Overall Length

8.0m

Overall Width

5.4m

Overall Height

5.4m

Ground Clearance

990mm

Hydraulic Flow Rate

3 x 495L/min

Hydraulic Pressure (implement Circuit)

320kgf/cm²

Engine Power

760HP

Max Torque

3580Nm

Max Reach At Ground

15m

Max Dumping Height

8.9m

Bucket Capacity

6.5

Bucket Breakout Force

-

Arm Crowd Force

41900kgf

Currently Viewing
XCMG XE155U Crawler Excavator

XCMG XE155U Crawler Excavator

Get Latest Price
Rating
4.4

Engine Brand

XCMG

Engine Model

Cummins B4.5

Rated Speed

-

Displacement

4.54L

Fuel Tank Capacity

249.8L

Hydraulic Pressure (swing Circuit)

-

Hydraulic Pressure (travel Circuit)

-

Hydraulic Pressure (pilot Circuit)

-

Operating Weight

17.5Ton

Ground Pressure (600mm Track)

-

Max Digging Depth

6.01m

Overall Length

78.3m

Overall Width

26.8m

Overall Height

-

Ground Clearance

367.1mm

Hydraulic Flow Rate

-

Hydraulic Pressure (implement Circuit)

-

Engine Power

-

Max Torque

501.8Nm

Max Reach At Ground

-

Max Dumping Height

-

Bucket Capacity

0.64

Bucket Breakout Force

-

Arm Crowd Force

-

Zoomlion ZE385G Pro Crawler Excavator

Zoomlion ZE385G Pro Crawler Excavator

Get Latest Price
Rating
4.4

Engine Brand

CUMMINS

Engine Model

QSL

Rated Speed

-

Displacement

8.9L

Fuel Tank Capacity

-

Hydraulic Pressure (swing Circuit)

-

Hydraulic Pressure (travel Circuit)

-

Hydraulic Pressure (pilot Circuit)

-

Operating Weight

38Ton

Ground Pressure (600mm Track)

-

Max Digging Depth

7.075m

Overall Length

11.23m

Overall Width

3.19m

Overall Height

3.78m

Ground Clearance

-

Hydraulic Flow Rate

-

Hydraulic Pressure (implement Circuit)

-

Engine Power

-

Max Torque

-

Max Reach At Ground

-

Max Dumping Height

6.885m

Bucket Capacity

2.0

Bucket Breakout Force

-

Arm Crowd Force

-

LIUGONG 965E CRAWLER EXCAVATOR

LIUGONG 965E CRAWLER EXCAVATOR

Get Latest Price
Rating
4.4

Engine Brand

-

Engine Model

DC13076A

Rated Speed

2100rpm

Displacement

12.7L

Fuel Tank Capacity

880L

Hydraulic Pressure (swing Circuit)

357kgf/cm²

Hydraulic Pressure (travel Circuit)

330kgf/cm²

Hydraulic Pressure (pilot Circuit)

39.7kgf/cm²

Operating Weight

62.6Ton

Ground Pressure (600mm Track)

-

Max Digging Depth

-

Overall Length

-

Overall Width

-

Overall Height

-

Ground Clearance

-

Hydraulic Flow Rate

2 × 448L/min

Hydraulic Pressure (implement Circuit)

379kgf/cm²

Engine Power

444HP

Max Torque

2007Nm

Max Reach At Ground

-

Max Dumping Height

-

Bucket Capacity

4.1

Bucket Breakout Force

-

Arm Crowd Force

-

LIUGONG 965E CRAWLER EXCAVATOR

LIUGONG 965E CRAWLER EXCAVATOR

Get Latest Price
Rating
4.4

Engine Brand

-

Engine Model

X15

Rated Speed

1800rpm

Displacement

15L

Fuel Tank Capacity

1100L

Hydraulic Pressure (swing Circuit)

270kgf/cm²

Hydraulic Pressure (travel Circuit)

350kgf/cm²

Hydraulic Pressure (pilot Circuit)

40kgf/cm²

Operating Weight

75Ton

Ground Pressure (600mm Track)

-

Max Digging Depth

-

Overall Length

-

Overall Width

-

Overall Height

-

Ground Clearance

-

Hydraulic Flow Rate

2 × 476L/min

Hydraulic Pressure (implement Circuit)

380kgf/cm²

Engine Power

524HP

Max Torque

2373Nm

Max Reach At Ground

-

Max Dumping Height

-

Bucket Capacity

5.6

Bucket Breakout Force

-

Arm Crowd Force

-
