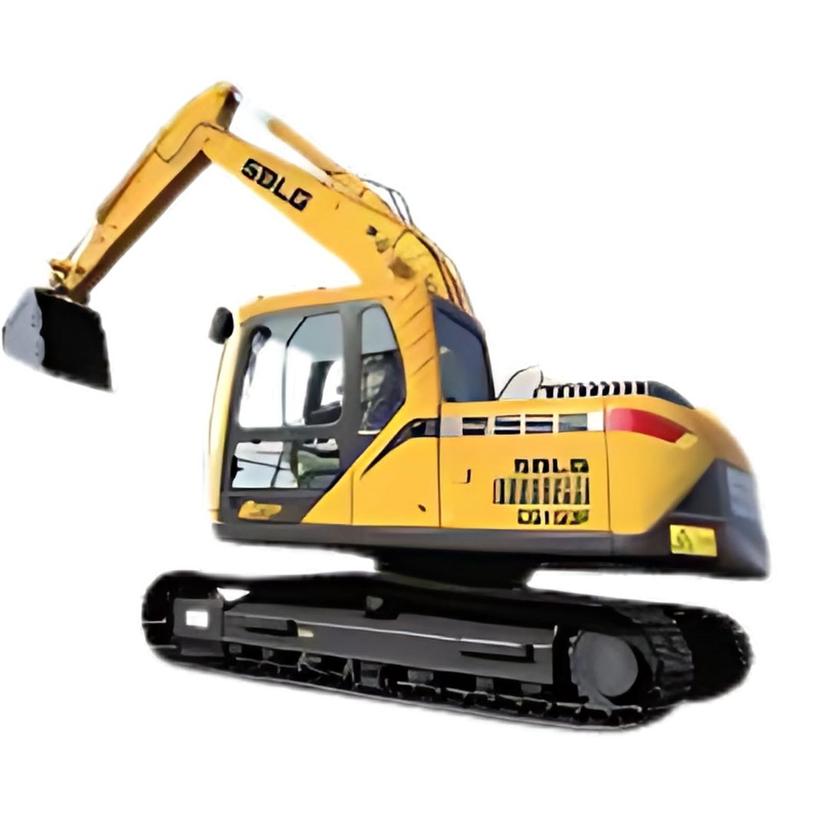

SDLG E6150F Hydraulic Excavator
West India Equipments Pvt Ltd
Gujarat
The SDLG E6150F Hydraulic Excavator is a reliable 13.8–14.8 ton machine designed for high-efficiency performance in demanding construction tasks. Powered by a 108 HP Tier III Deutz engine and equipped with a twin-pump negative flow control hydraulic system, it delivers strong digging capabilities with a bucket breakout force of 98.1 kN and a digging depth of up to 5.16 meters. Its compact tail swing radius and excellent ground clearance make it ideal for both urban and off-road operations. With smooth swing motion, responsive pilot controls, and high drawbar pull of 109.8 kN, the E6150F ensures productivity across a range of applications like trenching, quarrying, and roadwork. Durable undercarriage components and easy maintenance access make it a smart, cost-effective choice for medium-duty excavation.
SDLG E6150F Hydraulic Excavator
West India Equipments Pvt Ltd
Gujarat
The SDLG E6150F Hydraulic Excavator is a reliable 13.8–14.8 ton machine designed for high-efficiency performance in demanding construction tasks. Powered by a 108 HP Tier III Deutz engine and equipped with a twin-pump negative flow control hydraulic system, it delivers strong digging capabilities with a bucket breakout force of 98.1 kN and a digging depth of up to 5.16 meters. Its compact tail swing radius and excellent ground clearance make it ideal for both urban and off-road operations. With smooth swing motion, responsive pilot controls, and high drawbar pull of 109.8 kN, the E6150F ensures productivity across a range of applications like trenching, quarrying, and roadwork. Durable undercarriage components and easy maintenance access make it a smart, cost-effective choice for medium-duty excavation.
Product Description
The SDLG E6150F Hydraulic Excavator is a reliable 13.8–14.8 ton machine designed for high-efficiency...
SDLG E6150F Hydraulic Excavator Comparison with Similar Crawler Excavator
SDLG E6150F Hydraulic Excavator
Engine Brand
-
Engine Model
BF4M2012-11
Engine Power
108HP
Max Torque
45.9Nm
Rated Speed
2000rpm
Displacement
4.038L
Fuel Tank Capacity
260L
Hydraulic Flow Rate
256L/min
Hydraulic Pressure (implement Circuit)
350kgf/cm²
Hydraulic Pressure (swing Circuit)
245kgf/cm²
Hydraulic Pressure (travel Circuit)
343kgf/cm²
Hydraulic Pressure (pilot Circuit)
39kgf/cm²
Ground Pressure (600mm Track)
kgf/cm²
Operating Weight
13.8 Ton
Max Digging Depth
5.16m
Max Reach At Ground
7.83m
Max Dumping Height
5.72m
Bucket Capacity
0.75m³
Bucket Breakout Force
10004kgf
Arm Crowd Force
6900kgf
Overall Length
7.7m
Overall Width
2.59m
Overall Height
2.77m
Ground Clearance
436mm
Zoomlion ZE385G Pro Crawler Excavator
Engine Brand
CUMMINS
Engine Model
QSL
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
8.9L
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Ground Pressure (600mm Track)
-
Operating Weight
38Ton
Max Digging Depth
7.075m
Max Reach At Ground
-
Max Dumping Height
6.885m
Bucket Capacity
2.0m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
11.23m
Overall Width
3.19m
Overall Height
3.78m
Ground Clearance
-
XCMG XE155U Crawler Excavator
Engine Brand
XCMG
Engine Model
Cummins B4.5
Engine Power
-
Max Torque
501.8Nm
Rated Speed
-
Displacement
4.54L
Fuel Tank Capacity
249.8L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Ground Pressure (600mm Track)
-
Operating Weight
17.5Ton
Max Digging Depth
6.01m
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
0.64m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
78.3m
Overall Width
26.8m
Overall Height
-
Ground Clearance
367.1mm
XCMG XE80U Crawler Excavator
Engine Brand
Kubota
Engine Model
V3307CRTE5
Engine Power
-
Max Torque
9.31 Nm
Rated Speed
1500rpm
Displacement
3.3L
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Ground Pressure (600mm Track)
-
Operating Weight
9.5Ton
Max Digging Depth
-
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
0.35m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Zoomlion ZE215E Hydraulic Excavator
Engine Brand
Cummins B5.9-C
Engine Model
-
Engine Power
150HP
Max Torque
-
Rated Speed
1950rpm
Displacement
-
Fuel Tank Capacity
-
Hydraulic Flow Rate
412L/min
Hydraulic Pressure (implement Circuit)
321kgf/cm²
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Ground Pressure (600mm Track)
-
Operating Weight
21.3Ton
Max Digging Depth
6.61m
Max Reach At Ground
9.65m
Max Dumping Height
6.755m
Bucket Capacity
0.9m³
Bucket Breakout Force
147000kgf
Arm Crowd Force
103000kgf
Overall Length
9.57m
Overall Width
2.8m
Overall Height
3.01m
Ground Clearance
440mm
