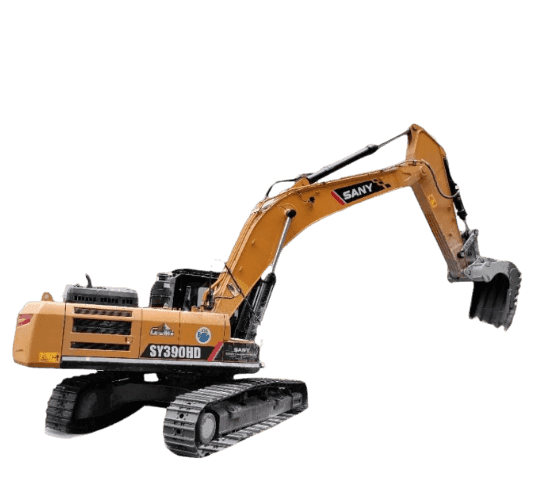

Sany SY390C-10HD GraMa Crawler Excavator
Sany Heavy Industry India Private Limited
Karnataka
The SANY SY390C-10HD GraMa is a robust 39-ton class excavator engineered for heavy-duty applications like marble and granite excavation. Powered by a 284 hp Isuzu engine, this machine excels in performance and fuel efficiency, thanks to its advanced hydraulic regeneration circuit and Dynamic Optimization Matching Control System. With a maximum digging depth of 10.75 meters and specialized scoop buckets, it handles demanding tasks with ease. The SY390C-10HD GraMa features a heavy-duty design, including a longer crawler for enhanced durability and stability. Its high digging forces and versatile work modes ensure superior productivity and reliability in rough conditions, making it an excellent choice for maximizing return on investment in challenging environments.
Sany SY390C-10HD GraMa Crawler Excavator
Sany Heavy Industry India Private Limited
Karnataka
The SANY SY390C-10HD GraMa is a robust 39-ton class excavator engineered for heavy-duty applications like marble and granite excavation. Powered by a 284 hp Isuzu engine, this machine excels in performance and fuel efficiency, thanks to its advanced hydraulic regeneration circuit and Dynamic Optimization Matching Control System. With a maximum digging depth of 10.75 meters and specialized scoop buckets, it handles demanding tasks with ease. The SY390C-10HD GraMa features a heavy-duty design, including a longer crawler for enhanced durability and stability. Its high digging forces and versatile work modes ensure superior productivity and reliability in rough conditions, making it an excellent choice for maximizing return on investment in challenging environments.
Product Description
The SANY SY390C-10HD GraMa is a robust 39-ton class excavator engineered for heavy-duty applications...
Sany SY390C-10HD GraMa Crawler Excavator Comparison with Similar Crawler Excavator
Sany SY390C-10HD GraMa Crawler Excavator
Engine Brand
Isuzu
Engine Model
6HK1
Engine Power
284HP
Max Torque
110.1Nm
Rated Speed
2000rpm
Displacement
7.79L
Fuel Tank Capacity
690L
Hydraulic Flow Rate
640L/min
Hydraulic Pressure (implement Circuit)
350.3kgf/cm²
Hydraulic Pressure (swing Circuit)
306.1kgf/cm²
Hydraulic Pressure (travel Circuit)
350.3kgf/cm²
Hydraulic Pressure (pilot Circuit)
39.8kgf/cm²
Ground Pressure (600mm Track)
0.702kgf/cm²
Operating Weight
41Ton
Max Digging Depth
7.155m
Max Reach At Ground
10.75m
Max Dumping Height
7.01m
Bucket Capacity
1.4m³
Bucket Breakout Force
23963.3kgf
Arm Crowd Force
21414kgf
Overall Length
11.425m
Overall Width
3.19m
Overall Height
3.825m
Ground Clearance
550mm
XCMG XE155U Crawler Excavator
Engine Brand
XCMG
Engine Model
Cummins B4.5
Engine Power
-
Max Torque
501.8Nm
Rated Speed
-
Displacement
4.54L
Fuel Tank Capacity
249.8L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Ground Pressure (600mm Track)
-
Operating Weight
17.5Ton
Max Digging Depth
6.01m
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
0.64m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
78.3m
Overall Width
26.8m
Overall Height
-
Ground Clearance
367.1mm
Zoomlion ZE385G Pro Crawler Excavator
Engine Brand
CUMMINS
Engine Model
QSL
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
8.9L
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Ground Pressure (600mm Track)
-
Operating Weight
38Ton
Max Digging Depth
7.075m
Max Reach At Ground
-
Max Dumping Height
6.885m
Bucket Capacity
2.0m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
11.23m
Overall Width
3.19m
Overall Height
3.78m
Ground Clearance
-
Liugong 965E HD Crawler Excavator
Engine Brand
SCANIA
Engine Model
DC13 076A
Engine Power
444HP
Max Torque
2007Nm
Rated Speed
2100rpm
Displacement
12.7L
Fuel Tank Capacity
880L
Hydraulic Flow Rate
896L/min
Hydraulic Pressure (implement Circuit)
379.3kgf/cm²
Hydraulic Pressure (swing Circuit)
397.7kgf/cm²
Hydraulic Pressure (travel Circuit)
326.3kgf/cm²
Hydraulic Pressure (pilot Circuit)
-
Ground Pressure (600mm Track)
-
Operating Weight
62.6Ton
Max Digging Depth
6.83m
Max Reach At Ground
10.78m
Max Dumping Height
6.84m
Bucket Capacity
4.1m³
Bucket Breakout Force
35180.2kgf
Arm Crowd Force
30591.5kgf
Overall Length
11.87m
Overall Width
3.9m
Overall Height
3.05m
Ground Clearance
786mm
Sany SY210 SPARC + Crawler Excavator
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Ground Pressure (600mm Track)
-
Operating Weight
-
Max Digging Depth
-
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
