Sany SY20U Mini Excavator
Sany Heavy Industry India Private Limited
Karnataka
The Sany SY20U Mini Excavator is a versatile 2-ton machine designed for efficient performance in confined job sites. With its compact size and zero tail swing, it easily navigates tight spaces, making it perfect for urban construction, landscaping, and utility work. Powered by a reliable Yanmar engine, the SY20U offers 19.8 hp of output and features an advanced load-sensing hydraulic system that ensures precise control and optimal fuel efficiency. Its steel tracks provide excellent stability on uneven surfaces, while the independent boom swing function enhances maneuverability in challenging conditions. Built for durability, the SY20U is ideal for small-scale demolition and road maintenance, combining power, reliability, and operator comfort in one compact package.
Sany SY20U Mini Excavator
Sany Heavy Industry India Private Limited
Karnataka
The Sany SY20U Mini Excavator is a versatile 2-ton machine designed for efficient performance in confined job sites. With its compact size and zero tail swing, it easily navigates tight spaces, making it perfect for urban construction, landscaping, and utility work. Powered by a reliable Yanmar engine, the SY20U offers 19.8 hp of output and features an advanced load-sensing hydraulic system that ensures precise control and optimal fuel efficiency. Its steel tracks provide excellent stability on uneven surfaces, while the independent boom swing function enhances maneuverability in challenging conditions. Built for durability, the SY20U is ideal for small-scale demolition and road maintenance, combining power, reliability, and operator comfort in one compact package.
Product Description
The Sany SY20U Mini Excavator is a versatile 2-ton machine designed for efficient performance in con...
View the full brochure
Sany SY20U Mini Excavator Comparison with Similar Mini Excavators

Sany SY20U Mini Excavator
Engine Brand
YANMAR
Engine Model
3TNV80F
Engine Power
19.8HP
Max Torque
67.4Nm
Rated Speed
2400rpm
Displacement
1.22L
Fuel Tank Capacity
21L
Hydraulic Flow Rate
70L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
166kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
41kgf/cm²
Operating Weight
1.95Ton
Max Digging Depth
2.38m
Max Reach At Ground
4.01m
Max Digging Height
3.41m
Max Dumping Height
2.35m
Bucket Capacity
0.05m³
Bucket Breakout Force
1692.72kgf
Arm Crowd Force
938.13kgf
Overall Length
3.515m
Overall Height
2.49m
Ground Clearance
160mm

Empower Mini Excavator
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
-
Max Digging Depth
-
Max Reach At Ground
-
Max Digging Height
-
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Height
-
Ground Clearance
-

Tata Hitachi ZAXIS 33U Mini Excavator
Engine Brand
Yanmar
Engine Model
EDM-3TNV88
Engine Power
28.41HP
Max Torque
105.5Nm
Rated Speed
2200rpm
Displacement
1.642L
Fuel Tank Capacity
42L
Hydraulic Flow Rate
2×38.4L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
170kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
40kgf/cm²
Operating Weight
3.65Ton
Max Digging Depth
3.13m
Max Reach At Ground
5.04m
Max Digging Height
-
Max Dumping Height
3.31m
Bucket Capacity
0.09m³
Bucket Breakout Force
-
Arm Crowd Force
1499kgf
Overall Length
4.45m
Overall Height
2.47m
Ground Clearance
270mm

Kobelco SK30SR Mini Excavator
Engine Brand
YANMAR
Engine Model
3TNV82A-8
Engine Power
24.27 HP
Max Torque
79.4Nm
Rated Speed
2400rpm
Displacement
-
Fuel Tank Capacity
42L
Hydraulic Flow Rate
96.0L/min
Hydraulic Pressure (implement Circuit)
234.6 kgf/cm²
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
3.57 / 3.41 Ton
Max Digging Depth
-
Max Reach At Ground
-
Max Digging Height
-
Max Dumping Height
-
Bucket Capacity
0.12m³
Bucket Breakout Force
2,823.4 kgf
Arm Crowd Force
1,947.9 / 1,682.0 kgf
Overall Length
-
Overall Height
-
Ground Clearance
-

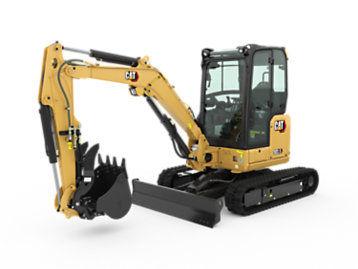

CAT 303.5 CR Mini Excavator
Engine Brand
Caterpillar
Engine Model
C1.7
Engine Power
23.6HP
Max Torque
-
Rated Speed
-
Displacement
1.7L
Fuel Tank Capacity
45L
Hydraulic Flow Rate
98.4L/min
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
4.19Ton
Max Digging Depth
3.1m
Max Reach At Ground
5.38m
Max Digging Height
5.02m
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
4.85m
Overall Height
2.48m
Ground Clearance
310mm
Compare Mini Excavators

Sany SY20U Mini Excavator

Empower Mini Excavator
Add any equipment
to compare

Get instant quotation on whatsapp
Connect with "Sany Heavy Industry India Private Limited"
Connect with Seller Instantly
More Products from Sany Heavy Industry India Private Limited

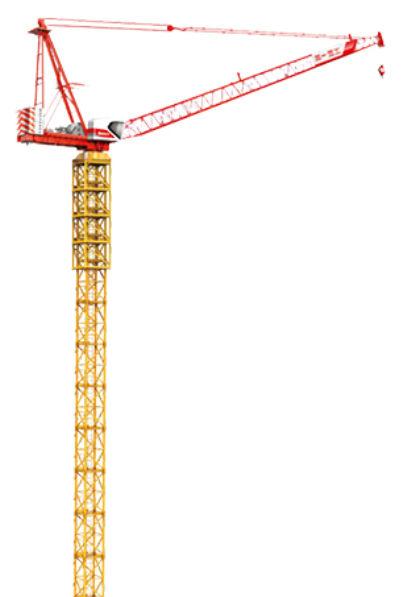

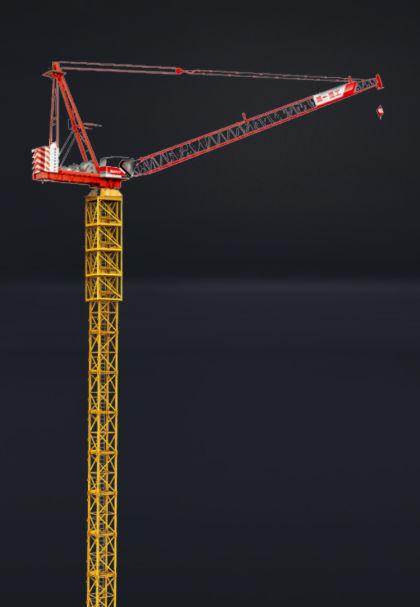

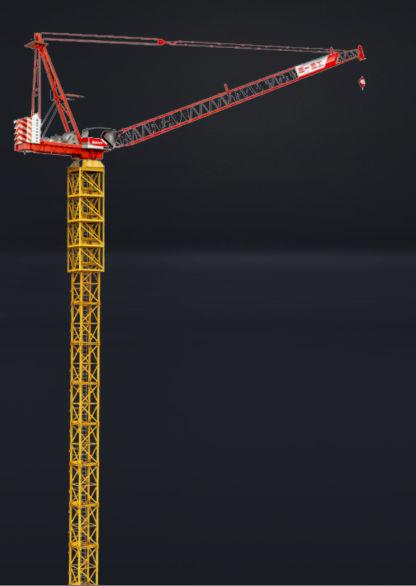

SANY SLT315 (T6031‑18) Luffing‑Jib Tower Crane
Get Latest Price
Karnataka

SANY SLT160H (T5523‑12) Luffing‑Jib Tower Crane
Get Latest Price
Karnataka

SANY SLT125H (T5022‑8) Luffing‑Jib Tower Crane
Get Latest Price
Karnataka

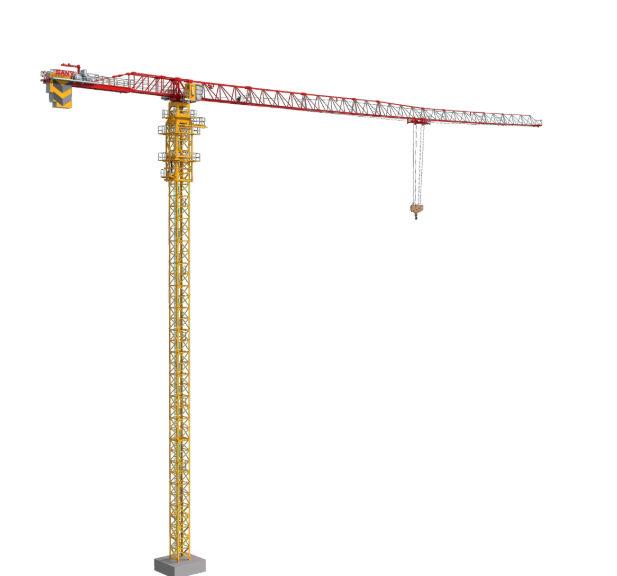

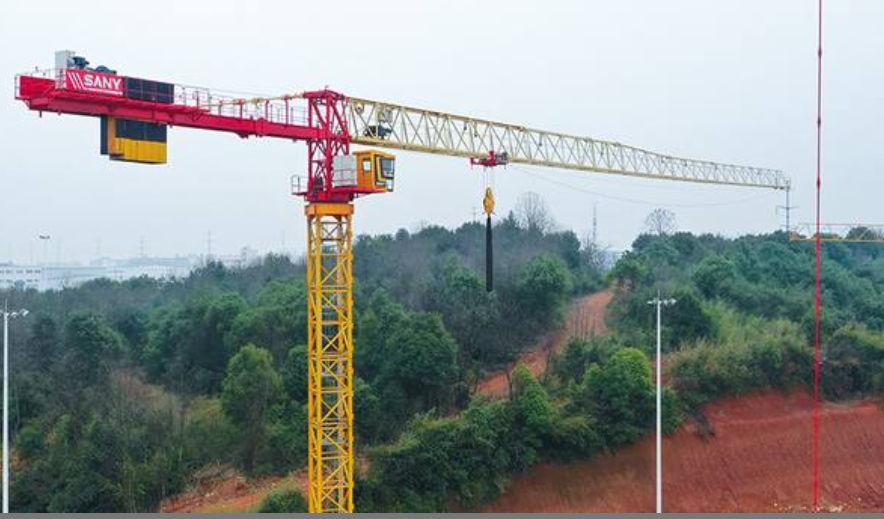

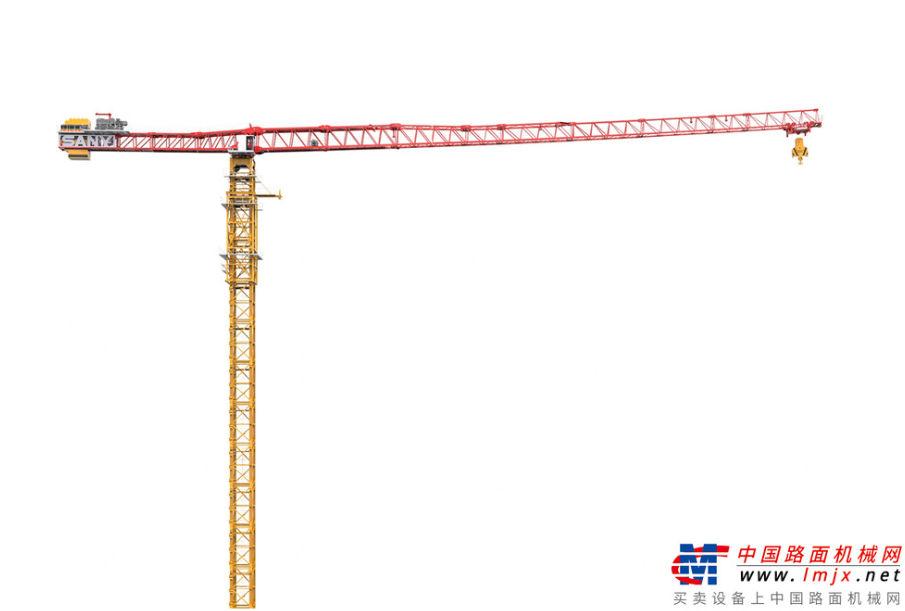

SANY SYT315 (T7530‑16) Flat‑Top Tower Crane
