Sany STG210C-10 Motor Grader
Sany Heavy Industry India Private Limited
Odisha
The SANY STG210C-10 Motor Grader is a powerful and versatile machine designed for demanding construction and engineering projects. With a 225hp Cummins QSB6.7 Series CEV Stage IV engine, it delivers exceptional fuel efficiency and productivity. This grader features a maximum operating weight of 17.90 tons, a robust drawbar pull of 98 kN, and an 86 kN blade downforce, making it ideal for precise grading in large-scale road construction and earthmoving tasks. The ergonomic cabin enhances operator comfort, while the advanced hydraulic controls ensure accuracy and ease of operation. Whether used for road building, leveling uneven surfaces, or preparing sites for development, the STG210C-10 offers reliable performance and cost-efficiency, making it a top choice for heavy construction projects.
Sany STG210C-10 Motor Grader
Sany Heavy Industry India Private Limited
Odisha
The SANY STG210C-10 Motor Grader is a powerful and versatile machine designed for demanding construction and engineering projects. With a 225hp Cummins QSB6.7 Series CEV Stage IV engine, it delivers exceptional fuel efficiency and productivity. This grader features a maximum operating weight of 17.90 tons, a robust drawbar pull of 98 kN, and an 86 kN blade downforce, making it ideal for precise grading in large-scale road construction and earthmoving tasks. The ergonomic cabin enhances operator comfort, while the advanced hydraulic controls ensure accuracy and ease of operation. Whether used for road building, leveling uneven surfaces, or preparing sites for development, the STG210C-10 offers reliable performance and cost-efficiency, making it a top choice for heavy construction projects.
Product Description
The SANY STG210C-10 Motor Grader is a powerful and versatile machine designed for demanding construc...
View the full brochure
Sany STG210C-10 Motor Grader Comparison with Similar Motor Grader
Sany STG210C-10 Motor Grader
Engine Brand
Cummins
Engine Model
QSB6.7
Engine Power
225HP
Max Torque
1000Nm
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
350L
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
45°
Oscillation Angle
16°
Turning Radius
7.3m
Operating Weight
15.35Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
11.1m
Overall Width
2.74m
Overall Height
3.31m
Ground Clearance
410mm
Blade Length
3.66m
Blade Height
0.62m
Max Lift Above Ground
0.48m
Max Depth Of Cut
0.63m
Blade Tilt Angle
9°
Blade Pitch Angle
25~75°
Blade Rotation Angle
360°
Transmission Type
-
Number Of Gears (fwd/rev)
6 forward and 3 reverse
Max Travel Speed
42km/h
Liugong CLG 414 BSIII Motor Grader
Engine Brand
CUMMINS INDIA
Engine Model
6BTAA5.9
Engine Power
150HP
Max Torque
655Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
250L
Service Brake Type
Shoe
Parking Brake Type
Shoe
Steering Type
Full hydraulic steering
Steering Angle
90°
Oscillation Angle
30°
Turning Radius
7.2m
Operating Weight
14.3Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
180Bar
Overall Length
9.21m
Overall Width
3.4m
Overall Height
3.66m
Ground Clearance
575mm
Blade Length
3.66m
Blade Height
0.61m
Max Lift Above Ground
0.485m
Max Depth Of Cut
0.575m
Blade Tilt Angle
70°
Blade Pitch Angle
-
Blade Rotation Angle
90°
Transmission Type
Power Shift
Number Of Gears (fwd/rev)
6F/3R
Max Travel Speed
41km/h
FINE 585HD Motor Grader
Engine Brand
Ashok Leyland
Engine Model
-
Engine Power
130HP
Max Torque
480Nm
Rated Speed
2200rpm
Displacement
3.84L
Fuel Tank Capacity
140L
Service Brake Type
Foot pedal operated hydraulic brake through master cylinder
Parking Brake Type
Spring Applied Hydraulic Release (SAHR)
Steering Type
Hydraulic Power Steering
Steering Angle
45°
Oscillation Angle
20°
Turning Radius
10.26m
Operating Weight
9.495Ton
Front Axle Load
2710kg
Rear Axle Load
6750kg
Hydraulic Flow Rate
118L/min
Hydraulic Pressure
220Bar
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Blade Length
3.05m
Blade Height
0.494m
Max Lift Above Ground
0.46m
Max Depth Of Cut
-
Blade Tilt Angle
40° Forward / 5° Backward°
Blade Pitch Angle
-
Blade Rotation Angle
360°
Transmission Type
Power - Shift Transmission (AVTECH)
Number Of Gears (fwd/rev)
2 Forward / 2 Reverse
Max Travel Speed
20km/h

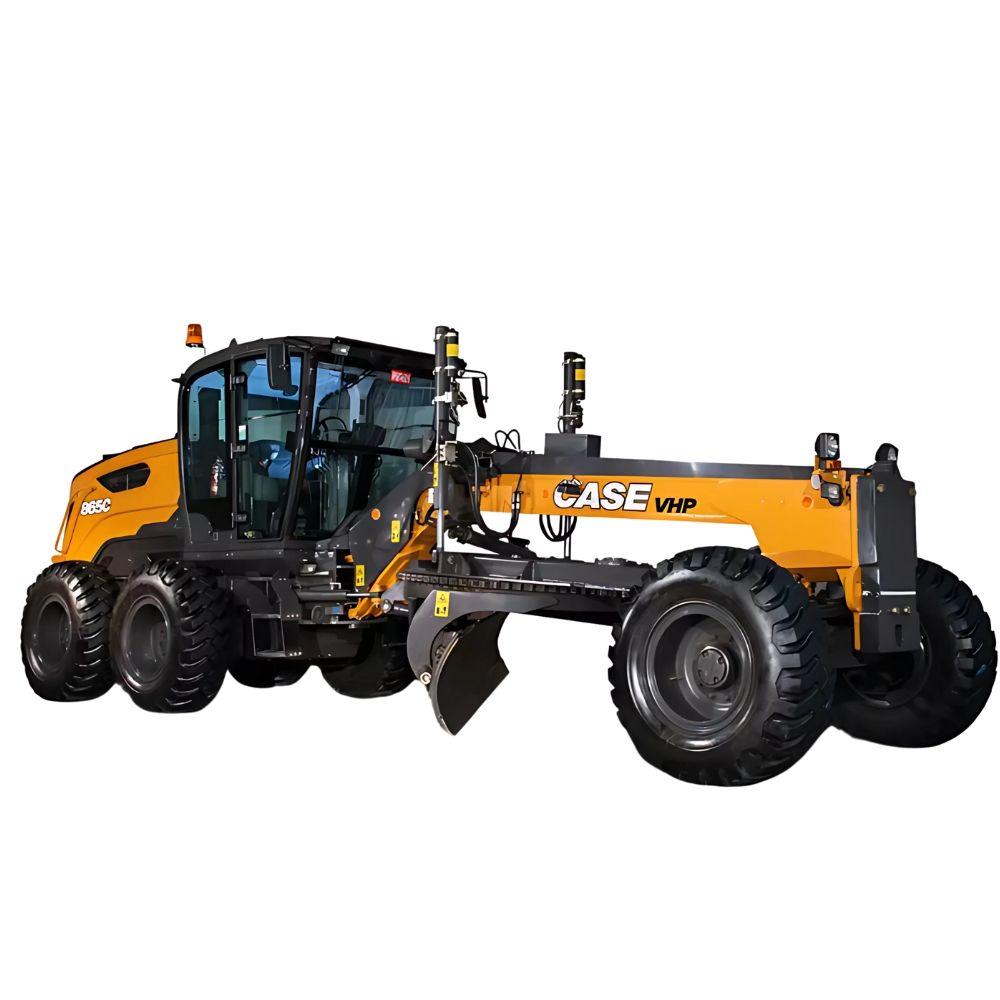

CASE 865C VHP Motor Grader
Engine Brand
FPT
Engine Model
F4HE613B*W002
Engine Power
220HP
Max Torque
930Nm
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
380L
Service Brake Type
Disc, bathed in oil
Parking Brake Type
-
Steering Type
Hydrostatic power steering
Steering Angle
25°
Oscillation Angle
20°
Turning Radius
-
Operating Weight
-
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
186L/min
Hydraulic Pressure
175Bar
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
0.58 (front) mm
Blade Length
3.962m
Blade Height
0.622 m
Max Lift Above Ground
0.4445m
Max Depth Of Cut
0.7112m
Blade Tilt Angle
-
Blade Pitch Angle
87°
Blade Rotation Angle
360 °
Transmission Type
-
Number Of Gears (fwd/rev)
-
Max Travel Speed
-
CASE 845C VHP Motor Grader
Engine Brand
FPT
Engine Model
F4HE613B*W002
Engine Power
173HP
Max Torque
758Nm
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
380L
Service Brake Type
Oil-bathed disc brakes
Parking Brake Type
Spring-applied, hydraulically released
Steering Type
Hydrostatic power steering
Steering Angle
20°
Oscillation Angle
20°
Turning Radius
7.4m
Operating Weight
15.5Ton
Front Axle Load
5,800kg
Rear Axle Load
9,700kg
Hydraulic Flow Rate
186L/min
Hydraulic Pressure
175Bar
Overall Length
8.957m
Overall Width
2.5m
Overall Height
3.4m
Ground Clearance
580mm
Blade Length
3.962m
Blade Height
0.953m
Max Lift Above Ground
0.4445m
Max Depth Of Cut
0.7112m
Blade Tilt Angle
90°
Blade Pitch Angle
87°
Blade Rotation Angle
360°
Transmission Type
ZF Powershift, 6 forward, 3 reverse
Number Of Gears (fwd/rev)
6 / 3
Max Travel Speed
45km/h
