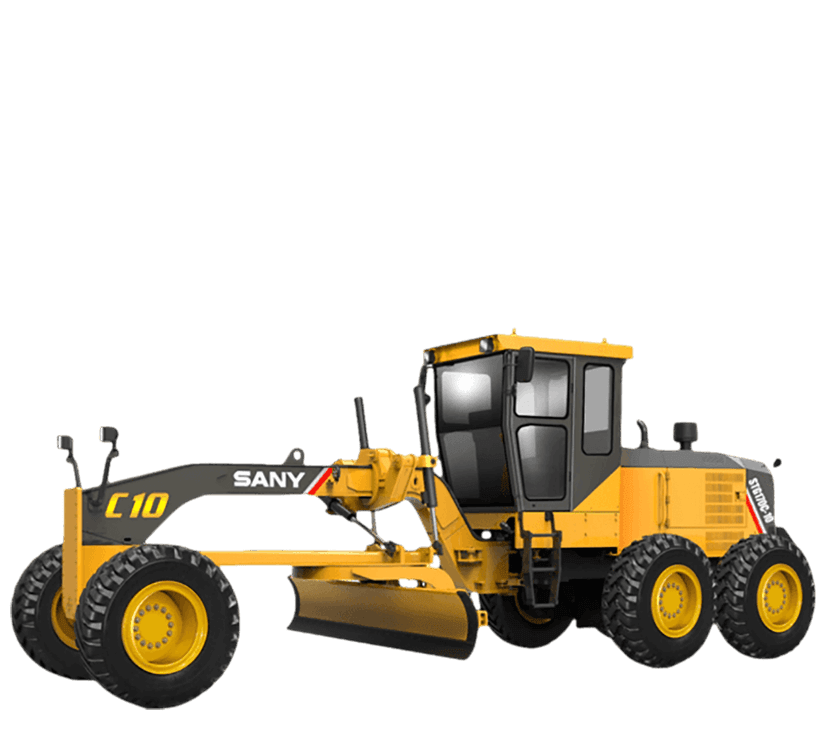

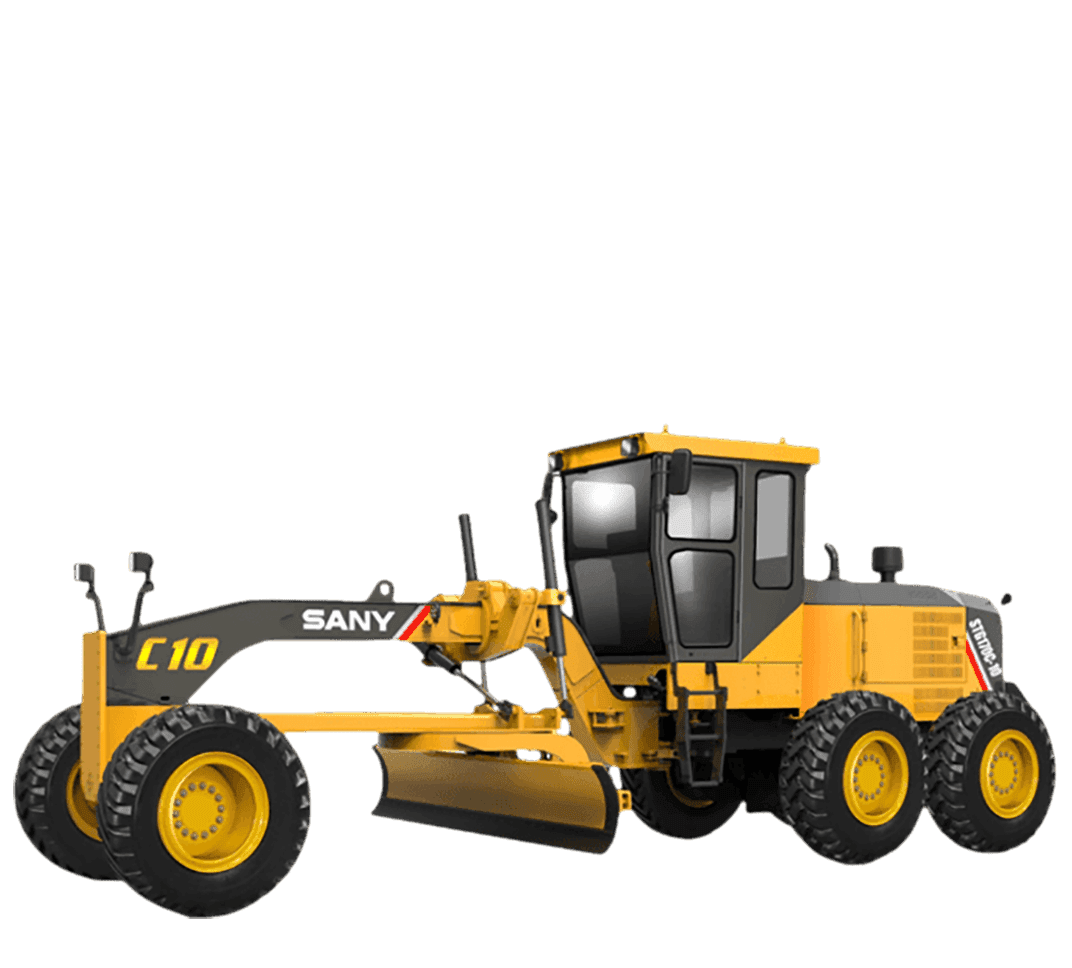

Sany STG170C-10 Motor Grader
Sany Heavy Industry India Private Limited
Karnataka
The SANY STG170C-10 Motor Grader is a robust and versatile machine, engineered to meet the demands of various construction and engineering projects. Powered by a 173hp Cummins QSB6.7 Series CEV Stage IV engine, it delivers exceptional fuel efficiency and high productivity. With a maximum operating weight of 17.25 tons, 95 kN drawbar pull, and 86 kN blade downforce, the STG170C-10 excels in challenging grading tasks. The grader features a ZF Tiptronic Transmission for quick, responsive gear shifting and an ergonomic cabin for enhanced operator comfort. Its 12ft heavy-duty moldboard ensures precision in grading, making it ideal for road construction, earthmoving, and site development. This machine offers a perfect balance of performance and cost-efficiency, ensuring reliable and efficient operation in any terrain.
Sany STG170C-10 Motor Grader
Sany Heavy Industry India Private Limited
Karnataka
The SANY STG170C-10 Motor Grader is a robust and versatile machine, engineered to meet the demands of various construction and engineering projects. Powered by a 173hp Cummins QSB6.7 Series CEV Stage IV engine, it delivers exceptional fuel efficiency and high productivity. With a maximum operating weight of 17.25 tons, 95 kN drawbar pull, and 86 kN blade downforce, the STG170C-10 excels in challenging grading tasks. The grader features a ZF Tiptronic Transmission for quick, responsive gear shifting and an ergonomic cabin for enhanced operator comfort. Its 12ft heavy-duty moldboard ensures precision in grading, making it ideal for road construction, earthmoving, and site development. This machine offers a perfect balance of performance and cost-efficiency, ensuring reliable and efficient operation in any terrain.
Product Description
The SANY STG170C-10 Motor Grader is a robust and versatile machine, engineered to meet the demands o...
View the full brochure
Sany STG170C-10 Motor Grader Comparison with Similar Motor Grader
Sany STG170C-10 Motor Grader
Blade Length
3.660m
Blade Height
0.620m
Max Lift Above Ground
0.480m
Max Depth Of Cut
0.620m
Blade Tilt Angle
9°
Blade Pitch Angle
75°
Blade Rotation Angle
360°
Engine Brand
Cummins
Engine Model
QSB6.7
Engine Power
173HP
Max Torque
890Nm
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
390L
Transmission Type
-
Number Of Gears (fwd/rev)
6 forward and 3 reverse
Max Travel Speed
63km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
47°
Oscillation Angle
16 °
Turning Radius
7.2m
Operating Weight
14.70Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
11.100m
Overall Width
2.740m
Overall Height
3.310m
Ground Clearance
410mm
Liugong CLG 414 BSIII Motor Grader
Blade Length
3.66m
Blade Height
0.61m
Max Lift Above Ground
0.485m
Max Depth Of Cut
0.575m
Blade Tilt Angle
70°
Blade Pitch Angle
-
Blade Rotation Angle
90°
Engine Brand
CUMMINS INDIA
Engine Model
6BTAA5.9
Engine Power
150HP
Max Torque
655Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
250L
Transmission Type
Power Shift
Number Of Gears (fwd/rev)
6F/3R
Max Travel Speed
41km/h
Service Brake Type
Shoe
Parking Brake Type
Shoe
Steering Type
Full hydraulic steering
Steering Angle
90°
Oscillation Angle
30°
Turning Radius
7.2m
Operating Weight
14.3Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
180Bar
Overall Length
9.21m
Overall Width
3.4m
Overall Height
3.66m
Ground Clearance
575mm
Sany STG210C-10 Motor Grader
Blade Length
3.66m
Blade Height
0.62m
Max Lift Above Ground
0.48m
Max Depth Of Cut
0.63m
Blade Tilt Angle
9°
Blade Pitch Angle
25~75°
Blade Rotation Angle
360°
Engine Brand
Cummins
Engine Model
QSB6.7
Engine Power
225HP
Max Torque
1000Nm
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
350L
Transmission Type
-
Number Of Gears (fwd/rev)
6 forward and 3 reverse
Max Travel Speed
42km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
45°
Oscillation Angle
16°
Turning Radius
7.3m
Operating Weight
15.35Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
11.1m
Overall Width
2.74m
Overall Height
3.31m
Ground Clearance
410mm
FINE 585HD Motor Grader
Blade Length
3.05m
Blade Height
0.494m
Max Lift Above Ground
0.46m
Max Depth Of Cut
-
Blade Tilt Angle
40° Forward / 5° Backward°
Blade Pitch Angle
-
Blade Rotation Angle
360°
Engine Brand
Ashok Leyland
Engine Model
-
Engine Power
130HP
Max Torque
480Nm
Rated Speed
2200rpm
Displacement
3.84L
Fuel Tank Capacity
140L
Transmission Type
Power - Shift Transmission (AVTECH)
Number Of Gears (fwd/rev)
2 Forward / 2 Reverse
Max Travel Speed
20km/h
Service Brake Type
Foot pedal operated hydraulic brake through master cylinder
Parking Brake Type
Spring Applied Hydraulic Release (SAHR)
Steering Type
Hydraulic Power Steering
Steering Angle
45°
Oscillation Angle
20°
Turning Radius
10.26m
Operating Weight
9.495Ton
Front Axle Load
2710kg
Rear Axle Load
6750kg
Hydraulic Flow Rate
118L/min
Hydraulic Pressure
220Bar
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
CASE 865C VHP Motor Grader
Blade Length
3.962m
Blade Height
0.622 m
Max Lift Above Ground
0.4445m
Max Depth Of Cut
0.7112m
Blade Tilt Angle
-
Blade Pitch Angle
87°
Blade Rotation Angle
360 °
Engine Brand
FPT
Engine Model
F4HE613B*W002
Engine Power
220HP
Max Torque
930Nm
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
380L
Transmission Type
-
Number Of Gears (fwd/rev)
-
Max Travel Speed
-
Service Brake Type
Disc, bathed in oil
Parking Brake Type
-
Steering Type
Hydrostatic power steering
Steering Angle
25°
Oscillation Angle
20°
Turning Radius
-
Operating Weight
-
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
186L/min
Hydraulic Pressure
175Bar
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
0.58 (front) mm
