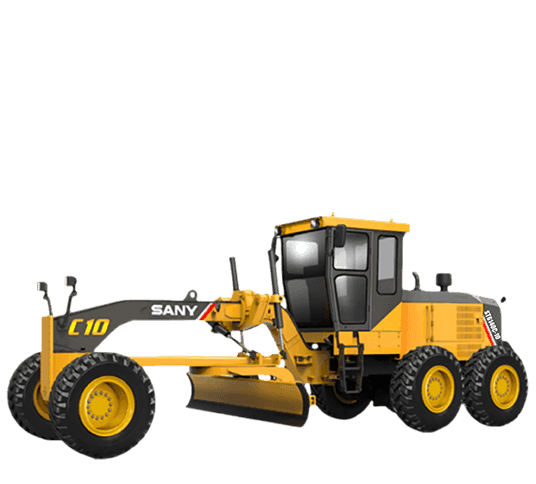

Sany STG140C-10 Motor Grader
Sany Heavy Industry India Private Limited
Karnataka
The SANY STG140C-10 Motor Grader is a versatile and powerful machine designed for a wide range of construction and engineering projects. Equipped with a 150hp Cummins QSF 4.5 Series CEV Stage IV engine, it delivers exceptional fuel efficiency and productivity. This grader excels in demanding tasks, offering a maximum operating weight of 14.28 tons, robust drawbar pull of 83 kN, and impressive blade downforce of 65 kN. The ergonomic cabin and advanced hydraulic controls ensure operator comfort and precision. With customizable options, such as blade length, the STG140C-10 is ideal for road construction, earthmoving, and site development. Its low cost-per-hour operation and extended maintenance cycles make it a cost-effective choice for maximizing project efficiency and profitability.
Sany STG140C-10 Motor Grader
Sany Heavy Industry India Private Limited
Karnataka
The SANY STG140C-10 Motor Grader is a versatile and powerful machine designed for a wide range of construction and engineering projects. Equipped with a 150hp Cummins QSF 4.5 Series CEV Stage IV engine, it delivers exceptional fuel efficiency and productivity. This grader excels in demanding tasks, offering a maximum operating weight of 14.28 tons, robust drawbar pull of 83 kN, and impressive blade downforce of 65 kN. The ergonomic cabin and advanced hydraulic controls ensure operator comfort and precision. With customizable options, such as blade length, the STG140C-10 is ideal for road construction, earthmoving, and site development. Its low cost-per-hour operation and extended maintenance cycles make it a cost-effective choice for maximizing project efficiency and profitability.
Product Description
The SANY STG140C-10 Motor Grader is a versatile and powerful machine designed for a wide range of co...
View the full brochure
Sany STG140C-10 Motor Grader Comparison with Similar Motor Grader
Sany STG140C-10 Motor Grader
Blade Rotation Angle
360°
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Blade Tilt Angle
63°
Blade Pitch Angle
25~75°
Rated Speed
2200rpm
Displacement
4.5L
Fuel Tank Capacity
280L
Transmission Type
-
Number Of Gears (fwd/rev)
6F/3R
Max Travel Speed
42km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
45°
Oscillation Angle
16°
Turning Radius
7.2m
Operating Weight
14.28Ton
Engine Brand
Cummins
Engine Model
QSF4.5
Engine Power
150HP
Max Torque
655Nm
Ground Clearance
410mm
Blade Length
3.66m
Blade Height
0.62m
Max Lift Above Ground
0.42m
Max Depth Of Cut
0.65m
Overall Length
10.68m
Overall Width
2.46m
Overall Height
3.356m
Liugong CLG 414 BSIII Motor Grader
Blade Rotation Angle
90°
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
180Bar
Blade Tilt Angle
70°
Blade Pitch Angle
-
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
250L
Transmission Type
Power Shift
Number Of Gears (fwd/rev)
6F/3R
Max Travel Speed
41km/h
Service Brake Type
Shoe
Parking Brake Type
Shoe
Steering Type
Full hydraulic steering
Steering Angle
90°
Oscillation Angle
30°
Turning Radius
7.2m
Operating Weight
14.3Ton
Engine Brand
CUMMINS INDIA
Engine Model
6BTAA5.9
Engine Power
150HP
Max Torque
655Nm
Ground Clearance
575mm
Blade Length
3.66m
Blade Height
0.61m
Max Lift Above Ground
0.485m
Max Depth Of Cut
0.575m
Overall Length
9.21m
Overall Width
3.4m
Overall Height
3.66m
Sany STG210C-10 Motor Grader
Blade Rotation Angle
360°
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Blade Tilt Angle
9°
Blade Pitch Angle
25~75°
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
350L
Transmission Type
-
Number Of Gears (fwd/rev)
6 forward and 3 reverse
Max Travel Speed
42km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
45°
Oscillation Angle
16°
Turning Radius
7.3m
Operating Weight
15.35Ton
Engine Brand
Cummins
Engine Model
QSB6.7
Engine Power
225HP
Max Torque
1000Nm
Ground Clearance
410mm
Blade Length
3.66m
Blade Height
0.62m
Max Lift Above Ground
0.48m
Max Depth Of Cut
0.63m
Overall Length
11.1m
Overall Width
2.74m
Overall Height
3.31m
FINE 585HD Motor Grader
Blade Rotation Angle
360°
Front Axle Load
2710kg
Rear Axle Load
6750kg
Hydraulic Flow Rate
118L/min
Hydraulic Pressure
220Bar
Blade Tilt Angle
40° Forward / 5° Backward°
Blade Pitch Angle
-
Rated Speed
2200rpm
Displacement
3.84L
Fuel Tank Capacity
140L
Transmission Type
Power - Shift Transmission (AVTECH)
Number Of Gears (fwd/rev)
2 Forward / 2 Reverse
Max Travel Speed
20km/h
Service Brake Type
Foot pedal operated hydraulic brake through master cylinder
Parking Brake Type
Spring Applied Hydraulic Release (SAHR)
Steering Type
Hydraulic Power Steering
Steering Angle
45°
Oscillation Angle
20°
Turning Radius
10.26m
Operating Weight
9.495Ton
Engine Brand
Ashok Leyland
Engine Model
-
Engine Power
130HP
Max Torque
480Nm
Ground Clearance
-
Blade Length
3.05m
Blade Height
0.494m
Max Lift Above Ground
0.46m
Max Depth Of Cut
-
Overall Length
-
Overall Width
-
Overall Height
-
CASE 865C VHP Motor Grader
Blade Rotation Angle
360 °
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
186L/min
Hydraulic Pressure
175Bar
Blade Tilt Angle
-
Blade Pitch Angle
87°
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
380L
Transmission Type
-
Number Of Gears (fwd/rev)
-
Max Travel Speed
-
Service Brake Type
Disc, bathed in oil
Parking Brake Type
-
Steering Type
Hydrostatic power steering
Steering Angle
25°
Oscillation Angle
20°
Turning Radius
-
Operating Weight
-
Engine Brand
FPT
Engine Model
F4HE613B*W002
Engine Power
220HP
Max Torque
930Nm
Ground Clearance
0.58 (front) mm
Blade Length
3.962m
Blade Height
0.622 m
Max Lift Above Ground
0.4445m
Max Depth Of Cut
0.7112m
Overall Length
-
Overall Width
-
Overall Height
-
