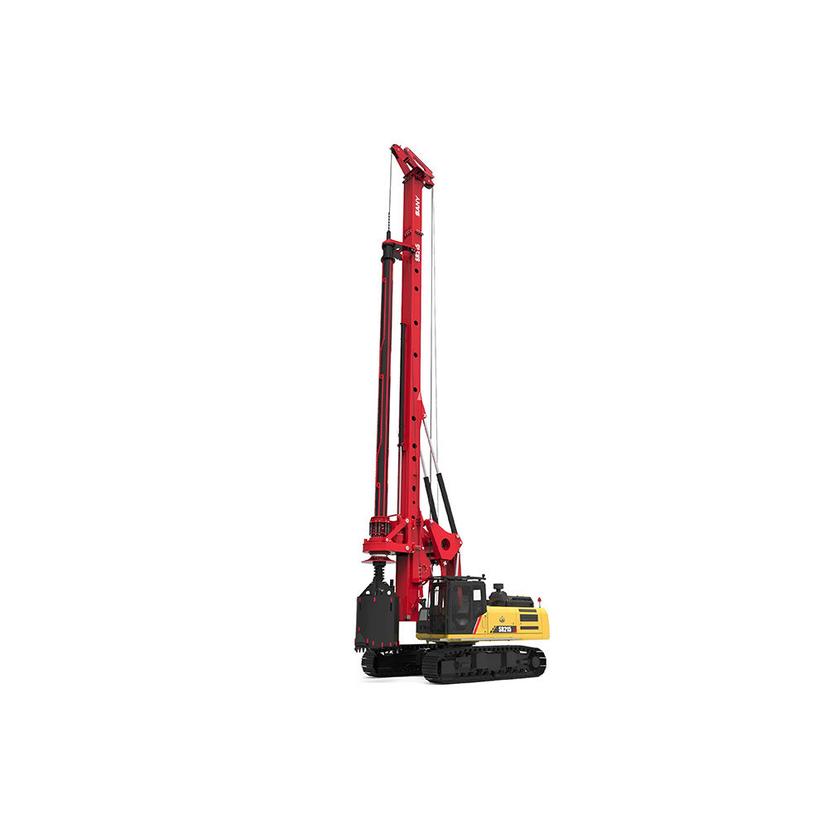

Sany SR215 C10 Piling Machine
Sany Heavy Industry India Private Limited
The Sany SR215 C10 piling rig excels in small to medium-diameter and deep borehole applications for civil construction. It features a powerful ISUZU engine with 212 kW, capable of handling a maximum drilling depth of 64 meters and a diameter of up to 1.8 meters. Equipped with a 10-inch HD touchscreen for intuitive operation and intelligent telematics for enhanced monitoring, the SR215 C10 ensures efficient and precise performance. Its 220 kN-m rated output torque provides reliable power for complex drilling tasks, making it ideal for urban infrastructure and diverse construction projects. With a robust design and advanced features, the SR215 C10 delivers high productivity and versatility, meeting various project requirements effectively.
Sany SR215 C10 Piling Machine
Sany Heavy Industry India Private Limited
The Sany SR215 C10 piling rig excels in small to medium-diameter and deep borehole applications for civil construction. It features a powerful ISUZU engine with 212 kW, capable of handling a maximum drilling depth of 64 meters and a diameter of up to 1.8 meters. Equipped with a 10-inch HD touchscreen for intuitive operation and intelligent telematics for enhanced monitoring, the SR215 C10 ensures efficient and precise performance. Its 220 kN-m rated output torque provides reliable power for complex drilling tasks, making it ideal for urban infrastructure and diverse construction projects. With a robust design and advanced features, the SR215 C10 delivers high productivity and versatility, meeting various project requirements effectively.
Product Description
The Sany SR215 C10 piling rig excels in small to medium-diameter and deep borehole applications for ...
Sany SR215 C10 Piling Machine Comparison with Similar Piling Rig
Sany SR215 C10 Piling Machine
Engine Brand
ISUZU
Engine Model
6HK1
Engine Power
212kW
Rated Speed
2000rpm
Emission Standard
COMⅢ
Engine Displacement
7.79L
Max Output Torque
220kN·m
Rotation Speed Range
7~30rpm
High Speed Throwing Soil
-
Max. Drilling Diameter
1800mm
Max. Drilling Depth (interlocking Kelly)
51m
Max. Drilling Depth (friction Kelly)
64m
Crowd Force (push)
180kN
Crowd Force (pull)
190kN
Stroke Length
4200mm
Max. Lifting Capacity
90kN
Max. Line Speed
70m/min
Wire Rope Diameter
20mm
Forward Tilt
5°
Backward Tilt
90°
Lateral Tilt
±3°
Track Shoe Width
700mm
Chassis Length
6380mm
Crawler Extension Width
4150mm
Swing Radius
3805mm
Overall Height
21040mm
Transport Height
3560mm
Transport Width
3210mm
Operating Weight
65Ton
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
Φ419×5×14mm
Interlocking Kelly Bar
Φ419×4×14mm
Mait India HR 120 Rotary Drilling Piling Rig
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Mait India HR 100 Rotary Drilling Piling Rig
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Mait India MC 230 Rotary Drilling Piling Rig
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Mait India MC 180 Rotary Drilling Piling Rig
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
