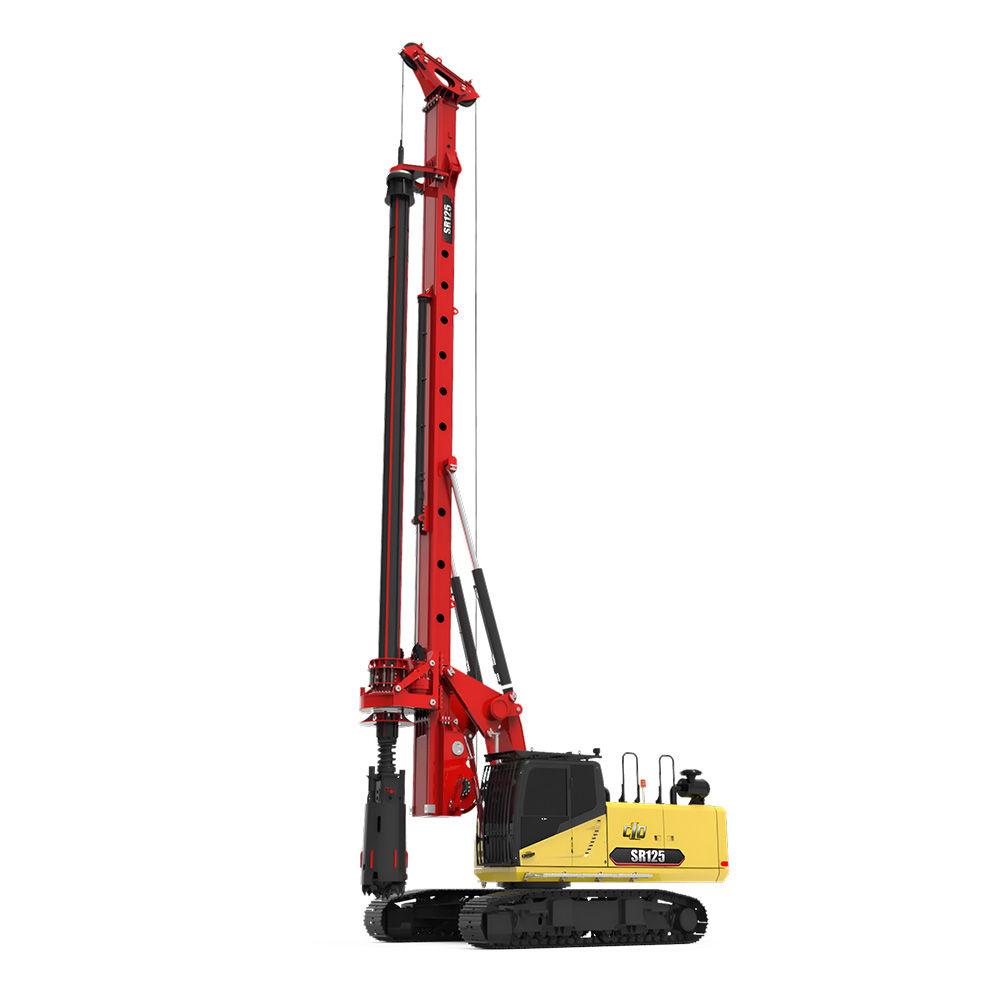

Sany SR125 C10 Piling Machine
Sany Heavy Industry India Private Limited
Maharashtra
The SANY SR125 C10 piling rig is an ideal solution for deep foundation work in smaller construction projects. It offers a maximum drilling depth of 36 meters with interlocking kelly and up to 45 meters with friction kelly, making it versatile for various applications. The rig’s lightweight kelly bar allows for drilling boreholes as small as 400 mm in diameter, while its powerful 133 kW ISUZU EFI engine ensures high efficiency and robust performance. The SR125 C10 is designed for ease of transport and field adaptation, eliminating the need to disassemble the kelly bar. Its compact size and substantial drilling capabilities make it a valuable asset for urban construction and challenging drilling conditions.
Sany SR125 C10 Piling Machine
Sany Heavy Industry India Private Limited
Maharashtra
The SANY SR125 C10 piling rig is an ideal solution for deep foundation work in smaller construction projects. It offers a maximum drilling depth of 36 meters with interlocking kelly and up to 45 meters with friction kelly, making it versatile for various applications. The rig’s lightweight kelly bar allows for drilling boreholes as small as 400 mm in diameter, while its powerful 133 kW ISUZU EFI engine ensures high efficiency and robust performance. The SR125 C10 is designed for ease of transport and field adaptation, eliminating the need to disassemble the kelly bar. Its compact size and substantial drilling capabilities make it a valuable asset for urban construction and challenging drilling conditions.
Product Description
The SANY SR125 C10 piling rig is an ideal solution for deep foundation work in smaller construction ...
Sany SR125 C10 Piling Machine Comparison with Similar Piling Rig
Sany SR125 C10 Piling Machine
Engine Brand
ISUZU
Engine Model
4HK1
Engine Power
133kW
Rated Speed
2000rpm
Emission Standard
-
Engine Displacement
-
Max Output Torque
130kN·m
Rotation Speed Range
45rpm
High Speed Throwing Soil
-
Max. Drilling Diameter
1300mm
Max. Drilling Depth (interlocking Kelly)
36m
Max. Drilling Depth (friction Kelly)
45m
Crowd Force (push)
120kN
Crowd Force (pull)
160kN
Stroke Length
3700mm
Max. Lifting Capacity
60kN
Max. Line Speed
75m/min
Wire Rope Diameter
14mm
Forward Tilt
5°
Backward Tilt
90°
Lateral Tilt
3°
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
16490mm
Transport Height
3435mm
Transport Width
2660mm
Operating Weight
37Ton
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
45000mm
Interlocking Kelly Bar
36000mm
Mait India THH6 Rotary Drilling Piling Rig
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Mait India MDT-60B Rotary Drilling Piling Rig
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Mait India MDT-180B Rotary Drilling Piling Rig
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
XCMG XR80I Rotary Drilling Piling Rig
Engine Brand
Cummins
Engine Model
-
Engine Power
103kW
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
106 kN·m
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
1200 mm
Max. Drilling Depth (interlocking Kelly)
25m
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
2.5mm
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
