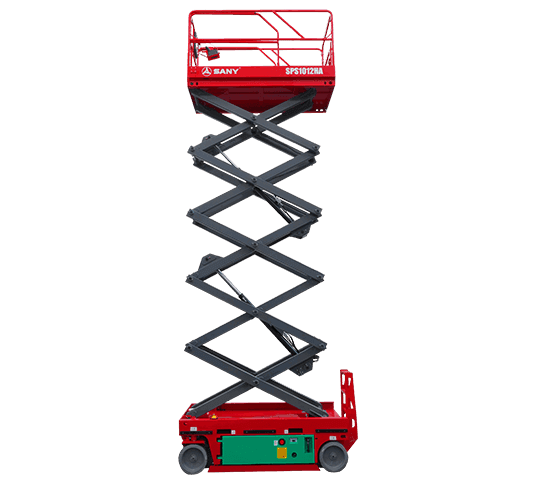

Sany SPS1012HA Scissor Lift
The Sany SPS1012HA Scissor Lift is a versatile aerial work platform, designed to elevate productivity and safety in various indoor and outdoor applications. With a maximum working height of 12.00 meters and a sturdy lift capacity of 350 kg, it comfortably accommodates two occupants indoors or one outdoors. Its compact dimensions (overall length: 2.48m, width: 1.18m) and tight turning radius ensure excellent maneuverability in confined spaces, making it ideal for warehouses, factories, and commercial buildings. Powered by a reliable 24V battery system (4×6V/260Ah), it offers efficient performance and quiet operation, perfect for sensitive environments. The robust solid non-marking tires prevent surface damage, ensuring cleanliness and suitability for finished floors. Equipped with advanced tilt sensors and a hydraulic drive motor, the SPS1012HA ensures operator safety and superior control during all elevated tasks.
Sany SPS1012HA Scissor Lift
The Sany SPS1012HA Scissor Lift is a versatile aerial work platform, designed to elevate productivity and safety in various indoor and outdoor applications. With a maximum working height of 12.00 meters and a sturdy lift capacity of 350 kg, it comfortably accommodates two occupants indoors or one outdoors. Its compact dimensions (overall length: 2.48m, width: 1.18m) and tight turning radius ensure excellent maneuverability in confined spaces, making it ideal for warehouses, factories, and commercial buildings. Powered by a reliable 24V battery system (4×6V/260Ah), it offers efficient performance and quiet operation, perfect for sensitive environments. The robust solid non-marking tires prevent surface damage, ensuring cleanliness and suitability for finished floors. Equipped with advanced tilt sensors and a hydraulic drive motor, the SPS1012HA ensures operator safety and superior control during all elevated tasks.
Product Description
The Sany SPS1012HA Scissor Lift is a versatile aerial work platform, designed to elevate productivit...
Sany SPS1012HA Scissor Lift Comparison with Similar Scissor Lift

Sany SPS1012HA Scissor Lift
Battery Type
Lead-Acid (4×6V)
Battery Voltage / Capacity
24V / 260Ah
Charger Input Voltage
AC100–240V
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Hydraulic
Max Travel Speed (stowed)
3.5km/h
Travel Speed (raised)
0.8 km/h
Gradeability
25%
Lift Time (loaded)
-
Lower Time (loaded)
-
Service Brake Type
-
Steering Type
-
Turning Radius (inside)
0.4m
Turning Radius (outside)
2.4m
Operating Weight
2.75Ton
Max Platform Capacity
350kg
Extension Deck Capacity
120kg
Max Platform Occupants (in/out)
2 / 1 persons
Hydraulic Oil Capacity
-
Hydraulic Pressure
-
Overall Length (stowed)
2.48 m
Overall Width
1.18m
Overall Height (rails Raised)
2.51m
Overall Height (rails Lowered)
1.83m
Wheelbase
1.89 m
Ground Clearance (stowed)
1.89 m
Max Platform Height
10.00m
Max Working Height
12.00m
Platform Size (l×w)
2.27 × 0.75 m
Platform Extension Length
-
Platform Railing Height
1.12m
Max Side Slope (lateral)
1.5°
Max Slope (fore/aft)
3°
Max Wind Speed (outdoor Use)
-
Tilt Sensor
Yes
Tires
Ø0.381 × 0.127
Tyre Type
Solid non-marking
Platform Control System
-

Sany SPS0407DC Scissor Lift
Battery Type
Lead Acid
Battery Voltage / Capacity
24V / 115Ah (2×12V)
Charger Input Voltage
100–240V AC
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Electric Drive
Max Travel Speed (stowed)
4km/h
Travel Speed (raised)
0.8km/h
Gradeability
25%
Lift Time (loaded)
-
Lower Time (loaded)
-
Service Brake Type
-
Steering Type
Electric
Turning Radius (inside)
0.4m
Turning Radius (outside)
1.6m
Operating Weight
0.945Ton
Max Platform Capacity
240kg
Extension Deck Capacity
120kg
Max Platform Occupants (in/out)
-
Hydraulic Oil Capacity
-
Hydraulic Pressure
-
Overall Length (stowed)
1.47 (w/ ladder)m
Overall Width
0.76m
Overall Height (rails Raised)
1.99m
Overall Height (rails Lowered)
1.68m
Wheelbase
1.06m
Ground Clearance (stowed)
0.06m
Max Platform Height
4.5m
Max Working Height
6.5m
Platform Size (l×w)
1.3 × 0.72m
Platform Extension Length
0.6m
Platform Railing Height
1.21m
Max Side Slope (lateral)
1.5°
Max Slope (fore/aft)
3.0°
Max Wind Speed (outdoor Use)
-
Tilt Sensor
Yes
Tires
Ø250×80 mm
Tyre Type
Ø250×80 mm
Platform Control System
Manual

Sany SPS0608DC Scissor Lift
Battery Type
Lead-acid
Battery Voltage / Capacity
24V / 230Ah
Charger Input Voltage
AC100~240V
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Electric
Max Travel Speed (stowed)
4.0km/h
Travel Speed (raised)
0.8km/h
Gradeability
25%
Lift Time (loaded)
-
Lower Time (loaded)
-
Service Brake Type
-
Steering Type
-
Turning Radius (inside)
0.4m
Turning Radius (outside)
1.7m
Operating Weight
1.25Ton
Max Platform Capacity
230kg
Extension Deck Capacity
113kg
Max Platform Occupants (in/out)
2/0persons
Hydraulic Oil Capacity
-
Hydraulic Pressure
-
Overall Length (stowed)
1.54m
Overall Width
0.81m
Overall Height (rails Raised)
2.12m
Overall Height (rails Lowered)
1.80m
Wheelbase
1.13m
Ground Clearance (stowed)
0.06m
Max Platform Height
5.60m
Max Working Height
7.60m
Platform Size (l×w)
1.3×0.72m
Platform Extension Length
-
Platform Railing Height
1.21m
Max Side Slope (lateral)
1.5°
Max Slope (fore/aft)
3°
Max Wind Speed (outdoor Use)
-
Tilt Sensor
Yes
Tires
Ø250mm×80mm
Tyre Type
Solid non-marking
Platform Control System
-

Sany SPS0608HD Scissor Lift
Battery Type
Lead Acid
Battery Voltage / Capacity
2 × 12V / 155Ah
Charger Input Voltage
AC100~240V
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Hydraulic
Max Travel Speed (stowed)
3.0km/h
Travel Speed (raised)
0.8km/h
Gradeability
25%
Lift Time (loaded)
-
Lower Time (loaded)
-
Service Brake Type
-
Steering Type
-
Turning Radius (inside)
0.4m
Turning Radius (outside)
1.7m
Operating Weight
1.36Ton
Max Platform Capacity
250kg
Extension Deck Capacity
120kg
Max Platform Occupants (in/out)
2/0persons
Hydraulic Oil Capacity
-
Hydraulic Pressure
-
Overall Length (stowed)
1.88m
Overall Width
0.81m
Overall Height (rails Raised)
2.15m
Overall Height (rails Lowered)
1.55m
Wheelbase
1.38m
Ground Clearance (stowed)
0.085m
Max Platform Height
5.8m
Max Working Height
7.8m
Platform Size (l×w)
1.71 × 0.74m
Platform Extension Length
0.6m
Platform Railing Height
1.12m
Max Side Slope (lateral)
1.5°
Max Slope (fore/aft)
3°
Max Wind Speed (outdoor Use)
-
Tilt Sensor
Yes
Tires
Ø323mm × 100mm
Tyre Type
Solid non-marking
Platform Control System
-

Sany SPS0608MHA Scissor Lift
Battery Type
-
Battery Voltage / Capacity
4×6V/220Ah
Charger Input Voltage
AC100–240V
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Hydraulic
Max Travel Speed (stowed)
3.5km/h
Travel Speed (raised)
0.8km/h
Gradeability
25%
Lift Time (loaded)
-
Lower Time (loaded)
-
Service Brake Type
-
Steering Type
-
Turning Radius (inside)
0.4m
Turning Radius (outside)
1.7m
Operating Weight
1.55Ton
Max Platform Capacity
230kg
Extension Deck Capacity
120kg
Max Platform Occupants (in/out)
2/1persons
Hydraulic Oil Capacity
-
Hydraulic Pressure
-
Overall Length (stowed)
1.88m
Overall Width
0.81m
Overall Height (rails Raised)
2.15m
Overall Height (rails Lowered)
1.83m
Wheelbase
1.38m
Ground Clearance (stowed)
0.07m
Max Platform Height
6.0m
Max Working Height
8.0m
Platform Size (l×w)
1.7×0.74m
Platform Extension Length
-
Platform Railing Height
1.12m
Max Side Slope (lateral)
1.5°
Max Slope (fore/aft)
3°
Max Wind Speed (outdoor Use)
-
Tilt Sensor
Yes
Tires
Ø323mm × 100mm
Tyre Type
Solid non-marking
Platform Control System
-
