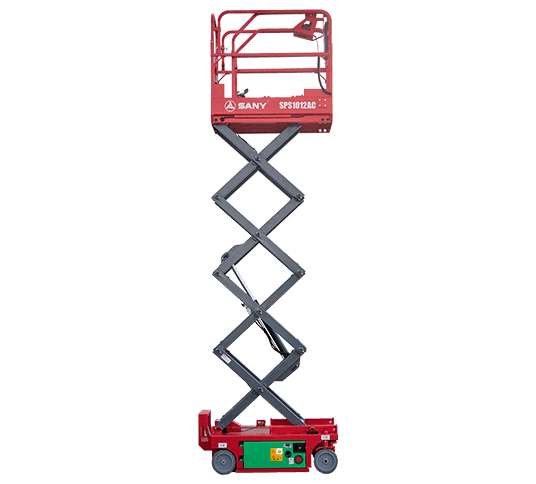

Sany SPS1012AC Scissor Lift
The Sany SPS1012AC Scissor Lift is a high-performance electric aerial platform designed for precision, safety, and efficiency. With a maximum working height of 12 meters and a platform capacity of 350 kg, it is ideal for indoor and outdoor applications like facility maintenance, electrical installations, and HVAC work. Its compact stowed dimensions, tight turning radius of 0.4 meters, and non-marking solid tires make it perfect for confined spaces with sensitive flooring. Powered by a DC24V drive motor and 4×6V/260Ah battery pack, it ensures reliable performance with extended working hours. Safety features include tilt sensor activation, strong steel railings, and dual lift controls. Whether you're working in warehouses, malls, or construction sites, the SPS1012AC offers a smart, eco-friendly solution for accessing elevated work zones with ease.
Sany SPS1012AC Scissor Lift
The Sany SPS1012AC Scissor Lift is a high-performance electric aerial platform designed for precision, safety, and efficiency. With a maximum working height of 12 meters and a platform capacity of 350 kg, it is ideal for indoor and outdoor applications like facility maintenance, electrical installations, and HVAC work. Its compact stowed dimensions, tight turning radius of 0.4 meters, and non-marking solid tires make it perfect for confined spaces with sensitive flooring. Powered by a DC24V drive motor and 4×6V/260Ah battery pack, it ensures reliable performance with extended working hours. Safety features include tilt sensor activation, strong steel railings, and dual lift controls. Whether you're working in warehouses, malls, or construction sites, the SPS1012AC offers a smart, eco-friendly solution for accessing elevated work zones with ease.
Product Description
The Sany SPS1012AC Scissor Lift is a high-performance electric aerial platform designed for precisio...
Sany SPS1012AC Scissor Lift Comparison with Similar Scissor Lift
Sany SPS1012AC Scissor Lift
Battery Type
Lead Acid
Battery Voltage / Capacity
4×6V / 260Ah
Charger Input Voltage
AC100–240V
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Electric Drive (DC24V Motor)
Max Travel Speed (stowed)
4km/h
Travel Speed (raised)
0.8km/h
Gradeability
25%
Lift Time (loaded)
-
Lower Time (loaded)
-
Service Brake Type
-
Steering Type
Front-wheel steer (commonly used, inferred)
Turning Radius (inside)
0.4m
Turning Radius (outside)
2.4m
Operating Weight
2.75Ton
Max Platform Capacity
350kg
Extension Deck Capacity
120kg
Max Platform Occupants (in/out)
2/1persons
Hydraulic Oil Capacity
-
Hydraulic Pressure
-
Overall Length (stowed)
2.48m
Overall Width
1.18m
Overall Height (rails Raised)
2.51m
Overall Height (rails Lowered)
1.83m
Wheelbase
1.87m
Ground Clearance (stowed)
0.11m
Max Platform Height
10.0m
Max Working Height
12.0m
Platform Size (l×w)
2.27 × 1.12m
Platform Extension Length
-
Platform Railing Height
-
Max Side Slope (lateral)
1.5°
Max Slope (fore/aft)
3°
Max Wind Speed (outdoor Use)
-
Tilt Sensor
Yes
Tires
Ø381mm × 127mm
Tyre Type
Solid Non-marking
Platform Control System
-
Sany SPS0407DC Scissor Lift
Battery Type
Lead Acid
Battery Voltage / Capacity
24V / 115Ah (2×12V)
Charger Input Voltage
100–240V AC
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Electric Drive
Max Travel Speed (stowed)
4km/h
Travel Speed (raised)
0.8km/h
Gradeability
25%
Lift Time (loaded)
-
Lower Time (loaded)
-
Service Brake Type
-
Steering Type
Electric
Turning Radius (inside)
0.4m
Turning Radius (outside)
1.6m
Operating Weight
0.945Ton
Max Platform Capacity
240kg
Extension Deck Capacity
120kg
Max Platform Occupants (in/out)
-
Hydraulic Oil Capacity
-
Hydraulic Pressure
-
Overall Length (stowed)
1.47 (w/ ladder)m
Overall Width
0.76m
Overall Height (rails Raised)
1.99m
Overall Height (rails Lowered)
1.68m
Wheelbase
1.06m
Ground Clearance (stowed)
0.06m
Max Platform Height
4.5m
Max Working Height
6.5m
Platform Size (l×w)
1.3 × 0.72m
Platform Extension Length
0.6m
Platform Railing Height
1.21m
Max Side Slope (lateral)
1.5°
Max Slope (fore/aft)
3.0°
Max Wind Speed (outdoor Use)
-
Tilt Sensor
Yes
Tires
Ø250×80 mm
Tyre Type
Ø250×80 mm
Platform Control System
Manual
Sany SPS0608DC Scissor Lift
Battery Type
Lead-acid
Battery Voltage / Capacity
24V / 230Ah
Charger Input Voltage
AC100~240V
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Electric
Max Travel Speed (stowed)
4.0km/h
Travel Speed (raised)
0.8km/h
Gradeability
25%
Lift Time (loaded)
-
Lower Time (loaded)
-
Service Brake Type
-
Steering Type
-
Turning Radius (inside)
0.4m
Turning Radius (outside)
1.7m
Operating Weight
1.25Ton
Max Platform Capacity
230kg
Extension Deck Capacity
113kg
Max Platform Occupants (in/out)
2/0persons
Hydraulic Oil Capacity
-
Hydraulic Pressure
-
Overall Length (stowed)
1.54m
Overall Width
0.81m
Overall Height (rails Raised)
2.12m
Overall Height (rails Lowered)
1.80m
Wheelbase
1.13m
Ground Clearance (stowed)
0.06m
Max Platform Height
5.60m
Max Working Height
7.60m
Platform Size (l×w)
1.3×0.72m
Platform Extension Length
-
Platform Railing Height
1.21m
Max Side Slope (lateral)
1.5°
Max Slope (fore/aft)
3°
Max Wind Speed (outdoor Use)
-
Tilt Sensor
Yes
Tires
Ø250mm×80mm
Tyre Type
Solid non-marking
Platform Control System
-
Sany SPS0608HD Scissor Lift
Battery Type
Lead Acid
Battery Voltage / Capacity
2 × 12V / 155Ah
Charger Input Voltage
AC100~240V
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Hydraulic
Max Travel Speed (stowed)
3.0km/h
Travel Speed (raised)
0.8km/h
Gradeability
25%
Lift Time (loaded)
-
Lower Time (loaded)
-
Service Brake Type
-
Steering Type
-
Turning Radius (inside)
0.4m
Turning Radius (outside)
1.7m
Operating Weight
1.36Ton
Max Platform Capacity
250kg
Extension Deck Capacity
120kg
Max Platform Occupants (in/out)
2/0persons
Hydraulic Oil Capacity
-
Hydraulic Pressure
-
Overall Length (stowed)
1.88m
Overall Width
0.81m
Overall Height (rails Raised)
2.15m
Overall Height (rails Lowered)
1.55m
Wheelbase
1.38m
Ground Clearance (stowed)
0.085m
Max Platform Height
5.8m
Max Working Height
7.8m
Platform Size (l×w)
1.71 × 0.74m
Platform Extension Length
0.6m
Platform Railing Height
1.12m
Max Side Slope (lateral)
1.5°
Max Slope (fore/aft)
3°
Max Wind Speed (outdoor Use)
-
Tilt Sensor
Yes
Tires
Ø323mm × 100mm
Tyre Type
Solid non-marking
Platform Control System
-
Sany SPS0608MHA Scissor Lift
Battery Type
-
Battery Voltage / Capacity
4×6V/220Ah
Charger Input Voltage
AC100–240V
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Hydraulic
Max Travel Speed (stowed)
3.5km/h
Travel Speed (raised)
0.8km/h
Gradeability
25%
Lift Time (loaded)
-
Lower Time (loaded)
-
Service Brake Type
-
Steering Type
-
Turning Radius (inside)
0.4m
Turning Radius (outside)
1.7m
Operating Weight
1.55Ton
Max Platform Capacity
230kg
Extension Deck Capacity
120kg
Max Platform Occupants (in/out)
2/1persons
Hydraulic Oil Capacity
-
Hydraulic Pressure
-
Overall Length (stowed)
1.88m
Overall Width
0.81m
Overall Height (rails Raised)
2.15m
Overall Height (rails Lowered)
1.83m
Wheelbase
1.38m
Ground Clearance (stowed)
0.07m
Max Platform Height
6.0m
Max Working Height
8.0m
Platform Size (l×w)
1.7×0.74m
Platform Extension Length
-
Platform Railing Height
1.12m
Max Side Slope (lateral)
1.5°
Max Slope (fore/aft)
3°
Max Wind Speed (outdoor Use)
-
Tilt Sensor
Yes
Tires
Ø323mm × 100mm
Tyre Type
Solid non-marking
Platform Control System
-
