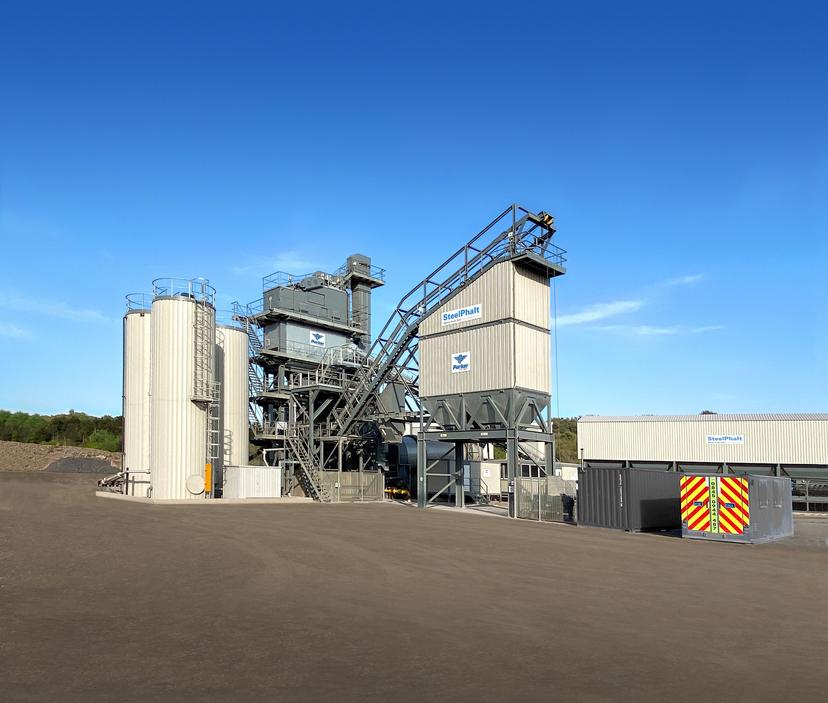

Parker StarMix 260 Asphalt Batch Mix Plant
The Parker StarMix 220 Asphalt Batch Mix Plant is a high-performance, modular solution tailored for demanding asphalt production needs. Designed with flexibility in mind, it offers both low and high-level configurations to suit diverse site requirements. The plant features a high thermal efficiency dryer equipped with a proven replaceable lifter design, ensuring optimal drying and energy savings. Noise and wear are significantly reduced with its nylon support and thrust rollers. It supports fully automatic multi-fuel burners, along with options for RAP feed systems and SMA fibre/additive integration—making it suitable for a wide range of applications from highways to urban roads. Easy access and low-maintenance design make it a top choice for contractors seeking reliability, productivity, and cost-efficiency in long-term infrastructure projects.
Parker StarMix 260 Asphalt Batch Mix Plant
The Parker StarMix 220 Asphalt Batch Mix Plant is a high-performance, modular solution tailored for demanding asphalt production needs. Designed with flexibility in mind, it offers both low and high-level configurations to suit diverse site requirements. The plant features a high thermal efficiency dryer equipped with a proven replaceable lifter design, ensuring optimal drying and energy savings. Noise and wear are significantly reduced with its nylon support and thrust rollers. It supports fully automatic multi-fuel burners, along with options for RAP feed systems and SMA fibre/additive integration—making it suitable for a wide range of applications from highways to urban roads. Easy access and low-maintenance design make it a top choice for contractors seeking reliability, productivity, and cost-efficiency in long-term infrastructure projects.
Product Description
The Parker StarMix 220 Asphalt Batch Mix Plant is a high-performance, modular solution tailored for ...
View the full brochure
Parker StarMix 260 Asphalt Batch Mix Plant Comparison with Similar Asphalt Batching Plant
Parker StarMix 260 Asphalt Batch Mix Plant
Plant Type
-
Max Production Capacity
260TPH
Batch Size
-
Cycle Time
-
Dryer Drum Diameter
2.5m
Dryer Drum Length
6.5m
Burner Capacity
-
Fuel Type
-
Hot Mix Storage Silo Capacity
60T
Cold Feed Bins (no. Of Bins)
-
Cold Feed Bin Capacity
15m³
Collecting Belt Width
750mm
Inclined Belt Width
500mm
Hot Aggregate Elevator Capacity
260TPH
Screening Method
Vibratory
No. Of Decks
4
Screening Capacity
260TPH
Hot Aggregate Bin Capacity
60T
No. Of Hot Aggregate Bins
4/5/6
Aggregate Weighing Capacity
3.25kg
Filler Weighing Capacity
0.65kg
Bitumen Weighing Capacity
0.55kg
Mixer Type
Paddle Mixer
Mixer Capacity
3.25kg
Mixing Time
-
Primary Pollution Control
-
Secondary Pollution Control
-
Filter Surface Area
1078m²
Emission Level
-
Bitumen Tank Capacity
-
Bitumen Pump Type
-
Thermal Oil System Capacity
-
Automation System
-
Remote Monitoring
-
Sany SABP145 Asphalt Batching Plant
Plant Type
SABP145
Max Production Capacity
145TPH
Batch Size
1700kg
Cycle Time
-
Dryer Drum Diameter
1.8m
Dryer Drum Length
7m
Burner Capacity
10MW
Fuel Type
-
Hot Mix Storage Silo Capacity
-
Cold Feed Bins (no. Of Bins)
4
Cold Feed Bin Capacity
3m³
Collecting Belt Width
500mm
Inclined Belt Width
500mm
Hot Aggregate Elevator Capacity
-
Screening Method
-
No. Of Decks
4
Screening Capacity
-
Hot Aggregate Bin Capacity
-
No. Of Hot Aggregate Bins
5
Aggregate Weighing Capacity
-
Filler Weighing Capacity
-
Bitumen Weighing Capacity
-
Mixer Type
Standard
Mixer Capacity
1700kg
Mixing Time
-
Primary Pollution Control
-
Secondary Pollution Control
-
Filter Surface Area
360m²
Emission Level
-
Bitumen Tank Capacity
60m³
Bitumen Pump Type
Thermal Oil System Capacity
500000kcal/h
Automation System
SYMC
Remote Monitoring
Y
Sany SABP120 Asphalt Batching Plant
Plant Type
SABP120
Max Production Capacity
120TPH
Batch Size
1700kg
Cycle Time
-
Dryer Drum Diameter
1.8m
Dryer Drum Length
7m
Burner Capacity
10MW
Fuel Type
Diesel
Hot Mix Storage Silo Capacity
-
Cold Feed Bins (no. Of Bins)
4
Cold Feed Bin Capacity
8m³
Collecting Belt Width
500mm
Inclined Belt Width
500mm
Hot Aggregate Elevator Capacity
-
Screening Method
Vibrating Screen
No. Of Decks
4
Screening Capacity
-
Hot Aggregate Bin Capacity
-
No. Of Hot Aggregate Bins
5
Aggregate Weighing Capacity
-
Filler Weighing Capacity
-
Bitumen Weighing Capacity
-
Mixer Type
-
Mixer Capacity
1700kg
Mixing Time
-
Primary Pollution Control
-
Secondary Pollution Control
Dedust system
Filter Surface Area
360m²
Emission Level
-
Bitumen Tank Capacity
30m³
Bitumen Pump Type
Asphalt Metering Pump
Thermal Oil System Capacity
500000kcal/h
Automation System
PLC supported by 1 CPU or more
Remote Monitoring
Y
Nilang ABP 160 Asphalt Batch Mix Plant
Plant Type
Stationary
Max Production Capacity
180TPH
Batch Size
2000kg
Cycle Time
45seconds
Dryer Drum Diameter
2.1m
Dryer Drum Length
8m
Burner Capacity
14MW
Fuel Type
Diesel / LDO / Furnace Oil
Hot Mix Storage Silo Capacity
15 / 50 / 100T
Cold Feed Bins (no. Of Bins)
4
Cold Feed Bin Capacity
40m³
Collecting Belt Width
-
Inclined Belt Width
-
Hot Aggregate Elevator Capacity
180TPH
Screening Method
-
No. Of Decks
4
Screening Capacity
-
Hot Aggregate Bin Capacity
-
No. Of Hot Aggregate Bins
4
Aggregate Weighing Capacity
2200kg
Filler Weighing Capacity
300kg
Bitumen Weighing Capacity
225kg
Mixer Type
Twin Shaft Hot Oil Jacketed
Mixer Capacity
2000kg
Mixing Time
-
Primary Pollution Control
Centrifugal Cyclonic Pre Separator
Secondary Pollution Control
Bag House Filter (Reverse Air Flow)
Filter Surface Area
380m²
Emission Level
-
Bitumen Tank Capacity
30m³
Bitumen Pump Type
-
Thermal Oil System Capacity
500000kcal/h
Automation System
Siemens PLC (SCADA on Request)
Remote Monitoring
-
Nilang ABP 120 Combat Asphalt Batch Mix Plant
Plant Type
Stationary
Max Production Capacity
140TPH
Batch Size
1500kg
Cycle Time
45seconds
Dryer Drum Diameter
1.8m
Dryer Drum Length
7.5m
Burner Capacity
12MW
Fuel Type
Diesel / LDO / Furnace Oil
Hot Mix Storage Silo Capacity
15 / 50 / 100T
Cold Feed Bins (no. Of Bins)
4
Cold Feed Bin Capacity
30m³
Collecting Belt Width
-
Inclined Belt Width
-
Hot Aggregate Elevator Capacity
140TPH
Screening Method
Vibratory (inferred)
No. Of Decks
2
Screening Capacity
140TPH
Hot Aggregate Bin Capacity
T
No. Of Hot Aggregate Bins
4
Aggregate Weighing Capacity
2000kg
Filler Weighing Capacity
300kg
Bitumen Weighing Capacity
225kg
Mixer Type
Twin Shaft Hot Oil Jacketed
Mixer Capacity
1500kg
Mixing Time
seconds
Primary Pollution Control
Reverse Air Flow Centrifugal Cyclonic Pre Separator
Secondary Pollution Control
Bag House Filter (Reverse Air Flow)
Filter Surface Area
300m²
Emission Level
-
Bitumen Tank Capacity
30m³
Bitumen Pump Type
-
Thermal Oil System Capacity
500000kcal/h
Automation System
Siemens PLC (SCADA on Request)
Remote Monitoring
-
