Oscar Transmission FBT-650 Walk-Behind Road Roller

Oscar Transmission

Gujarat

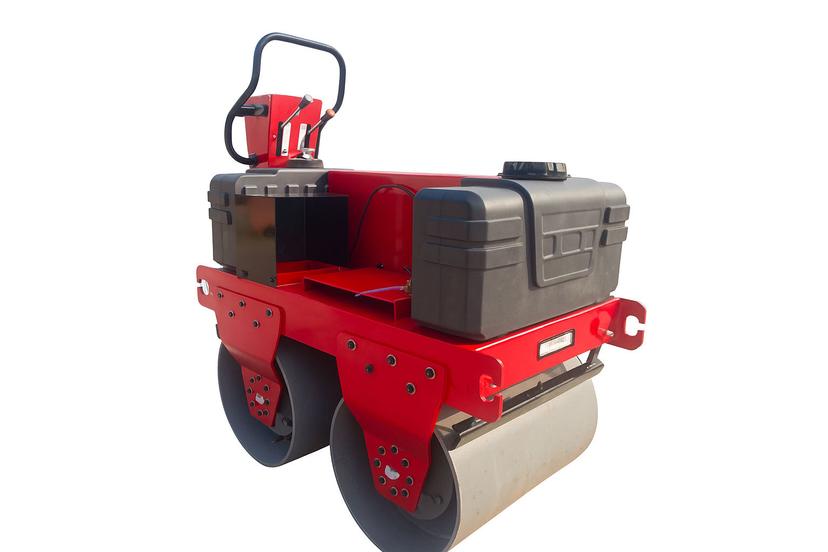

The Oscar Transmission FBT-650 Walk-Behind Road Roller powered by a Greaves diesel engine with 10 HP, is designed to deliver efficient compaction for various construction and maintenance projects. With a walking speed range of 0-4 km/h and a hydraulic drive mode, this roller ensures precise operation. Its auto magnetic clutch provides smooth engagement, while the 600 x 425 mm front/rear roller size ensures superior compaction. The centrifugal force of 20-25 kN and a vibration frequency of 70 Hz deliver effective soil, asphalt, and gravel compaction. Compact in size (1350 x 940 x 1220 mm) and weighing 580 kg, it is ideal for use in narrow spaces and smaller construction areas. Whether you're working on road repairs, landscaping, or small-scale construction projects, the FBT-650 offers excellent performance and reliability.

Product Description

The Oscar Transmission FBT-650 Walk-Behind Road Roller powered by a Greaves diesel engine with 10 HP...

Oscar Transmission FBT-650 Walk-Behind Road Roller Comparison with Similar Walk Behind Rollers

Oscar Transmission FBT-650 Walk-Behind Road Roller

Oscar Transmission FBT-650 Walk-Behind Road Roller

Get Latest Price
Rating
4.4

Engine Brand

Greaves

Engine Model

-

Engine Power (effective)

10HP

Engine Power (operating)

-

Rated Speed

-

Displacement

-

Fuel Type

Diesel

Fuel Tank Capacity

-

Fuel Consumption

-

Transmission Type

Hydraulic

Max Travel Speed (fwd)

4km/h

Max Travel Speed (rev)

-

Gradeability (with Vib)

-

Gradeability (w/o Vib)

-

Max Weight (with Options)

-

Operating Weight

0.58Ton

Hydraulic Oil Capacity

-

Hydraulic Fluid Type

-

Sound Power Level (lwa)

-

Sound Pressure At Operator (lpa)

-

Hav (hand Arm Vibration)

-

Vibration Frequency

70Hz

Amplitude

-

Centrifugal Force – Level I

20–25kN

Centrifugal Force – Level Ii

-

Linear Force (static) Front

-

Linear Force (dynamic)

-

Overall Length

1.35m

Overall Width

0.94m

Overall Height

1.22m

Drum Width

600mm

Drum Diameter

425mm

Wheelbase

-

Drum Sheet Thickness

-

Side Clearance (l/r)

-

Curb Clearance (l/r)

-

Brake Type

-

Water Tank Capacity

-

Area Compaction Capacity

-

Exciter Oil Type

-

Grease For Bearings

-

Starter Type

Electrical / Manual

Exhaust Emissions

-

Currently Viewing
Buildcons RL – 600D Walk Behind Vibratory Roller

Buildcons RL – 600D Walk Behind Vibratory Roller

Get Latest Price
Rating
4.4

Engine Brand

Honda

Engine Model

GX160 5.5HP

Engine Power (effective)

-

Engine Power (operating)

-

Rated Speed

-

Displacement

-

Fuel Type

-

Fuel Tank Capacity

-

Fuel Consumption

-

Transmission Type

Hydraulic

Max Travel Speed (fwd)

0-3km/h

Max Travel Speed (rev)

-

Gradeability (with Vib)

30%

Gradeability (w/o Vib)

-

Max Weight (with Options)

-

Operating Weight

-

Hydraulic Oil Capacity

-

Hydraulic Fluid Type

-

Sound Power Level (lwa)

-

Sound Pressure At Operator (lpa)

-

Hav (hand Arm Vibration)

-

Vibration Frequency

70 Hz

Amplitude

-

Centrifugal Force – Level I

15 kN

Centrifugal Force – Level Ii

-

Linear Force (static) Front

-

Linear Force (dynamic)

-

Overall Length

-

Overall Width

-

Overall Height

-

Drum Width

-

Drum Diameter

425 X 600mm

Wheelbase

-

Drum Sheet Thickness

-

Side Clearance (l/r)

-

Curb Clearance (l/r)

-

Brake Type

-

Water Tank Capacity

17 L

Area Compaction Capacity

-

Exciter Oil Type

-

Grease For Bearings

-

Starter Type

-

Exhaust Emissions

-

Husqvarna LP 6500 Compaction Roller

Husqvarna LP 6500 Compaction Roller

Get Latest Price
Rating
4.4

Engine Brand

-

Engine Model

-

Engine Power (effective)

7.51HP

Engine Power (operating)

-

Rated Speed

-

Displacement

-

Fuel Type

Diesel

Fuel Tank Capacity

-

Fuel Consumption

-

Transmission Type

-

Max Travel Speed (fwd)

3.33km/h

Max Travel Speed (rev)

-

Gradeability (with Vib)

-

Gradeability (w/o Vib)

-

Max Weight (with Options)

0.676Tons

Operating Weight

0.681Ton

Hydraulic Oil Capacity

-

Hydraulic Fluid Type

-

Sound Power Level (lwa)

100dB(A)

Sound Pressure At Operator (lpa)

84dB(A)

Hav (hand Arm Vibration)

-

Vibration Frequency

-

Amplitude

-

Centrifugal Force – Level I

20kN

Centrifugal Force – Level Ii

-

Linear Force (static) Front

-

Linear Force (dynamic)

-

Overall Length

2.551m

Overall Width

0.714m

Overall Height

1.045m

Drum Width

-

Drum Diameter

-

Wheelbase

-

Drum Sheet Thickness

-

Side Clearance (l/r)

-

Curb Clearance (l/r)

-

Brake Type

-

Water Tank Capacity

-

Area Compaction Capacity

-

Exciter Oil Type

-

Grease For Bearings

-

Starter Type

Electric

Exhaust Emissions

987g/kWh

Redline RW750D Walk-Behind Roller

Redline RW750D Walk-Behind Roller

Get Latest Price
Rating
4.4

Engine Brand

Kohler

Engine Model

KD441

Engine Power (effective)

6.6HP

Engine Power (operating)

8.85HP

Rated Speed

2830rpm

Displacement

-

Fuel Type

Diesel

Fuel Tank Capacity

5L

Fuel Consumption

-

Transmission Type

Hydrostatic

Max Travel Speed (fwd)

4.5km/h

Max Travel Speed (rev)

-

Gradeability (with Vib)

-

Gradeability (w/o Vib)

35%

Max Weight (with Options)

-

Operating Weight

0.745Ton

Hydraulic Oil Capacity

14L

Hydraulic Fluid Type

-

Sound Power Level (lwa)

-

Sound Pressure At Operator (lpa)

-

Hav (hand Arm Vibration)

-

Vibration Frequency

60Hz

Amplitude

0.4mm

Centrifugal Force – Level I

22kN

Centrifugal Force – Level Ii

-

Linear Force (static) Front

55N/mm

Linear Force (dynamic)

-

Overall Length

1.986 / 2.165m

Overall Width

0.72m

Overall Height

1.35 / 1.725m

Drum Width

650mm

Drum Diameter

400mm

Wheelbase

-

Drum Sheet Thickness

-

Side Clearance (l/r)

-

Curb Clearance (l/r)

-

Brake Type

Hydrostatic Parking Brake

Water Tank Capacity

58L

Area Compaction Capacity

-

Exciter Oil Type

-

Grease For Bearings

-

Starter Type

Keyless Electric

Exhaust Emissions

-

JAYMAC VR 3000 Walk Behind Roller

JAYMAC VR 3000 Walk Behind Roller

Get Latest Price
Rating
4.4

Engine Brand

Greaves

Engine Model

5520

Engine Power (effective)

4.96HP

Engine Power (operating)

-

Rated Speed

3600rpm

Displacement

-

Fuel Type

Diesel

Fuel Tank Capacity

5L

Fuel Consumption

1L/hr

Transmission Type

Hydraulic Controls

Max Travel Speed (fwd)

2.78km/h

Max Travel Speed (rev)

-

Gradeability (with Vib)

%

Gradeability (w/o Vib)

20%

Max Weight (with Options)

-

Operating Weight

-

Hydraulic Oil Capacity

-

Hydraulic Fluid Type

-

Sound Power Level (lwa)

-

Sound Pressure At Operator (lpa)

-

Hav (hand Arm Vibration)

-

Vibration Frequency

32Hz

Amplitude

0.35mm

Centrifugal Force – Level I

14kN

Centrifugal Force – Level Ii

-

Linear Force (static) Front

4.41N/mm

Linear Force (dynamic)

-

Overall Length

1.55m

Overall Width

0.76m

Overall Height

1.05m

Drum Width

600mm

Drum Diameter

-

Wheelbase

-

Drum Sheet Thickness

-

Side Clearance (l/r)

-

Curb Clearance (l/r)

-

Brake Type

-

Water Tank Capacity

15L

Area Compaction Capacity

-

Exciter Oil Type

-

Grease For Bearings

-

Starter Type

Electric (Keyless)

Exhaust Emissions

-
