Nilkamal NKMDFL15-Q Multi-Directional Forklift

Nilkamal Material Handling

Maharashtra

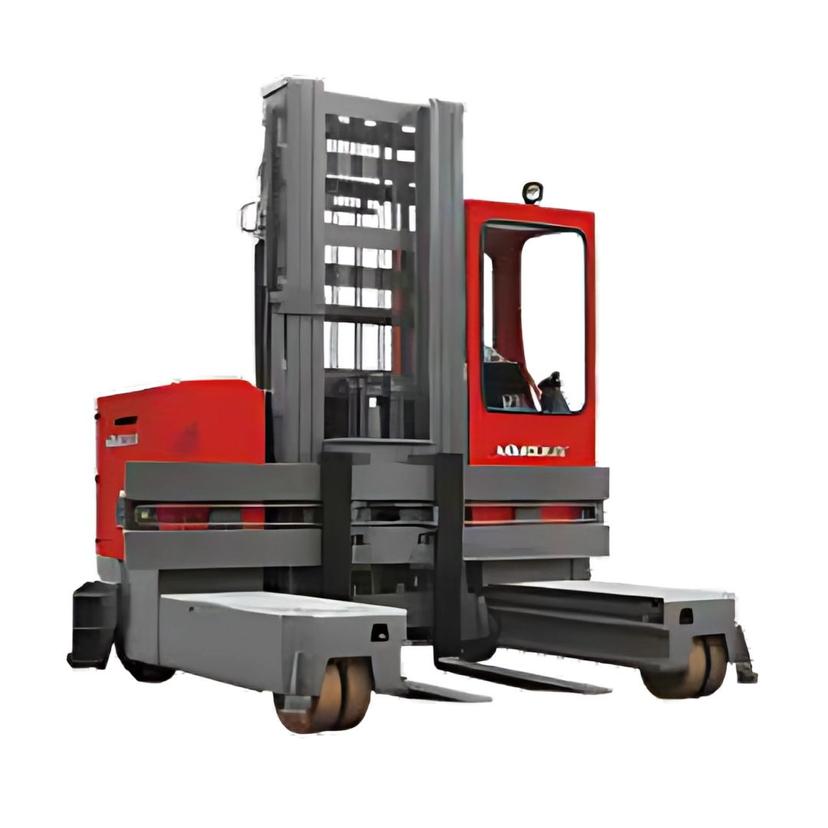

The Nilkamal NKMDFL15-Q Multi-Directional Forklift is a versatile solution engineered for narrow aisle operations and efficient long material handling. With a lifting capacity of 1.5 tons and a compact turning radius of 1610 mm, it excels in space-constrained environments like warehouses, manufacturing units, and distribution centers. Its advanced multi-directional capabilities—straight travel, side travel, diagonal travel, right-angle turning, and full 360-degree rotation—allow seamless maneuverability around tight corners and aisles. This forklift significantly reduces the risk of collisions, ensuring the safety of goods, racks, and equipment. Its design is especially advantageous for handling long items such as pipes, timber, or steel bars, offering improved operational control and space utilization. If your facility deals with oversized loads in tight spaces, this is the forklift built for your needs.

  • Recommended for pipe, lumber, and steel storage yards, where side and diagonal travel ensure smooth stacking.
  • Perfect for warehouse racking operations, with reduced collision risk ensuring protection of goods and infrastructure
  • Optimized for indoor manufacturing plants, enabling right-angle turns and compact operation within tight turning radius of 1610 mm.
  • Best suited for space-constrained distribution centers, thanks to 360-degree rotation and multi-directional movement.
  • Ideal for handling long and bulky materials in narrow aisles, maximizing storage efficiency and safety.

Product Description

The Nilkamal NKMDFL15-Q Multi-Directional Forklift is a versatile solution engineered for narrow ais...

Nilkamal NKMDFL15-Q Multi-Directional Forklift Comparison with Similar Forklift

Nilkamal NKMDFL15-Q Multi-Directional Forklift

Nilkamal NKMDFL15-Q Multi-Directional Forklift

Get Latest Price
Rating
4.4

Battery Rating (standard)

-

Power Type

-

Drive Motor/ Engine Power

-

Rated Power

-

Displacement

-

Cylinders

-

Emission Compliance

-

Heavy Duty Battery

-

Electronic Controller / Motor Controller

-

Transmission Type

-

Travel Speed (loaded / Unloaded)

-

Lifting Speed (loaded / Unloaded)

-

Lowering Speed (loaded / Unloaded)

-

Max. Drawbar Pull

-

Max. Gradeability

-

Service Brake

-

Parking Brake

-

Steering Type

-

Minimum Turning Radius (as Listed)

-

Turning Radius (min. Outside, As Listed)

-

Load Capacity / Rated Load

-

Load Center

-

Service Weight / Self Weight

-

Weight Distribution — With Load (front / Rear)

-

Weight Distribution — Without Load (front / Rear)

-

Hydraulic Motor

-

Operating Pressure (attachments)

-

Fork Dimensions (l × W × T)

-

Fork Length

-

Fork Thickness

-

Free Lift / Free Fork Height

-

Mast / Lift Height (standard / Options)

-

Height — Overhead Guard

-

Length To Fork Face / Overall Length

-

Overall Width / Chassis Width Front

-

Wheelbase

-

Ground Clearance (min)

-

Tire Type

-

Tyre Size — Front

-

Tyre Size — Rear

-

Tread Width (front / Rear)

-

Currently Viewing

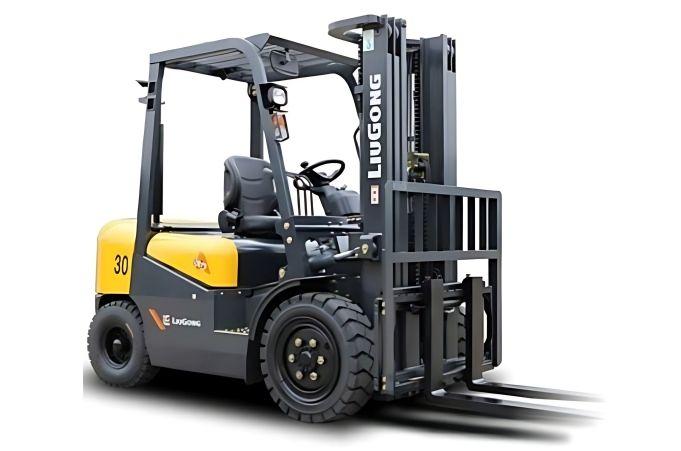

Liugong CPCD50 Forklift

Liugong CPCD50 Forklift

Get Latest Price
Rating
4.4

Battery Rating (standard)

-

Power Type

Diesel

Drive Motor/ Engine Power

60kW

Rated Power

2200rpm

Displacement

3.47l

Cylinders

4

Emission Compliance

China III

Heavy Duty Battery

-

Electronic Controller / Motor Controller

-

Transmission Type

-

Travel Speed (loaded / Unloaded)

24 / 25km/h

Lifting Speed (loaded / Unloaded)

500 / 530mm/s

Lowering Speed (loaded / Unloaded)

520 / 480mm/s

Max. Drawbar Pull

32kN

Max. Gradeability

20 / 28%

Service Brake

Foot / Hyd

Parking Brake

Hand / Mech

Steering Type

-

Minimum Turning Radius (as Listed)

-

Turning Radius (min. Outside, As Listed)

2930mm

Load Capacity / Rated Load

5000kg

Load Center

500mm

Service Weight / Self Weight

6880kg

Weight Distribution — With Load (front / Rear)

10610 / 1265kg

Weight Distribution — Without Load (front / Rear)

3040 / 3760kg

Hydraulic Motor

-

Operating Pressure (attachments)

-

Fork Dimensions (l × W × T)

1070 × 150 × 50mm

Fork Length

1070mm

Fork Thickness

50mm

Free Lift / Free Fork Height

1339mm

Mast / Lift Height (standard / Options)

4500mm

Height — Overhead Guard

2350mm

Length To Fork Face / Overall Length

3230mm

Overall Width / Chassis Width Front

1493mm

Wheelbase

2100mm

Ground Clearance (min)

165mm

Tire Type

Solid

Tyre Size — Front

300-15-18PR

Tyre Size — Rear

7.00-12-12PR

Tread Width (front / Rear)

1176 / 1190mm

Liugong CPD60-EH Forklift

Liugong CPD60-EH Forklift

Get Latest Price
Rating
4.4

Battery Rating (standard)

308 / 228 V / Ah

Power Type

Electric

Drive Motor/ Engine Power

58kW

Rated Power

-

Displacement

-

Cylinders

-

Emission Compliance

-

Heavy Duty Battery

-

Electronic Controller / Motor Controller

Electrical control, motor type

Transmission Type

-

Travel Speed (loaded / Unloaded)

25 / 26km/h

Lifting Speed (loaded / Unloaded)

510 / 530mm/s

Lowering Speed (loaded / Unloaded)

450 / 420mm/s

Max. Drawbar Pull

30 / 25kN

Max. Gradeability

-

Service Brake

Foot / Hyd

Parking Brake

Hand / Mech

Steering Type

-

Minimum Turning Radius (as Listed)

-

Turning Radius (min. Outside, As Listed)

3300mm

Load Capacity / Rated Load

6000kg

Load Center

600mm

Service Weight / Self Weight

9280kg

Weight Distribution — With Load (front / Rear)

13634 / 1721kg

Weight Distribution — Without Load (front / Rear)

4486 / 4794kg

Hydraulic Motor

Work pump motor power: 28 + 28 kW

Operating Pressure (attachments)

-

Fork Dimensions (l × W × T)

1220 × 150 × 65mm

Fork Length

1220mm

Fork Thickness

65mm

Free Lift / Free Fork Height

195mm

Mast / Lift Height (standard / Options)

3000mm

Height — Overhead Guard

2428mm

Length To Fork Face / Overall Length

3500mm

Overall Width / Chassis Width Front

2020mm

Wheelbase

2300mm

Ground Clearance (min)

200mm

Tire Type

Pneumatic

Tyre Size — Front

8.25-15-14PR

Tyre Size — Rear

8.25-15-14PR

Tread Width (front / Rear)

1474 / 1730mm

Liugong CPD70-EH Forklift

Liugong CPD70-EH Forklift

Get Latest Price
Rating
4.4

Battery Rating (standard)

308 / 228 V / Ah

Power Type

Electric

Drive Motor/ Engine Power

58kW

Rated Power

-

Displacement

-

Cylinders

-

Emission Compliance

-

Heavy Duty Battery

-

Electronic Controller / Motor Controller

Permanent magnet synchronization

Transmission Type

-

Travel Speed (loaded / Unloaded)

25 / 26km/h

Lifting Speed (loaded / Unloaded)

510 / 530mm/s

Lowering Speed (loaded / Unloaded)

450 / 400mm/s

Max. Drawbar Pull

28 / 25kN

Max. Gradeability

-

Service Brake

Foot / Hyd

Parking Brake

Hand / Mech

Steering Type

-

Minimum Turning Radius (as Listed)

-

Turning Radius (min. Outside, As Listed)

3300mm

Load Capacity / Rated Load

7000kg

Load Center

600mm

Service Weight / Self Weight

9880kg

Weight Distribution — With Load (front / Rear)

15119 / 1836kg

Weight Distribution — Without Load (front / Rear)

4459 / 5421kg

Hydraulic Motor

Work pump motor power: 28 + 28 kW

Operating Pressure (attachments)

-

Fork Dimensions (l × W × T)

1220 × 150 × 65mm

Fork Length

1220mm

Fork Thickness

65mm

Free Lift / Free Fork Height

195mm

Mast / Lift Height (standard / Options)

3000mm

Height — Overhead Guard

2428mm

Length To Fork Face / Overall Length

3500mm

Overall Width / Chassis Width Front

2020mm

Wheelbase

2300mm

Ground Clearance (min)

200mm

Tire Type

Pneumatic

Tyre Size — Front

8.25-15-14PR

Tyre Size — Rear

8.25-15-14PR

Tread Width (front / Rear)

1474 / 1730mm

Liugong CPD80-EH Forklift

Liugong CPD80-EH Forklift

Get Latest Price
Rating
4.4

Battery Rating (standard)

308 / 228 V / Ah

Power Type

Electric

Drive Motor/ Engine Power

58kW

Rated Power

-

Displacement

-

Cylinders

-

Emission Compliance

-

Heavy Duty Battery

-

Electronic Controller / Motor Controller

-

Transmission Type

-

Travel Speed (loaded / Unloaded)

25 / 26km/h

Lifting Speed (loaded / Unloaded)

510 / 530mm/s

Lowering Speed (loaded / Unloaded)

450 / 400mm/s

Max. Drawbar Pull

27 / 25kN

Max. Gradeability

-

Service Brake

Foot / Hyd

Parking Brake

Hand / Mech

Steering Type

-

Minimum Turning Radius (as Listed)

-

Turning Radius (min. Outside, As Listed)

3533mm

Load Capacity / Rated Load

8000kg

Load Center

600mm

Service Weight / Self Weight

10860kg

Weight Distribution — With Load (front / Rear)

16582 / 2533kg

Weight Distribution — Without Load (front / Rear)

4932 / 6468kg

Hydraulic Motor

Work pump motor power: 28 + 28 kW

Operating Pressure (attachments)

-

Fork Dimensions (l × W × T)

1220 × 150 × 70mm

Fork Length

1220mm

Fork Thickness

70mm

Free Lift / Free Fork Height

195mm

Mast / Lift Height (standard / Options)

3000mm

Height — Overhead Guard

2428mm

Length To Fork Face / Overall Length

3561mm

Overall Width / Chassis Width Front

2020mm

Wheelbase

2300mm

Ground Clearance (min)

200mm

Tire Type

Pneumatic

Tyre Size — Front

8.25-15-16PR

Tyre Size — Rear

8.25-15-16PR

Tread Width (front / Rear)

1474 / 1730mm
