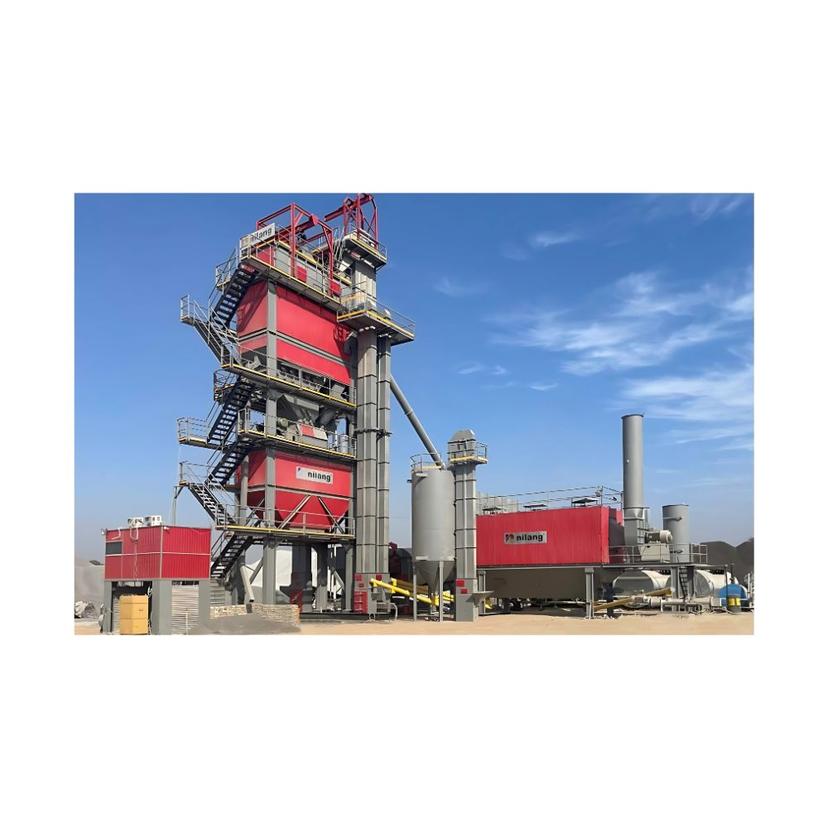

Nilang NAMIX 260 Asphalt Batch Mix Plant
Nilang Asphalt Equipments Private Limited
The Nilang NAMIX 260 Asphalt Batch Mix Plant is engineered for large-scale, high-efficiency asphalt production, making it ideal for major infrastructure projects. With a batch size of 3300 kg and a rapid 45-second cycle time, it delivers optimal performance for expressways, highways, and industrial roads. The plant boasts a 280 tph capacity, ensuring high output for large-volume paving operations. Its twin contra-rotating mixer guarantees superior asphalt quality, even for heavy-duty pavements and airport runways. Featuring Siemens PLC automation, it offers precise control and seamless operations, optimizing efficiency. The plant also incorporates an advanced reverse air bag house filtration system, reducing emissions and meeting environmental standards. With a 30-50 ton bitumen tank, customizable hot mix storage silos, and high-capacity screening, the NAMIX 260 is designed for high-volume production, reliability, and sustainability in large-scale construction projects.
Nilang NAMIX 260 Asphalt Batch Mix Plant
Nilang Asphalt Equipments Private Limited
The Nilang NAMIX 260 Asphalt Batch Mix Plant is engineered for large-scale, high-efficiency asphalt production, making it ideal for major infrastructure projects. With a batch size of 3300 kg and a rapid 45-second cycle time, it delivers optimal performance for expressways, highways, and industrial roads. The plant boasts a 280 tph capacity, ensuring high output for large-volume paving operations. Its twin contra-rotating mixer guarantees superior asphalt quality, even for heavy-duty pavements and airport runways. Featuring Siemens PLC automation, it offers precise control and seamless operations, optimizing efficiency. The plant also incorporates an advanced reverse air bag house filtration system, reducing emissions and meeting environmental standards. With a 30-50 ton bitumen tank, customizable hot mix storage silos, and high-capacity screening, the NAMIX 260 is designed for high-volume production, reliability, and sustainability in large-scale construction projects.
Product Description
The Nilang NAMIX 260 Asphalt Batch Mix Plant is engineered for large-scale, high-efficiency asphalt ...
Nilang NAMIX 260 Asphalt Batch Mix Plant Comparison with Similar Asphalt Batching Plant
Nilang NAMIX 260 Asphalt Batch Mix Plant
Plant Type
Stationary
Max Production Capacity
260TPH
Batch Size
3300kg
Cycle Time
45seconds
Dryer Drum Diameter
2.3m
Dryer Drum Length
9m
Burner Capacity
18MW
Fuel Type
Diesel / LDO / Furnace Oil
Hot Mix Storage Silo Capacity
50 / 100T
Cold Feed Bins (no. Of Bins)
5 / 6
Cold Feed Bin Capacity
-
Collecting Belt Width
-
Inclined Belt Width
-
Hot Aggregate Elevator Capacity
280TPH
Screening Method
-
No. Of Decks
6
Screening Capacity
260TPH
Hot Aggregate Bin Capacity
-
No. Of Hot Aggregate Bins
5 + 1 / 6 + 1
Aggregate Weighing Capacity
4200kg
Filler Weighing Capacity
500kg
Bitumen Weighing Capacity
225kg
Mixer Type
Twin Shaft Hot Oil Jacketed
Mixer Capacity
3300kg
Mixing Time
-
Primary Pollution Control
Reverse Air Flow Centrifugal Cyclonic Pre Separator
Secondary Pollution Control
Bag House Filter (Reverse Air Flow)
Filter Surface Area
880m²
Emission Level
-
Bitumen Tank Capacity
30 / 50m³
Bitumen Pump Type
-
Thermal Oil System Capacity
800000 / 1000000kcal/h
Automation System
Siemens PLC (SCADA on Request)
Remote Monitoring
-
Sany SABP145 Asphalt Batching Plant
Plant Type
SABP145
Max Production Capacity
145TPH
Batch Size
1700kg
Cycle Time
-
Dryer Drum Diameter
1.8m
Dryer Drum Length
7m
Burner Capacity
10MW
Fuel Type
-
Hot Mix Storage Silo Capacity
-
Cold Feed Bins (no. Of Bins)
4
Cold Feed Bin Capacity
3m³
Collecting Belt Width
500mm
Inclined Belt Width
500mm
Hot Aggregate Elevator Capacity
-
Screening Method
-
No. Of Decks
4
Screening Capacity
-
Hot Aggregate Bin Capacity
-
No. Of Hot Aggregate Bins
5
Aggregate Weighing Capacity
-
Filler Weighing Capacity
-
Bitumen Weighing Capacity
-
Mixer Type
Standard
Mixer Capacity
1700kg
Mixing Time
-
Primary Pollution Control
-
Secondary Pollution Control
-
Filter Surface Area
360m²
Emission Level
-
Bitumen Tank Capacity
60m³
Bitumen Pump Type
Thermal Oil System Capacity
500000kcal/h
Automation System
SYMC
Remote Monitoring
Y
Sany SABP120 Asphalt Batching Plant
Plant Type
SABP120
Max Production Capacity
120TPH
Batch Size
1700kg
Cycle Time
-
Dryer Drum Diameter
1.8m
Dryer Drum Length
7m
Burner Capacity
10MW
Fuel Type
Diesel
Hot Mix Storage Silo Capacity
-
Cold Feed Bins (no. Of Bins)
4
Cold Feed Bin Capacity
8m³
Collecting Belt Width
500mm
Inclined Belt Width
500mm
Hot Aggregate Elevator Capacity
-
Screening Method
Vibrating Screen
No. Of Decks
4
Screening Capacity
-
Hot Aggregate Bin Capacity
-
No. Of Hot Aggregate Bins
5
Aggregate Weighing Capacity
-
Filler Weighing Capacity
-
Bitumen Weighing Capacity
-
Mixer Type
-
Mixer Capacity
1700kg
Mixing Time
-
Primary Pollution Control
-
Secondary Pollution Control
Dedust system
Filter Surface Area
360m²
Emission Level
-
Bitumen Tank Capacity
30m³
Bitumen Pump Type
Asphalt Metering Pump
Thermal Oil System Capacity
500000kcal/h
Automation System
PLC supported by 1 CPU or more
Remote Monitoring
Y
Nilang ABP 200 Asphalt Batch Mix Plant
Plant Type
ABP 200
Max Production Capacity
200TPH
Batch Size
2500kg
Cycle Time
45seconds
Dryer Drum Diameter
2.1m
Dryer Drum Length
8m
Burner Capacity
14MW
Fuel Type
Diesel/LDO/Furnace Oil
Hot Mix Storage Silo Capacity
40 / 80T
Cold Feed Bins (no. Of Bins)
4 / 5
Cold Feed Bin Capacity
-
Collecting Belt Width
-
Inclined Belt Width
-
Hot Aggregate Elevator Capacity
220TPH
Screening Method
Inclined Liner Vibration
No. Of Decks
5
Screening Capacity
260TPH
Hot Aggregate Bin Capacity
-
No. Of Hot Aggregate Bins
5 + 1
Aggregate Weighing Capacity
3200kg
Filler Weighing Capacity
500kg
Bitumen Weighing Capacity
350kg
Mixer Type
Twin Shaft Hot Oil Jacketed
Mixer Capacity
2500kg
Mixing Time
-
Primary Pollution Control
Reverse Air Flow/Cyclonic Separator
Secondary Pollution Control
Bag House Filter Reverse Air Flow
Filter Surface Area
535m²
Emission Level
-
Bitumen Tank Capacity
20 / 30m³
Bitumen Pump Type
-
Thermal Oil System Capacity
600000 / 800000kcal/h
Automation System
Siemens PLC (SCADA optional)
Remote Monitoring
Available
Nilang ABP 120 Combat Asphalt Batch Mix Plant
Plant Type
Stationary
Max Production Capacity
140TPH
Batch Size
1500kg
Cycle Time
45seconds
Dryer Drum Diameter
1.8m
Dryer Drum Length
7.5m
Burner Capacity
12MW
Fuel Type
Diesel / LDO / Furnace Oil
Hot Mix Storage Silo Capacity
15 / 50 / 100T
Cold Feed Bins (no. Of Bins)
4
Cold Feed Bin Capacity
30m³
Collecting Belt Width
-
Inclined Belt Width
-
Hot Aggregate Elevator Capacity
140TPH
Screening Method
Vibratory (inferred)
No. Of Decks
2
Screening Capacity
140TPH
Hot Aggregate Bin Capacity
T
No. Of Hot Aggregate Bins
4
Aggregate Weighing Capacity
2000kg
Filler Weighing Capacity
300kg
Bitumen Weighing Capacity
225kg
Mixer Type
Twin Shaft Hot Oil Jacketed
Mixer Capacity
1500kg
Mixing Time
seconds
Primary Pollution Control
Reverse Air Flow Centrifugal Cyclonic Pre Separator
Secondary Pollution Control
Bag House Filter (Reverse Air Flow)
Filter Surface Area
300m²
Emission Level
-
Bitumen Tank Capacity
30m³
Bitumen Pump Type
-
Thermal Oil System Capacity
500000kcal/h
Automation System
Siemens PLC (SCADA on Request)
Remote Monitoring
-
