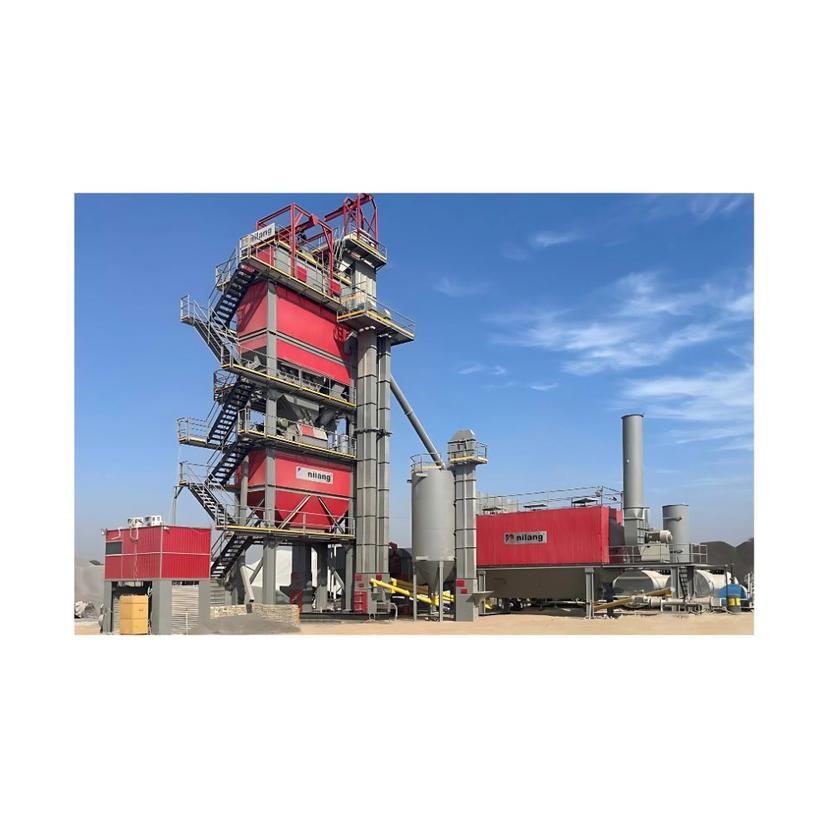

Nilang ABP 100 Asphalt Batch Mix Plant
nilang
The Nilang ABP 100 Asphalt Batch Mix Plant is a robust and high-capacity solution for asphalt production, designed to meet the demands of large-scale infrastructure projects. With a batch size of 1200 kg and a cycle time of 45 seconds, it delivers consistent and high-quality mixes efficiently. Its 120 tph capacity makes it ideal for constructing expressways, intercity highways, and airport runways. The twin-shaft hot oil jacketed mixer ensures uniformity and reliability in every batch, while the Siemens PLC control system enables fully automated and precise operations. Eco-friendly reverse air bag house filtration minimizes dust and emissions, ensuring compliance with environmental standards. Featuring a 30-ton bitumen tank, 15-ton optional hot mix storage silo, and 4 aggregate bins, this plant combines efficiency, reliability, and performance for modern infrastructure development.
Nilang ABP 100 Asphalt Batch Mix Plant
nilang
The Nilang ABP 100 Asphalt Batch Mix Plant is a robust and high-capacity solution for asphalt production, designed to meet the demands of large-scale infrastructure projects. With a batch size of 1200 kg and a cycle time of 45 seconds, it delivers consistent and high-quality mixes efficiently. Its 120 tph capacity makes it ideal for constructing expressways, intercity highways, and airport runways. The twin-shaft hot oil jacketed mixer ensures uniformity and reliability in every batch, while the Siemens PLC control system enables fully automated and precise operations. Eco-friendly reverse air bag house filtration minimizes dust and emissions, ensuring compliance with environmental standards. Featuring a 30-ton bitumen tank, 15-ton optional hot mix storage silo, and 4 aggregate bins, this plant combines efficiency, reliability, and performance for modern infrastructure development.
Nilang ABP 100 Asphalt Batch Mix Plant specs & features
Product Description
The Nilang ABP 100 Asphalt Batch Mix Plant is a robust and high-capacity solution for asphalt produc...
Nilang ABP 100 Asphalt Batch Mix Plant Comparison with Similar Asphalt Batching Plant
Nilang ABP 100 Asphalt Batch Mix Plant
Plant Type
Stationary
Max Production Capacity
120TPH
Batch Size
1200kg
Cycle Time
45seconds
Dryer Drum Diameter
1.6m
Dryer Drum Length
7m
Burner Capacity
10MW
Fuel Type
Diesel / LDO / Furnace Oil
Hot Mix Storage Silo Capacity
15T
Cold Feed Bins (no. Of Bins)
5 / 6
Nilang ABP 80 Asphalt Batch Mix Plant
Plant Type
Stationary
Max Production Capacity
100TPH
Batch Size
1000kg
Cycle Time
45seconds
Dryer Drum Diameter
1.5m
Dryer Drum Length
6m
Burner Capacity
8MW
Fuel Type
Diesel / LDO / Furnace Oil
Hot Mix Storage Silo Capacity
15T
Cold Feed Bins (no. Of Bins)
4 / 25
Apollo WetMix 100–250 Asphalt-Mixing Plant
Plant Type
-
Max Production Capacity
-
Batch Size
-
Cycle Time
-
Dryer Drum Diameter
-
Dryer Drum Length
-
Burner Capacity
-
Fuel Type
-
Hot Mix Storage Silo Capacity
-
Cold Feed Bins (no. Of Bins)
-
Ammann ABM Easybatch 90 Asphalt-Mixing Plant
Plant Type
90
Max Production Capacity
90TPH
Batch Size
1088kg
Cycle Time
288000seconds
Dryer Drum Diameter
4.48m
Dryer Drum Length
4.48m
Burner Capacity
6.5MW
Fuel Type
Natural gas, fuel oil extra light, heavy oil
Hot Mix Storage Silo Capacity
10T
Cold Feed Bins (no. Of Bins)
Ammann ABC Supertech Batch Asphalt-Mixing Plant
Plant Type
160
Max Production Capacity
160TPH
Batch Size
-
Cycle Time
-
Dryer Drum Diameter
1.8m
Dryer Drum Length
7 mm
Burner Capacity
12MW
Fuel Type
Light or heavy oil
Hot Mix Storage Silo Capacity
16T
Cold Feed Bins (no. Of Bins)
-
