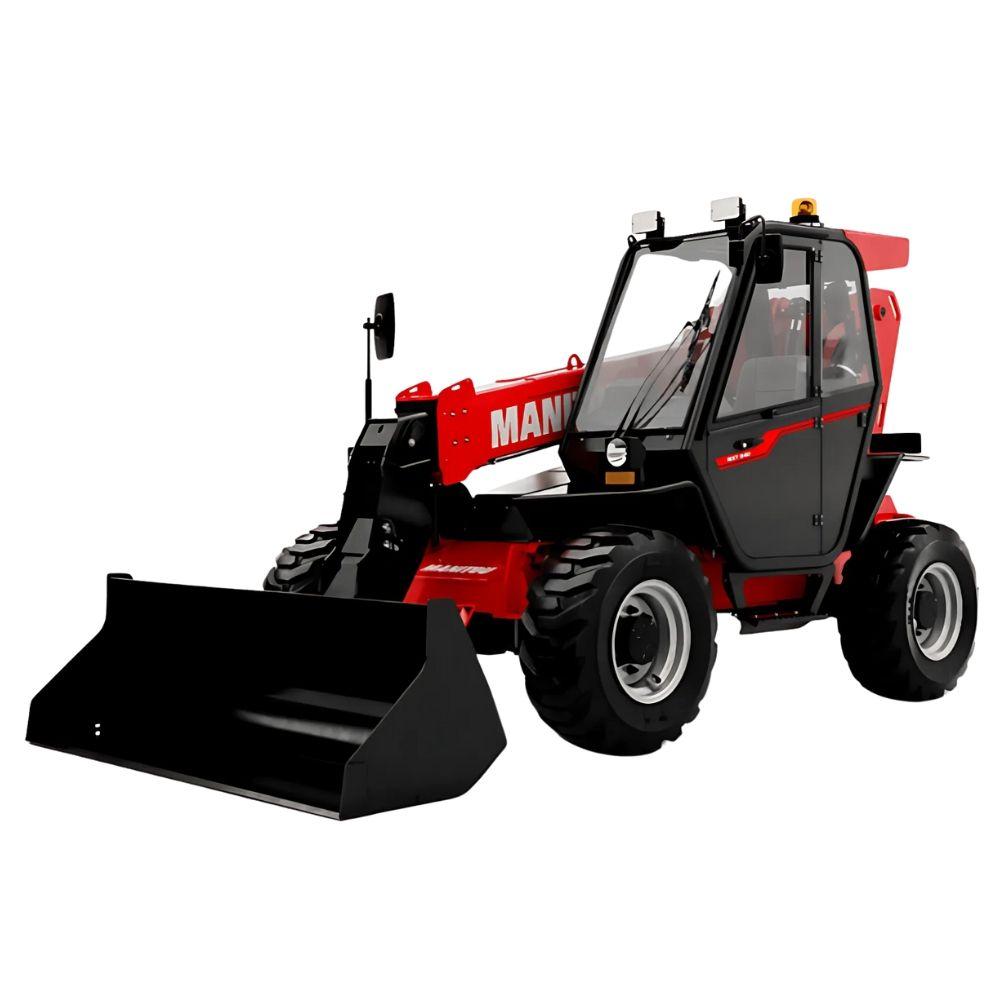

Manitou MXT 840 IND Telehandler
Krisha Equipment
Gujarat
The Manitou MXT 840 IND Telehandler is a powerful and reliable solution designed for the most demanding agro-industrial environments. With a maximum lifting capacity of 4000 kg, it handles heavy materials like wheat straw, cotton, and rice husk with ease. Its impressive 7.60-meter lifting height and 4.23-meter outreach allow for efficient handling of tall stacks and hard-to-reach areas, enhancing productivity. Built to withstand harsh conditions, the MXT 840 is equipped with a radiator grill, reversible fan, and spark arrestor to ensure optimal performance and durability. Powered by a 74.5 Hp engine, it provides the necessary power to tackle tough tasks day after day. Ideal for industries where material handling is challenging, the Manitou MXT 840 offers the strength and reliability needed for continuous operations in rugged environments.
Manitou MXT 840 IND Telehandler
Krisha Equipment
Gujarat
The Manitou MXT 840 IND Telehandler is a powerful and reliable solution designed for the most demanding agro-industrial environments. With a maximum lifting capacity of 4000 kg, it handles heavy materials like wheat straw, cotton, and rice husk with ease. Its impressive 7.60-meter lifting height and 4.23-meter outreach allow for efficient handling of tall stacks and hard-to-reach areas, enhancing productivity. Built to withstand harsh conditions, the MXT 840 is equipped with a radiator grill, reversible fan, and spark arrestor to ensure optimal performance and durability. Powered by a 74.5 Hp engine, it provides the necessary power to tackle tough tasks day after day. Ideal for industries where material handling is challenging, the Manitou MXT 840 offers the strength and reliability needed for continuous operations in rugged environments.
Product Description
The Manitou MXT 840 IND Telehandler is a powerful and reliable solution designed for the most demand...
View the full brochure
Manitou MXT 840 IND Telehandler Comparison with Similar Telehandler
Manitou MXT 840 IND Telehandler
Engine Brand
Kirloskar
Engine Model
4R1190NA1
Engine Power
74.5HP
Max Torque
300Nm
Rated Speed
1320rpm
Displacement
4.76L
Fuel Tank Capacity
78.5L
Hydraulic Oil Capacity
120L
Engine Cooling System
-
Transmission Type
Torque converter
Number Of Gears (f/r)
4 / 4
Torque Converter Stall Ratio
-
Max Travel Speed
28km/h
Service Brake Type
Oil-immersed multi-discs on front & rear axles
Parking Brake Type
-
Steering Type
2 / 2m
Oscillation Angle
-
Operating Weight
8.45Ton
Max Lifting Capacity
4000kg
Lift Capacity At Full Height
-
Lift Capacity At Full Reach
-
Load Center
-
Hydraulic Flow Rate
91.4L/min
Hydraulic Pressure
250bar
Hydraulic Pump Type
Gear pump
Max Lift Height
7.6m
Max Forward Reach
4.23m
Frame Levelling Angle
-
Boom Raise / Lower Time
4.36sec
Boom Extend / Retract Time
-
Tilt Angle (up / Down)
12 / 134°
Drawbar Pull
-
Gradeability (laden)
-
Overall Length
5.876m
Overall Width
2.387m
Overall Height
2.586m
Wheelbase
2.58m
Ground Clearance
372mm
Battery Voltage
12V
Tyres
BKT 16.0/70-20 14PR- EM936 SPL
Fork Dimensions
1200 x 125 x 49mm
Cab Certification
Cabin ROPS - FOPS level 2
Controls
-
Seat
-
Noise Level At Operator
90dB
Noise To Environment (lwa)
110dB
Manitou MT-X 733 Mining Telehandler
Engine Brand
Perkins
Engine Model
1104D-44 T
Engine Power
95HP
Max Torque
392Nm
Rated Speed
-
Displacement
4.4L
Fuel Tank Capacity
120L
Hydraulic Oil Capacity
128L
Engine Cooling System
-
Transmission Type
Torque converter
Number Of Gears (f/r)
3 / 3
Torque Converter Stall Ratio
-
Max Travel Speed
15km/h
Service Brake Type
Oil-immersed multi-discs (front & rear axles)
Parking Brake Type
Manual
Steering Type
2 / 2 (front/rear)m
Oscillation Angle
-
Operating Weight
6.62Ton
Max Lifting Capacity
3300kg
Lift Capacity At Full Height
-
Lift Capacity At Full Reach
-
Load Center
-
Hydraulic Flow Rate
104L/min
Hydraulic Pressure
250bar
Hydraulic Pump Type
Gear pump
Max Lift Height
6.90m
Max Forward Reach
3.90m
Frame Levelling Angle
-
Boom Raise / Lower Time
7.20 / 5.50sec
Boom Extend / Retract Time
6.50 / 5.40sec
Tilt Angle (up / Down)
12 / 114°
Drawbar Pull
9000daN
Gradeability (laden)
-
Overall Length
4.74m
Overall Width
2.26m
Overall Height
2.30m
Wheelbase
2.81m
Ground Clearance
450mm
Battery Voltage
-
Tyres
Alliance 400/80 - 24 - 162A8
Fork Dimensions
1200 x 125 x 45mm
Cab Certification
Standard EN 15000 / ROPS - FOPS level 2
Controls
JSM
Seat
-
Noise Level At Operator
78dB
Noise To Environment (lwa)
104dB
Manitou MHT-X 10160 ST3A Telehandler
Engine Brand
Yanmar
Engine Model
4TN107TT-6SMU1
Engine Power
173HP
Max Torque
805Nm
Rated Speed
1500rpm
Displacement
4.567L
Fuel Tank Capacity
315L
Hydraulic Oil Capacity
-
Engine Cooling System
Water
Transmission Type
Hydrostatic
Number Of Gears (f/r)
2 / 2
Torque Converter Stall Ratio
-
Max Travel Speed
30km/h
Service Brake Type
Oil-immersed multi-discs
Parking Brake Type
Automatic negative parking brake
Steering Type
2WS / 4WS / Crabm
Oscillation Angle
-
Operating Weight
21.5Ton
Max Lifting Capacity
16000kg
Lift Capacity At Full Height
-
Lift Capacity At Full Reach
-
Load Center
600mm
Hydraulic Flow Rate
185L/min
Hydraulic Pressure
350bar
Hydraulic Pump Type
Variable displacement pump
Max Lift Height
9.60m
Max Forward Reach
5.20m
Frame Levelling Angle
9°
Boom Raise / Lower Time
-
Boom Extend / Retract Time
-
Tilt Angle (up / Down)
12 / 104°
Drawbar Pull
11770daN
Gradeability (laden)
32.4%
Overall Length
7.35m
Overall Width
2.48m
Overall Height
2.99m
Wheelbase
3.37m
Ground Clearance
430mm
Battery Voltage
12
Tyres
17.5-R25
Fork Dimensions
1200 x 180 x 75mm
Cab Certification
ROPS - FOPS level 2
Controls
JSM
Seat
-
Noise Level At Operator
75dB
Noise To Environment (lwa)
108dB
Manitou MRT-X 3570 Telehandler
Engine Brand
Yanmar
Engine Model
4TN107FTT-6SMU2
Engine Power
211HP
Max Torque
805Nm
Rated Speed
1500rpm
Displacement
4.567L
Fuel Tank Capacity
131L
Hydraulic Oil Capacity
-
Engine Cooling System
Water cooled
Transmission Type
Hydrostatic with CVT
Number Of Gears (f/r)
Speedshift
Torque Converter Stall Ratio
-
Max Travel Speed
40km/h
Service Brake Type
Oil-immersed multi-discs on front & rear axles
Parking Brake Type
Automatic negative parking brake
Steering Type
2 wheel, 4 wheel, Crab modem
Oscillation Angle
5.06°
Operating Weight
23.8Ton
Max Lifting Capacity
7000kg
Lift Capacity At Full Height
-
Lift Capacity At Full Reach
-
Load Center
-
Hydraulic Flow Rate
172L/min
Hydraulic Pressure
350bar
Hydraulic Pump Type
Variable displacement pump
Max Lift Height
34.7m
Max Forward Reach
28m
Frame Levelling Angle
±8°
Boom Raise / Lower Time
-
Boom Extend / Retract Time
-
Tilt Angle (up / Down)
13 / 108°
Drawbar Pull
9300daN
Gradeability (laden)
29%
Overall Length
10.06m
Overall Width
2.50m
Overall Height
3.26m
Wheelbase
3.75m
Ground Clearance
440mm
Battery Voltage
12 V
Tyres
17.5-R25
Fork Dimensions
1200 x 125 x 60mm
Cab Certification
ROPS-FOPS level 2
Controls
2 Joysticks
Seat
-
Noise Level At Operator
68dB
Noise To Environment (lwa)
109dB
JCB 530-110 Telehandler
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Engine Cooling System
-
Transmission Type
-
Number Of Gears (f/r)
-
Torque Converter Stall Ratio
-
Max Travel Speed
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Oscillation Angle
-
Operating Weight
-
Max Lifting Capacity
3,000 kg
Lift Capacity At Full Height
3,000kg
Lift Capacity At Full Reach
1,400kg
Load Center
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Hydraulic Pump Type
-
Max Lift Height
11m
Max Forward Reach
7.46m
Frame Levelling Angle
-
Boom Raise / Lower Time
-
Boom Extend / Retract Time
-
Tilt Angle (up / Down)
-
Drawbar Pull
-
Gradeability (laden)
-
Overall Length
-
Overall Width
-
Overall Height
2.6m
Wheelbase
-
Ground Clearance
-
Battery Voltage
-
Tyres
-
Fork Dimensions
-
Cab Certification
-
Controls
-
Seat
-
Noise Level At Operator
-
Noise To Environment (lwa)
-
