Machan X

Manitou MHT-X 11250 ST3A Telehandler

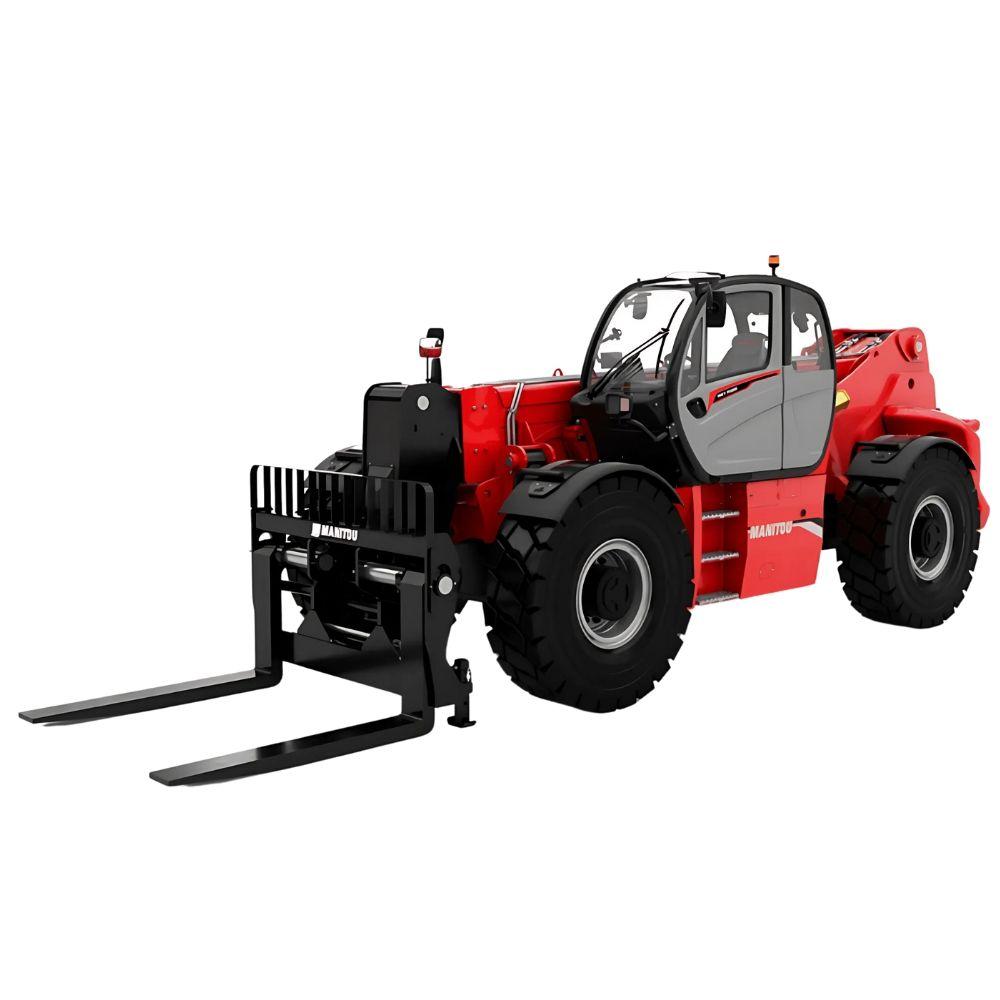

The Manitou MHT-X 11250 ST3A Telehandler is a powerful, versatile machine designed for heavy-duty lifting and material handling across a variety of industries. With a maximum lifting capacity of 25 tonnes and a reach of up to 10.60 meters, this telehandler is ideal for construction sites, warehouses, and agricultural operations. Its 211 hp engine and hydrostatic transmission provide exceptional performance, while the 4-wheel drive and steering ensure stability and maneuverability on any terrain. The MHT-X 11250 offers a range of attachments, including forks, winches, and man baskets, enhancing its functionality. The panoramic, ergonomic cab with Easy Step access, JSM joystick, and touch-screen display offer maximum comfort and ease of operation, making it an excellent choice for operators seeking efficiency and safety in challenging environments.

Product Description

The Manitou MHT-X 11250 ST3A Telehandler is a powerful, versatile machine designed for heavy-duty li...

View the full brochure

Manitou MHT-X 11250 ST3A Telehandler Comparison with Similar Telehandler

Manitou MHT-X 11250 ST3A Telehandler

Manitou MHT-X 11250 ST3A Telehandler

Get Latest Price
Rating
4.4

Engine Brand

Yanmar

Engine Model

4TN107TT-6SMU2

Engine Power

211HP

Max Torque

805Nm

Rated Speed

1500rpm

Displacement

4.567L

Fuel Tank Capacity

315L

Hydraulic Oil Capacity

-

Engine Cooling System

Water

Transmission Type

Hydrostatic

Number Of Gears (f/r)

2 / 2

Torque Converter Stall Ratio

-

Max Travel Speed

25km/h

Service Brake Type

Oil-immersed multi-discs

Parking Brake Type

Automatic negative parking brake

Steering Type

2WS, 4WS, Crab modem

Oscillation Angle

-

Operating Weight

32.95Ton

Max Lifting Capacity

24999kg

Lift Capacity At Full Height

-

Lift Capacity At Full Reach

-

Load Center

900mm

Hydraulic Flow Rate

286L/min

Hydraulic Pressure

350bar

Hydraulic Pump Type

Variable displacement pump

Max Lift Height

10.60 m

Max Forward Reach

6m

Frame Levelling Angle

10°

Boom Raise / Lower Time

-

Boom Extend / Retract Time

-

Tilt Angle (up / Down)

10 / 106°

Drawbar Pull

20400daN

Gradeability (laden)

31.5%

Overall Length

8.92m

Overall Width

2.80m

Overall Height

3.07m

Wheelbase

4.10m

Ground Clearance

470mm

Battery Voltage

12

Tyres

18.00 R25

Fork Dimensions

1800 x 220 x 100mm

Cab Certification

ROPS - FOPS Level 2

Controls

JSM

Seat

-

Noise Level At Operator

-

Noise To Environment (lwa)

109dB

Currently Viewing
Manitou MT-X 733 Mining Telehandler

Manitou MT-X 733 Mining Telehandler

Get Latest Price
Rating
4.4

Engine Brand

Perkins

Engine Model

1104D-44 T

Engine Power

95HP

Max Torque

392Nm

Rated Speed

-

Displacement

4.4L

Fuel Tank Capacity

120L

Hydraulic Oil Capacity

128L

Engine Cooling System

-

Transmission Type

Torque converter

Number Of Gears (f/r)

3 / 3

Torque Converter Stall Ratio

-

Max Travel Speed

15km/h

Service Brake Type

Oil-immersed multi-discs (front & rear axles)

Parking Brake Type

Manual

Steering Type

2 / 2 (front/rear)m

Oscillation Angle

-

Operating Weight

6.62Ton

Max Lifting Capacity

3300kg

Lift Capacity At Full Height

-

Lift Capacity At Full Reach

-

Load Center

-

Hydraulic Flow Rate

104L/min

Hydraulic Pressure

250bar

Hydraulic Pump Type

Gear pump

Max Lift Height

6.90m

Max Forward Reach

3.90m

Frame Levelling Angle

-

Boom Raise / Lower Time

7.20 / 5.50sec

Boom Extend / Retract Time

6.50 / 5.40sec

Tilt Angle (up / Down)

12 / 114°

Drawbar Pull

9000daN

Gradeability (laden)

-

Overall Length

4.74m

Overall Width

2.26m

Overall Height

2.30m

Wheelbase

2.81m

Ground Clearance

450mm

Battery Voltage

-

Tyres

Alliance 400/80 - 24 - 162A8

Fork Dimensions

1200 x 125 x 45mm

Cab Certification

Standard EN 15000 / ROPS - FOPS level 2

Controls

JSM

Seat

-

Noise Level At Operator

78dB

Noise To Environment (lwa)

104dB

Manitou MHT-X 10160 ST3A Telehandler

Manitou MHT-X 10160 ST3A Telehandler

Get Latest Price
Rating
4.4

Engine Brand

Yanmar

Engine Model

4TN107TT-6SMU1

Engine Power

173HP

Max Torque

805Nm

Rated Speed

1500rpm

Displacement

4.567L

Fuel Tank Capacity

315L

Hydraulic Oil Capacity

-

Engine Cooling System

Water

Transmission Type

Hydrostatic

Number Of Gears (f/r)

2 / 2

Torque Converter Stall Ratio

-

Max Travel Speed

30km/h

Service Brake Type

Oil-immersed multi-discs

Parking Brake Type

Automatic negative parking brake

Steering Type

2WS / 4WS / Crabm

Oscillation Angle

-

Operating Weight

21.5Ton

Max Lifting Capacity

16000kg

Lift Capacity At Full Height

-

Lift Capacity At Full Reach

-

Load Center

600mm

Hydraulic Flow Rate

185L/min

Hydraulic Pressure

350bar

Hydraulic Pump Type

Variable displacement pump

Max Lift Height

9.60m

Max Forward Reach

5.20m

Frame Levelling Angle

9°

Boom Raise / Lower Time

-

Boom Extend / Retract Time

-

Tilt Angle (up / Down)

12 / 104°

Drawbar Pull

11770daN

Gradeability (laden)

32.4%

Overall Length

7.35m

Overall Width

2.48m

Overall Height

2.99m

Wheelbase

3.37m

Ground Clearance

430mm

Battery Voltage

12

Tyres

17.5-R25

Fork Dimensions

1200 x 180 x 75mm

Cab Certification

ROPS - FOPS level 2

Controls

JSM

Seat

-

Noise Level At Operator

75dB

Noise To Environment (lwa)

108dB

Manitou MRT-X 3570 Telehandler

Manitou MRT-X 3570 Telehandler

Get Latest Price
Rating
4.4

Engine Brand

Yanmar

Engine Model

4TN107FTT-6SMU2

Engine Power

211HP

Max Torque

805Nm

Rated Speed

1500rpm

Displacement

4.567L

Fuel Tank Capacity

131L

Hydraulic Oil Capacity

-

Engine Cooling System

Water cooled

Transmission Type

Hydrostatic with CVT

Number Of Gears (f/r)

Speedshift

Torque Converter Stall Ratio

-

Max Travel Speed

40km/h

Service Brake Type

Oil-immersed multi-discs on front & rear axles

Parking Brake Type

Automatic negative parking brake

Steering Type

2 wheel, 4 wheel, Crab modem

Oscillation Angle

5.06°

Operating Weight

23.8Ton

Max Lifting Capacity

7000kg

Lift Capacity At Full Height

-

Lift Capacity At Full Reach

-

Load Center

-

Hydraulic Flow Rate

172L/min

Hydraulic Pressure

350bar

Hydraulic Pump Type

Variable displacement pump

Max Lift Height

34.7m

Max Forward Reach

28m

Frame Levelling Angle

±8°

Boom Raise / Lower Time

-

Boom Extend / Retract Time

-

Tilt Angle (up / Down)

13 / 108°

Drawbar Pull

9300daN

Gradeability (laden)

29%

Overall Length

10.06m

Overall Width

2.50m

Overall Height

3.26m

Wheelbase

3.75m

Ground Clearance

440mm

Battery Voltage

12 V

Tyres

17.5-R25

Fork Dimensions

1200 x 125 x 60mm

Cab Certification

ROPS-FOPS level 2

Controls

2 Joysticks

Seat

-

Noise Level At Operator

68dB

Noise To Environment (lwa)

109dB

JCB 530-110 Telehandler

JCB 530-110 Telehandler

Get Latest Price
Rating
4.4

Engine Brand

-

Engine Model

-

Engine Power

-

Max Torque

-

Rated Speed

-

Displacement

-

Fuel Tank Capacity

-

Hydraulic Oil Capacity

-

Engine Cooling System

-

Transmission Type

-

Number Of Gears (f/r)

-

Torque Converter Stall Ratio

-

Max Travel Speed

-

Service Brake Type

-

Parking Brake Type

-

Steering Type

-

Oscillation Angle

-

Operating Weight

-

Max Lifting Capacity

3,000 kg

Lift Capacity At Full Height

3,000kg

Lift Capacity At Full Reach

1,400kg

Load Center

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Hydraulic Pump Type

-

Max Lift Height

11m

Max Forward Reach

7.46m

Frame Levelling Angle

-

Boom Raise / Lower Time

-

Boom Extend / Retract Time

-

Tilt Angle (up / Down)

-

Drawbar Pull

-

Gradeability (laden)

-

Overall Length

-

Overall Width

-

Overall Height

2.6m

Wheelbase

-

Ground Clearance

-

Battery Voltage

-

Tyres

-

Fork Dimensions

-

Cab Certification

-

Controls

-

Seat

-

Noise Level At Operator

-

Noise To Environment (lwa)

-
