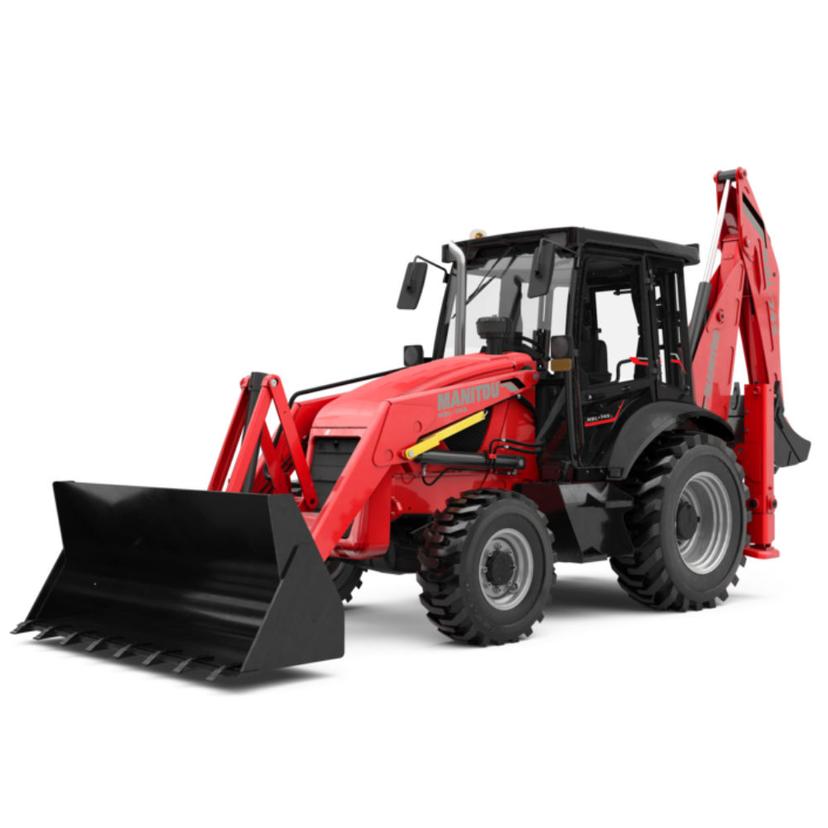

Manitou MBL 745S Backhoe Loader
The Manitou MBL 745S Backhoe Loader is a versatile and high-performance machine designed for various construction and landscaping applications. With a robust Koel 4R1190NA1 naturally aspirated engine delivering 54.8 kW power at 2200 RPM and a maximum torque of 300 Nm, it ensures reliable performance. The backhoe offers a maximum digging depth of 4741 mm and a bucket capacity of 0.27 m³, making it ideal for trenching and excavation. Its loader bucket, with a 1 m³ capacity, is perfect for material handling, while the hydraulic lift capacity of 1460 kg supports heavy-duty lifting. The machine features excellent maneuverability with a turning radius of 3.3 m (braked) and a travel speed of up to 40 km/h. Built with efficiency and durability in mind, it’s the perfect choice for demanding job sites.
Manitou MBL 745S Backhoe Loader
The Manitou MBL 745S Backhoe Loader is a versatile and high-performance machine designed for various construction and landscaping applications. With a robust Koel 4R1190NA1 naturally aspirated engine delivering 54.8 kW power at 2200 RPM and a maximum torque of 300 Nm, it ensures reliable performance. The backhoe offers a maximum digging depth of 4741 mm and a bucket capacity of 0.27 m³, making it ideal for trenching and excavation. Its loader bucket, with a 1 m³ capacity, is perfect for material handling, while the hydraulic lift capacity of 1460 kg supports heavy-duty lifting. The machine features excellent maneuverability with a turning radius of 3.3 m (braked) and a travel speed of up to 40 km/h. Built with efficiency and durability in mind, it’s the perfect choice for demanding job sites.
Product Description
The Manitou MBL 745S Backhoe Loader is a versatile and high-performance machine designed for various...
View the full brochure
Manitou MBL 745S Backhoe Loader Comparison with Similar Backhoe Loader

Manitou MBL 745S Backhoe Loader
Engine Brand
Koel
Engine Model
4R1190NA1 Naturally Aspirated Water Cooled BS IV CEV
Engine Power
73HP
Max Torque
300Nm
Rated Speed
2200 rpm
Displacement
4.76 L
Fuel Tank Capacity
120 L
Transmission Type
Carraro
Number Of Gears (forward/reverse)
4 / 4
Torque Converter Stall Ratio
2.64:1
Max Travel Speed
40km/h
Service Brake Type
wet disc brakes
Parking Brake Type
mechanical or hydraulic disc
Steering Type
power steering
Steering Angle
-
Oscillation Angle
20°°
Turning Radius (braked)
3.30 m
Turning Radius (unbraked)
4.30 m
Operating Weight
7.4Ton
Max Lifting Capacity
3467kg
Hydraulic Flow Rate
119 L/min
Hydraulic Pressure
225Bar
Max Digging Depth
4.7m
Max Reach At Ground
5.73 m
Max Reach At Full Height
7.10 m
Max Loading Height
3.87m
Bucket Capacity
0.27 m³
Bucket Breakout Force
5810 kgf
Dipper Breakout Force
3942 kgf
Max Dump Height
2.78 m
Max Load Over Height
3.31m
Max Hinge Pin Height
3.57m
Loader Bucket Capacity
1 m³
Loader Arm Breakout Force
4691kgf
Shovel Breakout Force
5229 kgf
Overall Length
7.33m
Overall Width
2.330 m
Overall Height
3.790 m
Ground Clearance
280mm
Power Steering
yes
Battery Voltage
12 VV
Front Axle Oscillation
20°.°
Standard Tyres (front/rear)
( 12/12 )

Kubota BLX 75 Backhoe Loader
Engine Brand
Escorts Kubota
Engine Model
BLX75
Engine Power
75HP
Max Torque
350Nm
Rated Speed
2000rpm
Displacement
-
Fuel Tank Capacity
134L
Transmission Type
Syncro shift reversing shuttle
Number Of Gears (forward/reverse)
4F/4R
Torque Converter Stall Ratio
-
Max Travel Speed
36.0km/h
Service Brake Type
Hydraulically actuated, oil-immersed multi-disc
Parking Brake Type
Hand-operated caliper disc
Steering Type
Hydrostatic power steering
Steering Angle
-
Oscillation Angle
12°
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
7.7Ton
Max Lifting Capacity
1554kg
Hydraulic Flow Rate
118L/min
Hydraulic Pressure
225Bar
Max Digging Depth
4.7m
Max Reach At Ground
6.9m
Max Reach At Full Height
1.85m
Max Loading Height
4.28m
Bucket Capacity
0.26m³
Bucket Breakout Force
6450kgf
Dipper Breakout Force
3200kgf
Max Dump Height
2.8m
Max Load Over Height
3.45m
Max Hinge Pin Height
3.6m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
5350kgf
Shovel Breakout Force
5850kgf
Overall Length
6.2m
Overall Width
2.45m
Overall Height
3.7m
Ground Clearance
360mm
Power Steering
Yes
Battery Voltage
12V / 150AhV
Front Axle Oscillation
12°
Standard Tyres (front/rear)
12.5x18-12PR / 16.9x28-12PR

CAT 424-2 Backhoe Loader
Engine Brand
CAT
Engine Model
C3.6
Engine Power
75HP
Max Torque
424Nm
Rated Speed
2200 rpm
Displacement
-
Fuel Tank Capacity
-
Transmission Type
Variable Displacement Pump
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
37km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
7.98 Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
132L/min
Hydraulic Pressure
-
Max Digging Depth
4.729m
Max Reach At Ground
5.612m
Max Reach At Full Height
-
Max Loading Height
4.015m
Bucket Capacity
1.05m³
Bucket Breakout Force
5,730kgf
Dipper Breakout Force
3,570kgf
Max Dump Height
2.794m
Max Load Over Height
-
Max Hinge Pin Height
-
Loader Bucket Capacity
1.05m³
Loader Arm Breakout Force
5,390kgf
Shovel Breakout Force
5,370kgf
Overall Length
5.708m
Overall Width
2.346m
Overall Height
2.346m
Ground Clearance
-
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-

Preet 4R1040Ta2 Backhoe Loader
Engine Brand
Preet
Engine Model
4R1040Ta2
Engine Power
96.7HP
Max Torque
416Nm
Rated Speed
2200rpm
Displacement
4.156L
Fuel Tank Capacity
150L
Transmission Type
4F-2R Manual Power shift
Number Of Gears (forward/reverse)
4/4
Torque Converter Stall Ratio
-
Max Travel Speed
36.8km/h
Service Brake Type
Hyd. Actuated, Dual line oil immersed multi disc type wet brakes
Parking Brake Type
Axle Mounted Spring Applied Hydraulic Release (SAHR)
Steering Type
Front wheel power steering
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
8.5m
Turning Radius (unbraked)
8.8m
Operating Weight
7.845Ton
Max Lifting Capacity
1800kg
Hydraulic Flow Rate
156L/min
Hydraulic Pressure
270Bar
Max Digging Depth
4.07m
Max Reach At Ground
5.4m
Max Reach At Full Height
-
Max Loading Height
4.30m
Bucket Capacity
0.26m³
Bucket Breakout Force
5700kgf
Dipper Breakout Force
3010kgf
Max Dump Height
2.85m
Max Load Over Height
3.33m
Max Hinge Pin Height
3.51m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
5300kgf
Shovel Breakout Force
5250kgf
Overall Length
6.0m
Overall Width
2.2m
Overall Height
3.65m
Ground Clearance
440mm
Power Steering
-
Battery Voltage
12V
Front Axle Oscillation
-
Standard Tyres (front/rear)
12.5 x 80-18 12 PR / 14.5 x 25 -20 PR

Manitou MBL 745 HT Backhoe Loader
Engine Brand
Koel
Engine Model
4R1190TA-H.T Turbo Charged Water Cooled BS IV
Engine Power
74HP
Max Torque
400 NmNm
Rated Speed
2200 rpmrpm
Displacement
4.76 L
Fuel Tank Capacity
120 L
Transmission Type
Carraro
Number Of Gears (forward/reverse)
4 / 4
Torque Converter Stall Ratio
2.64:1
Max Travel Speed
40km/h
Service Brake Type
Wet disc brakes
Parking Brake Type
hydraulic-actuated wet disc brake
Steering Type
Power Steering
Steering Angle
16°°
Oscillation Angle
16°°
Turning Radius (braked)
5 mm
Turning Radius (unbraked)
5.70 mm
Operating Weight
7.91 Ton
Max Lifting Capacity
3467 kgkg
Hydraulic Flow Rate
119 L/min
Hydraulic Pressure
225Bar
Max Digging Depth
4.741m
Max Reach At Ground
5 m
Max Reach At Full Height
0.71 mm
Max Loading Height
3.87m
Bucket Capacity
0.27 m³
Bucket Breakout Force
5810kgf
Dipper Breakout Force
3942kgf
Max Dump Height
2.78m
Max Load Over Height
3.57m
Max Hinge Pin Height
3.57m
Loader Bucket Capacity
1 m³ m³
Loader Arm Breakout Force
4691kgf
Shovel Breakout Force
5229kgf
Overall Length
7.33 m
Overall Width
2.33 m
Overall Height
3.79 m
Ground Clearance
280 mmmm
Power Steering
Yes
Battery Voltage
12 V
Front Axle Oscillation
16 °°
Standard Tyres (front/rear)
12.5 x 18 - 12 PR / 16.9 x 28-12PR
