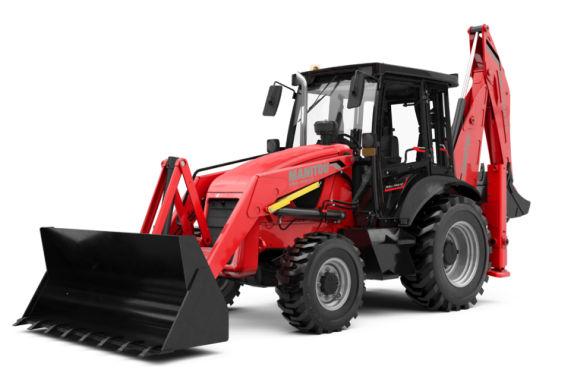

Manitou MBL 745HT+ Backhoe Loader
Krisha Equipment
Gujarat
The Manitou MBL745HT+ Backhoe Loader is a versatile and powerful construction machine designed for a wide range of applications. With a turbocharged 4.76L Koel engine producing 54.8 kW of power, this loader delivers exceptional performance for heavy-duty tasks. It features a 1 m³ loader bucket and a 0.27 m³ backhoe bucket, capable of handling demanding excavation and lifting operations. The machine’s hydraulic flow of 143 l/min ensures efficient digging, while the maximum digging depth of 4741 mm and a maximum reach of 5730 mm offer impressive versatility. Built with a 4WD system, it ensures high maneuverability and stability across various terrains. Whether it’s for road construction, material handling, or digging trenches, the Manitou MBL745HT+ is the perfect choice for tackling tough construction challenges with ease and efficiency.
Manitou MBL 745HT+ Backhoe Loader
Krisha Equipment
Gujarat
The Manitou MBL745HT+ Backhoe Loader is a versatile and powerful construction machine designed for a wide range of applications. With a turbocharged 4.76L Koel engine producing 54.8 kW of power, this loader delivers exceptional performance for heavy-duty tasks. It features a 1 m³ loader bucket and a 0.27 m³ backhoe bucket, capable of handling demanding excavation and lifting operations. The machine’s hydraulic flow of 143 l/min ensures efficient digging, while the maximum digging depth of 4741 mm and a maximum reach of 5730 mm offer impressive versatility. Built with a 4WD system, it ensures high maneuverability and stability across various terrains. Whether it’s for road construction, material handling, or digging trenches, the Manitou MBL745HT+ is the perfect choice for tackling tough construction challenges with ease and efficiency.
Product Description
The Manitou MBL745HT+ Backhoe Loader is a versatile and powerful construction machine designed for a...
View the full brochure
Manitou MBL 745HT+ Backhoe Loader Comparison with Similar Backhoe Loader
Manitou MBL 745HT+ Backhoe Loader
Parking Brake Type
-
Steering Type
power steering
Steering Angle
20 °°
Oscillation Angle
16 °°
Turning Radius (braked)
5.55 m
Turning Radius (unbraked)
4.30m
Operating Weight
7.62Ton
Max Lifting Capacity
3467kg
Hydraulic Flow Rate
143L/min
Hydraulic Pressure
225 Bar
Max Digging Depth
4.741m
Max Reach At Ground
5.73m
Max Reach At Full Height
0.71 m
Max Loading Height
3.871m
Bucket Capacity
0.27m³
Bucket Breakout Force
5229kgf
Dipper Breakout Force
3942kgf
Max Dump Height
2.78m
Max Load Over Height
3.31 m
Max Hinge Pin Height
3.57 m
Loader Bucket Capacity
1 m³m³
Loader Arm Breakout Force
4691kgf
Shovel Breakout Force
5229kgf
Overall Length
7.33 m
Overall Width
2.33m
Overall Height
3.79m
Ground Clearance
280 mmmm
Power Steering
Yes
Battery Voltage
12 VV
Front Axle Oscillation
20 °°
Standard Tyres (front/rear)
12.5 x 18 - 12 PR / 16.9 x 28-12PR
Engine Brand
Koel
Engine Model
4R1190TA-H.T Turbo Charged Water Cooled BS IV CEV
Engine Power
73HP
Max Torque
400 Nm
Rated Speed
2200rpm
Displacement
4.76L
Fuel Tank Capacity
120 L
Transmission Type
Carraro
Number Of Gears (forward/reverse)
4 / 4
Torque Converter Stall Ratio
2.64:1
Max Travel Speed
40km/h
Service Brake Type
Wet disc brakes
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
CAT 424-2 Backhoe Loader
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
7.98 Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
132L/min
Hydraulic Pressure
-
Max Digging Depth
4.729m
Max Reach At Ground
5.612m
Max Reach At Full Height
-
Max Loading Height
4.015m
Bucket Capacity
1.05m³
Bucket Breakout Force
5,730kgf
Dipper Breakout Force
3,570kgf
Max Dump Height
2.794m
Max Load Over Height
-
Max Hinge Pin Height
-
Loader Bucket Capacity
1.05m³
Loader Arm Breakout Force
5,390kgf
Shovel Breakout Force
5,370kgf
Overall Length
5.708m
Overall Width
2.346m
Overall Height
2.346m
Ground Clearance
-
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Engine Brand
CAT
Engine Model
C3.6
Engine Power
75HP
Max Torque
424Nm
Rated Speed
2200 rpm
Displacement
-
Fuel Tank Capacity
-
Transmission Type
Variable Displacement Pump
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
37km/h
Service Brake Type
-
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
CASE 770EX Backhoe Loader
Parking Brake Type
Mechanically actuated caliper type brake pack on rear axle input shaft
Steering Type
Power Steering
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
9.2m
Turning Radius (unbraked)
11.1m
Operating Weight
7.78Ton
Max Lifting Capacity
3515kg
Hydraulic Flow Rate
126L/min
Hydraulic Pressure
195Bar
Max Digging Depth
4.40m
Max Reach At Ground
5.625m
Max Reach At Full Height
2.15m
Max Loading Height
3.8m
Bucket Capacity
0.26m³
Bucket Breakout Force
5206kgf
Dipper Breakout Force
3031kgf
Max Dump Height
2.73m
Max Load Over Height
3.3m
Max Hinge Pin Height
3.60m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
4750kgf
Shovel Breakout Force
-
Overall Length
5.88m
Overall Width
2.27m
Overall Height
3.85m
Ground Clearance
380mm
Power Steering
Yes
Battery Voltage
12V
Front Axle Oscillation
21°
Standard Tyres (front/rear)
Front: 9x16 -16PR / Rear: 16.9x28 -12PR
Engine Brand
Ashok Leyland
Engine Model
H4C4E7422*W
Engine Power
74HP
Max Torque
340Nm
Rated Speed
2200rpm
Displacement
3.84L
Fuel Tank Capacity
129L
Transmission Type
4F-4R Power Shuttle Synchromesh Transmission
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
34.1km/h
Service Brake Type
Hydraulic foot operated, 2 disc per side
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
Bull HD96 4WD Backhoe Loader
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
8.15Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
134L/min
Hydraulic Pressure
240Bar
Max Digging Depth
-
Max Reach At Ground
-
Max Reach At Full Height
1.42 / 1.28m
Max Loading Height
-
Bucket Capacity
1.1m³
Bucket Breakout Force
-
Dipper Breakout Force
-
Max Dump Height
2.93 / 2.96m
Max Load Over Height
-
Max Hinge Pin Height
3.61m
Loader Bucket Capacity
-
Loader Arm Breakout Force
5251kgf
Shovel Breakout Force
-
Overall Length
6.04m
Overall Width
2.35m
Overall Height
3.71m
Ground Clearance
480mm
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Engine Brand
KIRLOSKAR
Engine Model
4R 1040 T EU STAGE II (Diesel)
Engine Power
96HP
Max Torque
377Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
115 / 150L
Transmission Type
CARRARO synchroshuttle
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
40km/h
Service Brake Type
-
Emission Standard
Stage II
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
125L
Reach At Ground Level
1.60 / 1.47m
Dump Angle
45°
Lift Path
-
Wheelbase
2.22m
Turning Radius
8.8 / 11.6m
ESCORTS DIGMAX II Backhoe Loader
Parking Brake Type
Hand-operated caliper disc brakes
Steering Type
Hydrostatic power steering
Steering Angle
-
Oscillation Angle
16°
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
8.19Ton
Max Lifting Capacity
1980kg
Hydraulic Flow Rate
117.5L/min
Hydraulic Pressure
225Bar
Max Digging Depth
4.80m
Max Reach At Ground
6.97m
Max Reach At Full Height
1.22m
Max Loading Height
-
Bucket Capacity
0.26m³
Bucket Breakout Force
6425kgf
Dipper Breakout Force
6174kgf
Max Dump Height
3.00m
Max Load Over Height
3.51m
Max Hinge Pin Height
3.70m
Loader Bucket Capacity
1.2 m³
Loader Arm Breakout Force
5777kgf
Shovel Breakout Force
-
Overall Length
6.28m
Overall Width
-
Overall Height
3.78m
Ground Clearance
0.35mm
Power Steering
yes
Battery Voltage
-
Front Axle Oscillation
16°
Standard Tyres (front/rear)
9.00 x 16 - 16PR / 16.9 x 28 - 12PR
Engine Brand
Kirloskar
Engine Model
4R1190NA
Engine Power
75 HP
Max Torque
300 Nm
Rated Speed
-
Displacement
-
Fuel Tank Capacity
134L
Transmission Type
Syncro shift reversing shuttle
Number Of Gears (forward/reverse)
(4F/ 4R )
Torque Converter Stall Ratio
-
Max Travel Speed
36.6km/h
Service Brake Type
Hydraulically actuated dual line, self adjusting, oil immersed, multi disc type
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
