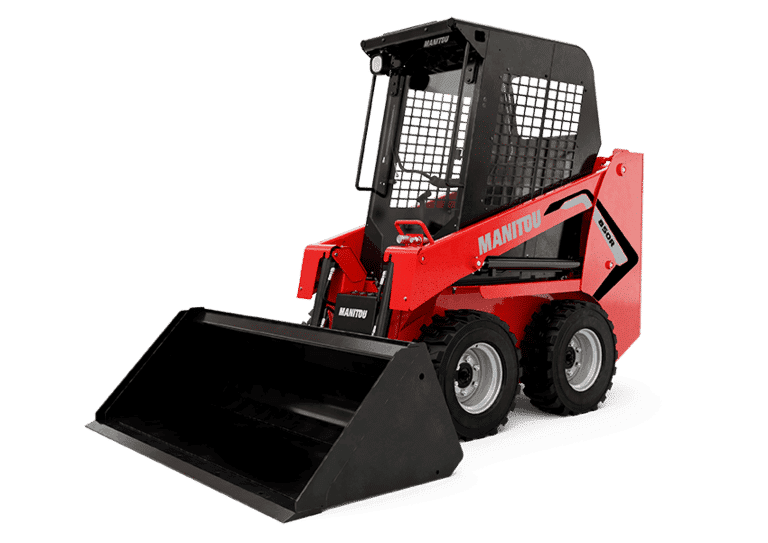

Manitou 1350R NXT2 Skid Steer Loader
The Manitou 1350R NXT2 Skid Steer Loader is a compact, high-performance machine built for tight spaces and tough jobs. With a rated operating capacity of 612 kg, it’s ideal for lifting, transporting, and loading heavy materials on construction sites, farms, and warehouses. Its overall operating height of 3670 mm and dump reach of 584 mm allow efficient loading into trucks and containers, while the 3076 mm overall length with bucket makes it easy to maneuver in confined areas. This skid steer loader delivers strong performance, versatility, and reliability in a compact frame—making it perfect for landscaping, material handling, debris removal, and general site maintenance. Whether you're working in urban zones or rural areas, the 1350R NXT2 ensures productivity and control where it matters most.
Manitou 1350R NXT2 Skid Steer Loader
The Manitou 1350R NXT2 Skid Steer Loader is a compact, high-performance machine built for tight spaces and tough jobs. With a rated operating capacity of 612 kg, it’s ideal for lifting, transporting, and loading heavy materials on construction sites, farms, and warehouses. Its overall operating height of 3670 mm and dump reach of 584 mm allow efficient loading into trucks and containers, while the 3076 mm overall length with bucket makes it easy to maneuver in confined areas. This skid steer loader delivers strong performance, versatility, and reliability in a compact frame—making it perfect for landscaping, material handling, debris removal, and general site maintenance. Whether you're working in urban zones or rural areas, the 1350R NXT2 ensures productivity and control where it matters most.
Product Description
The Manitou 1350R NXT2 Skid Steer Loader is a compact, high-performance machine built for tight spac...
View the full brochure
Manitou 1350R NXT2 Skid Steer Loader Comparison with Similar Skid Steer Loader

Manitou 1350R NXT2 Skid Steer Loader
Engine Brand
Yanmar
Engine Model
4TNV88C-KMS
Engine Power
46HP
Max Torque
146.2Nm
Rated Speed
2800rpm
Fuel Tank Capacity
59.40L
Emission Standard
Stage V, Tier 4
Transmission Type
-
Max Travel Speed
12.90 km/h
Operating Weight
2.384Ton
Rated Operating Capacity
612kg
Rated Operating Capacity (optional)
680kg
Max Tipping Load
-
Hydraulic Flow Rate
63.6L/min
Hydraulic Pressure
207Bar
Hydraulic System Capacity
34.8L
Max Dump Height
2.123m
Max Hinge Pin Height
2.794m
Max Reach At Full Height
0.584m
Reach At Ground Level
-
Bucket Capacity
-
Loader Arm Breakout Force
-
Dump Angle
40 °
Lift Path
-
Overall Length
3.076m
Overall Width
1.364m
Overall Height
1.930m
Wheelbase
0.950m
Ground Clearance
203mm
Turning Radius
1.842m

Gamzen 5050 Skid Steer Loader
Engine Brand
Hyundai/Cummins
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
-
Emission Standard
-
Transmission Type
-
Max Travel Speed
11.0km/h
Operating Weight
2.88Ton
Rated Operating Capacity
850kg
Rated Operating Capacity (optional)
-
Max Tipping Load
1680kg
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Hydraulic System Capacity
-
Max Dump Height
2.236m
Max Hinge Pin Height
2.87m
Max Reach At Full Height
0.686m
Reach At Ground Level
-
Bucket Capacity
0.5m³
Loader Arm Breakout Force
-
Dump Angle
42°
Lift Path
-
Overall Length
3.27m
Overall Width
1.69m
Overall Height
2.025m
Wheelbase
1.045m
Ground Clearance
203mm
Turning Radius
1.858m

Gamzen 5050 Ex Skid Steer Loader
Engine Brand
Hyundai/Cummins
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
-
Emission Standard
-
Transmission Type
-
Max Travel Speed
11.0km/h
Operating Weight
2.954194Ton
Rated Operating Capacity
-
Rated Operating Capacity (optional)
730kg
Max Tipping Load
1680kg
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Hydraulic System Capacity
-
Max Dump Height
3.274m
Max Hinge Pin Height
-
Max Reach At Full Height
-
Reach At Ground Level
0.817m
Bucket Capacity
0.5m³
Loader Arm Breakout Force
-
Dump Angle
42°
Lift Path
-
Overall Length
3.519m
Overall Width
1.69m
Overall Height
2.027m
Wheelbase
1.045m
Ground Clearance
174mm
Turning Radius
1.956m

Gamzen 8080 Skid Steer Loader
Engine Brand
Cummins
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
-
Emission Standard
-
Transmission Type
-
Max Travel Speed
11.5km/h
Operating Weight
3.32Ton
Rated Operating Capacity
1140kg
Rated Operating Capacity (optional)
-
Max Tipping Load
2280kg
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Hydraulic System Capacity
-
Max Dump Height
2.632m
Max Hinge Pin Height
3.225m
Max Reach At Full Height
0.544m
Reach At Ground Level
-
Bucket Capacity
0.7m³
Loader Arm Breakout Force
-
Dump Angle
38°
Lift Path
-
Overall Length
3.509m
Overall Width
1.805m
Overall Height
2.055m
Wheelbase
1.181m
Ground Clearance
195mm
Turning Radius
2.128m

CAT 216B Skid Steer Loader
Engine Brand
CAT
Engine Model
CAT C2.2
Engine Power
51HP
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
58L
Emission Standard
-
Transmission Type
-
Max Travel Speed
12.7km/h
Operating Weight
2.581Ton
Rated Operating Capacity
635kg
Rated Operating Capacity (optional)
-
Max Tipping Load
1270kg
Hydraulic Flow Rate
61L/min
Hydraulic Pressure
230Bar
Hydraulic System Capacity
55L
Max Dump Height
2.169m
Max Hinge Pin Height
2.854m
Max Reach At Full Height
0.505m
Reach At Ground Level
1.291m
Bucket Capacity
-
Loader Arm Breakout Force
1852kgf
Dump Angle
40°
Lift Path
-
Overall Length
3.233m
Overall Width
1.525m
Overall Height
1.950m
Wheelbase
0.986m
Ground Clearance
195mm
Turning Radius
1.944m
