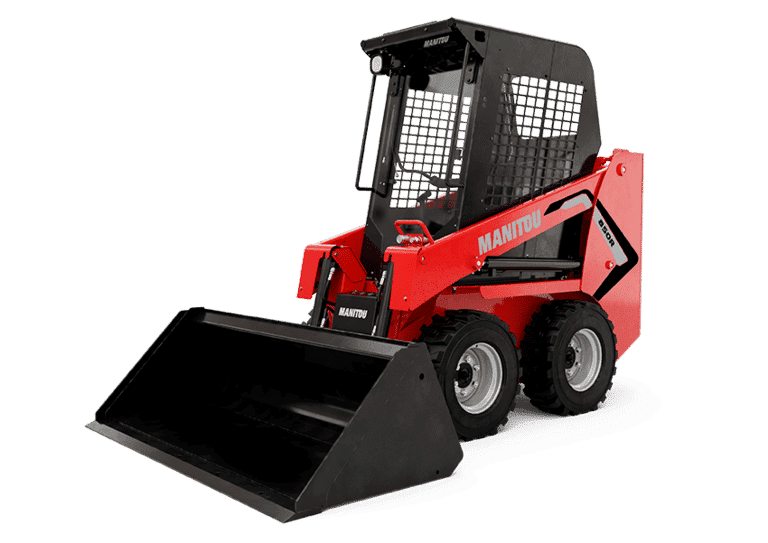

Manitou 1340R Skid Steer Loader
The Manitou 1340R Skid Steer Loader is a compact and powerful machine designed for demanding tasks on farms and construction sites. Its small size and excellent maneuverability make it perfect for working in tight, confined spaces where larger equipment can’t reach. Built to handle all types of terrain—including rough, uneven, and muddy surfaces—the 1340R ensures reliable performance in any environment. This multi-functional loader is easy to operate, comfortable for the driver, and built with rugged strength for long-lasting durability. Whether you're moving materials, leveling ground, or working on demolition tasks, the 1340R gets the job done efficiently. Farmers and builders alike will appreciate its combination of power, precision, and versatility, making it an essential piece of equipment for daily operations.
Manitou 1340R Skid Steer Loader
The Manitou 1340R Skid Steer Loader is a compact and powerful machine designed for demanding tasks on farms and construction sites. Its small size and excellent maneuverability make it perfect for working in tight, confined spaces where larger equipment can’t reach. Built to handle all types of terrain—including rough, uneven, and muddy surfaces—the 1340R ensures reliable performance in any environment. This multi-functional loader is easy to operate, comfortable for the driver, and built with rugged strength for long-lasting durability. Whether you're moving materials, leveling ground, or working on demolition tasks, the 1340R gets the job done efficiently. Farmers and builders alike will appreciate its combination of power, precision, and versatility, making it an essential piece of equipment for daily operations.
Product Description
The Manitou 1340R Skid Steer Loader is a compact and powerful machine designed for demanding tasks o...
View the full brochure
Manitou 1340R Skid Steer Loader Comparison with Similar Skid Steer Loader

Manitou 1340R Skid Steer Loader
Engine Power
49HP
Engine Brand
Yanmar
Engine Model
4TNV88
Max Torque
142Nm
Rated Speed
1600rpm
Fuel Tank Capacity
47L
Emission Standard
BS-III
Transmission Type
Hydrostatic
Max Travel Speed
10.70km/h
Operating Weight
2.2Ton
Rated Operating Capacity
612kg
Rated Operating Capacity (optional)
-
Max Tipping Load
1224kg
Hydraulic Flow Rate
63.4L/min
Hydraulic Pressure
190Bar
Hydraulic System Capacity
30.3L
Max Dump Height
2.197m
Max Hinge Pin Height
2.794 m
Max Reach At Full Height
0.528m
Reach At Ground Level
-
Bucket Capacity
-
Loader Arm Breakout Force
-
Dump Angle
42°
Lift Path
-
Overall Length
2.952m
Overall Width
1.346m
Overall Height
1.826m
Wheelbase
0.923m
Ground Clearance
211mm
Turning Radius
1.758m

Gamzen 5050 Skid Steer Loader
Engine Power
-
Engine Brand
Hyundai/Cummins
Engine Model
-
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
-
Emission Standard
-
Transmission Type
-
Max Travel Speed
11.0km/h
Operating Weight
2.88Ton
Rated Operating Capacity
850kg
Rated Operating Capacity (optional)
-
Max Tipping Load
1680kg
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Hydraulic System Capacity
-
Max Dump Height
2.236m
Max Hinge Pin Height
2.87m
Max Reach At Full Height
0.686m
Reach At Ground Level
-
Bucket Capacity
0.5m³
Loader Arm Breakout Force
-
Dump Angle
42°
Lift Path
-
Overall Length
3.27m
Overall Width
1.69m
Overall Height
2.025m
Wheelbase
1.045m
Ground Clearance
203mm
Turning Radius
1.858m

Gamzen 5050 Ex Skid Steer Loader
Engine Power
-
Engine Brand
Hyundai/Cummins
Engine Model
-
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
-
Emission Standard
-
Transmission Type
-
Max Travel Speed
11.0km/h
Operating Weight
2.954194Ton
Rated Operating Capacity
-
Rated Operating Capacity (optional)
730kg
Max Tipping Load
1680kg
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Hydraulic System Capacity
-
Max Dump Height
3.274m
Max Hinge Pin Height
-
Max Reach At Full Height
-
Reach At Ground Level
0.817m
Bucket Capacity
0.5m³
Loader Arm Breakout Force
-
Dump Angle
42°
Lift Path
-
Overall Length
3.519m
Overall Width
1.69m
Overall Height
2.027m
Wheelbase
1.045m
Ground Clearance
174mm
Turning Radius
1.956m

Gamzen 8080 Skid Steer Loader
Engine Power
-
Engine Brand
Cummins
Engine Model
-
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
-
Emission Standard
-
Transmission Type
-
Max Travel Speed
11.5km/h
Operating Weight
3.32Ton
Rated Operating Capacity
1140kg
Rated Operating Capacity (optional)
-
Max Tipping Load
2280kg
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Hydraulic System Capacity
-
Max Dump Height
2.632m
Max Hinge Pin Height
3.225m
Max Reach At Full Height
0.544m
Reach At Ground Level
-
Bucket Capacity
0.7m³
Loader Arm Breakout Force
-
Dump Angle
38°
Lift Path
-
Overall Length
3.509m
Overall Width
1.805m
Overall Height
2.055m
Wheelbase
1.181m
Ground Clearance
195mm
Turning Radius
2.128m

CAT 216B Skid Steer Loader
Engine Power
51HP
Engine Brand
CAT
Engine Model
CAT C2.2
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
58L
Emission Standard
-
Transmission Type
-
Max Travel Speed
12.7km/h
Operating Weight
2.581Ton
Rated Operating Capacity
635kg
Rated Operating Capacity (optional)
-
Max Tipping Load
1270kg
Hydraulic Flow Rate
61L/min
Hydraulic Pressure
230Bar
Hydraulic System Capacity
55L
Max Dump Height
2.169m
Max Hinge Pin Height
2.854m
Max Reach At Full Height
0.505m
Reach At Ground Level
1.291m
Bucket Capacity
-
Loader Arm Breakout Force
1852kgf
Dump Angle
40°
Lift Path
-
Overall Length
3.233m
Overall Width
1.525m
Overall Height
1.950m
Wheelbase
0.986m
Ground Clearance
195mm
Turning Radius
1.944m
