Manitou 1050RT Skid Steer Loader
The Manitou 1050RT Skid Steer Loader is an ultra-compact yet powerful track loader designed to tackle tough terrain with ease. Equipped with IdealTrax™ automatic track tensioning, it performs efficiently on muddy, uneven, and rough ground. Its compact build makes it ideal for tight-space excavation, leveling, loading, and material transport. Whether you're working on construction, landscaping, or utility projects, this machine delivers exceptional control and performance. Easily switch between attachments in minutes to handle digging, grading, and lifting tasks with one versatile loader. With the 1050RT, you get power, flexibility, and durability in one compact solution—perfect for demanding job sites where space and reliability matter. Boost your productivity and get the job done faster with the Manitou 1050RT.
Manitou 1050RT Skid Steer Loader
The Manitou 1050RT Skid Steer Loader is an ultra-compact yet powerful track loader designed to tackle tough terrain with ease. Equipped with IdealTrax™ automatic track tensioning, it performs efficiently on muddy, uneven, and rough ground. Its compact build makes it ideal for tight-space excavation, leveling, loading, and material transport. Whether you're working on construction, landscaping, or utility projects, this machine delivers exceptional control and performance. Easily switch between attachments in minutes to handle digging, grading, and lifting tasks with one versatile loader. With the 1050RT, you get power, flexibility, and durability in one compact solution—perfect for demanding job sites where space and reliability matter. Boost your productivity and get the job done faster with the Manitou 1050RT.
Product Description
The Manitou 1050RT Skid Steer Loader is an ultra-compact yet powerful track loader designed to tackl...
View the full brochure
Manitou 1050RT Skid Steer Loader Comparison with Similar Skid Steer Loader

Manitou 1050RT Skid Steer Loader
Engine Brand
Yanmar
Engine Model
3TNV88C-KMSV
Engine Power
34.20HP
Bucket Capacity
-
Loader Arm Breakout Force
-
Dump Angle
38°
Lift Path
-
Overall Length
2.985m
Overall Width
1.290m
Overall Height
1.816m
Wheelbase
1.283m
Ground Clearance
0.191mm
Turning Radius
-
Max Torque
109.40Nm
Rated Speed
2800rpm
Fuel Tank Capacity
36L
Emission Standard
-
Transmission Type
-
Max Travel Speed
10.10km/h
Operating Weight
2.14Ton
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
1361kg
Hydraulic Flow Rate
55L/min
Hydraulic Pressure
-
Hydraulic System Capacity
30L
Max Dump Height
2.134m
Max Hinge Pin Height
2.769m
Max Reach At Full Height
-
Reach At Ground Level
-

Gamzen 5050 Skid Steer Loader
Engine Brand
Hyundai/Cummins
Engine Model
-
Engine Power
-
Bucket Capacity
0.5m³
Loader Arm Breakout Force
-
Dump Angle
42°
Lift Path
-
Overall Length
3.27m
Overall Width
1.69m
Overall Height
2.025m
Wheelbase
1.045m
Ground Clearance
203mm
Turning Radius
1.858m
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
-
Emission Standard
-
Transmission Type
-
Max Travel Speed
11.0km/h
Operating Weight
2.88Ton
Rated Operating Capacity
850kg
Rated Operating Capacity (optional)
-
Max Tipping Load
1680kg
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Hydraulic System Capacity
-
Max Dump Height
2.236m
Max Hinge Pin Height
2.87m
Max Reach At Full Height
0.686m
Reach At Ground Level
-

Gamzen 5050 Ex Skid Steer Loader
Engine Brand
Hyundai/Cummins
Engine Model
-
Engine Power
-
Bucket Capacity
0.5m³
Loader Arm Breakout Force
-
Dump Angle
42°
Lift Path
-
Overall Length
3.519m
Overall Width
1.69m
Overall Height
2.027m
Wheelbase
1.045m
Ground Clearance
174mm
Turning Radius
1.956m
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
-
Emission Standard
-
Transmission Type
-
Max Travel Speed
11.0km/h
Operating Weight
2.954194Ton
Rated Operating Capacity
-
Rated Operating Capacity (optional)
730kg
Max Tipping Load
1680kg
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Hydraulic System Capacity
-
Max Dump Height
3.274m
Max Hinge Pin Height
-
Max Reach At Full Height
-
Reach At Ground Level
0.817m

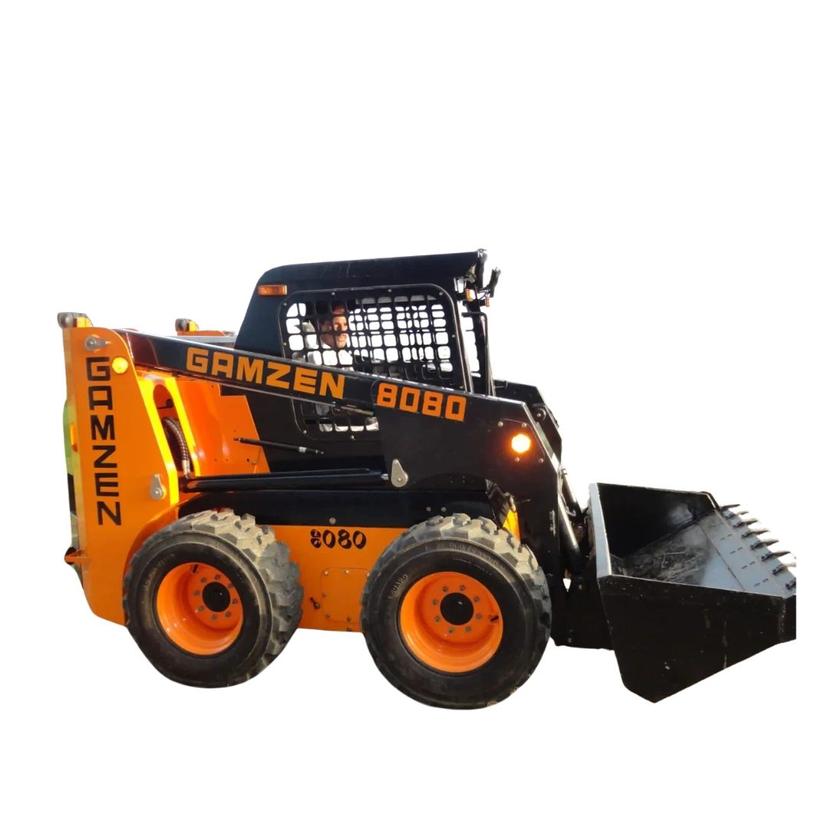

Gamzen 8080 Skid Steer Loader
Engine Brand
Cummins
Engine Model
-
Engine Power
-
Bucket Capacity
0.7m³
Loader Arm Breakout Force
-
Dump Angle
38°
Lift Path
-
Overall Length
3.509m
Overall Width
1.805m
Overall Height
2.055m
Wheelbase
1.181m
Ground Clearance
195mm
Turning Radius
2.128m
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
-
Emission Standard
-
Transmission Type
-
Max Travel Speed
11.5km/h
Operating Weight
3.32Ton
Rated Operating Capacity
1140kg
Rated Operating Capacity (optional)
-
Max Tipping Load
2280kg
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Hydraulic System Capacity
-
Max Dump Height
2.632m
Max Hinge Pin Height
3.225m
Max Reach At Full Height
0.544m
Reach At Ground Level
-

CAT 216B Skid Steer Loader
Engine Brand
CAT
Engine Model
CAT C2.2
Engine Power
51HP
Bucket Capacity
-
Loader Arm Breakout Force
1852kgf
Dump Angle
40°
Lift Path
-
Overall Length
3.233m
Overall Width
1.525m
Overall Height
1.950m
Wheelbase
0.986m
Ground Clearance
195mm
Turning Radius
1.944m
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
58L
Emission Standard
-
Transmission Type
-
Max Travel Speed
12.7km/h
Operating Weight
2.581Ton
Rated Operating Capacity
635kg
Rated Operating Capacity (optional)
-
Max Tipping Load
1270kg
Hydraulic Flow Rate
61L/min
Hydraulic Pressure
230Bar
Hydraulic System Capacity
55L
Max Dump Height
2.169m
Max Hinge Pin Height
2.854m
Max Reach At Full Height
0.505m
Reach At Ground Level
1.291m
