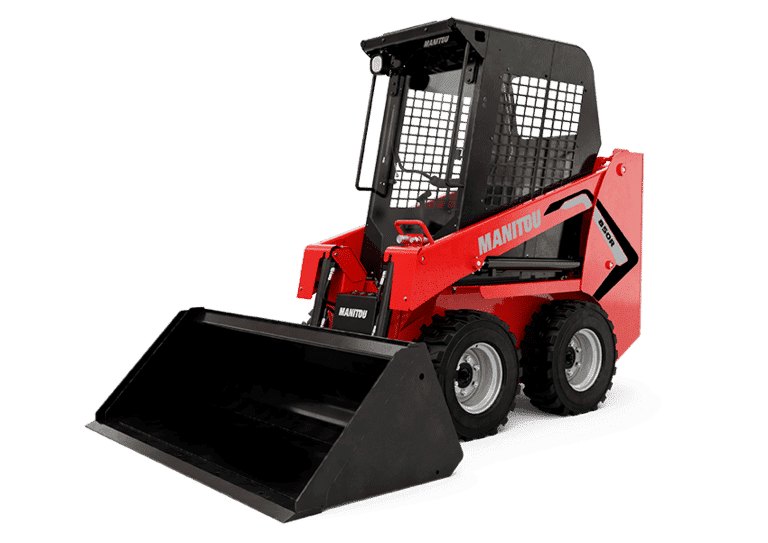

Manitou 1050R Skid Steer Loader
The Manitou 1050R Skid Steer Loader is your go-to solution for heavy-duty work in compact spaces. Designed with an ultra-compact frame and ergonomic controls, it’s perfect for jobs in tight construction sites, narrow alleys, or indoor areas. Whether you need to dig, grade, level, or transport materials, this loader delivers power, precision, and flexibility. With quick-attach functionality, switching between buckets, forks, or other tools takes just minutes—saving you time on every project. From landscaping and agricultural work to industrial handling and utility maintenance, the 1050R adapts to your needs effortlessly. Its durability, ease of use, and compact size make it a smart choice for professionals looking to maximize productivity without compromising on performance. The Manitou 1050R gets the job done—anywhere, anytime.
Manitou 1050R Skid Steer Loader
The Manitou 1050R Skid Steer Loader is your go-to solution for heavy-duty work in compact spaces. Designed with an ultra-compact frame and ergonomic controls, it’s perfect for jobs in tight construction sites, narrow alleys, or indoor areas. Whether you need to dig, grade, level, or transport materials, this loader delivers power, precision, and flexibility. With quick-attach functionality, switching between buckets, forks, or other tools takes just minutes—saving you time on every project. From landscaping and agricultural work to industrial handling and utility maintenance, the 1050R adapts to your needs effortlessly. Its durability, ease of use, and compact size make it a smart choice for professionals looking to maximize productivity without compromising on performance. The Manitou 1050R gets the job done—anywhere, anytime.
Product Description
The Manitou 1050R Skid Steer Loader is your go-to solution for heavy-duty work in compact spaces. De...
View the full brochure
Manitou 1050R Skid Steer Loader Comparison with Similar Skid Steer Loader

Manitou 1050R Skid Steer Loader
Engine Brand
Yanmar
Engine Model
3TNV88C-KMS
Engine Power
34.20HP
Max Torque
108Nm
Rated Speed
2800rpm
Fuel Tank Capacity
39.40L
Emission Standard
Stage IIIB, Tier 4
Transmission Type
Hydrostatic
Max Travel Speed
9.50km/h
Operating Weight
1.905Ton
Rated Operating Capacity
0.476kg
Rated Operating Capacity (optional)
0.533kg
Max Tipping Load
-
Hydraulic Flow Rate
55.10L/min
Hydraulic Pressure
189.60Bar
Hydraulic System Capacity
30.30L
Max Dump Height
2.146m
Overall Width
1.229m
Overall Height
1.786m
Wheelbase
0.876 m
Ground Clearance
0.152mm
Turning Radius
-
Max Hinge Pin Height
2.746m
Max Reach At Full Height
-
Reach At Ground Level
-
Bucket Capacity
-
Loader Arm Breakout Force
-
Dump Angle
42°
Lift Path
-
Overall Length
2.746m

Gamzen 5050 Skid Steer Loader
Engine Brand
Hyundai/Cummins
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
-
Emission Standard
-
Transmission Type
-
Max Travel Speed
11.0km/h
Operating Weight
2.88Ton
Rated Operating Capacity
850kg
Rated Operating Capacity (optional)
-
Max Tipping Load
1680kg
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Hydraulic System Capacity
-
Max Dump Height
2.236m
Overall Width
1.69m
Overall Height
2.025m
Wheelbase
1.045m
Ground Clearance
203mm
Turning Radius
1.858m
Max Hinge Pin Height
2.87m
Max Reach At Full Height
0.686m
Reach At Ground Level
-
Bucket Capacity
0.5m³
Loader Arm Breakout Force
-
Dump Angle
42°
Lift Path
-
Overall Length
3.27m

Gamzen 5050 Ex Skid Steer Loader
Engine Brand
Hyundai/Cummins
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
-
Emission Standard
-
Transmission Type
-
Max Travel Speed
11.0km/h
Operating Weight
2.954194Ton
Rated Operating Capacity
-
Rated Operating Capacity (optional)
730kg
Max Tipping Load
1680kg
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Hydraulic System Capacity
-
Max Dump Height
3.274m
Overall Width
1.69m
Overall Height
2.027m
Wheelbase
1.045m
Ground Clearance
174mm
Turning Radius
1.956m
Max Hinge Pin Height
-
Max Reach At Full Height
-
Reach At Ground Level
0.817m
Bucket Capacity
0.5m³
Loader Arm Breakout Force
-
Dump Angle
42°
Lift Path
-
Overall Length
3.519m

Gamzen 8080 Skid Steer Loader
Engine Brand
Cummins
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
-
Emission Standard
-
Transmission Type
-
Max Travel Speed
11.5km/h
Operating Weight
3.32Ton
Rated Operating Capacity
1140kg
Rated Operating Capacity (optional)
-
Max Tipping Load
2280kg
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Hydraulic System Capacity
-
Max Dump Height
2.632m
Overall Width
1.805m
Overall Height
2.055m
Wheelbase
1.181m
Ground Clearance
195mm
Turning Radius
2.128m
Max Hinge Pin Height
3.225m
Max Reach At Full Height
0.544m
Reach At Ground Level
-
Bucket Capacity
0.7m³
Loader Arm Breakout Force
-
Dump Angle
38°
Lift Path
-
Overall Length
3.509m

CAT 216B Skid Steer Loader
Engine Brand
CAT
Engine Model
CAT C2.2
Engine Power
51HP
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
58L
Emission Standard
-
Transmission Type
-
Max Travel Speed
12.7km/h
Operating Weight
2.581Ton
Rated Operating Capacity
635kg
Rated Operating Capacity (optional)
-
Max Tipping Load
1270kg
Hydraulic Flow Rate
61L/min
Hydraulic Pressure
230Bar
Hydraulic System Capacity
55L
Max Dump Height
2.169m
Overall Width
1.525m
Overall Height
1.950m
Wheelbase
0.986m
Ground Clearance
195mm
Turning Radius
1.944m
Max Hinge Pin Height
2.854m
Max Reach At Full Height
0.505m
Reach At Ground Level
1.291m
Bucket Capacity
-
Loader Arm Breakout Force
1852kgf
Dump Angle
40°
Lift Path
-
Overall Length
3.233m
