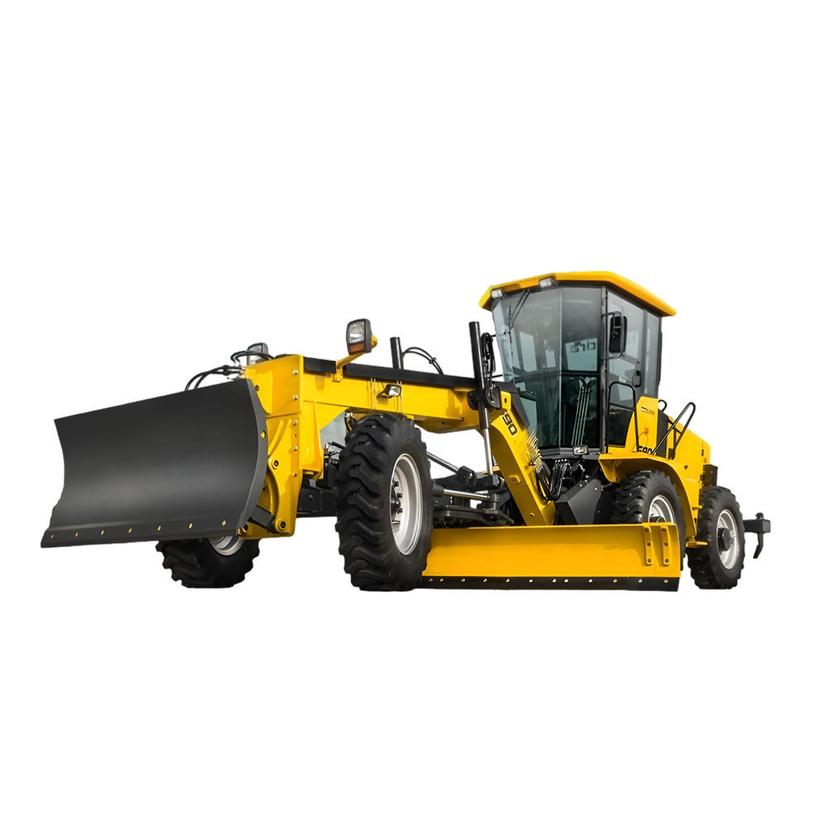

Mahindra G9595 Motor Grader
Mahindra Construction Equipment
The Mahindra Road Master G9595 Motor Grader is engineered for top performance in demanding construction environments. With a forward speed of 36.5 Kmph, it excels in large-scale road construction, ensuring quick and precise grading. Its 10000 mm turning radius makes it perfect for urban infrastructure projects, where maneuverability in confined spaces is crucial. The powerful 95 Hp engine and 401 NM torque offer exceptional capability for heavy-duty land leveling and grading tasks, including mining and quarry operations. Additionally, the 37 kmph operating weight enhances stability, making it reliable for maintaining and repairing access roads. Designed for efficiency and durability, the Mahindra RoadMaster G9595 delivers high-quality results across a variety of challenging applications.
Mahindra G9595 Motor Grader
Mahindra Construction Equipment
The Mahindra Road Master G9595 Motor Grader is engineered for top performance in demanding construction environments. With a forward speed of 36.5 Kmph, it excels in large-scale road construction, ensuring quick and precise grading. Its 10000 mm turning radius makes it perfect for urban infrastructure projects, where maneuverability in confined spaces is crucial. The powerful 95 Hp engine and 401 NM torque offer exceptional capability for heavy-duty land leveling and grading tasks, including mining and quarry operations. Additionally, the 37 kmph operating weight enhances stability, making it reliable for maintaining and repairing access roads. Designed for efficiency and durability, the Mahindra RoadMaster G9595 delivers high-quality results across a variety of challenging applications.
Product Description
The Mahindra Road Master G9595 Motor Grader is engineered for top performance in demanding construct...
View the full brochure
Mahindra G9595 Motor Grader Comparison with Similar Motor Grader
Mahindra G9595 Motor Grader
Engine Brand
Mahindra
Engine Model
BS TREM IV CEV
Engine Power
95HP
Max Torque
401Nm
Rated Speed
2200rpm
Displacement
3.532L
Fuel Tank Capacity
100L
Transmission Type
Carraro 4WD Transmission
Number Of Gears (fwd/rev)
4/2
Max Travel Speed
36.5km/h
Service Brake Type
Hydraulically actuated oil immersed disc
Parking Brake Type
Mechanically actuated Caliper Brakes
Steering Type
Power Steering
Steering Angle
45°
Oscillation Angle
15°
Turning Radius
10m
Operating Weight
9.4Ton
Front Axle Load
2668kg
Rear Axle Load
6733kg
Hydraulic Flow Rate
46L/min
Hydraulic Pressure
200Bar
Overall Length
8.594m
Overall Width
2.021m
Overall Height
3.29m
Ground Clearance
528mm
Blade Length
2.6m
Blade Height
0.516m
Max Lift Above Ground
0.395m
Max Depth Of Cut
0.3m
Blade Tilt Angle
20°
Blade Pitch Angle
40°
Blade Rotation Angle
50°
Liugong CLG 414 BSIII Motor Grader
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Transmission Type
-
Number Of Gears (fwd/rev)
-
Max Travel Speed
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius
-
Operating Weight
-
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Blade Length
-
Blade Height
-
Max Lift Above Ground
-
Max Depth Of Cut
-
Blade Tilt Angle
-
Blade Pitch Angle
-
Blade Rotation Angle
-
Sany STG210C-10 Motor Grader
Engine Brand
Cummins
Engine Model
QSB6.7
Engine Power
225HP
Max Torque
1000Nm
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
350L
Transmission Type
-
Number Of Gears (fwd/rev)
6 forward and 3 reverse
Max Travel Speed
42km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
45°
Oscillation Angle
16°
Turning Radius
7.3m
Operating Weight
15.35Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
11.1m
Overall Width
2.74m
Overall Height
3.31m
Ground Clearance
410mm
Blade Length
3.66m
Blade Height
0.62m
Max Lift Above Ground
0.48m
Max Depth Of Cut
0.63m
Blade Tilt Angle
9°
Blade Pitch Angle
25~75°
Blade Rotation Angle
360°
SDLG G9138H Motor Grader
Engine Brand
-
Engine Model
WP4.6NG150E501
Engine Power
148HP
Max Torque
640Nm
Rated Speed
2200rpm
Displacement
4.58L
Fuel Tank Capacity
-
Transmission Type
Counter shaft power shift Auto manual
Number Of Gears (fwd/rev)
6F / 3R
Max Travel Speed
39km/h
Service Brake Type
MICO single-circuit, hydraulically operated
Parking Brake Type
Mechanical control on transmission
Steering Type
Load-sensing and hydraulic steering
Steering Angle
50°
Oscillation Angle
160°
Turning Radius
6.5m
Operating Weight
13.0Ton
Front Axle Load
3700kg
Rear Axle Load
9300kg
Hydraulic Flow Rate
25L/min
Hydraulic Pressure
180Bar
Overall Length
8.12m
Overall Width
2.41m
Overall Height
3.235m
Ground Clearance
0.59mm
Blade Length
3.658m
Blade Height
0.58m
Max Lift Above Ground
0.38m
Max Depth Of Cut
0.575m
Blade Tilt Angle
90°
Blade Pitch Angle
-
Blade Rotation Angle
-
Mahindra G75 Motor Grader
Engine Brand
BS TREM IV CEV
Engine Model
RoadMaster G75 Smart
Engine Power
74HP
Max Torque
345Nm
Rated Speed
2200rpm
Displacement
3.532L
Fuel Tank Capacity
100L
Transmission Type
-
Number Of Gears (fwd/rev)
4/2
Max Travel Speed
38km/h
Service Brake Type
Foot operated hydraulically actuated oil immersed disc
Parking Brake Type
Hand operated mechanically actuated caliper brakes
Steering Type
Power Steering
Steering Angle
45°
Oscillation Angle
25°
Turning Radius
10m
Operating Weight
7.16Ton
Front Axle Load
2490kg
Rear Axle Load
4670kg
Hydraulic Flow Rate
108L/min
Hydraulic Pressure
200Bar
Overall Length
6.88m
Overall Width
2.062m
Overall Height
3.3m
Ground Clearance
472mm
Blade Length
3m
Blade Height
0.516m
Max Lift Above Ground
0.395m
Max Depth Of Cut
0.3m
Blade Tilt Angle
20°
Blade Pitch Angle
40°
Blade Rotation Angle
50°
